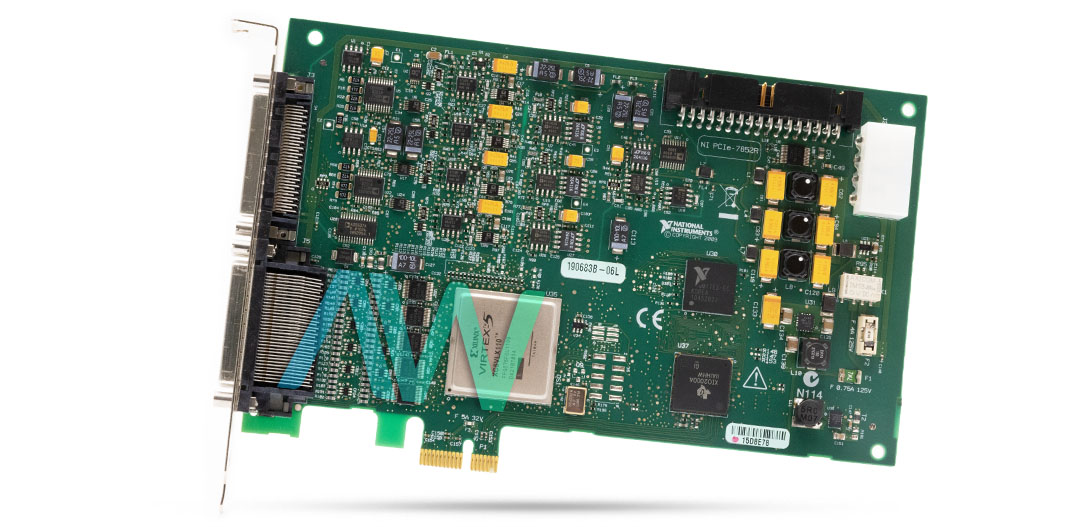

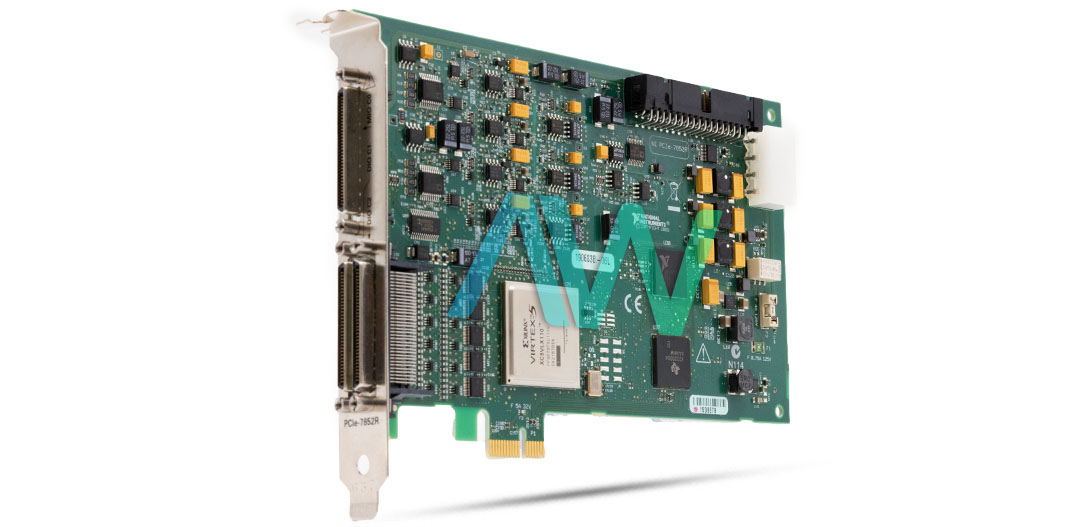

National Instruments PCIe-7852R Multifunction Reconfigurable I/O Device

The PCIe-7852R (Part number: 781103-01) is an advanced Multifunction Reconfigurable I/O Device from National Instruments. The NI PCIe-7852R incorporates eight analog input channels. This device has a conversion time of one micro-second. It also offers an exceptional sample rate for each channel, which is 750 kS per second. This model has the capability to protect the device from overvoltage in both the power on and power off states. The voltage ranges for the power on and power off states are ± 42 volts and ± 35 volts respectively.

The PCIe-7852R Multifunction Reconfigurable I/O Device also offers analog output channels; there are eight total. Their update time is one microsecond and the update rate is one MS per second. A DAC is also embedded with these channels. The value of resolution for these channels is sixteen bits. The instrument offers the slew rate of ten volts in one micro-second. The value of noise is 150 micro-volts in RMS. The glitch energy of the PCIe-7852R device is ± 200 mV for three micro-seconds. It is measured at midscale transition.

The NI PCIe-7852R Multifunction Reconfigurable I/O Device has the output voltage range of ± 10 volts. It also implements the mechanism for DC coupling at the output. It allows the flexibility to configure the power on state of the device. The NI PCIe-7852R device also includes 96 digital channels. These channels are capable to operate in bidirectional mode. It also incorporates a Virtex-5 LX50 FPGA module. It makes the module reconfigurable and programmable. The PCIe-7852R has the weight around 127 grams.

ModelPCIe-7852R
ManufacturerNational Instruments
SeriesR Series
Part Number781103-01
TypeMultifunction Reconfigurable I/O Device
FPGA TypeVirtex-5 LX50
Analog Inputs8 (16 Bits, 750 kS/s)
Analog Outputs8 (16 Bits, 1 MS/s)
Number of Flip-flops28,800
Number of 25 × 18 Multipliers48
Embedded Block RAM1,728 kbits
Digital I/O96 (TTL)
Number of DMA Channels3
Timebase40, 80, 120, 160, or 200 MHz
I/O Connectors3 68-pin Female High-Density VHDCI
Power Requirements+3.3 VDC, 12 VDC - 847 mA, 0.5 A
Dimensions6.7 in. × 4.3 in.
Weight0.28 lb.
Software DriverNI-RIO
WarrantyOne Year Warranty
PCIe-7852R ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PCIe-7852R Frequently Asked Questions



Question: Can I calibrate the PCIe-7852R and NI USB-7856R OEM using NI Calibration Executive?



Answer: You can use Calibration Executive or use the calibration utility installed with your drivers by searching “calibrate 7852 device” and running the executable to calibrate.



Question: How can I generate a specified voltage in a PCIe-7852R card?



Answer: To generate a specific voltage in a PCIe-7852R open the reference and run the FPGA before you go into the loop, then close the FPGS reference after the loop. You will do all of the reading and writing inside of the loop to generate the voltage wanted.



Question: What cable connectors are supported for the NI PCIe-7852R?



Answer: The NI SCH-68-68-RDIO is the only supported cable for the NI PCIe-7852R.



Question: What is the advantage of using a SCB-68A terminal block with the PCIe-7852R?



Answer: The advantage of using a terminal block such as the SCB-68A is its ready-to-use access to each of the cable's pins via screw terminals on the PCIe-7852R.
