Part Number PXI-7851
Manufacturer/Brand National Instruments
Description: PXI-7851, 750 kS/s, 40 MHz, PXI Multifunction Reconfigurable I/O Module
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

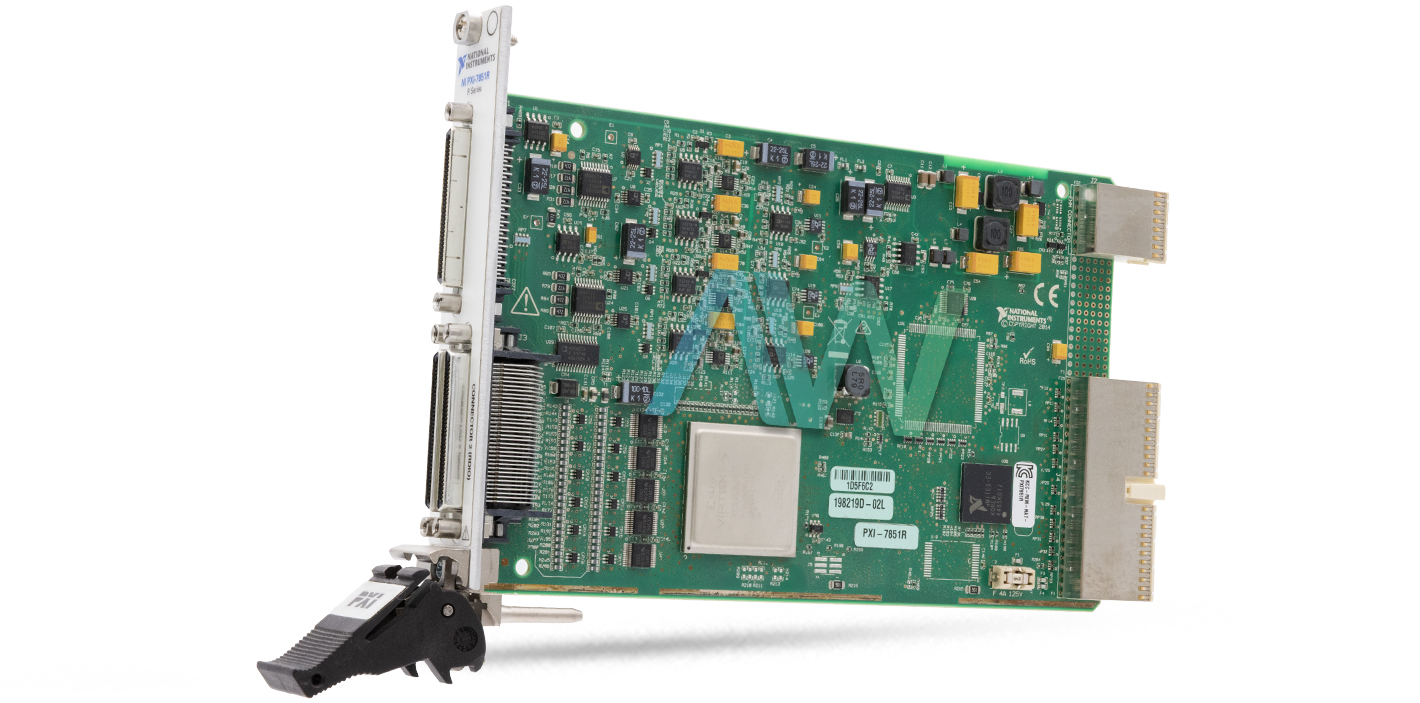

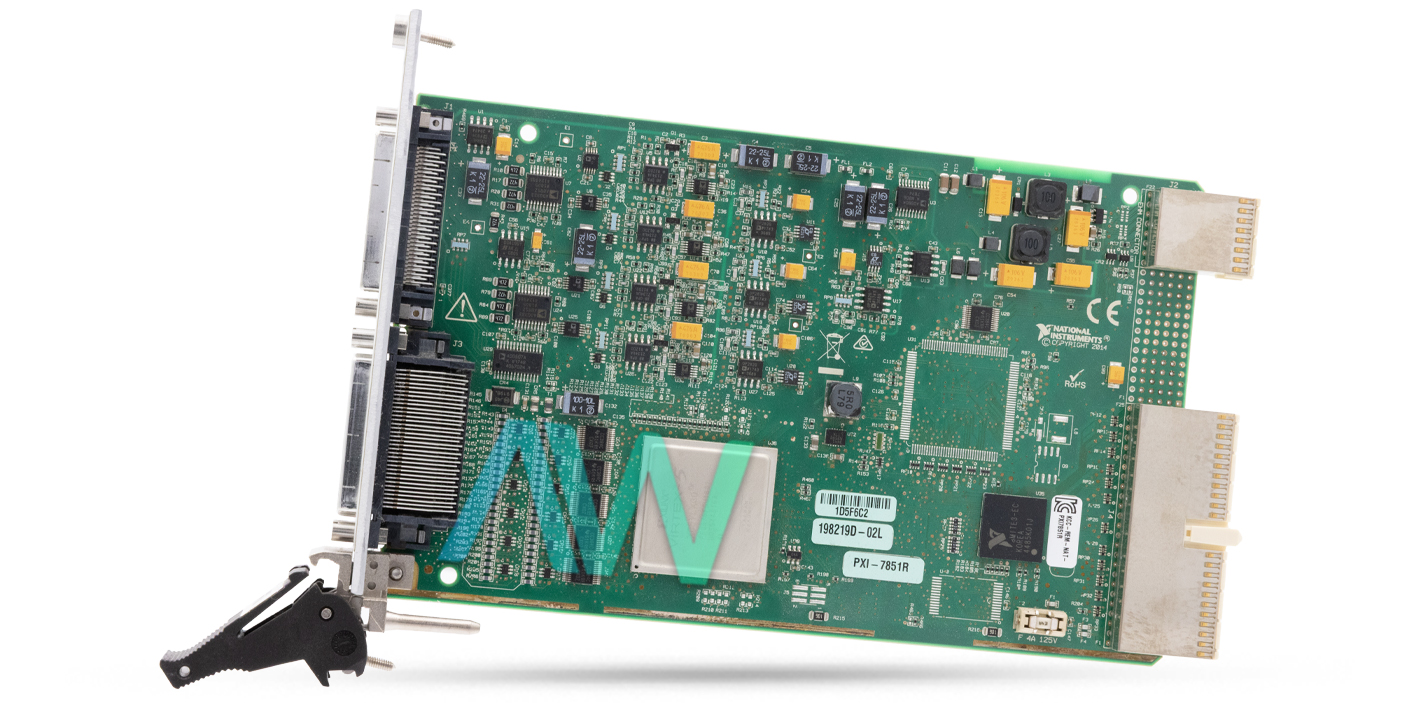

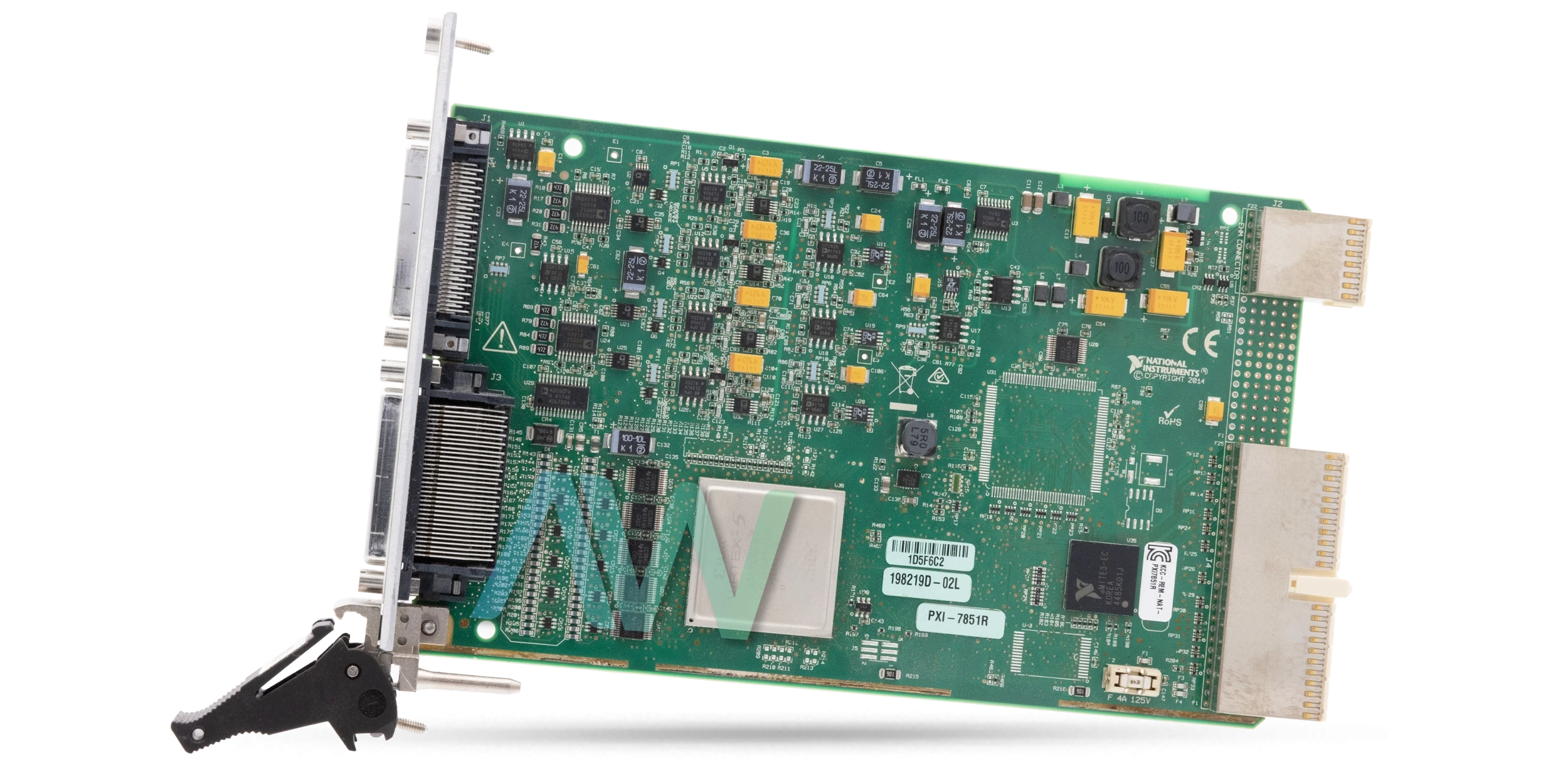

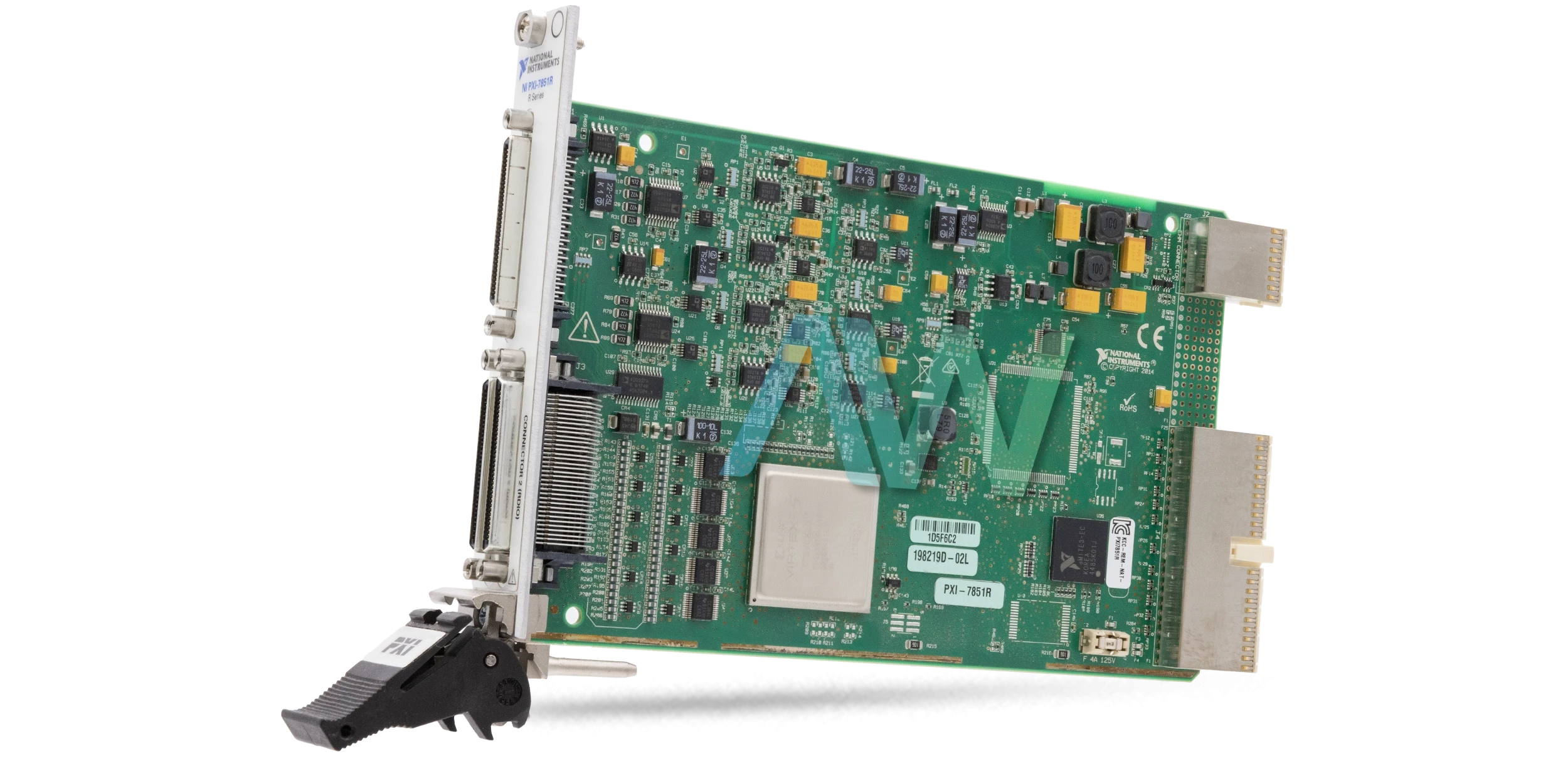

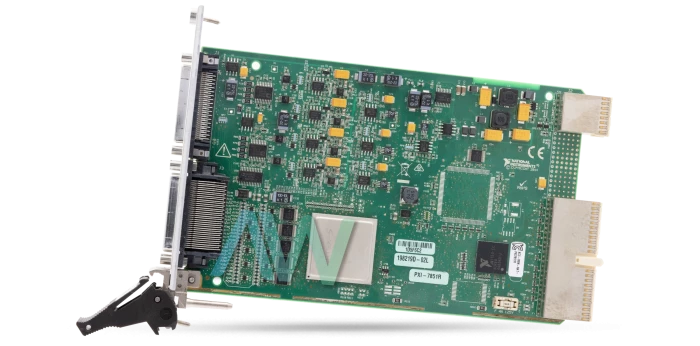

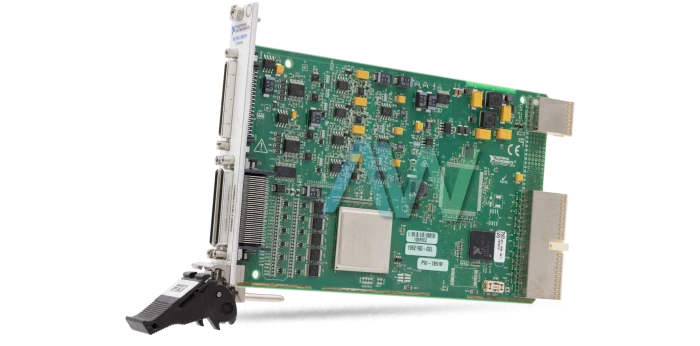

National Instruments PXI-7851 PXI Multifunction Reconfigurable I/O Module

The PXI-7851 (Part Number: 780339-01) has a client programmable FPGA for superior interior preparing and direct control of I/O signals for an entire adaptability of timing and framework synchronization. The user can redo these gadgets with the LabVIEW FPGA Module to create applications that require exact planning and control, such as equipment testing, custom correspondence convention, sensor recreation, and fast control. This model has a devoted A/D converter (ADC) per channel for autonomous planning and activating. This plan offers specific usefulness, including factor speed inspecting and singular channel activating, which are past the span of run of the mill information obtaining equipment. The device has 8 analog inputs (with a 16-bit resolution and a sampling rate of 750 kS/s), and 8 analog outputs (with a 16-bit resolution and a sampling rate of 1 MS/s). Additionally, it has 96 digital I/O lines, with 3 DMA channels.

The NI PXI-7851 Multifunction Reconfigurable I/O Module comes with an NI PXI Testing System of Analog-Digital Converter, which incorporates the key instruments to portray ADCs with resolution up to 14 bits and sample rates of 200 MS per second. The framework joins a discretionary waveform generator to create simple test examples to an ADC, rapid advanced I/O to catch ADC yields, and produce regular correspondence conventions (SPI, I2C, JTAG), a unit of estimation of Source (SMU) for normal DC parametric estimations (open/short, spillage tests), and a module for steering DC instrumentation to different test focuses. The ADC PXI Test System arrangement has the instruments the user needs to perform regular estimations on ADCs including INL, DNL, ​​SNR, THD, IDD, IDDQ and high/low voltage edge tests. Joined with NI LabVIEW programming, this arrangement can help users rapidly alter their framework to play out the particular estimations they have to portray an ADC.

The device is equipped with 3 68-pin female high density VHDCI I/O connectors. The NI device weighs 0.33 lb, and measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 °C to 55 °C.

PXI-7851 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

The PXI-7851 is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the PXI-7851 calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the PXI-7851 with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the PXI-7851!

ModelPXI-7851
ManufacturerNational Instruments
SeriesR Series
Part Number780339-01
TypePXI Multifunction Reconfigurable I/O Module
FPGA TypeVirtex-5 LX30
Analog Inputs8 (16 Bits, 750 kS/s)
Analog Outputs8 (16 Bits, 1 MS/s)
Number of Flip-flops19,200
Number of 25 × 18 Multipliers32
Embedded Block RAM1,152 kbits
Digital I/O96 (TTL)
Number of DMA Channels3
Timebase40, 80, 120, 160, or 200 MHz
I/O Connectors3 68-pin Female High-Density VHDCI
Power Requirements+3.3 VDC, 5 VDC, 12 VDC, - 12 VDC - 525 mA, 125 mA, 0.5 A, 0.25 A
Dimensions6.3 in. by 3.9 in.
Weight0.33 lb.
Software DriverNI-RIO
WarrantyThree Year Warranty
PXI-7851 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-7851:

198219A-02L, 198219B-02L, 198219C-02L, 198219D-02L, 198219E-02L, 780339-01
