PXI-7851R, Virtex-5 LX30 FPGA, Multifunction Reconfigurable I/O Module
Need an Official Quote?

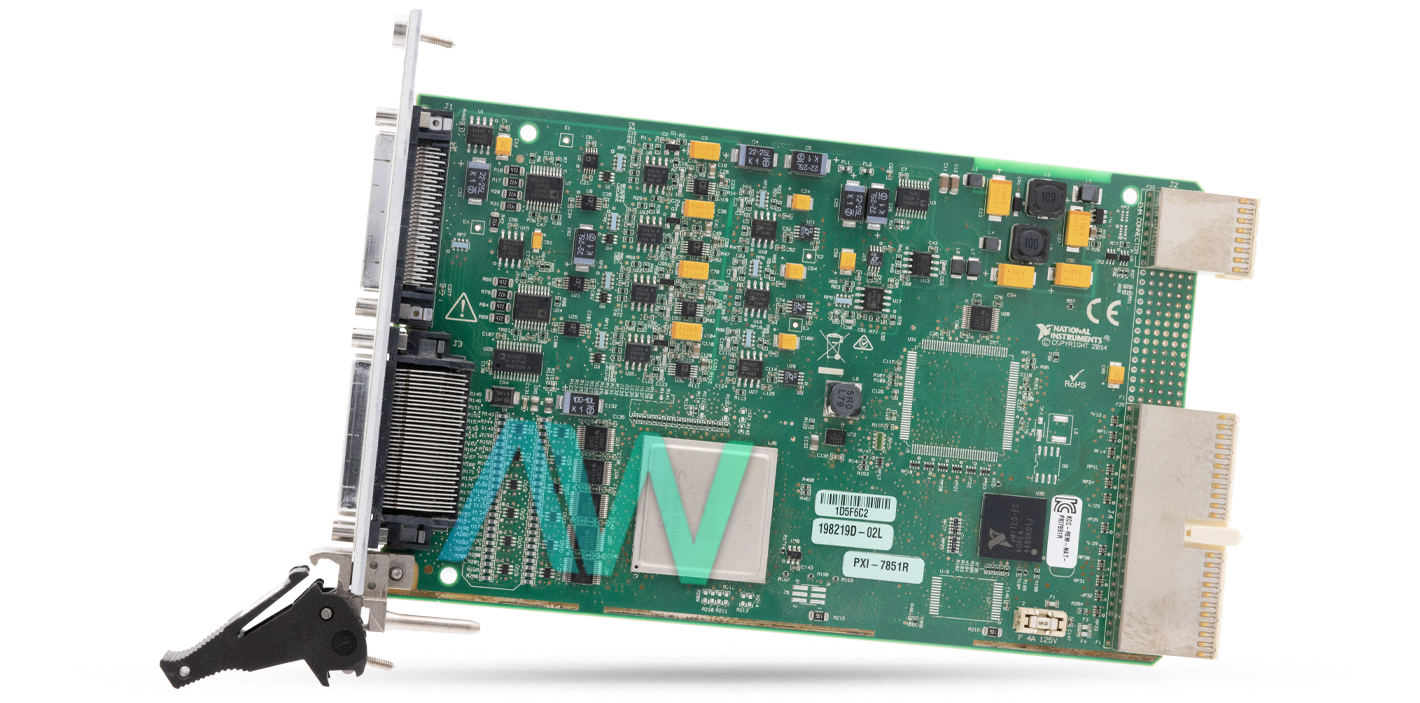

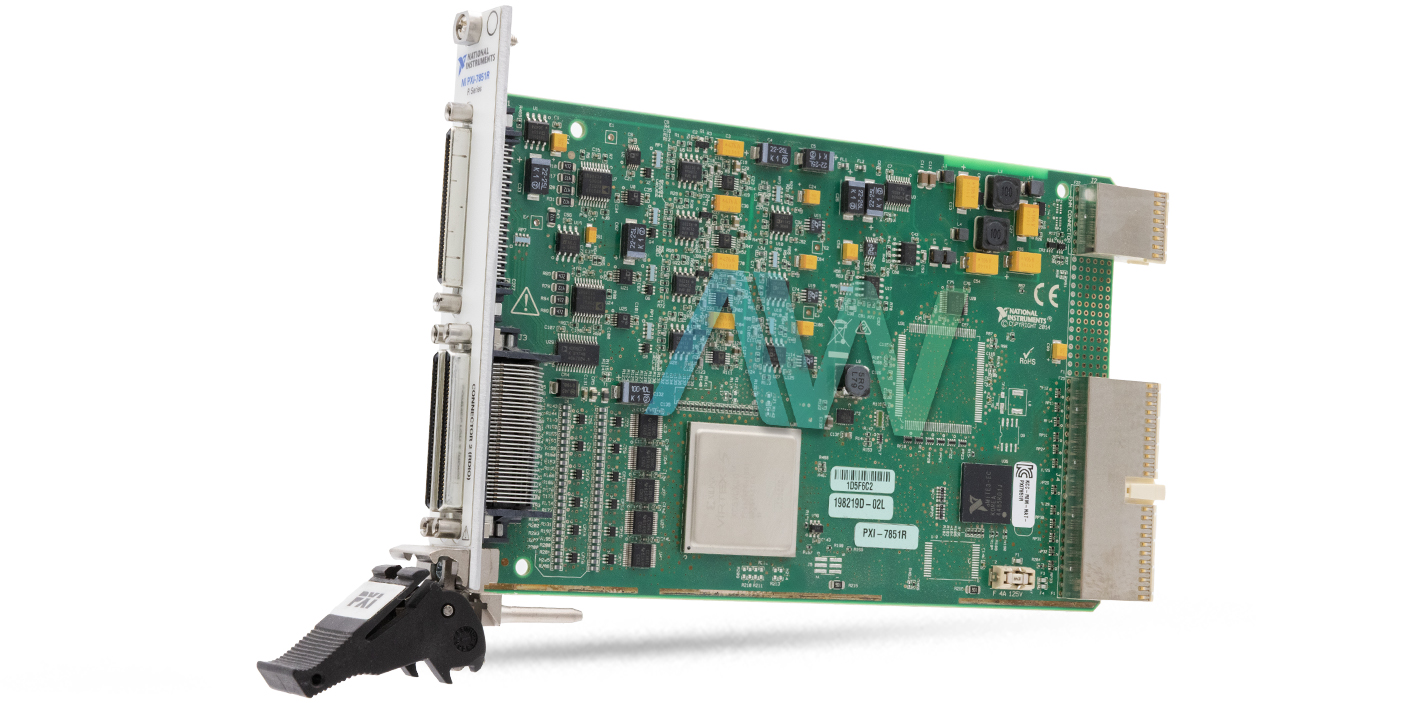

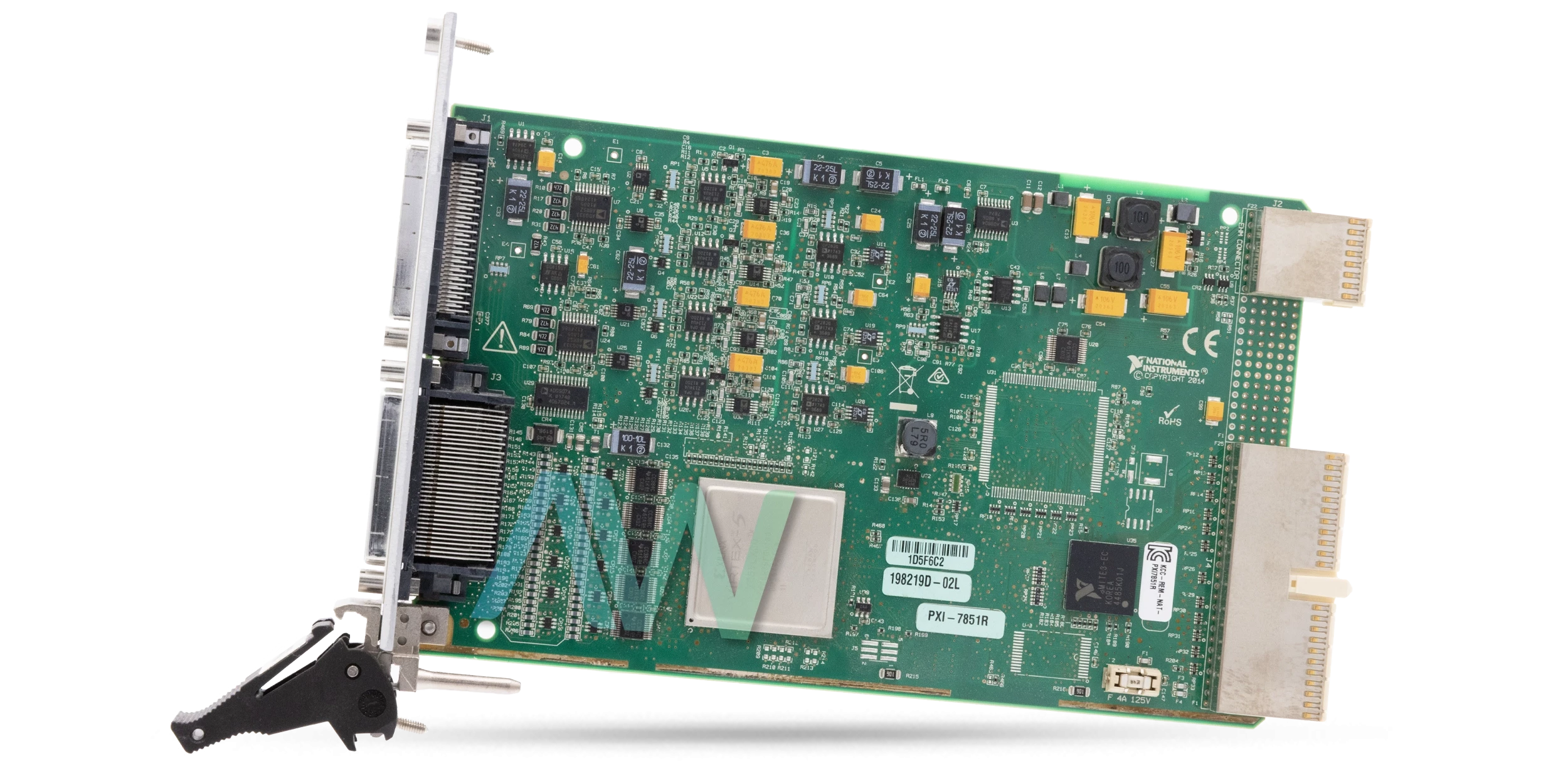

National Instruments PXI-7851R Multifunction Reconfigurable I/O Module
The National Instruments PXI-7851R (Part Number: 780339-01) is a Multifunction Reconfigurable I/O Module has a designated A/D converter or ADC for each channel. The ADC is used for independent timing and triggering. Features such as multirate sampling and separate channel triggering are available on this module, which are features not usually found on data acquisition hardware. The PXI-7851R has eight separate analog input channels, eight separate analog output channels, and 96 bidirectional DIO lines that the user can arrange separately for output or input. The FPGA on this National Instruments module is a Virtex-5 LX30.
For the PXI-7851R Multifunction Reconfigurable I/O Module, the bipolar output range is set at ±10 V. Certain applications involve the analog output channels powering on to recognized voltage levels. The user can arrange the PXI-7851 to load and run a VI when the module turns on. Then, the VI can designate the analog output channels to the necessary voltage levels. The VI reads information written to the DAC in two’s complement arrangement. An important note to remember is that if the VI does not designate the output value for an analog output channel, then the analog output channel’s voltage output will remain unspecified.
The National Instruments PXI-7851R module also has a replaceable fuse, which prevents overcurrent from occurring through the power connector. The part number is 0453004. To replace a blown fuse, the user can refer to the R Series user manual, which is available on the apexwaves.com website, for step-by-step instructions and diagrams.
PXI-7851R Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
Model | PXI-7851R |
---|---|
Manufacturer | National Instruments |
Part Number | 780339-01 |
Series | R Series |
Type | Multifunction Reconfigurable I/O Module |
FPGA | Virtex-5 LX30 |
Maximum Sample Rate | 750 kS/s |
Channels | 8 AI, 8 AO, 96 digital |
Warranty | 2-3 Year Warranty |
PXI-7851R Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated NSNs for the PXI-7851R:
5998016231798, 5998-01-623-1798 (5998016231798)
National Instruments PXI-7851R Frequently Asked Questions
Question: Does the PXI-7851R have a dedicated A/D converter?
Answer: Yes, the PXI‑7851R features a dedicated A/D converter (ADC) per channel.
Question: What is the maximum that the independent sampling rates can do on the PXI 7851R?
Answer: On the PXI 7851R, there are up to 8 analog inputs with independent sampling rates up to 750 kHz.
Question: What is the resolution on the NI PXI-7851R inputs?
Answer: The resolution on the NI PXI-7851R is 16-bit.
PXI-7851R PDF Manuals
GETTING STARTED WITH R SERIES MULTIFUNCTION RIO.PDF
NI 78XXR PINOUT LABELS FOR THE SCB 68 NOTE TO USERS.PDF
NI 78XXR PINOUT LABELS FOR THE SCB 68A NOTE TO USERS.PDF
NI R SERIES CALIBRATION PROCEDURE.PDF
NI R SERIES INTELLIGENT DAQ USER MANUAL.PDF
NI R SERIES MULTIFUNCTION RIO SPECIFICATIONS.PDF
NI R SERIES MULTIFUNCTION RIO USER MANUAL.PDF
PXI 7841R 42R 51R 52R LETTER OF VOLATILITY.PDF
Why Buy From Apex Waves:
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXI-7851R
Modular Systems > National Instruments > R Series
PXI-7851R, Virtex-5 LX30 FPGA, Multifunction Reconfigurable I/O Module
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

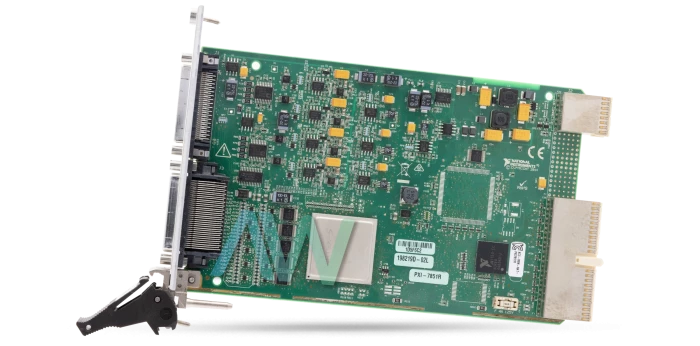

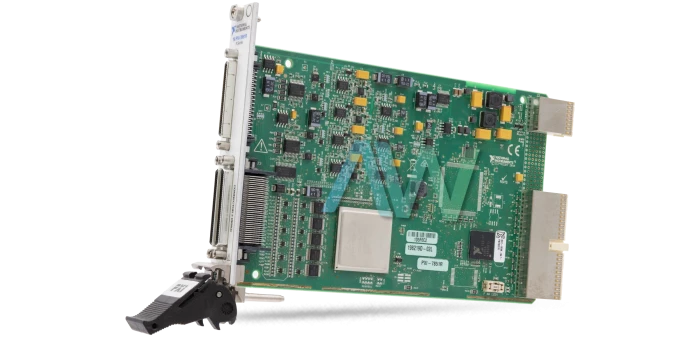

National Instruments PXI-7851R Multifunction Reconfigurable I/O Module
