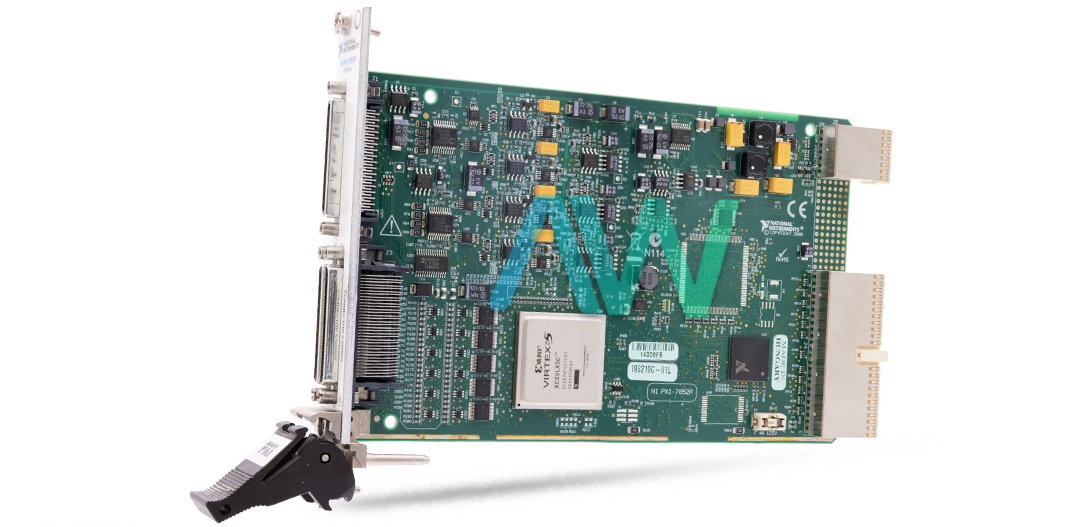

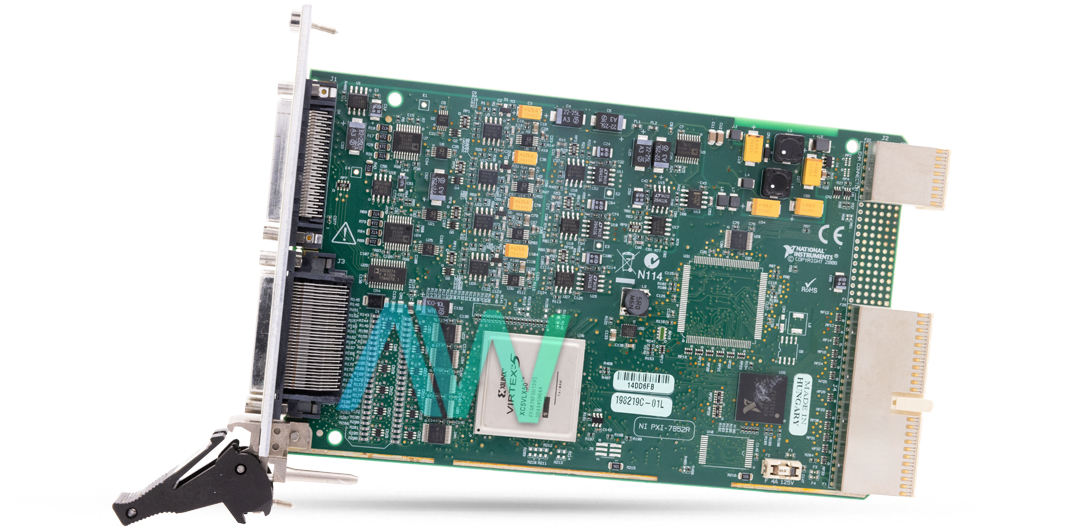

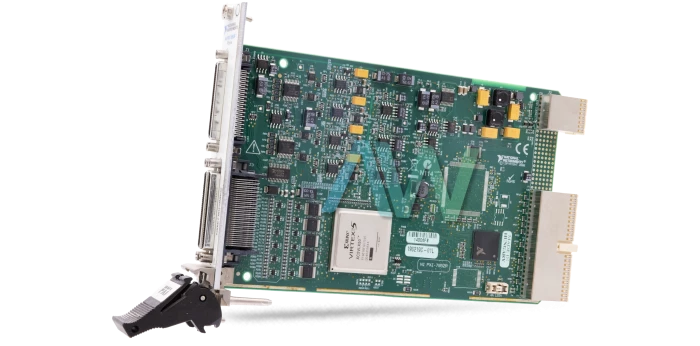

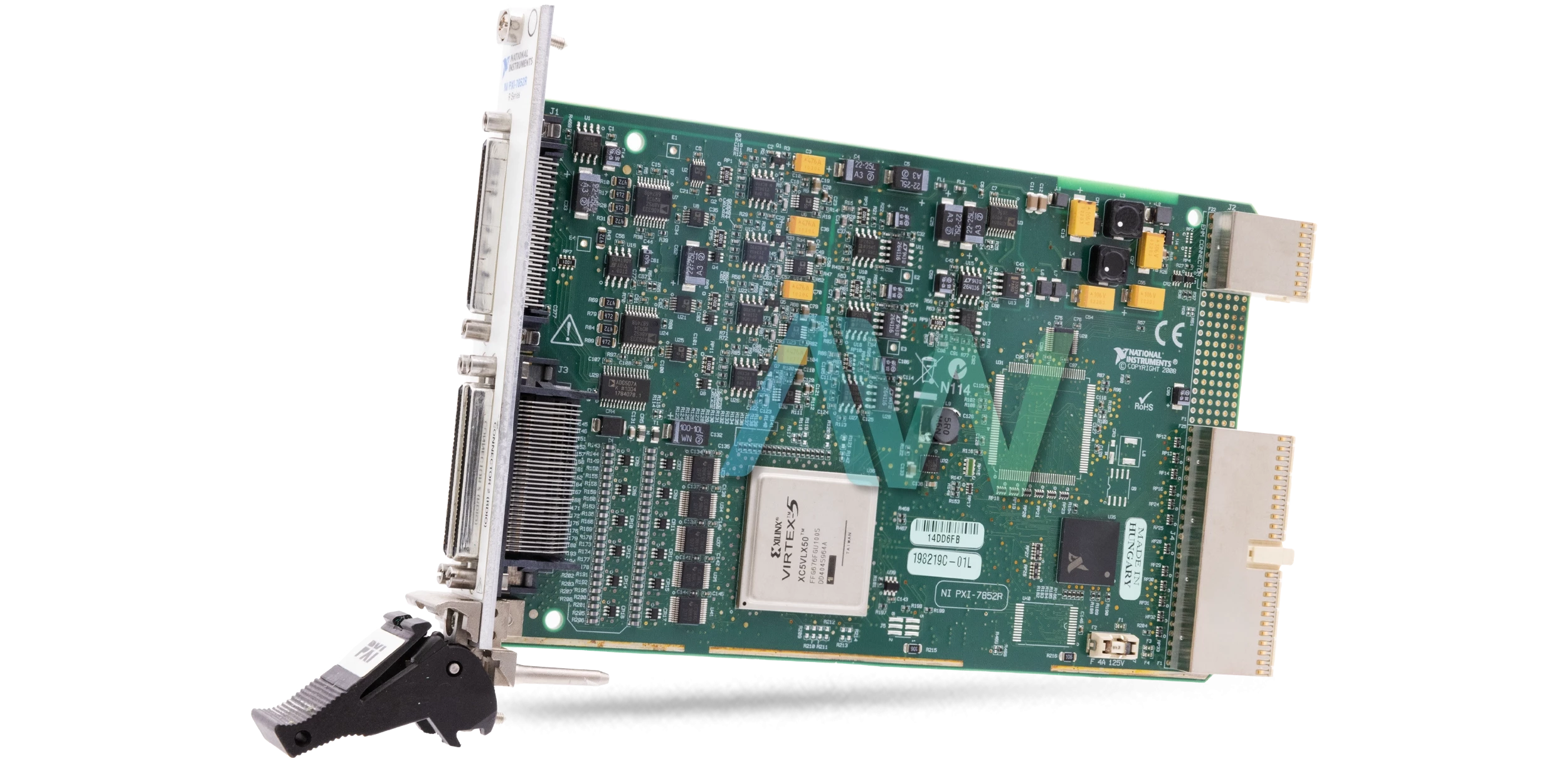

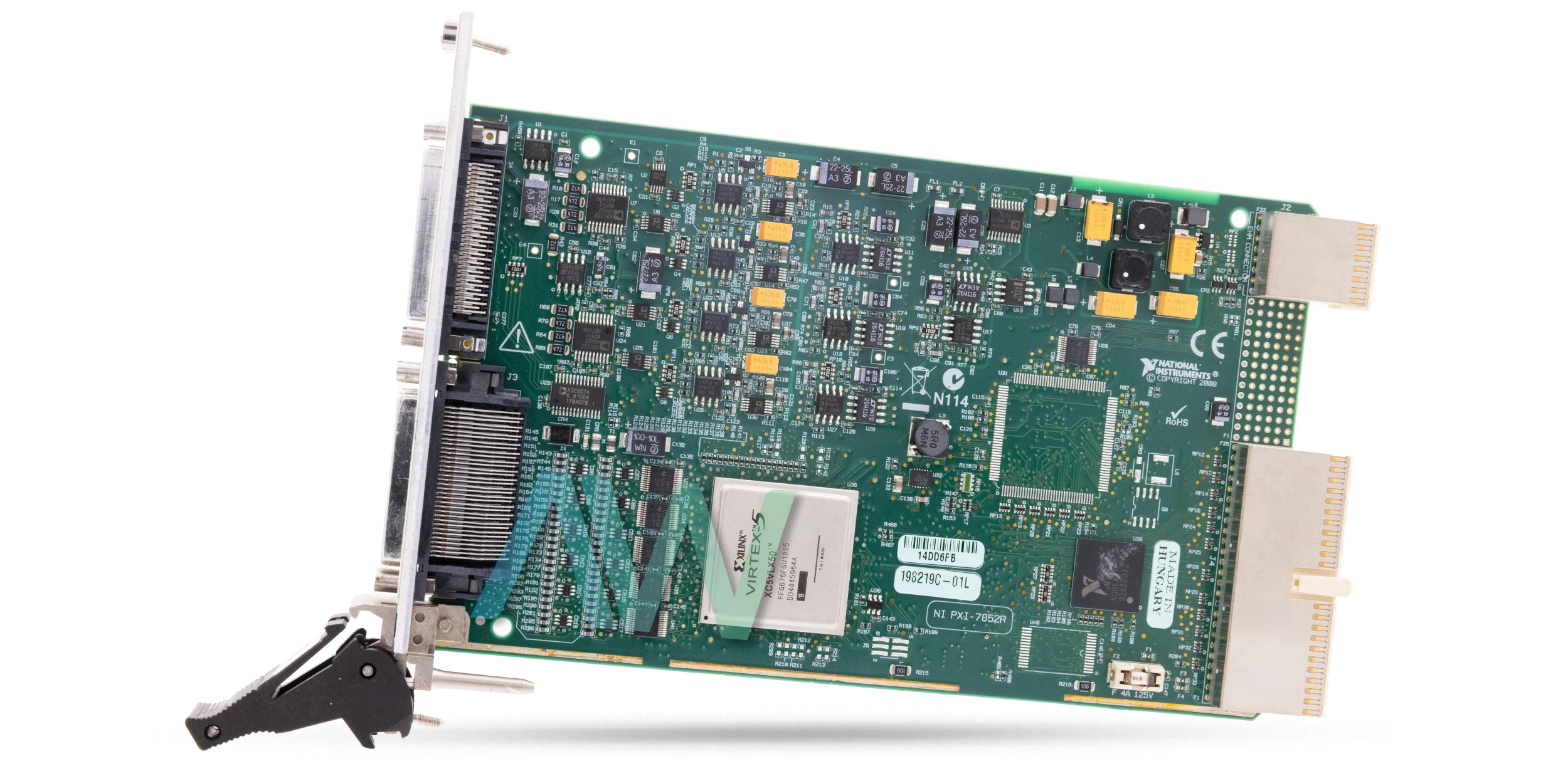

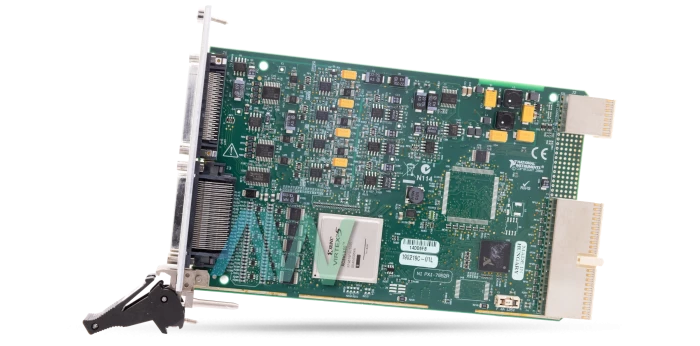

PXI-7852 National Instruments PXI Multifunction Reconfigurable I/O Module | Apex Waves | Image PXI-7852 National Instruments PXI Multifunction Reconfigurable I/O Module | Apex Waves | ImagePXI-7852PXI-7852 | Legacy, Refurbished and New Surplus
PXI-7852 National Instruments PXI Multifunction Reconfigurable I/O Module | Apex Waves | Image
PXI-7852 National Instruments PXI Multifunction Reconfigurable I/O Module | Apex Waves | Image
PXI-7852 New
PXI-7852 | Legacy, Refurbished and New Surplus

PXI-7852

4.9/5 | 9 ratings

Modular Systems > National Instruments > R Series

Part Number PXI-7852
Manufacturer/Brand National Instruments
Description: PXI-7852, Virtex-5 LX50 FPGA, Multifunction Reconfigurable I/O Module
In Stock | Ships 3-5 Days
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments PXI-7852 PXI Multifunction Reconfigurable I/O Module

The PXI-7852 (Part Number: 780340-01) comes with FPGAs that are timed at moderate rates contrasted with CPUs and GPUs, yet they compensate for the distinction in clock rate with specific hardware that can play out numerous, consecutive, and parallel activities inside a solitary clock cycle. The user can join the huge parallel programming highlights related with FPGAs with the tight I/O reconciliation on NI RIO gadgets for higher throughput, more noteworthy determinism, and quicker reaction times to handle fast spilling, digital signal preparing (DSP), control, and computerized convention applications. When the user utilizes standard LabVIEW programming procedures in LabVIEW FPGA, they will get the greater part of the advantages of the FPGA-based approach. Propelled applications may need to push the framework much further on at least one of these related measurements: throughput, timing, assets, and numerical exactness. These measurements are frequently interconnected. Enhancing a plan by concentrating on one of these measurements can frequently influence the others, some of the time emphatically, however regularly to the detriment of another measurement. For instance, if the user centers around throughput, their outline may bomb some other planning necessity. Therefore, the user has to comprehend these measurements and how they identify with each other.

The NI PXI-7852 module includes throughput, which is a key worry for DSP and information handling applications. Innovation headways in correspondence, producing, medicinal, aviation and barrier, and logical estimation frameworks prompt expanding measures of information that must be handled in shorter measures of time.

PXI-7852 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-7852
ManufacturerNational Instruments
SeriesR Series
Part Number780340-01
TypePXI Multifunction Reconfigurable I/O Module
FPGA TypeVirtex-5 LX50
Analog Inputs8
Analog Outputs8
Number of Flip-flops28,800
Number of 25 × 18 Multipliers48
Embedded Block RAM1,728 kbits
Digital I/O96 (TTL)
Number of DMA Channels3
Timebase40, 80, 120, 160, or 200 MHz
I/O Connectors3 68-pin Female High-Density VHDCI
Power Requirements+3.3 VDC, 5 VDC, 12 VDC, - 12 VDC - 604 mA, 136 mA, 0.5 A, 0.25 A
Dimensions6.3 in. by 3.9 in.
Weight0.33 lb.
Software DriverNI-RIO
WarrantyOne Year Warranty
PXI-7852 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-7852 Frequently Asked Questions



Question: How do you customize the NI PXI-7852?



Answer: The NI PXI-7852 can be customized with the LabVIEW FPGA Module.



Question: How many DMA channels are available on the NI PXI 7852?



Answer: The NI PXI 7852 has 3 DMA channels for high-speed data streaming.



Question: How do I get the data from the PXI-7852 FPGA to the post processing stage?



Answer: To communicate with an FPGA, you need to use a target-to-host FIFO on your FPGA. Allocate enough memory on your PC to buffer the transferred data, then read the target-to-host FIFO consistently on the PC side to keep it empty.
