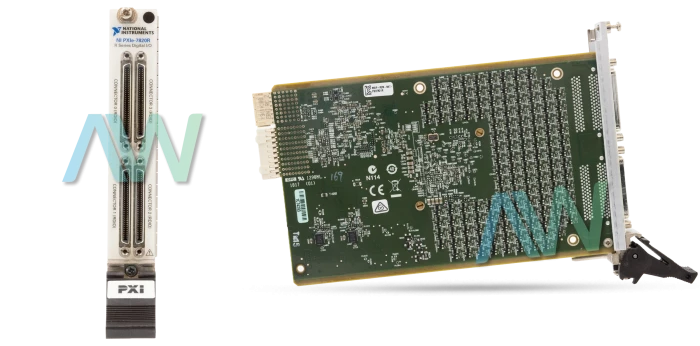

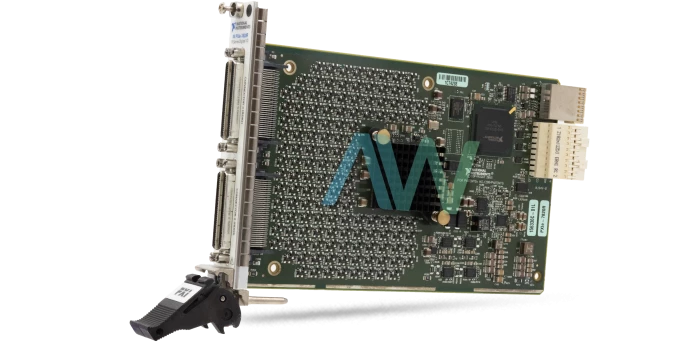

PXIe-7820 National Instruments PXI Digital Reconfigurable I/O Module | Apex Waves | Image
PXIe-7820 National Instruments PXI Digital Reconfigurable I/O Module | Apex Waves - Wiring Diagram I
PXIe-7820 New
PXIe-7820 | Legacy, Refurbished and New Surplus

PXIe-7820

4.7/5 | 7 ratings

Modular Systems > National Instruments > R Series

Part Number PXIe-7820
Manufacturer/Brand National Instruments
Description: PXIe-7820, 128 DIO, PXI Digital Reconfigurable I/O Module
Lowest Price Guarantee
Fast Quote
Quoted Price
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

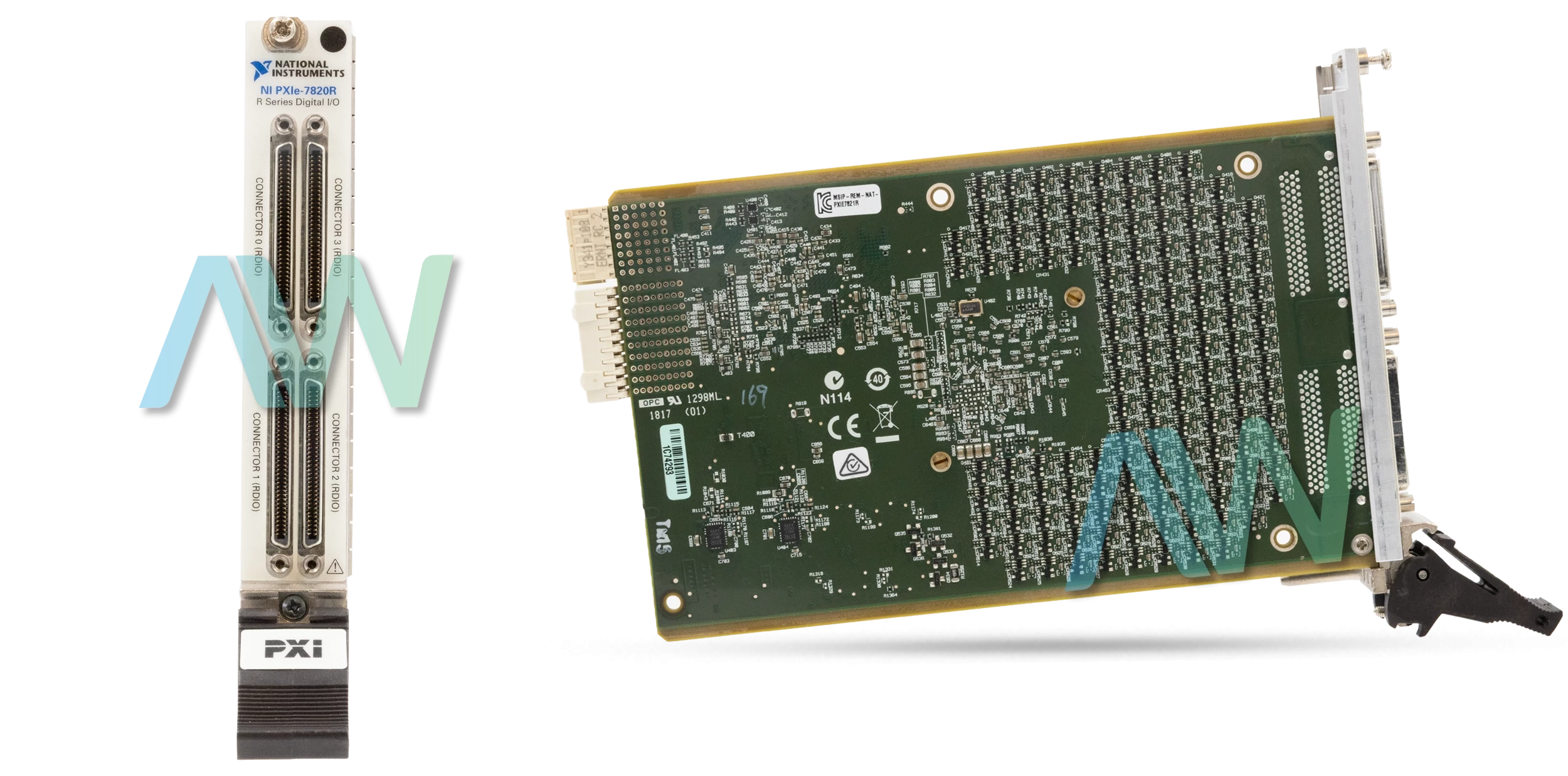

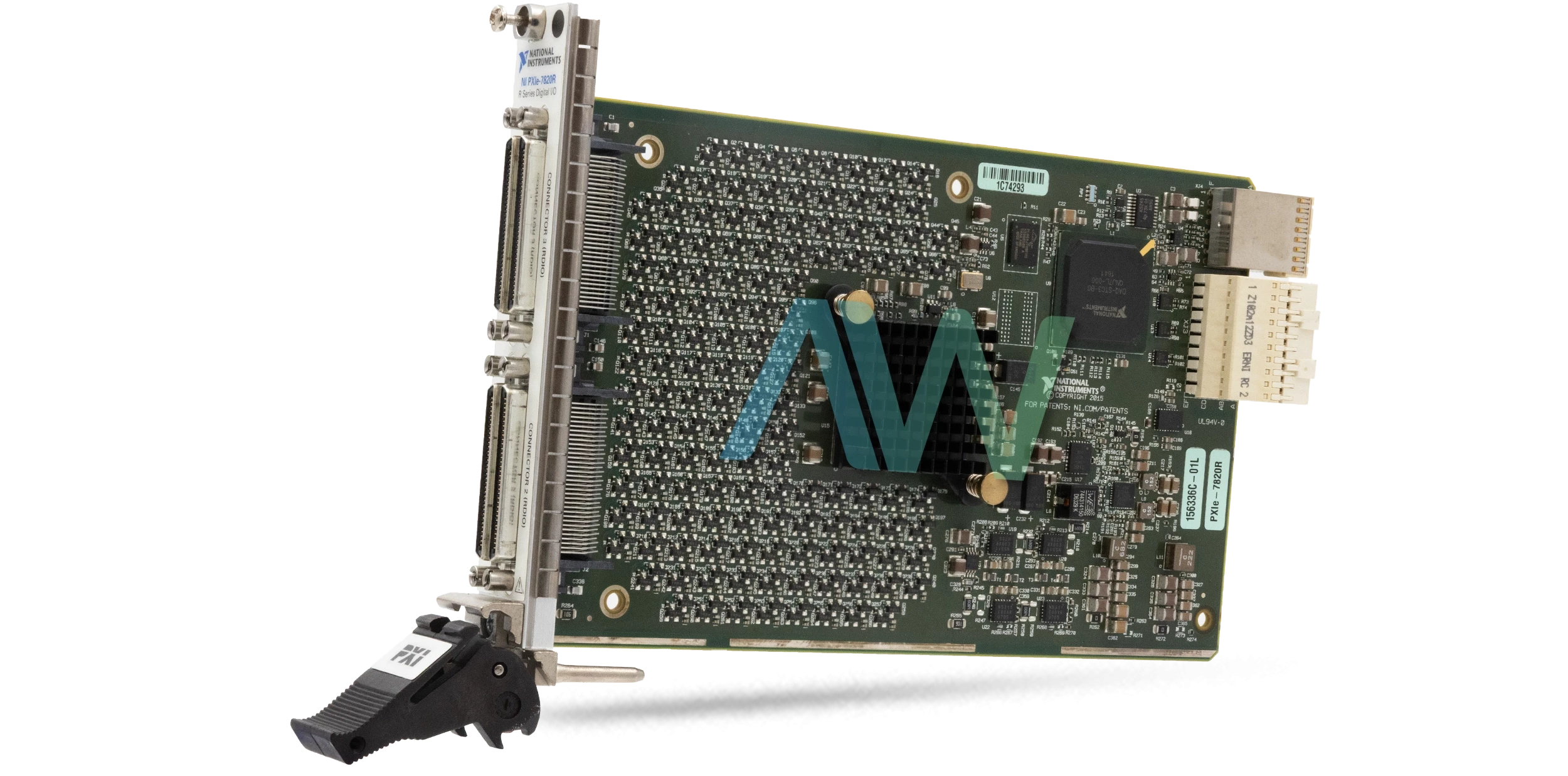

National Instruments PXIe-7820 PXI Digital Reconfigurable I/O Module

The PXIe-7820 (Part Numbers: PXIe-7820R and 783484-01) is a PXI Digital Reconfigurable I/O Module with 128 DIO and an FPGA Kintex 7 160T. The FPGA is programmable by the client for inside processing and adaptable I/O activity. With LabVIEW FPGA, the user can separately design digital lines, such as inputs, outputs, counters/clocks, PWMs, encoder inputs, or specialized communication protocols. The user can also plan an internal decision that keeps running with hardware-based speed and dependability. Each line offers logical levels selectable by software. The NI PXIe-7820 supports "peer-to-peer streaming" for direct data transfer between PXI modules.

The PXIe-7820 is perfect for a wide assortment of utilizations, which includes: rapid waveform generation, sensor reenactment, hardware-in-the-loop (HIL) testing, custom communication protocols, error range testing in bits, and different applications that require exact timing and control. The NI PXle 7820 combines high-speed estimation and the rapid interfacing of PXIe. Besides, the mix of various capacities in a single gadget diminishes the requirement for extra components, such as cabling and network units in the test setup. This additionally can lessen the test times of the application.

This Digital Reconfigurable I/O Module also offers direction control of digital I/O channels per channel, minimum I/O pulse width of 6.25 ns, minimum testing period of 5 ns, external clock direction input into gadget, maximum input leakage of ± 15 μA, and characteristic impedance 50 Ω power-on state Tristate 1 (tristate by default of 2 NI recommends limiting long-term over/under-voltage exposure to the Digital I/O).

ModelPXIe-7820
Part NumbersPXIe-7820R and 783484-01
ManufacturerNational Instruments
TypePXI Digital Reconfigurable I/O Module
Bidirectional Digital Channels128
FPGAKintex-7 160T
External Clock Inputs4
Dimensions6.3 x 3.9 in.
Weight0.403 lb.
WarrantyOne Year Warranty
PXIe-7820 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-7820 Frequently Asked Questions



Question: What is the maximum clock rate for the PXIe-7820?



Answer: The PXIe-7820 has a maximum clock rate of 80 MHz.



Question: What is the Dynamic RAM (DRAM) size for the NI PXIe-7820?



Answer: The DRAM size for the NI PXIe-7820 is 0 MB.



Question: What type of I/O connectors are on the PXIe-7820?



Answer: The PXIe-7820 has x4 68-pin, female, high-density VHDCI I/O connectors.



Question: What is the compatibility for the digital I/O lines on the NI PXIe-7820?



Answer: The digital I/O lines on the NI PXIe-7820 have compatibility with LVTTL and LVCMOS.
