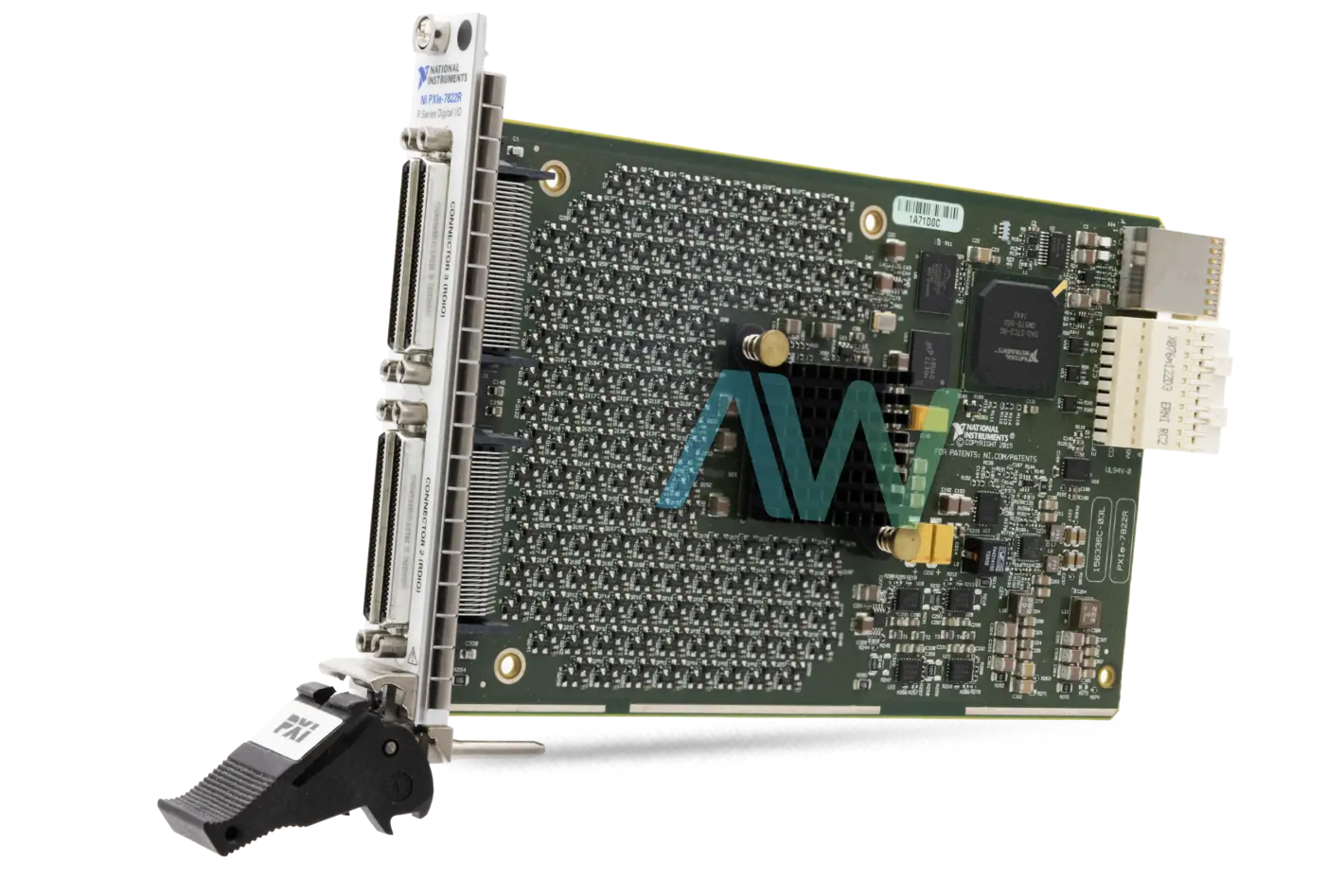

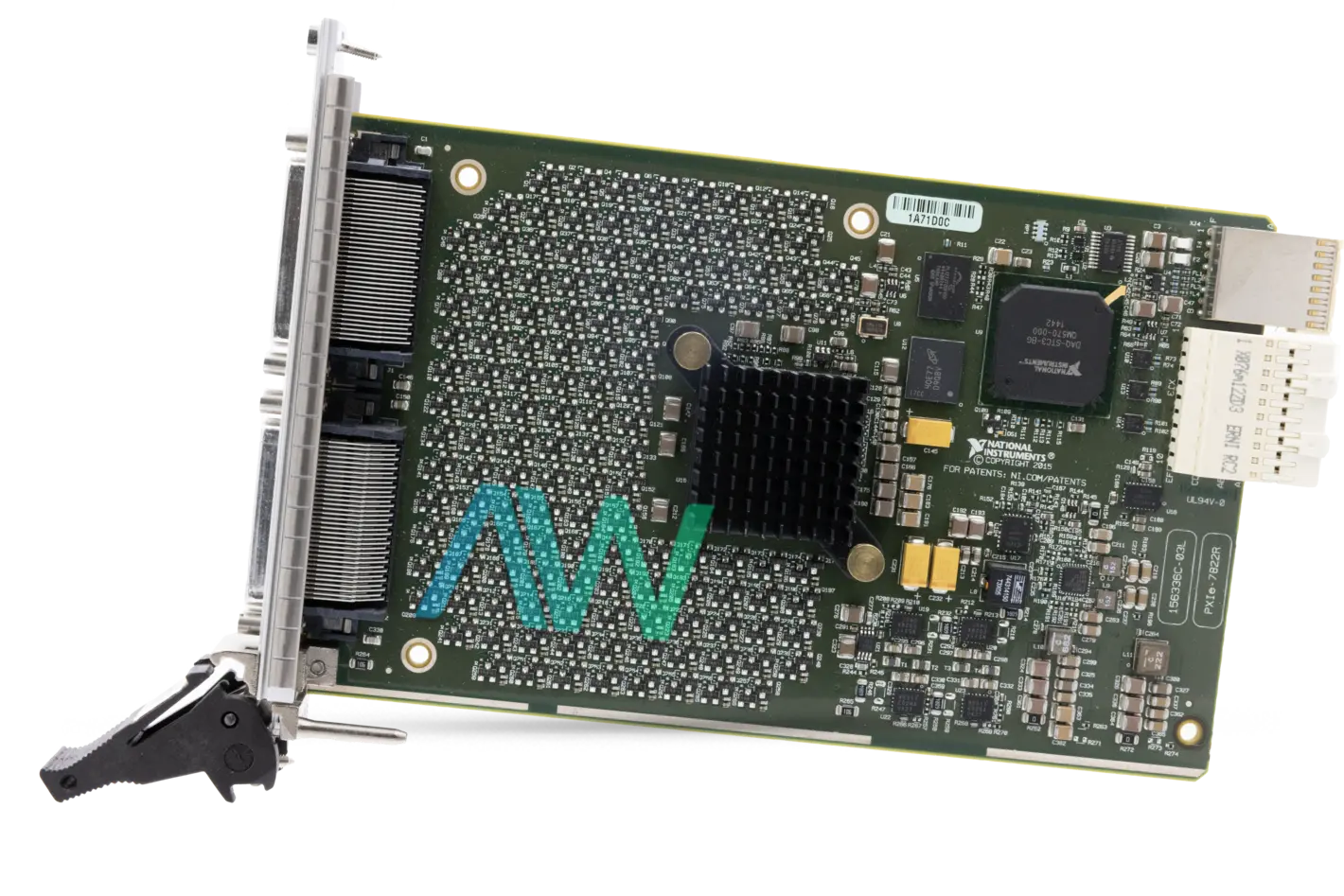

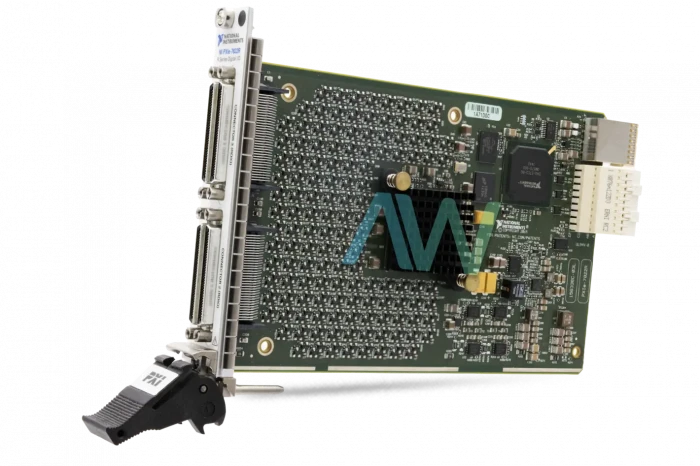

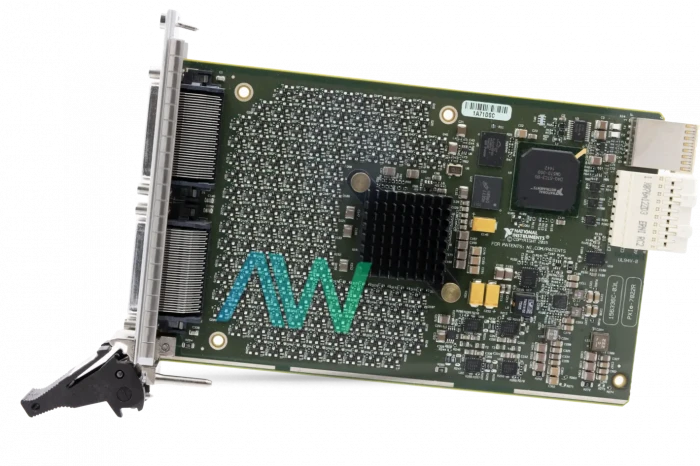

National Instruments PXIe-7822R PXI Digital Reconfigurable I/O Module

The PXIe7822R (Part Number: 783486-01) can be utilized with the LabVIEW FPGA Module. When the user plays out any sort of output and input (I/O), think about how conceivable it is that mistakes may happen. All I/O capacities return error data, incorporate mistake checking in VIs, particularly for I/O activities (record, serial, instrumentation, information procurement, and correspondence), and give a system to deal with errors properly. Since LabVIEW naturally handles memory administration, the user has less control over when memory is designated or deallocated. If the user’s VI works with extensive arrangements of information, then they must comprehend when memory portion happens. Understanding the standards included can enable the user to compose VIs with smaller memory prerequisites. Limiting memory use can enable users to build the speed at which VIs run.

In the NI PXIe-7822R, the dataflow execution makes overseeing memory simpler than the control stream model of execution. In LabVIEW, the user does not distribute factors or dole out qualities to them. Rather, the user makes a square chart with wires that speak to the progress of information. VIs and capacities that produce information naturally designate the memory for that information. When the VI or capacity never again utilizes the information, LabVIEW deallocates the related memory. When the user adds new data to a cluster or a string, LabVIEW assigns sufficient memory to deal with the new data. When the user connects units with a question, they can wire just protests that have perfect units. If the user wires two articles with contrary units, LabVIEW restores a mistake.

ModelPXIe-7822R
ManufacturerNational Instruments
SeriesR Series
Part Number783486-01
TypePXI Digital Reconfigurable I/O Module
FPGA TypeKintex-7 325T
Onboard DRAM1 Bank; 512 MB
Number of Flip-flops202,800
Number of DSP48 Slices600
Embedded Block RAM11,700 kbits
Digital I/O128
Number of DMA Channels16
Timebase40 MHz, 80 MHz, 120 MHz, 160 MHz, or 200 MHz
I/O Connectors4 × 68-pin Female High-Density VHDCI
Power Requirements+3.3 VDC, 12 VDC - 03 A, 02 A
Dimensions6.3 in. x 3.9 in.
Weight0.403 lb.
Software DriverNI-RIO
WarrantyOne Year Warranty
PXIe-7822R ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-7822R Frequently Asked Questions



Question: What are the number of channels per connector on the PXIe-7822R?



Answer: The PXIe-7822R has 32 channels per connector.



Question: How many I/O connectors are on the NI PXIe-7822R?



Answer: There are four 68-pin female high-density VHDCI type connectors on the NI PXIe-7822R.



Question: What device drivers need to be installed on my PC before I install the PXIe-7822R?



Answer: You need the NI-RIO Device Drivers from February 2015 or later to install the PXIe-7822R.
