National Instruments PXIe-7857R PXI Multifunction Reconfigurable I/O Module
The PXIe-7857R (Part number: 784146-01) is a Multifunction Reconfigurable I/O Module created by National Instruments. This model offers a combination of analog and digital I/O channels in a single device. The PXIe-7857R features the flexibility of system timing and supports synchronization. An FPGA chipset is installed in the PXIe-7857R. This module is customizable with the FPGA module. The PXIe-7857R can perform individual triggering and timing on all channels. A separate ADC is featured on each channel for this purpose. This feature also supports multi-rate sampling for different channels. This module can interface with other PXI Express devices and can directly transfer the data to these devices.
The PXIe-7857R Multifunction Reconfigurable I/O Device provides 8 AI channels. The input channels feature a SAR ADC. The ADC resolution of the module is 16 bits. The PXIe-7857R can sample data at a maximum rate of 1 MS/sec. This model supports different voltage range options for input signals. The supported ranges are +10 V, +5 V, +2 V, and +1V. The device can sustain up to +42 V without getting damaged. The PXIe-7857R also features eight single-ended AO channels. The output type of these channels is voltage. The PXIe-7857R can update the AO channels at a rate of 1 μs. The impedance of the AO channels is 0.5 Ω. The AO channels have protection up to +15V.
The PXIe-7857R device incorporates 48 DIO channels. These channels are compatible with the TTL and CMOS family. The digital channels of the PXIe-7857R are individually programmable. The DIO channels also support five programmable logic levels.
| Model | PXIe-7857R |
|---|---|
| Manufacturer | National Instruments |
| Series | R Series |
| Part Number | 784146-01 |
| Type | PXI Multifunction Reconfigurable I/O Module |
| FPGA Type | Kintex-7 160T |
| Analog Inputs | 8 (16 Bits, 1 MS/s) |
| Analog Outputs | 8 (16 Bits, 1 MS/s) |
| Number of Flip-flops | 202,800 |
| Number of DSP48 Slices | 600 |
| Embedded Block RAM | 11,700 kbits |
| Onboard DRAM | 1 Bank; 512 MB |
| Digital I/O | 48 |
| Number of DMA Channels | 16 |
| Timebase | 40, 80, 120, 160, or 200 MHz |

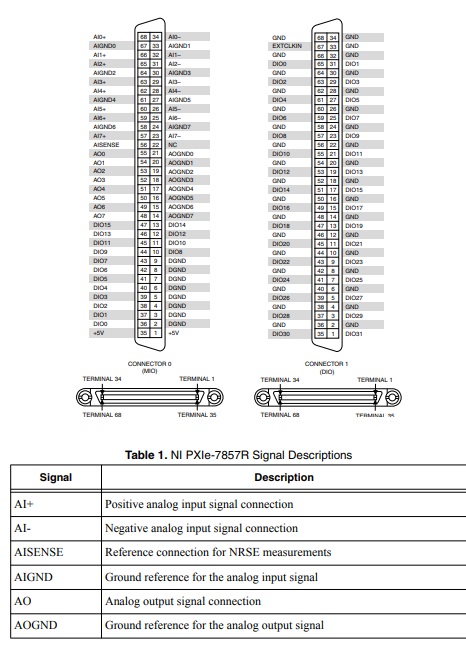

| I/O Connectors | 2 × 68-pin VHDCI |
| Power Requirements | +3.3 VDC, +12 VDC - 03 A, 02 A |
| Dimensions | 7.3 in. × 6.8 in. × 1.4 in. |
| Weight | 0.37 lb. |
| Software Driver | NI-RIO |
| Warranty | One Year Warranty |
| PXIe-7857R Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXIe-7857R Frequently Asked Questions
Question: What is the large signal bandwidth on the PXIe-7857R?
Answer: The large signal bandwidth for the PXIe-7857R is 500 kHz.
Question: I have a NI PXIe-7857R device. Can I use the NI CB-68LP or the NI CB-68LPR connector blocks to create connections with my Reconfigurable I/O Module?
Answer: The NI PXIe-7857R device is not compatible with the CB-68LP or CB-68LPR because they are unshielded I/O accessories and the PXIe-7857R requires noise rejecting and shielded I/O connector blocks.
Question: With the PXIe-7857R, is it possible to set up a DAQ task so that all the analog data will be streamed back to the host, instead of having to write FPGA code to use a DMA FIFO to stream the data back?
Answer: A DAQ task is not compatible with the PXIe-7857R. If you do not need preprocessing on the FPGA, then you can stream the data simple through DMA to your host.
