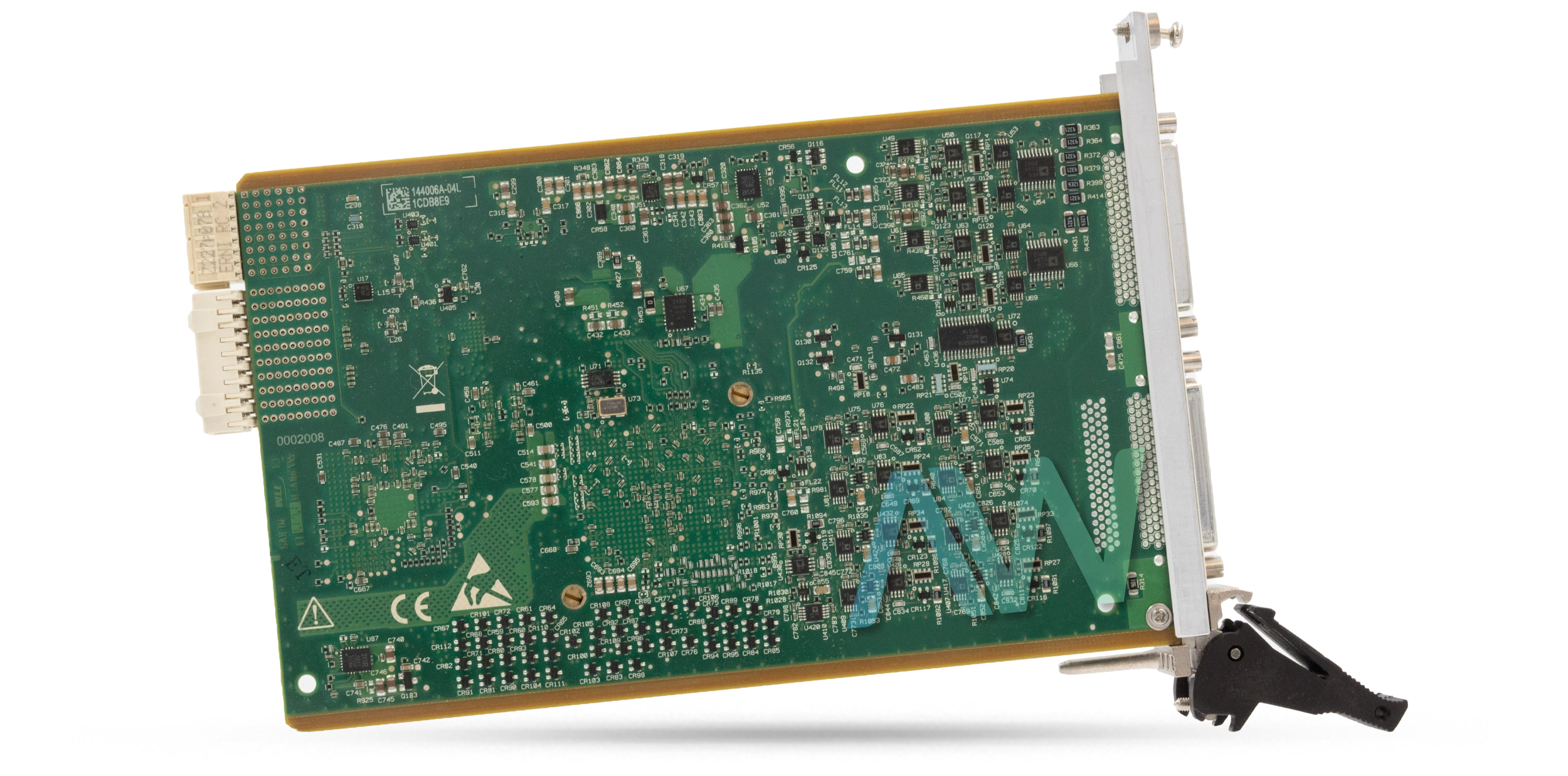

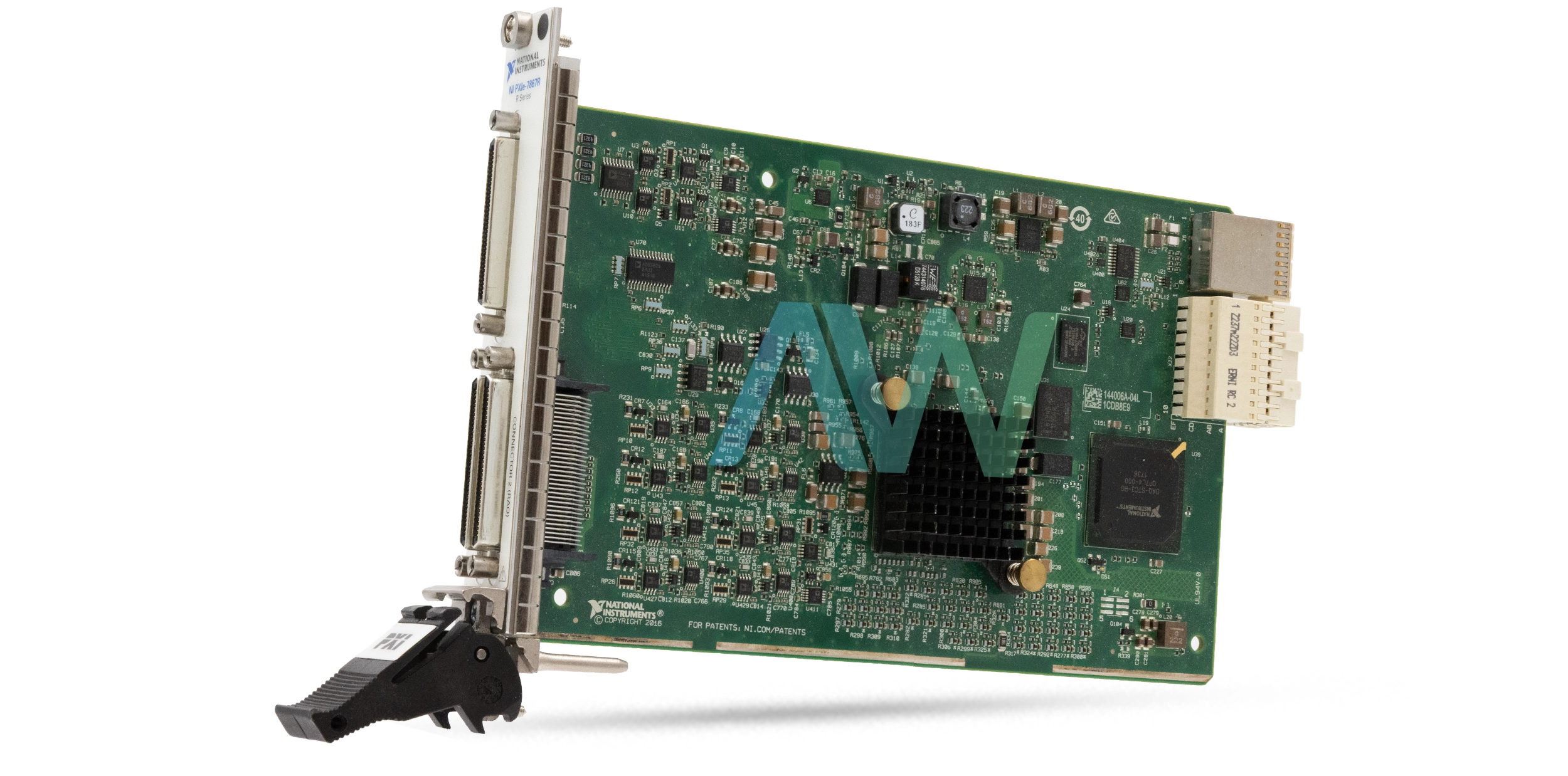

National Instruments PXIe-7867R PXI Multifunction Reconfigurable I/O Module

The PXIe-7867R (Part number: 785570-01) is a Multifunction Reconfigurable I/O Module by National Instruments. This R Series RIO Device has an FPGA chipset that can directly control I/O signals. This device can be synchronized with other modules. The NI PXIe-7867R is compatible with PXI modules. This module can transfer data to other PXI Express devices. The PXIe-7867R features SAR ADCs for all channels. These ADCs are used for multi-rate sampling. This module can trigger all channels independently. The NI PXIe-7867R also supports programmable power-on states. This model incorporates three 68-pin VHDCI connectors.

The National Instruments PXIe-7867R Multifunction Reconfigurable I/O Device has six analog input terminals. The ADC resolution of this module is 16 bits. The maximum rate of sampling is 1 MS/s for each channel. The NI PXIe-7867R supports an input voltage range from +1 V to +10V. The analog input terminals have overvoltage protection up to +42V. The small signal bandwidth is 1 MHz. The PXIe-7867R also has 18, 16-bit analog output terminals. The type of DAC in this module is an Enhanced R-2R DAC. The output signal has a range of +10 V. The impedance of the output terminals is 0.5 Ω. The output terminals are also protected up to +15V.

The NI PXIe-7867R device features 48 digital I/O terminals. The digital terminals have compatibility with LVTTL and LVCMOS. The PXIe-7867R has a fixed logic level of 3.3V. The minimum width of the I/O pulse of the NI PXIe-7867R is 6.25 ns. The onboard FPGA of the PXIe-7867R is a Kintex-7 160T FPGA.

ModelPXIe-7867R
ManufacturerNational Instruments
SeriesR Series
Part Number785570-01
TypePXI Multifunction Reconfigurable I/O Module
FPGA TypeKintex-7 160T
Analog Inputs6 (16 Bits, 1 MS/s)
Analog Outputs18 (16 Bits, 1 MS/s)
Number of Flip-flops202,800
Number of DSP48 Slices600
Embedded Block RAM11,700 kbits
Onboard DRAM1 Bank; 512 MB
Digital I/O48
Number of DMA Channels16
Timebase40, 80, 120, 160, or 200 MHz
I/O Connectors3 × 68-pin VHDCI
Power Requirements+3.3 VDC, +12 VDC - 03 A, 02 A
Dimensions7.3 in. × 6.8 in. × 1.4 in.
Weight0.39 lb.
Software DriverNI-RIO
WarrantyOne Year Warranty
PXIe-7867R ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-7867R Frequently Asked Questions



Question: Is the PXIe-7867R compatible with RIO Device Drivers from 2016?



Answer: The PXIe-7867R is only compatible with the NI R Series Multifunction RIO Device Drivers July 2017 or later. If you have a previous version installed, update to the later version.



Question: How many AI channels does the NI PXIe-7867R have?



Answer: The NI PXIe-7867R provides connections for six AI channels. Each channel has an AI+ pin, AI- pin, and AIGND pin to which you can connect both single-ended or differential voltage signals.



Question: How many connections to analog output channels does the NI PXIe-7867R have?



Answer: The NI PXIe-7867R provides connections for eighteen analog output channels. Each channel has an AO pin and AOGND pin to which you can connect a load.
