Part Number SCC-AI14
Manufacturer/Brand National Instruments
Description: SCC-AI14, 2-Channel, Isolated Analog Input Module
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

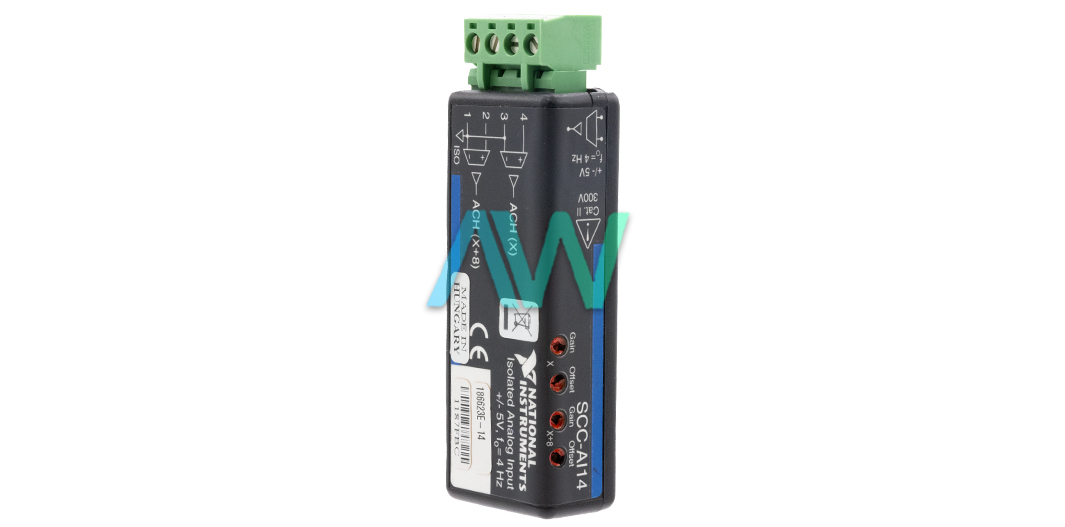

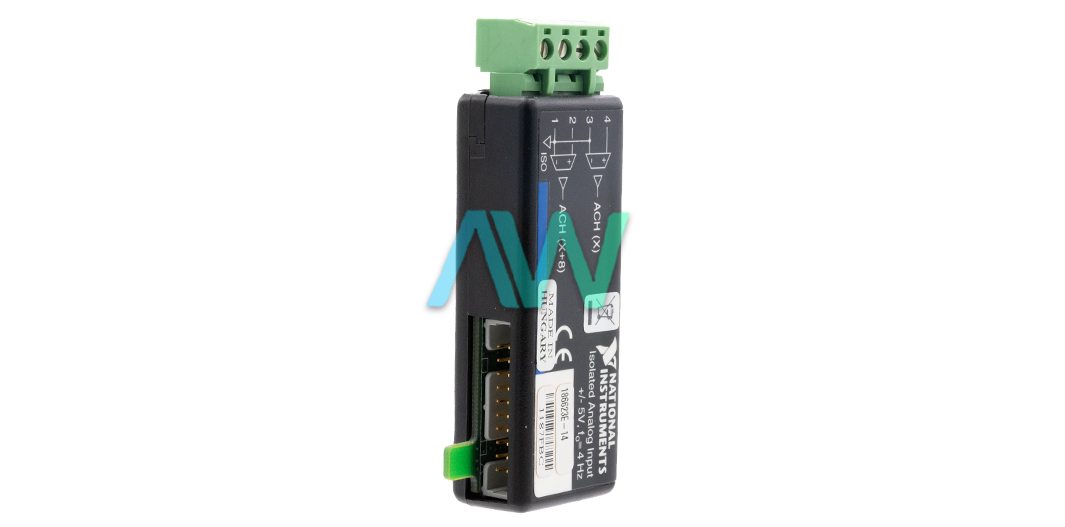

National Instruments SCC-AI14 Isolated Analog Input Module

The National Instruments SCC-AI14 (Part Number: 777459-28) module can be connected to any analog input socket on the SC-2345, even though the module cannot work as the second stage of a double stage setup. Pins 1 and 2 frame a channel that is directed to the E Series gadget channel X+8, where X+8 is channel 8 through 15 relying upon the socket where the SCC-AI14 is placed. Pins 3 and 4 frame a channel that is directed to E Series gadget channel X, where X is 0 through 7, relying upon the socket where the user puts the SCC-AI14. These modules offer channel-to-ground isolation only and do not give channel-to-channel isolation. Since the two channels must have a similar reference voltage, pins 1 and 3 are internally associated together.

In this model, the data sources are planned in a floating single-ended configuration, so the user can securely reference the estimated voltage to a ground level, with working basic mode voltage up to 300 V in a Category II installation. This model offers an input range of +/- 5 V, an output range of +/- 10 V, a Gain of 2, a Bandwidth of 4 HZ, an input voltage of 4 V, 2 NRSE input channels, bank isolation, 100 Ohms of input impedance, a gain error of 4.5%, 3 poles, and 60 dB rolloff.

ModelSCC-AI14, 777459-28
ManufacturerNational Instruments
SeriesSCC
TypeIsolated Analog Input Module
Input Range±5 V
Output Range±10 V
Gain2
Warranty2-3 Year Warranty
SCC-AI14 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCC-AI14 Frequently Asked Questions



Question: Can the SCC-AI14 be used as the second stage in a cascading solution?



Answer: The SCC-AI14 is not designed to work as the second stage in a cascading solution.



Question: Is the bandwidth specification of a SCC AI14 a low-pass filter?



Answer: Yes, the bandwidth specification of the SCC AI14 does act as a low-pass filter.



Question: What hardware can the NI SCC-AI14 connect to?



Answer: The NI SCC-AI14 is designed to connect to the SCC-68 or SC-2345/2350 with a PWR device.
