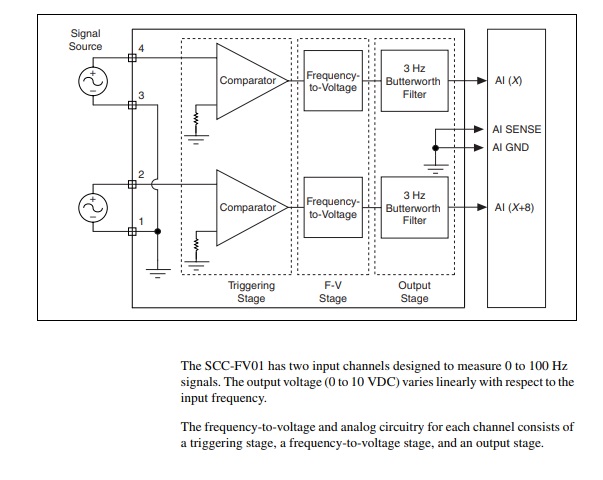

SCC-FV01 National Instruments Frequency-to-Voltage Module | Apex Waves - Wiring Diagram Image
SCC-FV01 New
SCC-FV01 | Legacy, Refurbished and New Surplus

SCC-FV01

4.9/5 | 8 ratings

Modular Systems > National Instruments > SCC

Part Number SCC-FV01
Manufacturer/Brand National Instruments
Description: SCC-FV01, 2 RSE input channels, Frequency-to-Voltage Module
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments SCC-FV01 Frequency-to-Voltage Module

The National Instruments SCC-FV01 (Part Number: 777459-32) Frequency-to-Voltage Module is created to estimate signals from recurrence-creating sensors and other periodic signal sources. The DC yield voltage of the module is corresponding to the information recurrence. The output ripple of the NI SCC-FV01 Frequency-to-Voltage Module increments as the input frequency declines and is huge for frequencies underneath 5 Hz. To overcome the impact of output ripple, the user can acquire and average at least 100 samples for each period for two times of the input frequency. This gives the user more exact estimations of frequencies underneath 5 Hz except for 0 Hz. At 0 Hz there is no ripple; subsequently, there is no extraordinary need to acquire and average the information.

If the user needs to adjust for any mistakes in their framework, then they require a capacity generator and an oscilloscope capable of estimating the frequency they are applying. The oscilloscope used for calibration must be several times more precise than the National Instruments SCC-FV01 Frequency-to-Voltage Module.

This National Instruments SCC-FV01 Frequency-to-Voltage Module offers 2 RSE input channels, +/-200 mV of input signal amplitude, a minimum input frequency of 0 Hz, a maximum input frequency of 100 Hz, a threshold of 0 V, a hysteresis of 200 mV, an output offset of 5 mV maximum, and an analog power of 100 mW.

ModelSCC-FV01, 777459-32
ManufacturerNational Instruments
SeriesSCC
TypeFrequency-to-Voltage Module
Input Frequency Range0 Hz to 100 Hz
Input Channels2 RSE
Output Range0 to +10 V
Warranty2-3 Year Warranty
SCC-FV01 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCC-FV01 Frequently Asked Questions



Question: Is a Banner mini-beam SM312F sensor compatible with the NI SCC-FV01?



Answer: The Banner mini-beam sensor is not compatible with the NI SCC-FV01.



Question: Is the SCC-FV01 able to measure signals from frequency generating sensors?



Answer: Yes, the SCC-FV01 is able to measure signals from frequency-generating sensors and other periodic signal sources.



Question: What is the DC output voltage of the SCC FV01?



Answer: The DC output voltage of the SCC FV01 depends on and is proportional to the input frequency that is being used.
