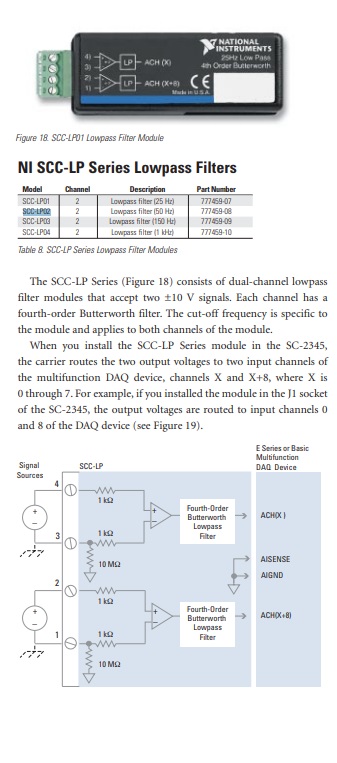

SCC-LP03 National Instruments Lowpass Filter Module | Apex Waves - Wiring Diagram Image
SCC-LP03 New
SCC-LP03 | Legacy, Refurbished and New Surplus

SCC-LP03

4.8/5 | 5 ratings

Modular Systems > National Instruments > SCC

Part Number SCC-LP03
Manufacturer/Brand National Instruments
Description: SCC-LP03, 150 Hz Cutoff Frequency, Lowpass Filter Module
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments SCC-LP03 Lowpass Filter Module

The SCC-LP03 (Part Number: 777459-09) is a Lowpass Filter Module with advanced capabilities from National Instruments. This module has a cut off frequency of 150 HZ. This module also incorporates a fourth-order Butterworth filter and has the capability to allow two differential input signals. The device has an input signal range of ±10 V and an output signal range of ±5 V. The SCC-LP03 offers per channel filters for SCC systems. This module also comes with a differential amplifier. The National Instruments SCC-LP03 has an output signal range of ± 5 volts and an amplifier gain of 0.5. The National Instruments SCC-LP03 Lowpass Filter Module offers analog input signal channels for the E Series DAQ device. It comes with an input impedance of 10 G ohm for the power on state, as well as an input impedance of 10 k ohm for the power off or overload condition.

The National Instruments SCC-LP03 Lowpass Filter Module has a roll off rate of 80 dB/decade. The in-house Butterworth filter enables high flatness in the pass band, with an extremely sharp monotonic roll off. This Butterworth filter has a nonlinear phase response without constant delay. This model also has an ideal step response with an average amount of overshoot. These features help provide the amplitude of interest. This amplitude varies with the frequency. The NI device is equipped with 1 20-pin right-angle male connector and 1 4-pin screw terminal I/O connector.

Other functions of the SCC-LP03 include services as the first stage of a dual-stage configuration or as the second stage of a dual-stage configuration. The first-stage SCC can be inserted into any socket. The second stage plugs into another socket. The first stage SCC connects with an input signal. The output signals of the first stage SCC then connect with inputs of the second-stage SCC. The SC-2345 helps make this connection.

The Ni device weighs 1.3 oz, and measures 3.50 x 1.15 x 0.73 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C, a storage temperature range of –20 to 70 °C, and a noncondensing humidity range of 10 to 90% RH.

ModelSCC-LP03, 777459-09
ManufacturerNational Instruments
TypeLowpass Filter Module
Input Channels2 DIFF
Input Signal Range±10 V
Output Signal Range±5 V
I/O ConnectorsOne 20-pin right-angle male connector, one 4-pin screw terminal
WarrantyThreeYear Warranty
SCC-LP03 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCC-LP03 Frequently Asked Questions



Question: What type of I/O connectors are on the NI SCC-LP03?



Answer: The NI SCC-LP03 has one 20-pin right-angle male connector and one 4-pin screw terminal.



Question: What is the maximum working voltage of the SCC LP03?



Answer: The maximum working voltage of the SCC LP03 is ±15 V.



Question: Can the SCC-LP03 be used as an antialiasing module?



Answer: The SCC-LP03 is capable of being used as an antialiasing module.

  SCC-LP03 PDF Manuals
