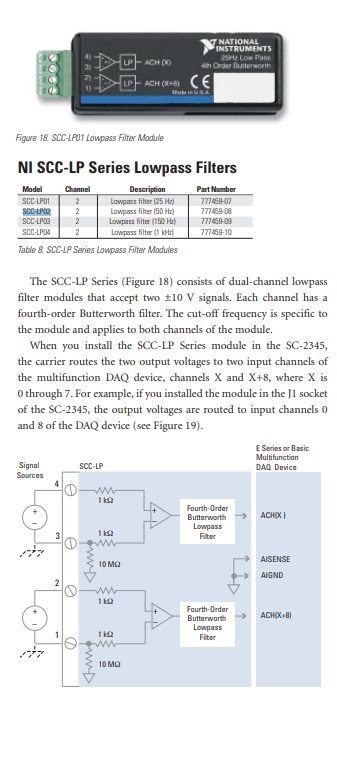

SCC-LP04 National Instruments Lowpass Filter Module | Apex Waves - Wiring Diagram Image
SCC-LP04 New
SCC-LP04 | Legacy, Refurbished and New Surplus

SCC-LP04

4.6/5 | 20 ratings

Modular Systems > National Instruments > SCC

Part Number SCC-LP04
Manufacturer/Brand National Instruments
Description: SCC-LP04, 1 kHz cutoff frequency, Lowpass Filter Module
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments SCC-LP04 Lowpass Filter Module

The user can plug the National Instruments SCC-LP04 (Part Number: 777459-10) Lowpass Filter Module into any analog input socket on the SC-2345. It can work as a solitary stage module or as the first or second phase of a double stage signal molding setup. The socket the user picks determines which E Series DAQ device channels receive the NI SCC-LP04  output signals. The signal source can be floating or ground referenced. This model’s circuitry incorporates high-impedance bias resistors ordinarily required for floating sources. In addition, floating signal sources do not require outside bias resistors associated with ground.

The National Instruments SCC-LP04 Lowpass Filter Module utilizes a Butterworth filter, which is characterized by maximal flatness in the passband with sharp monotonic roll-off. This module has a nonlinear stage reaction, where the deferral is not constant, and the step reaction shows a moderate measure of overshoot (ringing). These characteristics present no issues in applications where just the amplitude of signal frequency components is of interest. The solid line delineates a high-frequency signal being sampled at certain points. When these points are associated with “reconstructing the waveform,” as appears by the spotted line, the signal seems to have a lower frequency. Any signal with a frequency greater than one portion of the testing rate will be associated and mistakenly analyzed as having a frequency beneath one portion of the sampling rate. This limiting frequency, one portion of the inspecting rate, is known as the Nyquist frequency.

ModelSCC-LP04, 777459-10
ManufacturerNational Instruments
TypeLowpass Filter Module
Cutoff Frequency1 kHz
Channels2
Input Signal Range±10 V
Output Signal Range±5 V
Warranty2-3 Year Warranty
SCC-LP04 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCC-LP04 Frequently Asked Questions



Question: How does the differential amplifier on the SCC-LP04 work?



Answer: The differential amplifier on the SCC-LP04 attenuates each signal by a factor of two.



Question: What software is recommended for the NI SCC-LP04?



Answer: The NI SCC-LP04 uses NI-DAQ 7.2 or later software.



Question: Does the SCC LP04 have a fixed screw-terminal receptacle?



Answer: Yes, the SCC LP04 has a fixed screw-terminal receptacle and a removable screw-terminal block.

  SCC-LP04 PDF Manuals
