Part Number SCC-RLY01
Manufacturer/Brand National Instruments
Description: SCC-RLY01, 1-Channel, Relay Module
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments SCC-RLY01 Relay Module

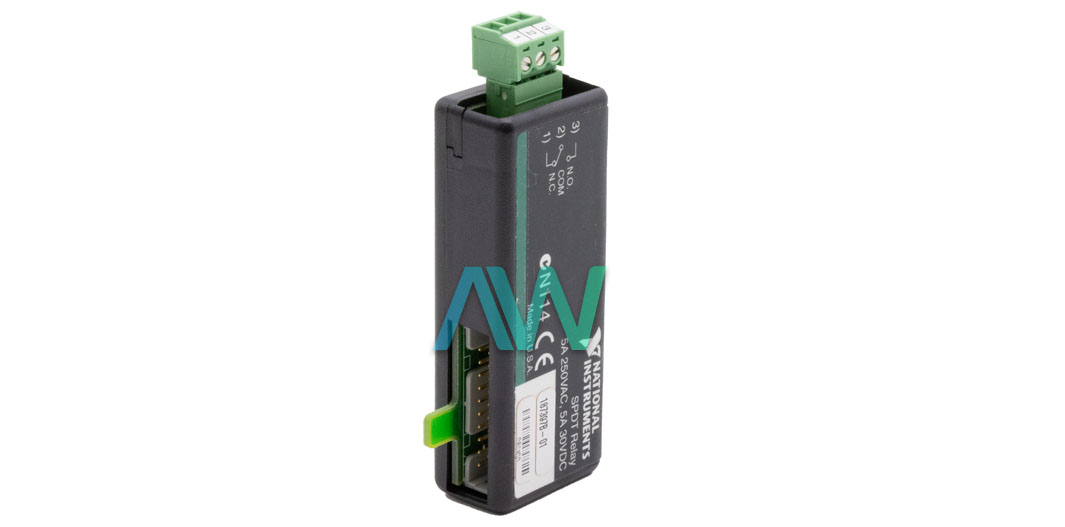

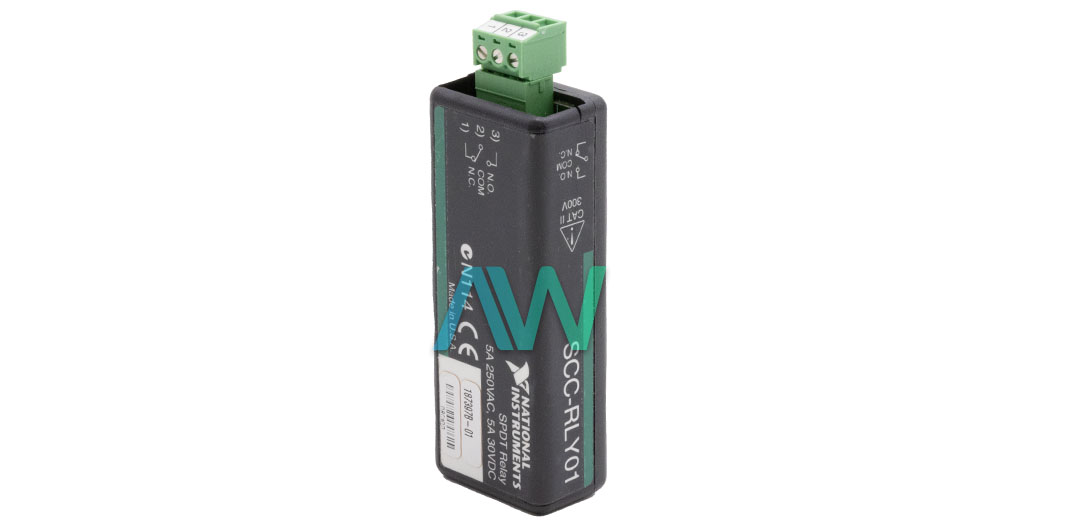

The SCC-RLY01 (Part Number: 777459-34) is an efficient and reliable Relay Module from National Instruments. It comes with one single-pole-double-throw relay. This SPDT Relay Module is non-latching with a built-in switching mechanism, which enables switching from 5 A to 30 VDC while operating with the SC-2345 or SC-2350. It also has the capability to complete switching from 5 A to 250 VAC for the applications that involve SCC-68 modules. The National Instruments SCC-RLY01 Relay Module comes with high-performance capabilities and various smart features at a low price.

The NI SCC-RLY01 Relay Module can be controlled through E/M Series DAQ devices by utilizing the digital input/output P0 and line 0 to 7. The SCC-RLY01 Relay Module uses positive logic. The user can set the module through the high value of the digital input. The module enters the reset state with the digital input value set to low. This module offers a signal bandwidth ranging from DC to 400 Hz, along with a constant maximum value of resistance at 30 mega ohms. The device is equipped with 1 20-pin right-angle male connector and 1 3-pin screw-terminal block. It has a power requirement of 60 mA maximum at +5 V, and 300 mW maximum when using digital power. The SCC-RLY01 has a signal bandwidth of DC to 400 Hz, a contact resistance of 30 mΩ max, a maximum operating speed of 30 cps at rated load, and a contact lifetime of 5 x 107 operations at 180 cpm (minimum).

The National Instruments SCC-RLY01 offers a typical operation time from normal close (NC) to normal open (NO) state of 5 milliseconds, with a maximum value of 10 milliseconds. The value for release time from NO to NC is 4 milliseconds. This module has the maximum operating speed of 30 cps at rated load. The National Instruments SCC-RLY01 Relay Module is extremely lightweight, weighing approximately 37 grams. This module has physical dimensions of 3.55 W x 7.93 L x 1.87 in centimeters. It has a field wiring diameter of 28 to 16 AWG, a recommended operating temperature range of 0 to 50 °C, a storage temperature range of –20 to 65 °C.

ModelSCC-RLY01, 777459-34
ManufacturerNational Instruments
SeriesSCC
TypeRelay Module
Channels1
Maximum Switching Voltage30 V
BandwidthDC to 400 Hz
WarrantyThree Year Warranty
SCC-RLY01 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCC-RLY01 Frequently Asked Questions



Question: How are the relays set in the SCC-RLY01?



Answer: With the SCC-RLY01, a digital high sets the relays and a digital low resets them.



Question: Does the SCC RLY01 contain any SPDT relays?



Answer: The SCC RLY01 contains one single-pole double-throw (SPDT) nonlatching relay.



Question: How do you install the NI SCC-RLY01?



Answer: To install the NI SCC-RLY01, plug it into a DIO socket J(X+9), where X is 0 to 7, on the SC-2345, or into any of the four slots that correspond to P0.0 to P0.3 on the SCC-68.
