SCC-SG04

4.8/5 | 7 ratings

Modular Systems > National Instruments > SCC

Part Number SCC-SG04
Manufacturer/Brand National Instruments
Description: SCC-SG04, 2-Channel, Strain/Bridge Module for SCC
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

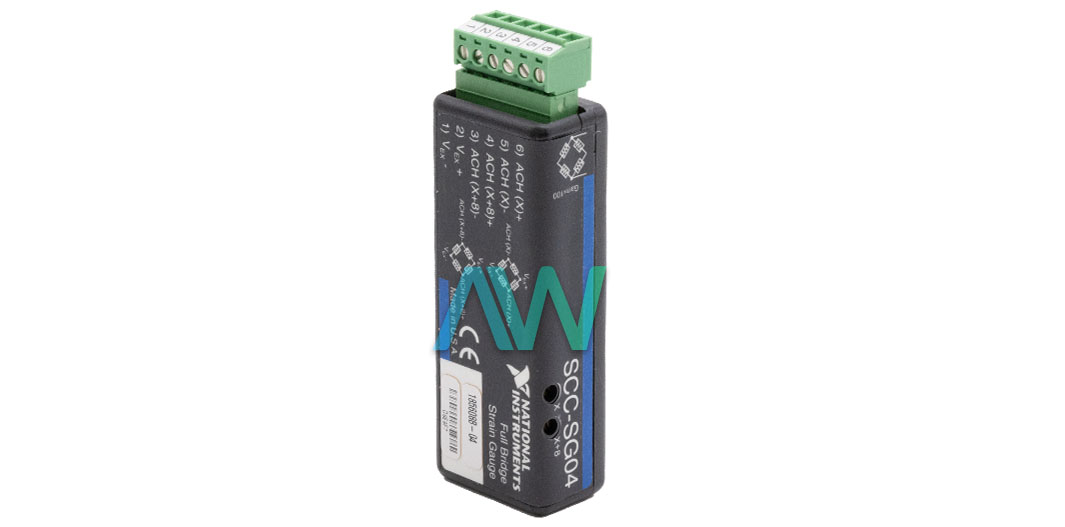

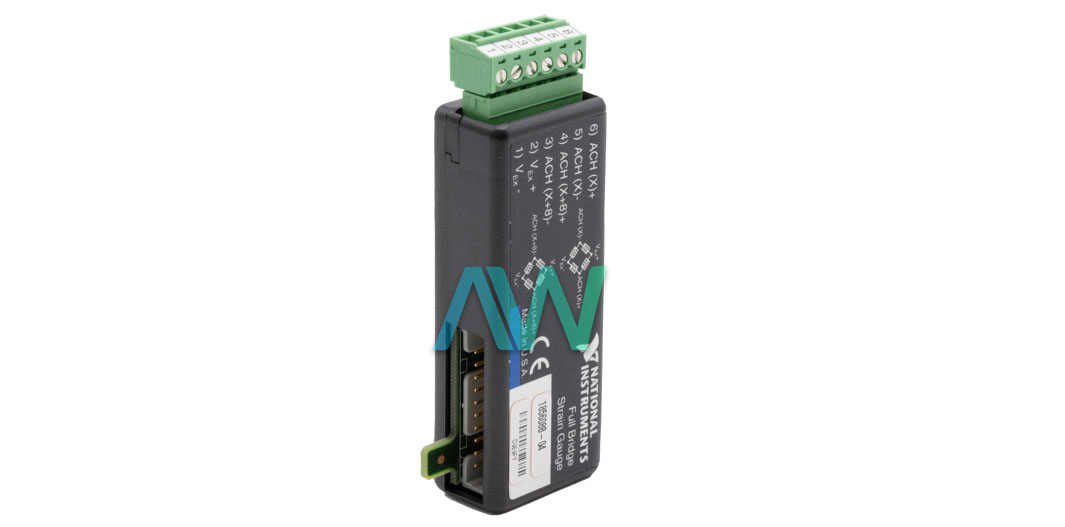

National Instruments SCC-SG04 Strain Gauge Module

The NI SCC-SG04 Strain Gauge Module (Part Number: 777459-16) is manufactured by National Instruments. This module has two channels and is used for different kinds of conditioning. This Strain Gauge Module offers the capability of performing full-bridge configuration strain measurements. Three types of full-bridge configuration are supported by National Instruments software: Full-Bridge Type I, Full-Bridge Type II, and Full-Bridge Type III. Type I solely measures bending strain. Type II only measures bending strain. Lastly, Type III solely measures axial strain. The SCC-SG04 also offers a high-level calibration mode and offset-nulling circuitry for every channel.

The NI SCC-SG04 module offers a variety of direct signal options, as well as a wide range of sensor connectivity options. A low-pass filter of 1.6 kHz is part of each channel. Each channel additionally includes an amplifier and a potentiometer.

The signal range of the SCC-SG04 is from -100 mV to +100 mV (millivolts). This Strain Gauge Module offers a filtering of 1.6 kHz. The excitation source of this module is 1 voltage. The excitation value of this high-quality Strain Gauge Module is 2.5 V (Volts). A big range of analog conditioning is included in this system. This module also offers a big range of digital signal conditioning. The NI SCC-SG04 also offers front-end conditioning. This signal conditioning module is compatible with M Series and E Series devices. This module is also compatible with some B Series DAQ devices. The excitation current drive for this module has a value of 60 mA with two 350Ω gauges.

ModelSCC-SG04
ManufacturerNational Instruments
Part Number777459-16
TypeStrain Gauge Module
Strain Gauge Bridge ConfigurationFull-bridge
Strain Gauge Channels2 DIFF
Gain100
Dimensions3.50 in. × 1.15 in. × 0.73 in.
Weight37 g.
Warranty2-3 Year Warranty
SCC-SG04 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCC-SG04 Frequently Asked Questions



Question: What is the maximum working voltage of the SCC-SG04?



Answer: The maximum working voltage of the SCC-SG04 is ±12 VDC, Installation Category I.



Question: Which type of I/O connectors does the NI SCC-SG04 have?



Answer: The NI SCC-SG04 has one 20-pin right-angle male connector and one 6-pin screw terminal.



Question: Does the SCC-SG04 have overvoltage protection?



Answer: Yes, the SCC-SG04 has ±28 VDC overvoltage protection while powered on and off.

  SCC-SG04 PDF Manuals
