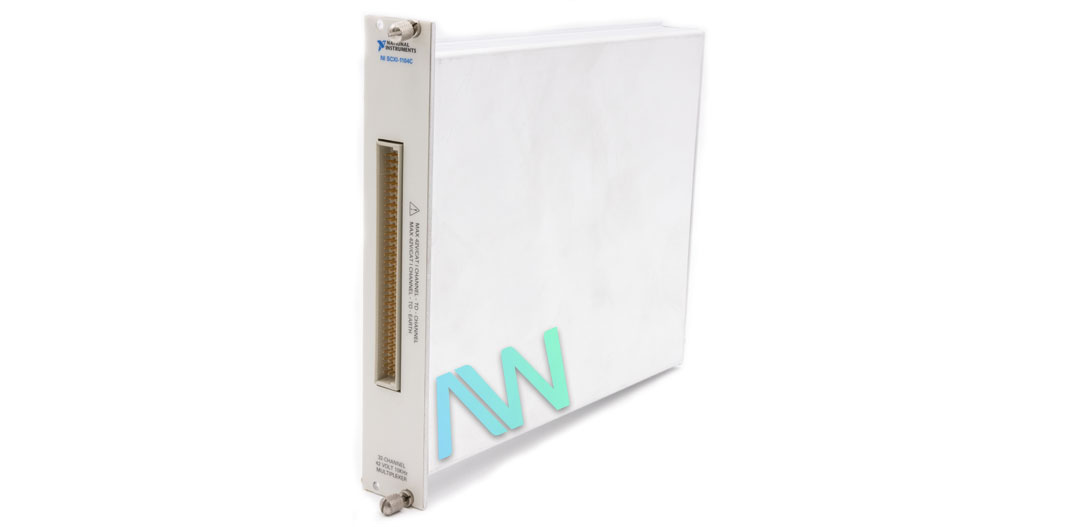

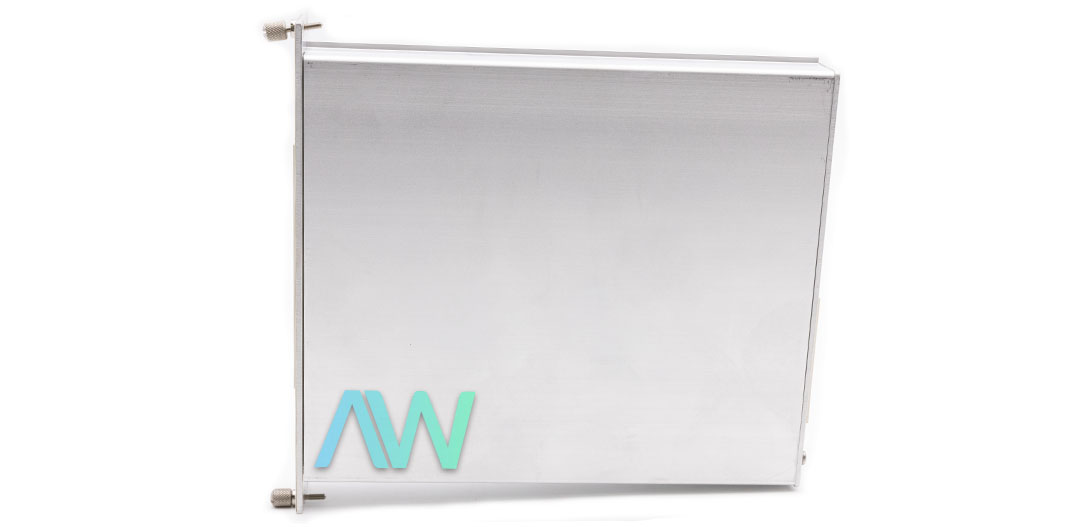

National Instruments SCXI-1104C Voltage Input Module

The National Instruments SCXI-1104C Voltage Input Module has 32 differential channels and is created for the signal conditioning of higher voltage signals. This model comes with a 10 kHz cut-off frequency filter. If the user wants to utilize the NI SCXI-1104C in a ribbon-cabled multichassis SCXI system, then they need to use the SCXI-1346 multichasis adapter with it. If the user chooses not to auto-detect the SCXI modules, then they must add the modules individually. This can be accomplished by following the instructions in the user manual.

While utilizing software, the user can arrange pin 1,2, 4, or 19 to link to the analog ground of the Voltage Input Module. The user can utilize the pin that is linked to the analog ground as an analog power ground tie point to the SCXI-1104C. An important fact to remember is that the NI SCXI-1104C analog output is not overvoltage-protected. Therefore, applying external voltages to this output can damage the module. The analog outputs are short-circuit protected though. The device has a recommended warm-up time of 20 minutes and an operating temperature of 0 to 50 °C.

The National Instruments SCXI-1104C module can be calibrated by applying precision voltages to the channel inputs and/or grounding the channel inputs. This module should be recalibrated a minimum of once per year or anytime it is operated outside of the specified temperature range. The NI SCXI-1104C Voltage Input Module can be calibrated with a multiranging 8.5 digital multimeter. The device has a cut-off frequency of 10 kHz. When users complete a measurement with NI Software, the driver automatically uses the calibration constants to adjust the measured voltages to the correct values.

The NI-DAQ version 6.5.1 (or higher) is the software driver used in running the SCXI-1104C. To install the driver, an Application Development Environment such as LabVIEW, BridgeVIEW, LabWindows/CVI, Visual Basic (ComponentWorks), C,C++, VirtualBench, or Measure is required. The device has a 50-pin male ribbon cable back connector and a 96-pin male DIN C front connector.

SCXI-1104C Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

The SCXI-1104C is available to be calibrated. While the recommended calibration period for individual parts varies, most parts should be calibrated either annually or every two years to ensure accuracy. If you need the SCXI-1104C calibrated, Apex Waves provides options. We offer high-quality NIST accredited calibrations through a 3rd party, with an average turnaround time of 1 to 2 weeks. When you order the SCXI-1104C with us, you can request basic (unaccredited) in-house calibration that will calibrate the part to the manufacturer specifications prior to being shipped. Call or email us today for more information about calibrating the SCXI-1104C!

ModelSCXI-1104C
ManufacturerNational Instruments
TypeVoltage Input Module
Channels32 differential
Input CouplingDC
Cutoff Frequency (-3 dB)10 kHz
Dimensions4.54 by 10.75 in.
Connectors50-pin male ribbon cable back connector and 96-pin male DIN C front
connector
WarrantyThree Year Warranty
SCXI-1104C ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1104C Frequently Asked Questions



Question: What are the rear and front signal connectors for the SCXI 1104C?



Answer: The SCXI 1104C rear signal connector is an AMP Inc. 50-pin male ribbon-cable header. The front signal connector is a Harting Electronik Inc. 96-pin DIN C male connector.



Question: Are cables required to use to connect the SCXI-1104C and the DAQ device?



Answer: Cables are not required between the SCXI-1104C and DAQ device if the DAQ device is installed in the right-most slot.



Question: Can the SCXI-1104C be used with VirtualBench and Measure?



Answer: Yes, the SCXI-1104C is compatible with VirtualBench and Measure.
