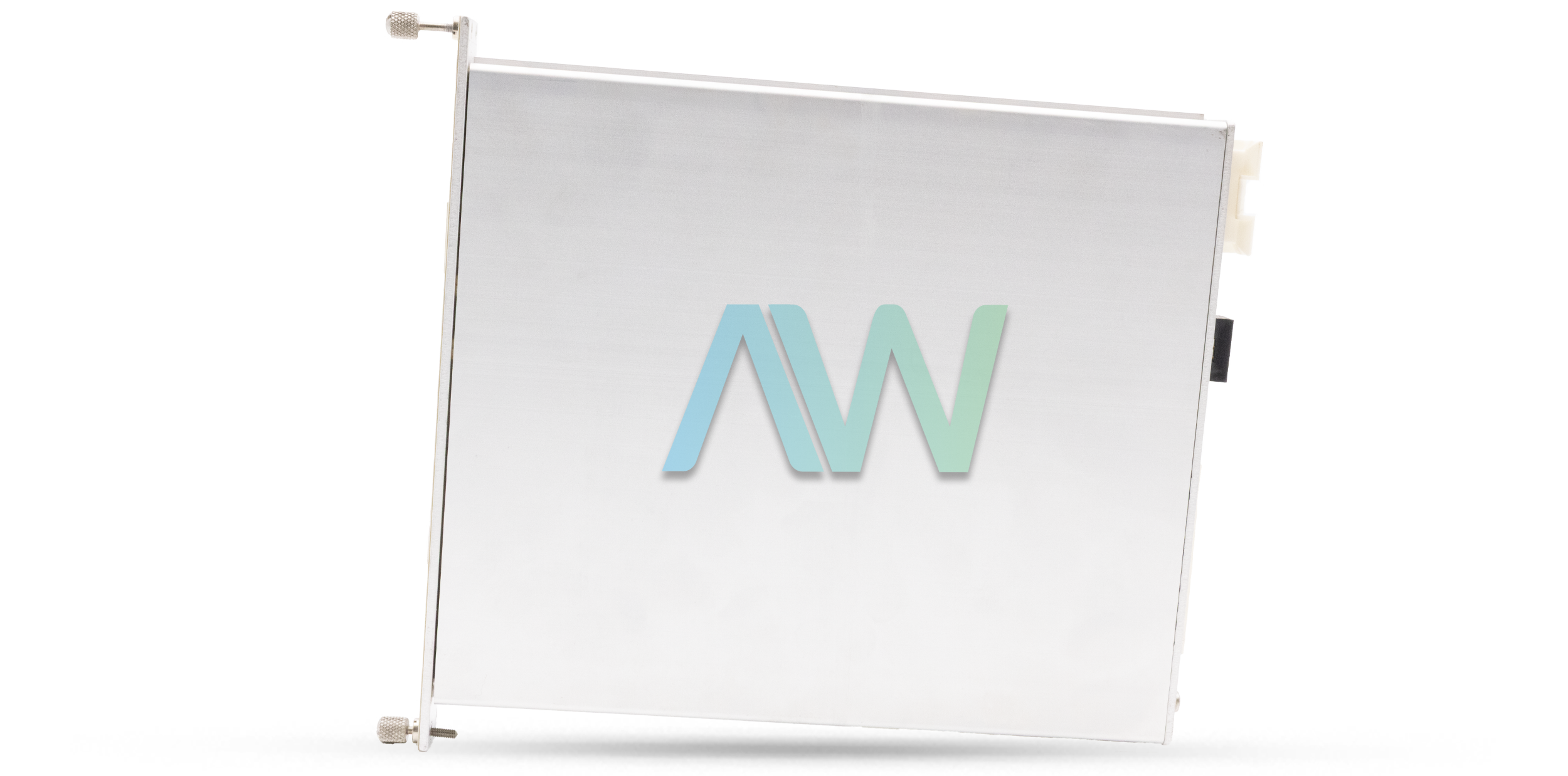

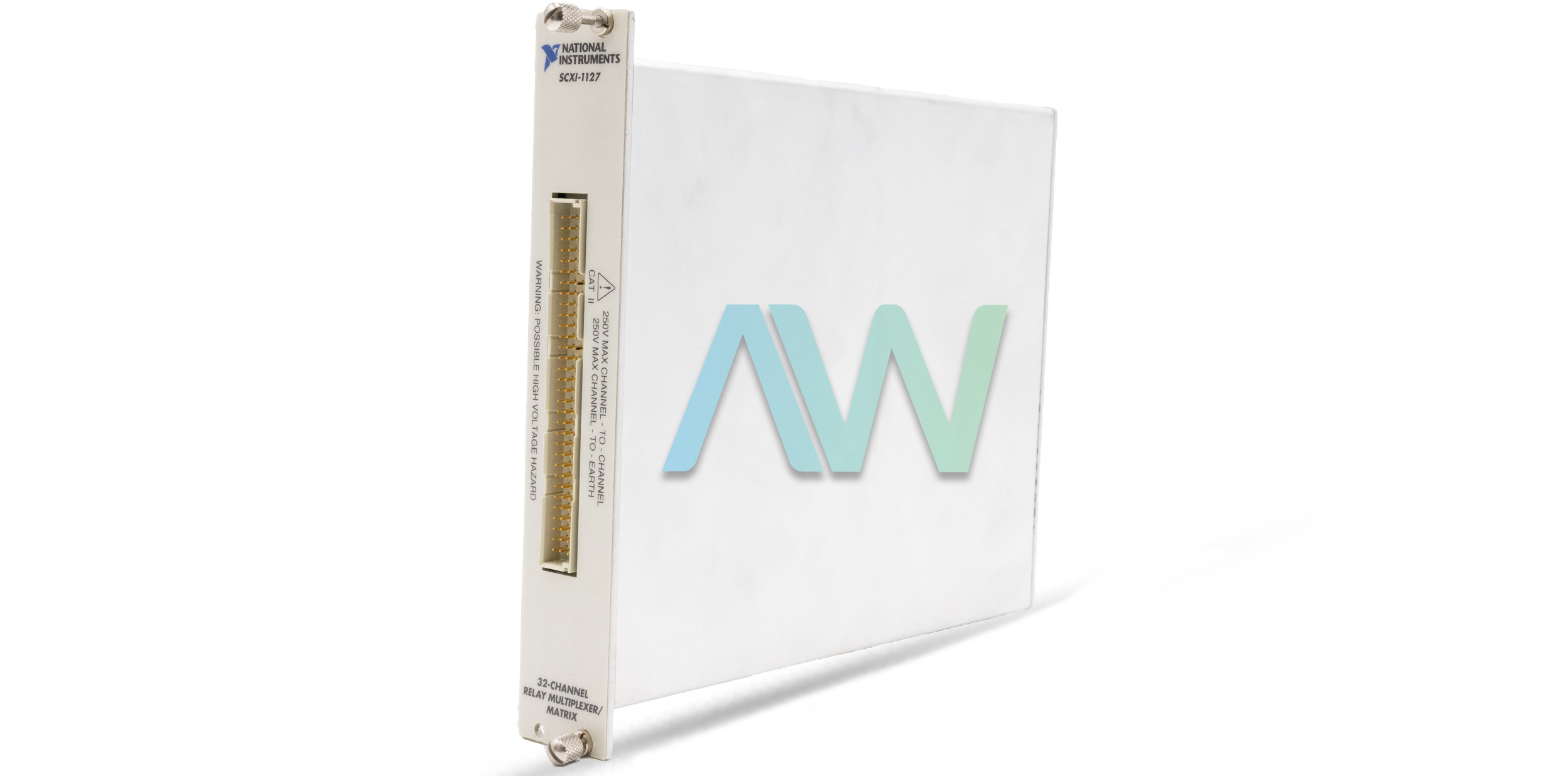

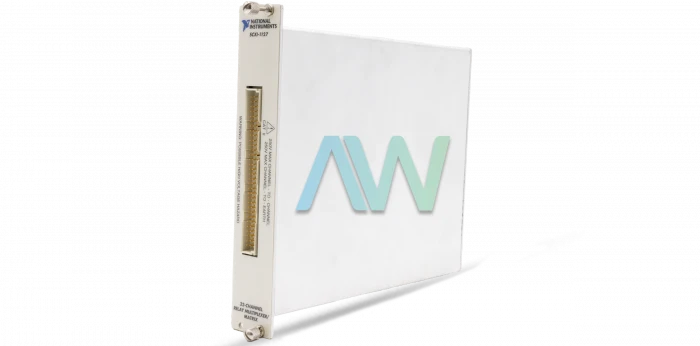

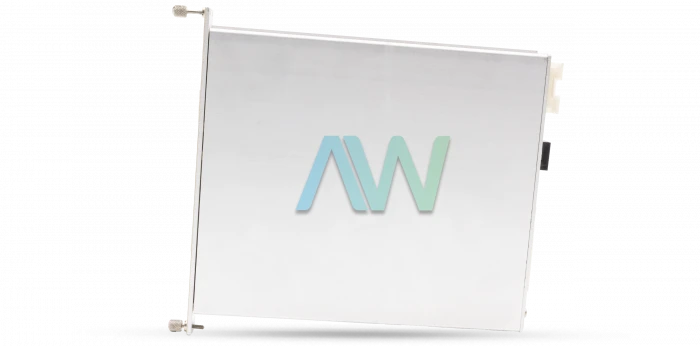

National Instruments SCXI-1127 Matrix/Multiplexer Switch Module

The SCXI-1127 (Part Number: 776572-27) is a high-voltage Matrix/Multiplexer Module with several configurations available: 1 x 32, 2-wire multiplexer, two 1 x 16, 2-wire multiplexer, and a four 1 x 8, 2-wire multiplexer. A few more configurations are possible with a special terminal block, such as a 4 x 8, 2-wire or 1 x 32, 2-wire matrix. With the use of software-configurable switches, the module can additionally be utilized as a 1 x 64, 1-wire or 1 x 64, 4-wire multiplexer. The NI SCXI-1127 is well-suited for low and high voltages. For low-voltage measurements, this Matrix/Multiplexer Switch Module utilizes relays with extremely low thermal offset to guarantee precise measurements. On the other hand, for high-voltage measurements, this module can withstand signals to 250 Vrms at a 200 mA load and 30 VDC at a 1 A load.

The NI SCXI-1127 has a versatile scanning construction. The user can scan the channels arbitrarily and have several input modes in one scan, which helps when linking numerous sensor types to a single module. The SCXI-1127 has two scanning methods: software scanning and hardware-timed scanning. Software scanning allows channels to be chosen through the software. This process does not necessitate trigger connections. In addition, software scanning does not provide the time preciseness that hardware-timed scanning does. Hardware-timed scanning enables the measurement device, such as a DMM, to communicate through digital trigger signals to the NI SCXI-1127. There are also two types of hardware-timed scanning: synchronous scanning and handshaking. Synchronous scanning only needs a single signal from the device to the multiplexer, but handshaking necessitates another signal linked from the multiplexer to the device.

SCXI-1127 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1127
ManufacturerNational Instruments
Part Number776572-27
SeriesSCXI Series
TypeMatrix/Multiplexer Switch Module
Channels64
Maximum Bandwidth11 MHz
Dimensions1.2 × 6.8 × 7.8 in.
Weight1 lb 8 oz.
WarrantyOne Year Warranty
SCXI-1127 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1127 Frequently Asked Questions



Question: What is the maximum operating speed of the SCXI-1127?



Answer: The maximum operating speed of the SCXI-1127 is 100 operations/s.



Question: What is the relay operating time for the NI SCXI-1127 at 20 degrees C?



Answer: The relay operating time for the NI SCXI-1127 at 20 degrees C is 3 ms typical, 5 ms maximum.



Question: Which terminal block should the SCXI-1127 be used with?



Answer: The SCXI-1127 should be used with either the SCXI-1331 or SCXI-1332 terminal block.



Question: Where can I find the SCXI-1127 manual?



Answer: The SCXI-1127 manual can be downloaded from apexwaves.com.
