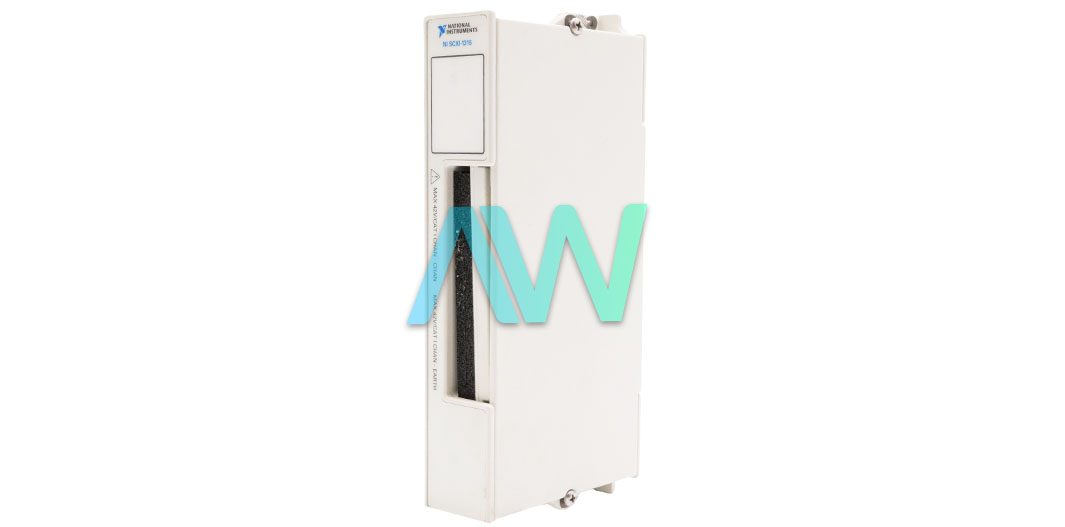

National Instruments SCXI-1315 LVDT Terminal Block

The SCXI-1315 (Part Number: 777687-15) is a Front-Mounting Terminal Block created for utilization with the SCXI-1540 LVDT module. This combination enables simple connection to linear variable differential transformers (LVDTs), rotary variable differential transformers (RVDTs), and resolvers via screw terminals. The SCXI 1315 has 26 10 14 AWG maximum field wire gauge. The NI SCXI-1315 Terminal Block has 48 screw terminals, which are organized in eight groups of six. Every group of terminals corresponds to a single channel of the eight total channels on the SCXI-1540.

This 8-Channel Terminal Block has six terminals for every LVDT channel, which are as follows: CH+, CH-, EX+, EX-, SYNC, and GND. First, CH+(N) is the input signal from the LVDT secondary and is a positive terminal. Secondly, CH-(n) is a negative terminal and is an input signal from the LVDT secondary. EX+(n) refers to the excitation signal to the LVDT primary; it is a positive terminal.  Next, EX-(n) refers to the excitation signal to the LVDT primary but is a negative terminal. SYNC(n) is an input synchronization signal. Lastly, GND refers to ground.

When the user is setting up their National Instruments SCXI-1315 LVDT Terminal Block, there are a few items required to make the setup as simple as possible. The user will need the Installation Guide, an SCXI chassis, the SCXI-1540 LVDT Module and User Manual, a wire insulation stripper, a wire cutter, long-nose pliers, a 1/8 in. flathead screwdriver, and Number 1 and 2 Philips-head screwdrivers.

SCXI-1315 Obsolete Status has been announced by National Instruments, but the Terminal Block will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1315
Part Number777687-15
ManufacturerNational Instruments
TypeLVDT Terminal Block
Screw Terminals48
For Use With:SCXI-1540 LVDT Module
Channels8
Maximum Field Wire Gauge26-14 AWG
WarrantyOne Year Warranty
SCXI-1315 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1315 Frequently Asked Questions



Question: What device does the SCXI-1315 pair with?



Answer: The SCXI-1315 terminal block pairs with the SCXI-1540 LVDT module.



Question: How many terminals does the SCXI 1315 have?


Answer: The SCXI 1315 has 48 terminals arranged in eight groups of six. Each group corresponds to one of the eight channels available on the SCXI 1540.



Question: What are the signal names of the six terminals for the nth channel on the NI SCXI-1315?



Answer: The signal names of the six terminals for the nth channel on the NI SCXI-1315 are CH+(n) CH–(n), GND, SYNC(n), EX+(n), and EX–(n).
