Part Number SCXI-1324
Manufacturer/Brand National Instruments
Description: SCXI-1324, 48 Screw Terminals, 250 Vrms Channel to Channel, High-Voltage Screw Terminal Block
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

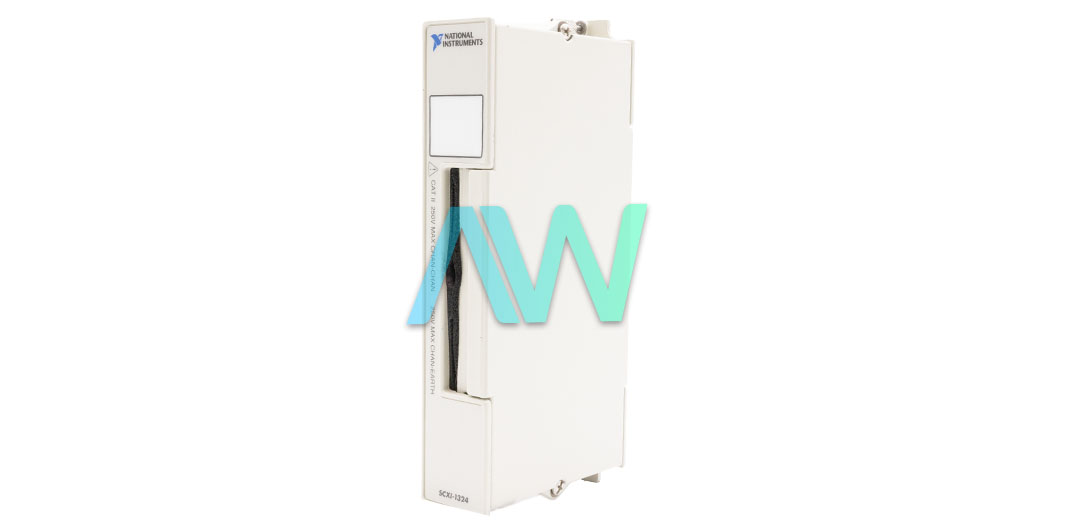

National Instruments SCXI-1324 High-Voltage Screw Terminal Block

The NI SCXI-1324 (Part Number: 777687-24) is ideal for high-voltage general-purpose switching applications. This model is meant to be used with the SCXI-1160 Relay Module; it easily mounts to the front of the module. The SCXI-1324 is a Shielded Terminal Block, which enables swift, effortless signal connections. The 48 screw terminals on the SCXI-1324 High-Voltage Terminal Block link to the 16 relays on the interior of the SCXI-1160 Relay Module. This model does not have a cold-junction sensor, unlike some of the other SCXI Terminal Blocks. The common-mode isolation for the SCXI 1324 is 250 VRMS for both channel to channel and channel to ground. The device has a load or signal current of 2 A maximum per channel.

When the user is ready to connect the NI SCXI-1324 to the SCXI-1160, first they need several other items. AN SCXI chassis, wire cutter, wire insulation stripper, long-nose pliers, a 1/8 in. flathead screwdriver, and Number 1 and 2 Philips-head screwdrivers are required. Once these items are ready, the user can join the module front connector to the appropriate connector on the High-Voltage Screw Terminal Block. Then, the user can tighten the top and bottom thumbscrews on the rear of the SCXI-1324 to make sure it will stay in place.

If the user would like to clean the National Instruments SCXI 1324 Terminal Block, it is best to initially use a soft, nonmetallic brush to get the dust off the model. The user can get other contaminants off of the Terminal Block with deionized water and a firm nonmetallic brush. Before returning the SCXI-1324 to operation, it should be fully dry with all contaminants removed.

The SCXI-1324 has a maximum field wire gauge of 26 to 16 AWG. The NI device has recommended operating and storage temperature ranges of 0 to 50 °C and –20 to 70 °C respectively, and a non-condensing relative humidity range of 5 to 90%. It is designed to comply with the following electrical safety standards: IEC 61010-1, UL 3111-1, and CAN/CSA C22.2 No. 1010.1. To get help on various issues, you can visit the technical support section at www.ni.com/support.

ModelSCXI-1324
Part Number777687-24
ManufacturerNational Instruments
TypeHigh-Voltage Screw Terminal Block
Screw Terminals48
For Use With:SCXI-1160 Relay Module
Load or Signal Current2A maximum per channel
Maximum Field Wire Gauge26-16 AWG
WarrantyThree Year Warranty
SCXI-1324 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for SCXI-1324:

182178B-01, 182178C-01, 182180C-01, 182180C-01L, 182180D-01L, 185698A-01, 185698B-01L, 776573-24, 777687-24

National Instruments SCXI-1324 Frequently Asked Questions



Question: What should I do if the NI SCXI-1324 is damaged?



Answer: If the NI SCXI-1324 is damaged, turn the device off and have it checked by service-trained personnel right away.



Question: Can the SCXI 1324 be used with high common-mode voltages?



Answer: Yes, the SCXI 1324 can be used with high common-mode voltages. Just be sure to insulate your signal wires for the highest input voltage.



Question: What wire rating do I need to look for to use with the SCXI-1324?



Answer: The SCXI-1324 should only be used with 26-14 AWG wire with a rating of 300 V and 60 °C for signals that may come in contact with 250 V.
