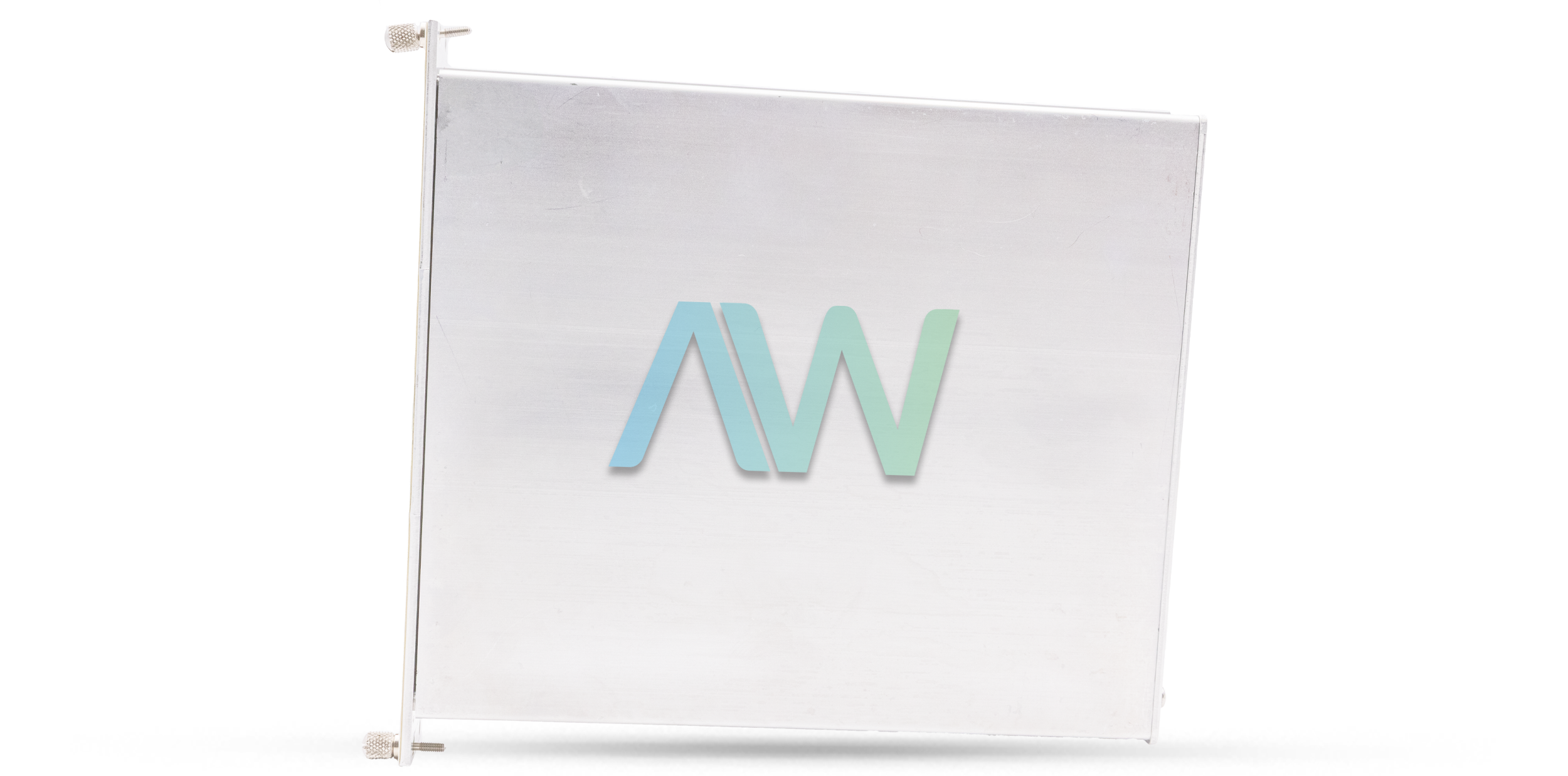

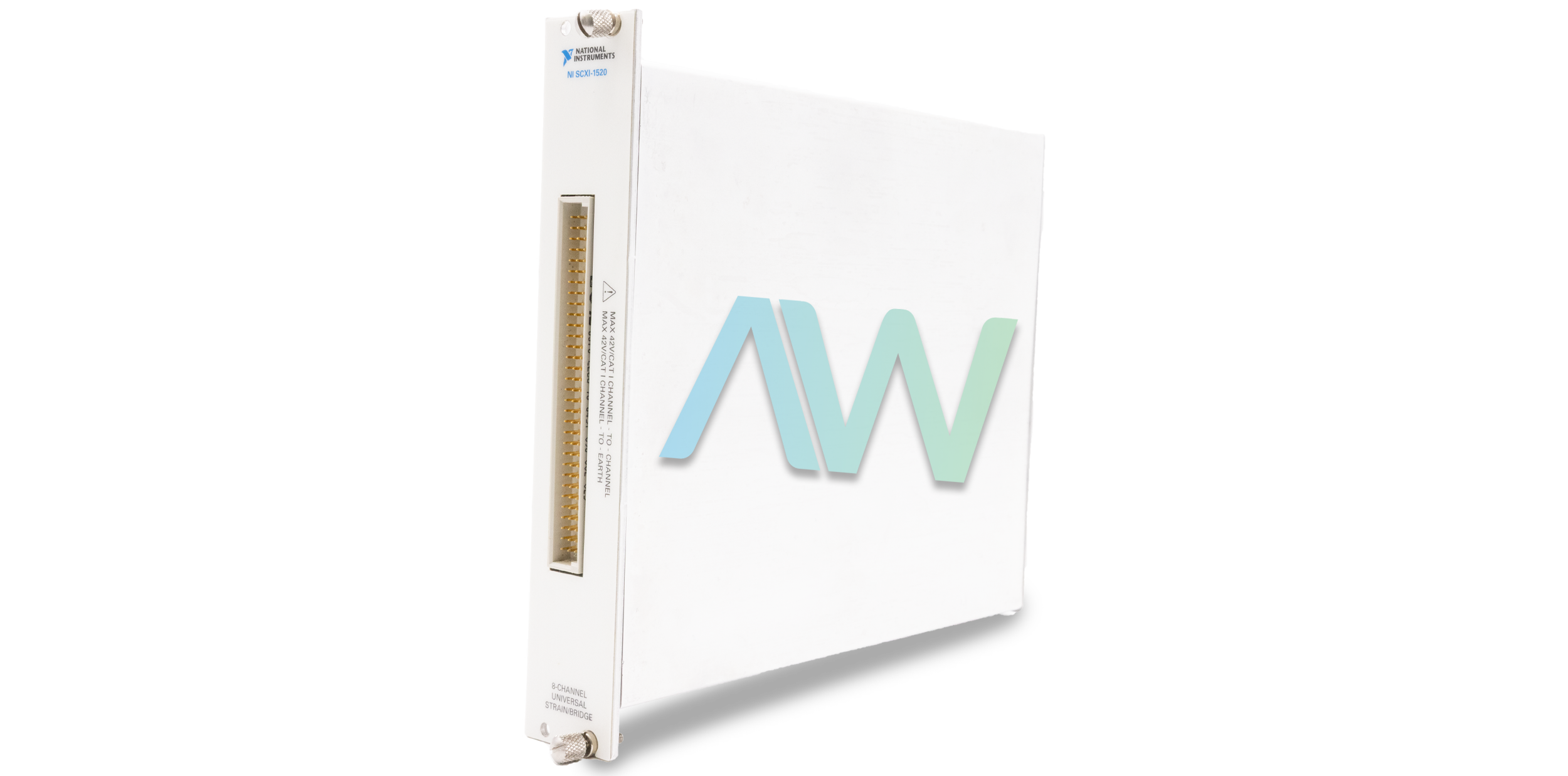

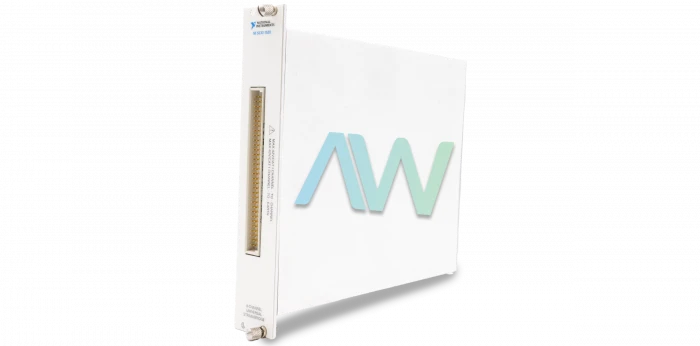

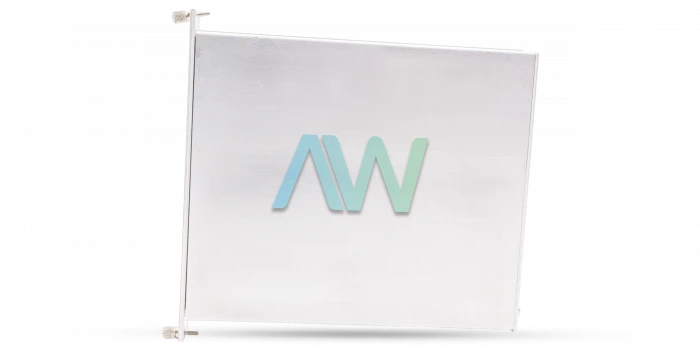

SCXI-1520 National Instruments Strain/Bridge Input Module | Apex Waves | Image SCXI-1520 National Instruments Strain/Bridge Input Module | Apex Waves | ImageSCXI-1520
SCXI-1520 National Instruments Strain/Bridge Input Module | Apex Waves | Image
SCXI-1520 National Instruments Strain/Bridge Input Module | Apex Waves | Image
SCXI-1520 New

SCXI-1520

4.9/5 | 18 ratings

Modular Systems > National Instruments > SCXI

Part Number SCXI-1520
Manufacturer/Brand National Instruments
Description: SCXI-1520, 8 Analog Input Channel, Strain/Bridge Input Module
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:


National Instruments SCXI-1520 Strain/Bridge Input Module

The NI SCXI-1520 (Part Number: 777966-20) Universal Strain-Gauge Input Module can be utilized with the SCXI-1314 Screw Terminal Block, the SCXI-1310 Connector and Shell Assembly, the TBX-96 DIN-rail mounted Terminal Block, or the SCXI-1314T RJ-50 Terminal Block. This module provides every feature users require for straightforward or more complicated strain and bridge-based sensor measurements. One of these features is the capability to read signals from strain, load, force, torque, and pressure sensors. Another beneficial feature of this module is the automatic calibration capability in altering conditions. There is also a programmable amplifier and programmable 4-pole Butterworth filter on every channel to provide precise strain measurements. The 4-pole Butterworth filters offer a sharp cutoff to stop noise while preserving the highest flatness in the passband. Every channel additionally has an individual 0 to 10 V programmable excitation source with remote sense for each channel. Yet another useful feature of the SCXI 1520 module is the simultaneous-sample-and-hold feature. This feature utilizes track-and-hold or T/H circuitry for simultaneous-sampling applications.

Parallel mode is available for high-speed acquisitions with the use of NI-DAQ 7. During parallel mode, every channel is directed to a different analog input channel of the DAQ instrument to which it is cabled. NI-DAQ Traditional does not have the parallel mode of operation. Additionally, there is a random scanning capability on the SCXI-1520 Strain/Bridge Input Module. The random scanning feature allows the user to obtain information from the channels they choose in any order, which helps decrease total scan times. If there is an application that entails less than eight strain gauges, then the extra analog input channels can be utilized for general-purpose analog signals.

SCXI-1520 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1520
ManufacturerNational Instruments
Part Number777966-20
TypeStrain/Bridge Input Module
Channels8
Input CouplingDC
Bandwidth, Filter Bypassed–3 dB at 20 kHz
Dimensions1.2 × 6.9 × 8.0 in.
Weight1 lb. 10.4 oz.
WarrantyOne Year Warranty
SCXI-1520 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments SCXI-1520 Frequently Asked Questions



Question: Which instruments are suggested for calibrating the SCXI 1520?



Answer: A calibrator such as the Fluke 5700A, a 16-bit DAQ device, and a DMM such as the Agilent 34401A or NI-4060, are suggested for calibrating the SCXI 1520.



Question: How often should the NI SCXI 1520 be calibrated?



Answer: The NI SCXI 1520 should be calibrated once a year.



Question: What is the overvoltage protection for the SCXI-1520?



Answer: The overvoltage protection for the SCXI-1520 is ±35 V when powered on and ±25 V when powered off.



Question: Does the NI SCXI-1520 have short-circuit protection?



Answer: Yes, the NI SCXI-1520 has short-circuit protection.
