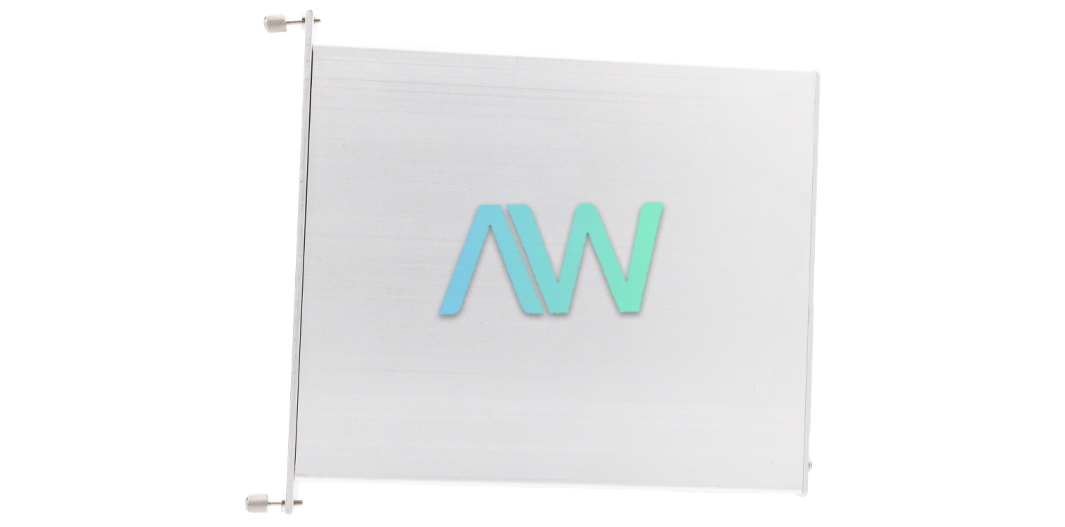

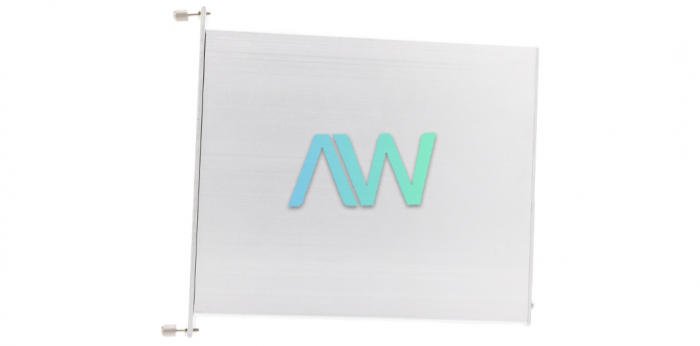

SCXI-1521B National Instruments Strain/Bridge Input Module | Apex Waves | Image

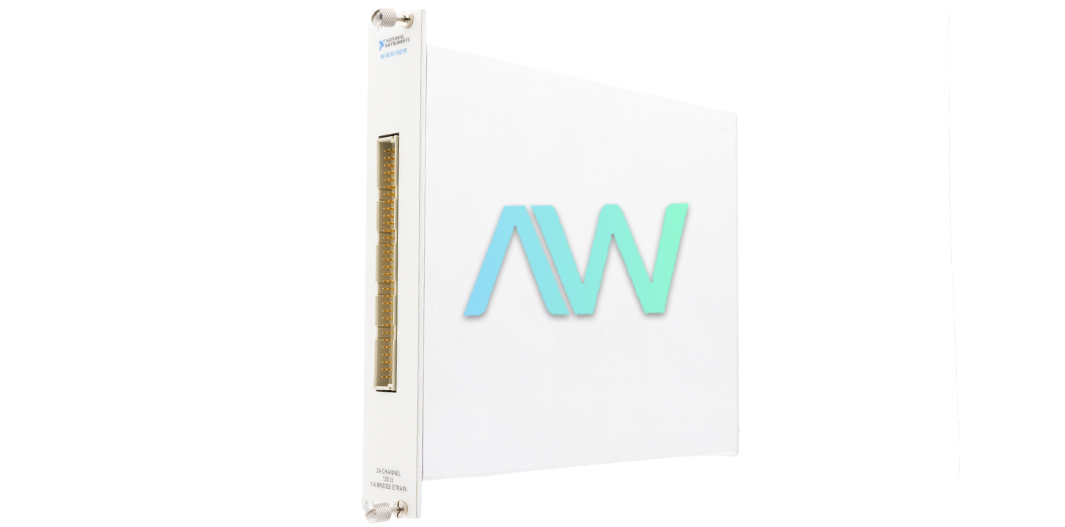

SCXI-1521B National Instruments Strain/Bridge Input Module | Apex Waves | Image
SCXI-1521B New
SCXI-1521B | Legacy, Refurbished and New Surplus

SCXI-1521B

5/5 | 19 ratings

Modular Systems > National Instruments > SCXI

Part Number SCXI-1521B
Manufacturer/Brand National Instruments
Description: SCXI-1521B, 24 Input Channel, Strain/Bridge Input Module
Request for Availablility
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments SCXI-1521B Strain/Bridge Input Module

The NI SCXI-1521B (Part Number: 777966-21B) module is well-suited for applications with a large quantity of channels, including static and fatigue structural tests with 120 Ω quarter-bridge strain gauges. Every channel has a fixed-gain amplifier and fixed 2-pole Butterworth filter for exact measurements. There is additionally an individual 0-5 V programmable excitation source for every channel. The software types which can be used with this module are the NI-DAQmx 7.3 or later and either LabVIEW or LabWindows/CVI.

The SCXI-1317 Front-Mounting Terminal Block with screw terminals is necessary to operate the SCXI 1521B module. Other accessories that can be used with the SCXI-1521B are the SCXI-1310 Connector and Shell Assembly and the TBX-96 DIN-rail Mounted Terminal Block. The SCXI-1310 offers 96 eyelet terminals for simple hook-and-solder signal linking, as well as custom mass termination linking. The TBX-96 has 96 standard screw terminals and requires a cable to be linked to the Strain/Bridge Input Module. The SH96-96 shielded 1 m cable or the R96-96 1 m unshielded cable will suffice.

The front signal connector on the NI SCXI-1521B is a distinct 96-pin DIN C male connector. This connector is the one used for all signal connections. When referencing the pin-out for this module, the pins branded RSVD are reserved. The user cannot make connections to the RSVD pins under any circumstances. Other labels for the pins include EX + X which links to the sensor excitation, QTR X which links to the quarter-bridge completion resistor, and AI X which links to the amplifier terminal. X refers to the channel number.

SCXI-1521B Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelSCXI-1521B
ManufacturerNational Instruments
Part Number777966-21B
TypeStrain/Bridge Input Module
Channels24
Voltage Gain42
Overvoltage Protection±11 V powered on and off
Dimensions7.4 x 6.8 x 1.2 in.
Weight26.4 oz.
Warranty2-3 Year Warranty
SCXI-1521B ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the SCXI-1521B:

185540H-03, 190939A-02, 190939B-02, 190939C-02, 190939C-02L, 777966-21B

National Instruments SCXI-1521B Frequently Asked Questions



Question: Can you remove bridge offset voltage from the SCXI-1521B if needed?



Answer: Yes, each input channel of the SCXI-1521B includes a circuit to remove bridge offset voltage.



Question: Is a stable shunt calibration resistor included in the SCXI 1521B?



Answer: Yes, each input channel of the SCXI 1521B includes a stable shunt calibration resistor.



Question: How do you enable the shunt calibration resistors on the NI SCXI-1521B?



Answer: You can enable or disable the shunt resistors on the NI SCXI-1521B through software commands.

  SCXI-1521B PDF Manuals
