National Instruments PXI-8211 Ethernet Interface

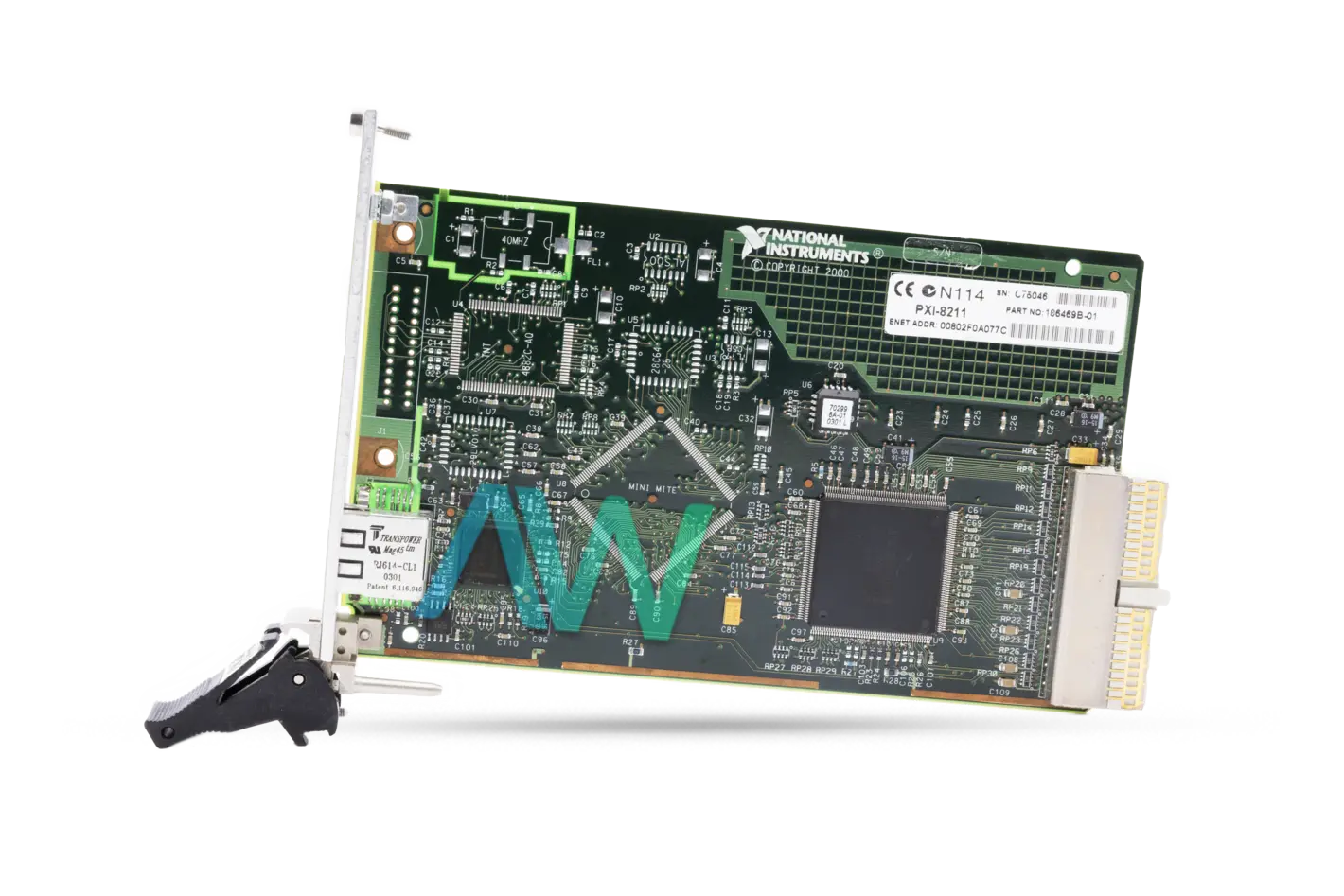

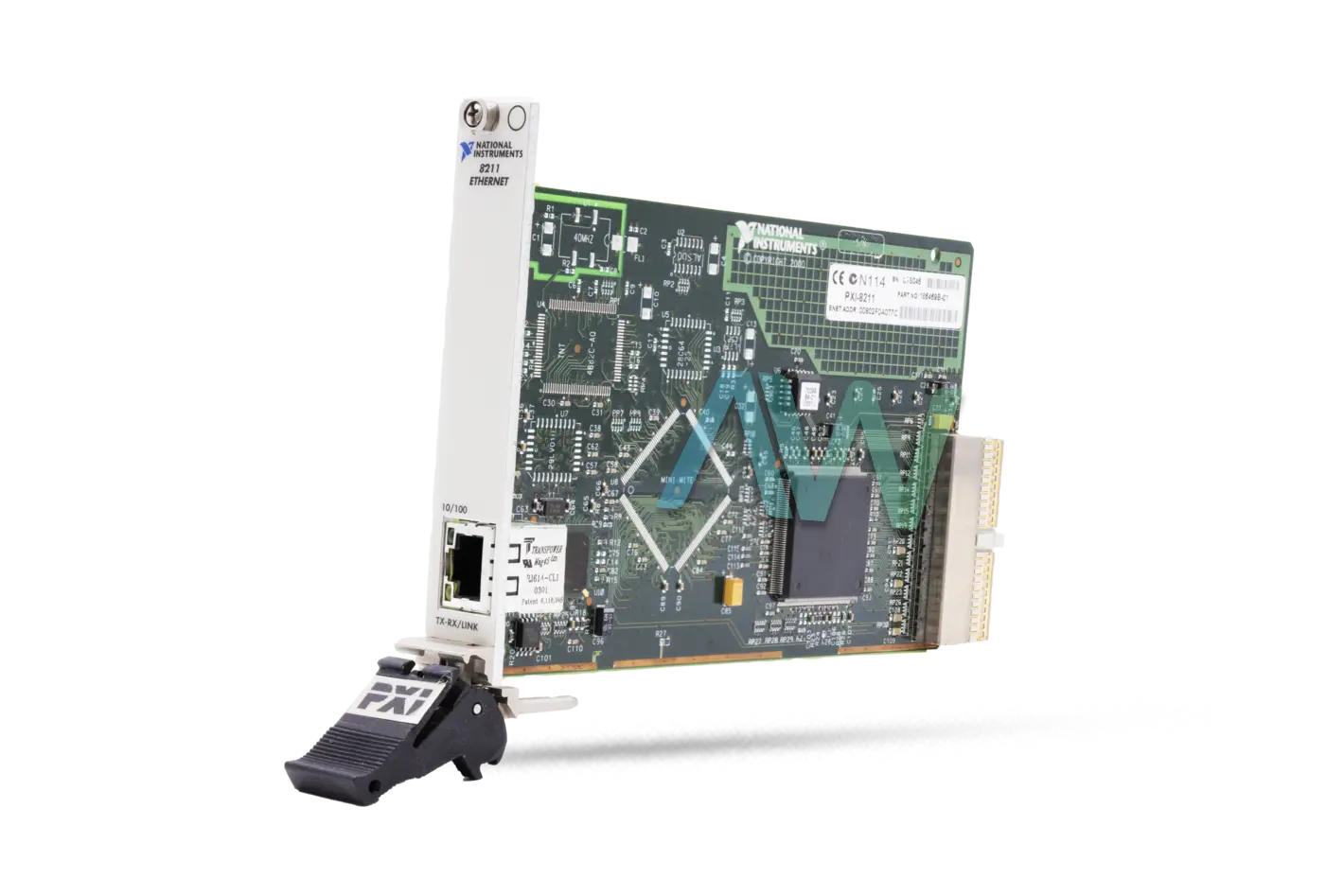

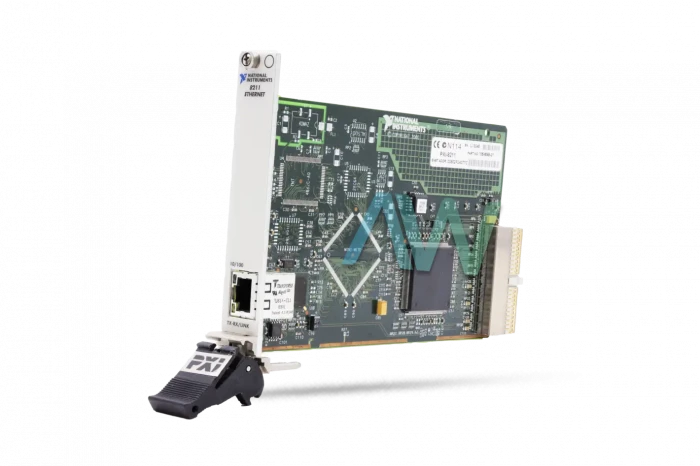

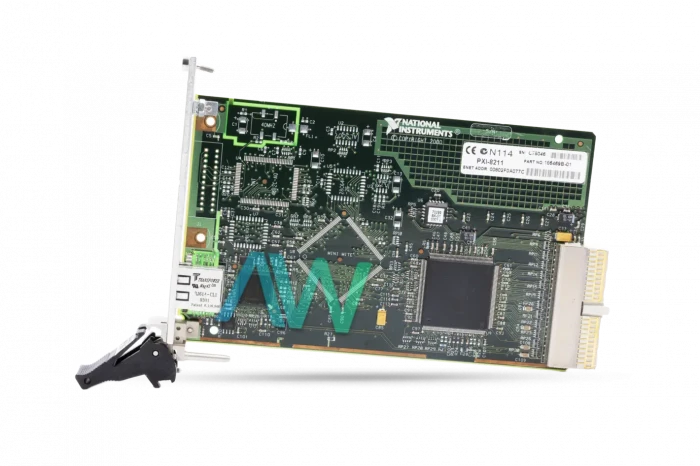

The PXI-8211 (Part Number: 778228-01) is an Ethernet Interface by National Instruments designed for PXI/CompactPCI systems. This Ethernet Interface is compatible with two network types: 10BaseT and 100BaseTX. The PXI 8211 has Intel 82559 Fast Ethernet Controller performance, making it ideal for many types of challenging desktop applications. The NI PXI-8211 comes equipped with RJ-45 connectors with different colored LEDs designated for speed and activity/link. The speed LEDs are green, while the activity/link LEDs are yellow. In addition, this model has full duplex compatibility at rates of 10 and 100 Mbits/sec.
The NI PXI 8211 Ethernet Interface is 6.3 x 3.9 inches, has PCI INTB interrupts, and has power requirements of 1.7 W @ +3.3 VDC. The National Instruments PXI-8211 Ethernet Interface can be used in an RT Series PXI System to bring swift Ethernet to the system. However, if the user is utilizing PXI controllers or desktop PCs with embedded Ethernet ports, then no further hardware is required.
The NI PXI-8211 can be used with controllers that do not have built-in ports, including the PXI-8170. For this purpose, other instruments that are required for operation include: an external Ethernet hub or common LAN, an SMB-210 cable, a 1-meter SMB-200 cable, and two Ethernet cables. Additionally, a 1 kHz function generator can also be used for assessing phase mismatch between chassis, although it is not required. The user should always double check the installation and ensure that any doors/covers to the chassis are not open.
PXI-8211 Obsolete Status has been announced by National Instruments, but the interface will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8211 |
|---|---|
| Part Number | 778228-01 |
| Manufacturer | National Instruments |
| Type | Ethernet Interface |
| Network Compatibility | 10BaseT and 100BaseTX |
| Ethernet Data Rate Mode | 10 Mb/s or 100 Mb/s |
| Connector | RJ-45 |
| Dimensions | 6.3 by 3.9 in. |
| Warranty | One Year Warranty |
| PXI-8211 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXI-8211 Frequently Asked Questions
Question: Which type of I/O connectors does the PXI-8211 have?
Answer: The PXI-8211 has RJ-45 I/O connectors.
Question: What controller is the NI PXI-8211 based on?
Answer: The NI PXI-8211 is based on the Intel 82559-compatible controller.
Question: Which type of network cable should be used with the PXI-8211?
Answer: On the PXI-8211, for 100Base-TX the network cable should be Category 5, twisted-pair wiring. However, 10Base-T requires either a Category 3, 4, or 5 twisted-pair wiring.
PXI-8211 PDF Manuals
ARCHIVED GETTING STARTED PXI-8211 FOR WINDOWS.PDF
PCI PXI ETHERNET ADAPTERS INSTALLATION GUIDE AND SPECIFICATIONS.PDF
