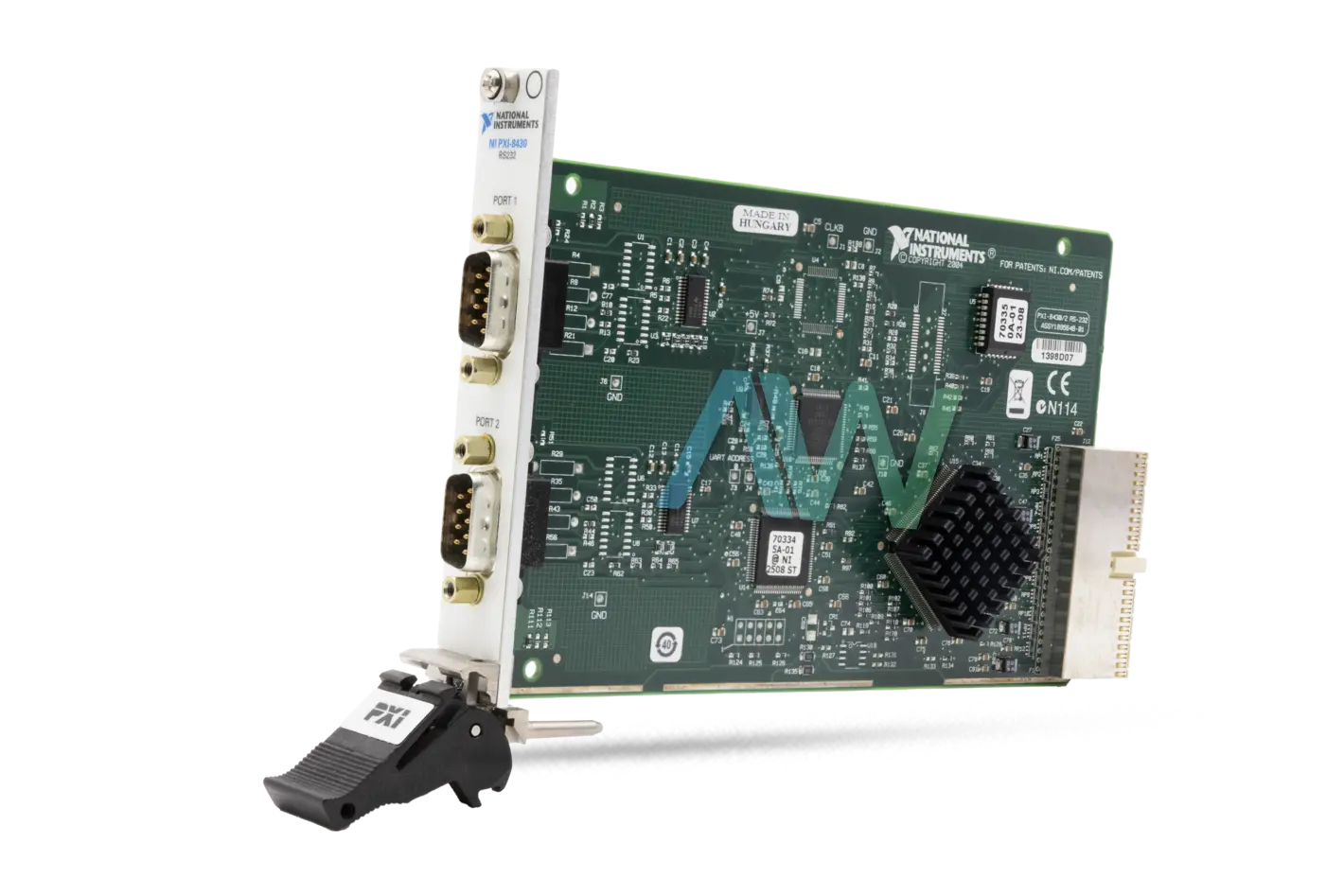

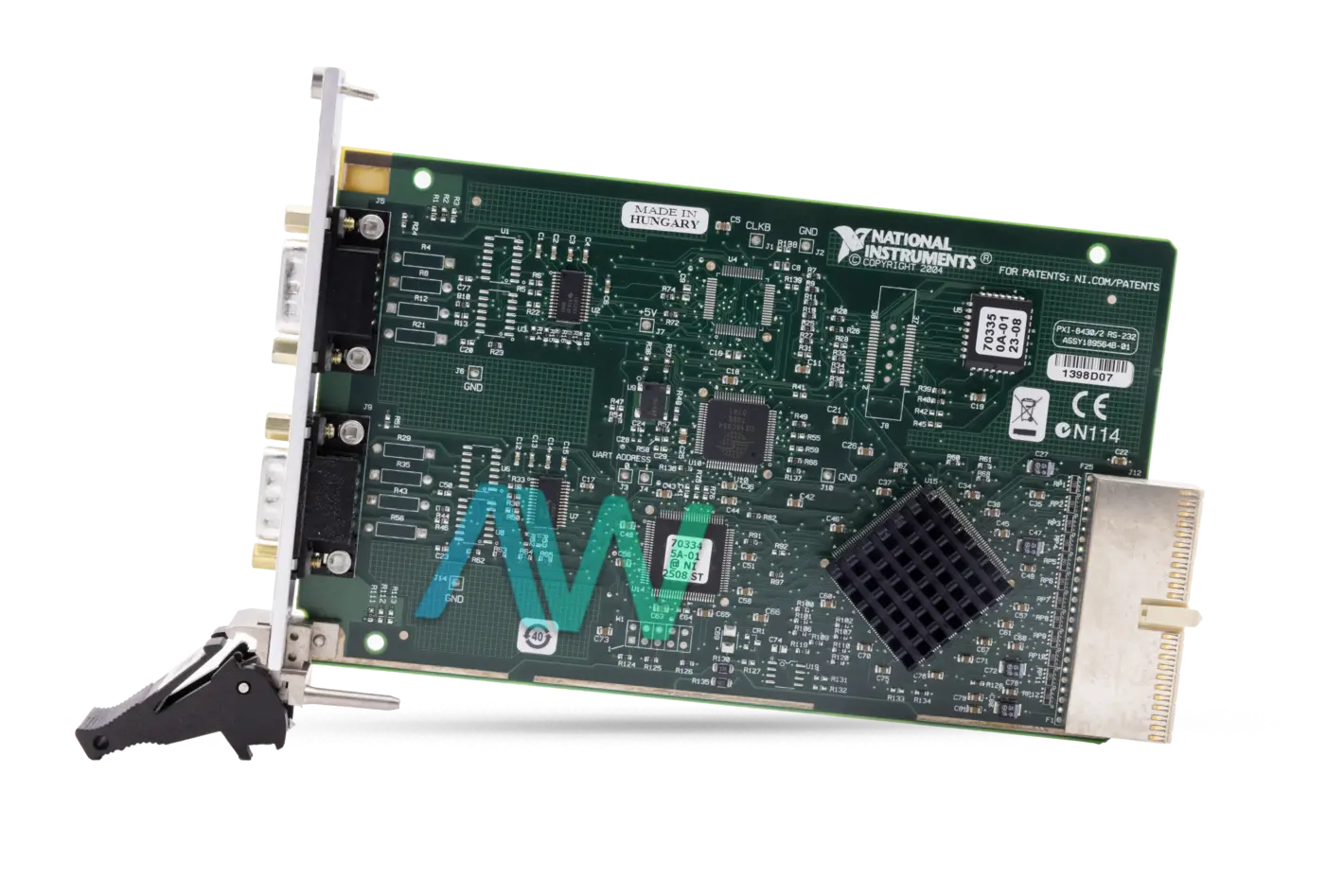

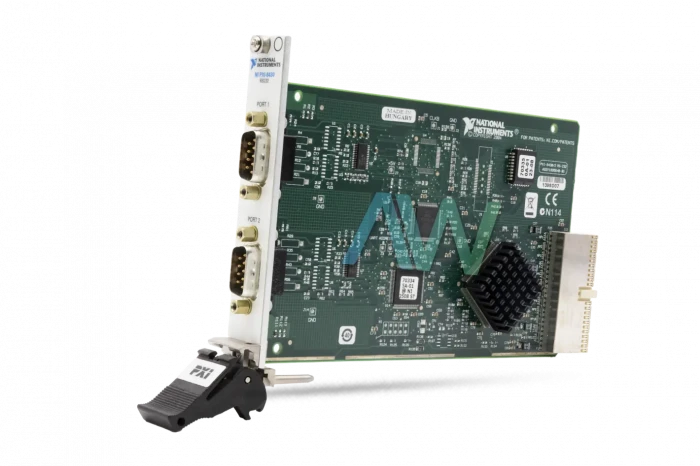

National Instruments PXI-8430/2 PXI Serial Interface Module

The NI PXI-8430/2 (Part Number: 778982-01) is a 2-port, RS-232 Interface for fast communication with RS232 gadgets at rates up to 1 Mbit/s. The PXI-8430/2 offers adaptable baud rates for information transmissions between 57 baud and 1,000,000 baud to inside 1 percent precision for nonstandard baud rates and 0.01 percent exactness for standard baud rates. With the elite DMA motor, the user accomplishes high throughput with insignificant CPU utilization. Utilizing memory mapping, users can associate with more communication focuses without asset clashes.

National Instruments additionally offers simple-to-utilize intense programming that lessens the development time on frameworks utilizing serial communication with the PXI-8430/2. The checked zone must be described and the test set at the underlying position. The instruments are designed and each run enables the client to pick a list of test frequencies. Consequently, at each situation of the test, estimations are taken for all the predefined frequencies and just a short time later the test is moved to the following position. The application to control the computerized estimating framework was produced in a PC with the graphical programming language LabVIEW. The program incorporates a few segments: to control the XY-situating framework, to energize the framework and procure information, to process carefully the raw information, and to show the outcomes

The PXI-8430/2 comes with a "Movement Config" tab control sheet. The client must set the region to be examined by the test determining the most extreme qualities for the X and Y course and the desired additions toward every path. The client must ensure that the test is situated at the underlying position. Alternate presentations demonstrated are figured by the program: add up to number of focuses, current position, number of residual focuses, and the order sent to control the XYpositioner.

PXI-8430/2 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.

ModelPXI-8430/2
Part Number778982-01
ManufacturerNational Instruments
TypePXI Serial Interface Module
Ports2
Supported Serial ProtocolsRS-232
Maximum Transfer Rate1,000 kb/s
Dimensions3.94 x 6.37 in.
Weight134 g.
WarrantyOne Year Warranty
PXI-8430/2 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8430/2 Frequently Asked Questions



Question: What type of I/O connector is on the PXI-8430/2?



Answer: The PXI-8430/2 has a DB-9 male I/O connector.



Question: What is the power requirement for the NI PXI-8430/2?



Answer: The NI PXI-8430/2 requires 325 mA typical or 500 mA maximum at +5 VDC.



Question: Which types of signals are compatible with the PXI-8430/2?



Answer: All signals are compatible with the PXI-8430/2.



Question: What is the FIFO size of the NI PXI-8430/2?



Answer: The NI PXI-8430/2 has 128 B FIFO size.
