PXI-8432/4 National Instruments RS-232 Interface | Apex Waves | Image PXI-8432/4 National Instruments RS-232 Interface | Apex Waves | ImagePXI-8432-4PXI-8432-4 | Legacy, Refurbished and New Surplus
PXI-8432/4 National Instruments RS-232 Interface | Apex Waves | Image
PXI-8432/4 National Instruments RS-232 Interface | Apex Waves | Image
PXI-8432-4 New
PXI-8432-4 | Legacy, Refurbished and New Surplus

PXI-8432-4

4.9/5 | 7 ratings

Modular Systems > National Instruments > Serial Interface Devices

Part Number PXI-8432-4
Manufacturer/Brand National Instruments
Description: PXI-8432/4, 4-Port, RS-232 Interface Module
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

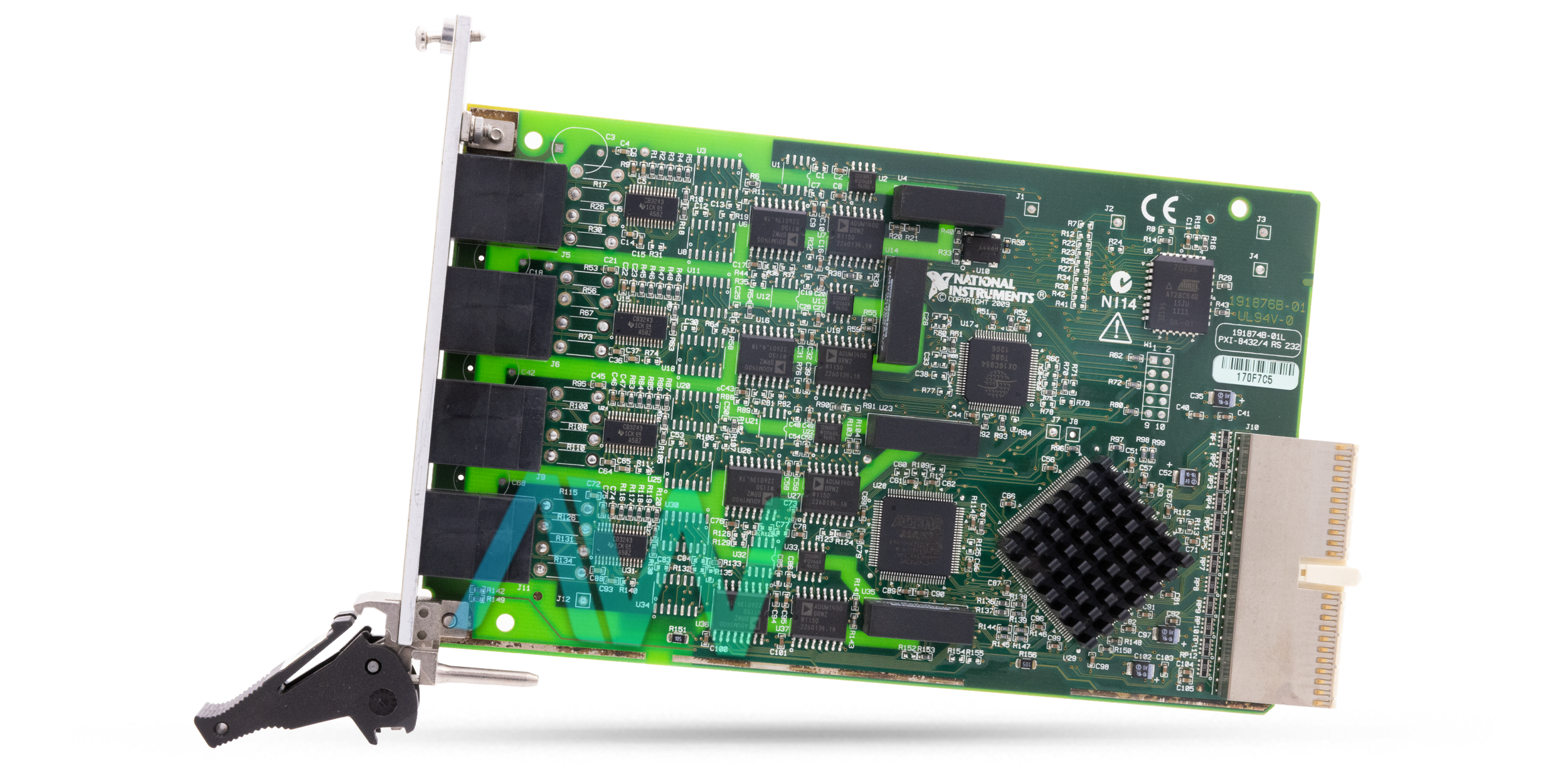

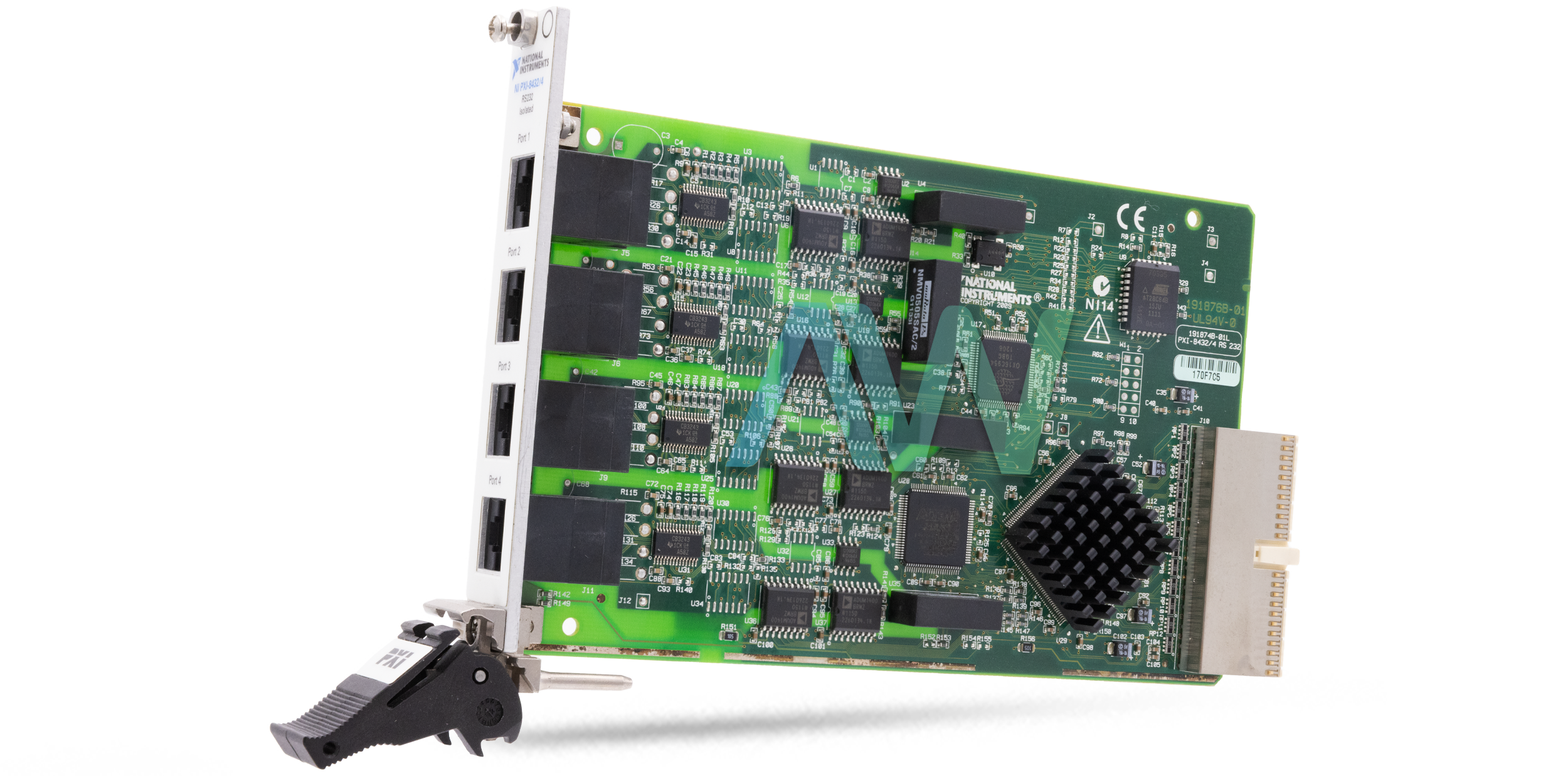

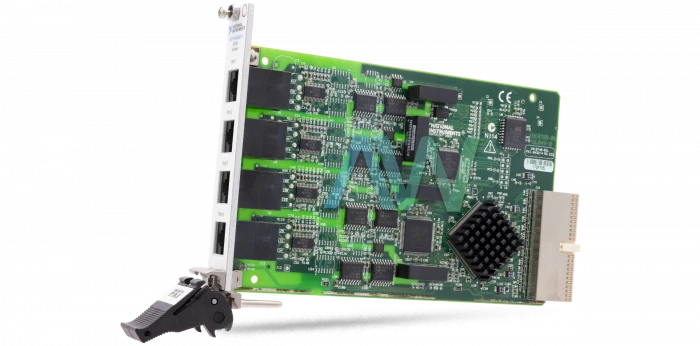

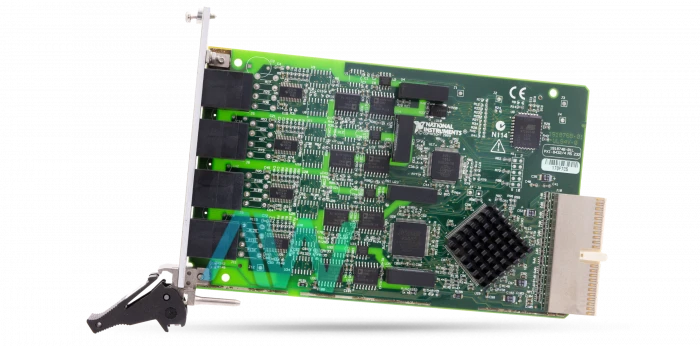

National Instruments PXI-8432/4 PXI Serial Interface Module

The PXI-8432/4 (Part Number: 779538-01) 4 Port, Isolated RS-232, Serial Interface Module allows the user to introduce and utilize the USB-232 and USB-485 as standard serial ports from the user’s current applications or with applications composed with NI-VISA. In addition, the 2-port and 4-port adaptations of the USB-232 incorporate programming selectable DTE or DCE handset modes and a programmed handset identification mode, also known as Auto232. The USB-485 has a predisposition selectable by programming, with which the user can activate and deactivate the deviation for each port.

The NI PXI-8432/4 comes with Ethernet interfaces. National Instruments ENET-232 and ENET-485 serial gadget servers interface Ethernet 100BaseTX (100 Mb/s) or 10BaseT (10 Mb/s) Ethernet systems to non-concurrent serial ports for communication with serial gadgets. They accompany 2 or 4 port alternatives and utilize standard interchanges RS-232, RS-422, or RS-485. All items are delivered with the driver programming for Windows 2000/NT/XP.

The TCP/IP communication protocol, which handles all interchanges between the serial gadget server and the host PC, is executed in the firmware incorporated with the server of the serial gadget. A design utility arranges the IP address of the serial gadget server and uncovers all extra serial ports to the working framework used by any application programming bundle utilizing a standard Microsoft Windows serial interface (COM).

ModelPXI-8432/4
Part Number779538-01
ManufacturerNational Instruments
TypePXI Serial Interface Module
Ports4
Supported Serial ProtocolRS-232
Isolation TypePort-PC Isolation, Port-Port Isolation
Dimensions6.3 x 3.9 in.
Weight147 g.
WarrantyOne Year Warranty
PXI-8432/4 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8432/4 Frequently Asked Questions



Question: What type of I/O connectors does the PXI-8432/4 have?



Answer: The PXI-8432/4 has four 10-position modular RJ-50 I/O connectors.



Question: What is the maximum serial transfer rate for the NI PXI-8432/4?



Answer: The maximum serial transfer rate for the NI PXI-8432/4 is 1,000,000 bps.



Question: What is the FIFO size of the PXI-8432/4?



Answer: The PXI-8432/4 FIFO size is 128 Bytes.



Question: What is the power requirement from the PXI channel for the NI PXI-8432/4 Serial Interface?



Answer: The power requirement from the PXI channel for the NI PXI-8432/4 Serial Interface is 925 mA typical, 2 A maximum at +5 VDC.

  PXI-8432-4 PDF Manuals
