PXI-8433-2

Modular Systems > National Instruments > Serial Interface Devices

Part Number PXI-8433-2
Manufacturer/Brand National Instruments
Description PXI-8433/2 2-Port RS-485/RS-422 Interface

Speak to a sales representative for pricing & lead time:


National Instruments PXI-8433/2 RS-485/RS-422 Interface

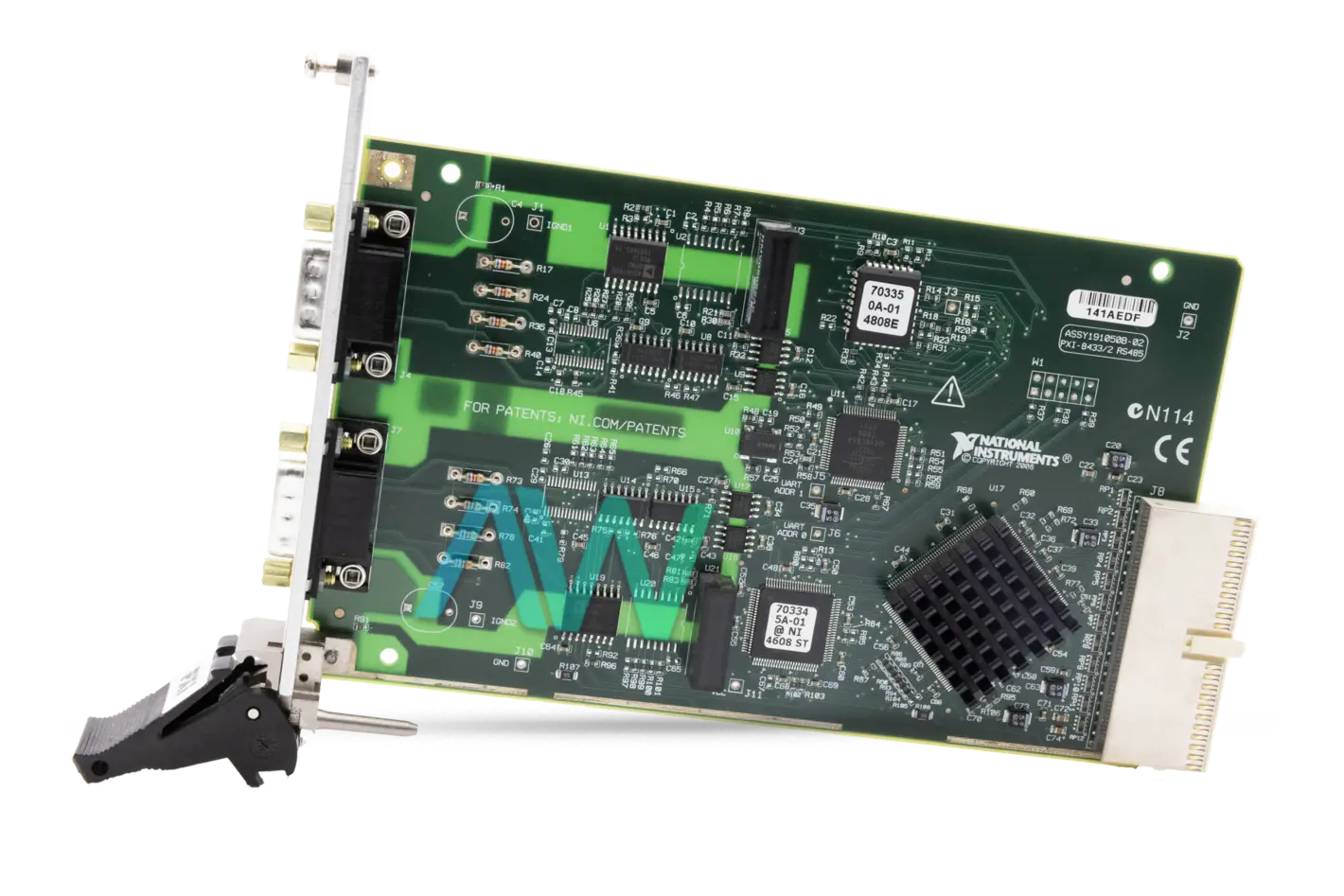

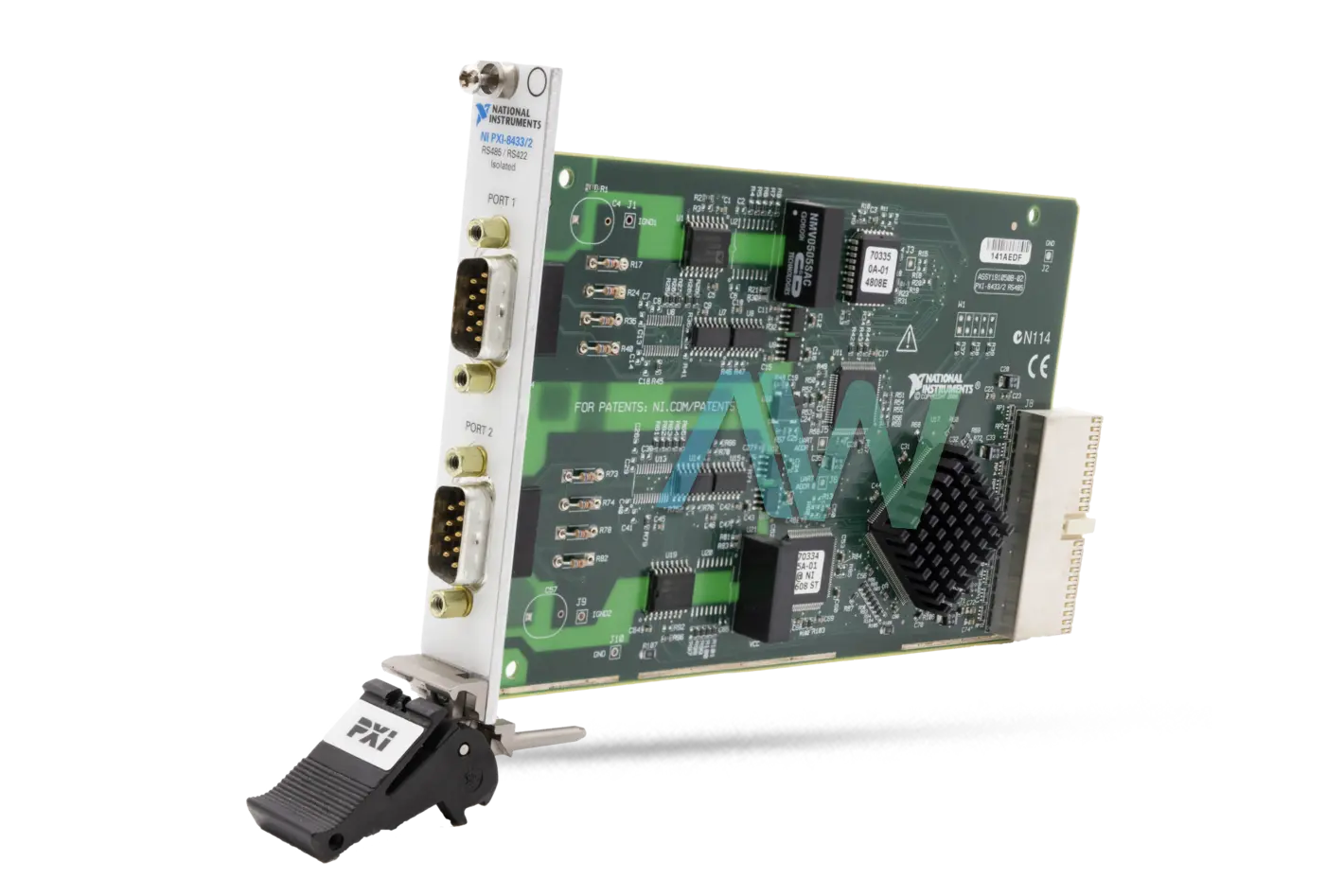

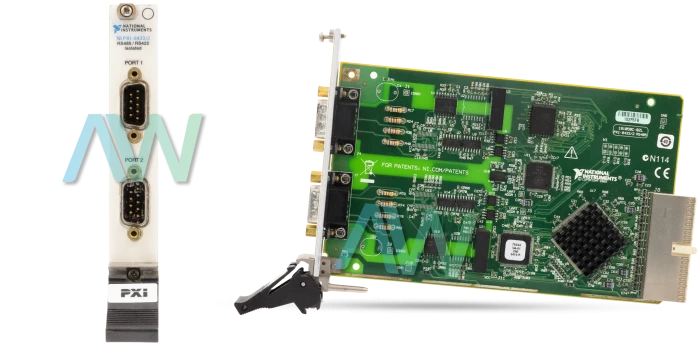

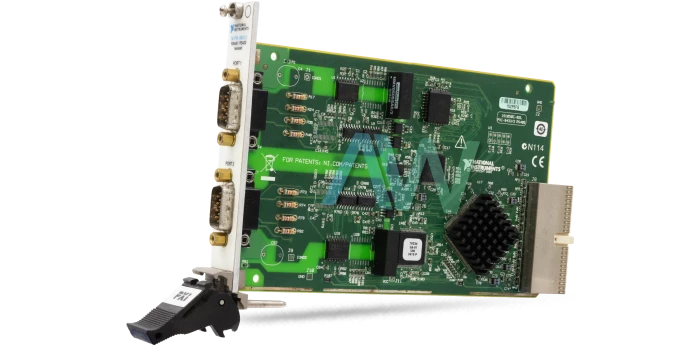

The PXI-8433/2 (Part Number: 779744-01) 2 Port, Isolated RS-485/RS-422, Serial Instrument Control Module, is an elite modern interface for fast disengaged communication between ports with RS-485 and RS-422 gadgets. The NI PXI-8433/2 RS-485/RS-422 Interface has Port-PC Isolation and Port-Port Isolation, a DB-9 male connector, 128 Bytes FIFO size, and a 3,000 kbaud maximum baud rate.

According to the NI PXI-8433/2 datasheet, this serial interface has support for superior DMA transfers, multiple threads, and various processors. The user can choose between 4 and 2-wire transceiver modes for medium and full duplex communication. NI serial interfaces are likewise shown as standard COM ports, for compatibility with programs that use serial communications. All NI serial hardware supports standard baud rates. In addition, the NI PXI-8433/2 family of hardware supports any baud rate from 2 baud up to the maximum supported baud rate for that interface. All baud rates are supported because the UART can get within 1.3 percent of all baud rates in that range.

Ground loops, which are current flowing through the ground line when ground voltage levels vary between associated gadgets, are a typical issue in numerous modern applications. On RS-485, this issue brings about a typical mode voltage created by the distinction in ground levels or by noise induced on both lines. Isolating serial ports eliminates this issue and ensures the PC framework in harsh industrial conditions. The National Instruments PXI serial interfaces are accessible with optical isolation up to 2,000 V for such applications.

ModelPXI-8433/2
Part Number779744-01
ManufacturerNational Instruments
TypePXI Serial Interface Module
Ports2
Supported Serial ProtocolsRS-422, RS-485
Isolation TypePort-PC Isolation, Port-Port Isolation
Dimensions6.37 x 3.94 in.
Weight125 g.
WarrantyOne Year Warranty
PXI-8433/2 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8433/2 Frequently Asked Questions



Question: What is the maximum baud rate for the PXI-8433/2?



Answer: The maximum baud rate for the PXI-8433/2 is 3 Mbps.



Question: How many I/O connectors are on the NI PXI-8433/2?



Answer: There are two DB-9 male I/O connectors on the NI PXI-8433/2.



Question: What is the continuous operating rated voltage for the PXI-8433/2?



Answer: The continuous operating rated voltage for the PXI-8433/2 is -7 V to +12 V.



Question: What is the continuous port-to-host isolation voltage for the NI PXI-8433/2?



Answer: The continuous port-to-host isolation voltage for the NI PXI-8433/2 is 60 VDC (CAT I).

PXI-8433-2 Technical Specifications:


Manufacturer:National Instruments
Model:PXI-8433/2 (779744-01)
Type:RS-485/RS-422 Interface
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
