PXI-8512-2

Modular Systems > National Instruments > Serial Interface Devices

Part Number PXI-8512-2
Manufacturer/Brand National Instruments
Description PXI-8512/2 Flexible Data-Rate, High-Speed PXI CAN Interface Module
In Stock - Ships Today
In Stock | Ships 3-5 Days

Speak to a sales representative for pricing & lead time:

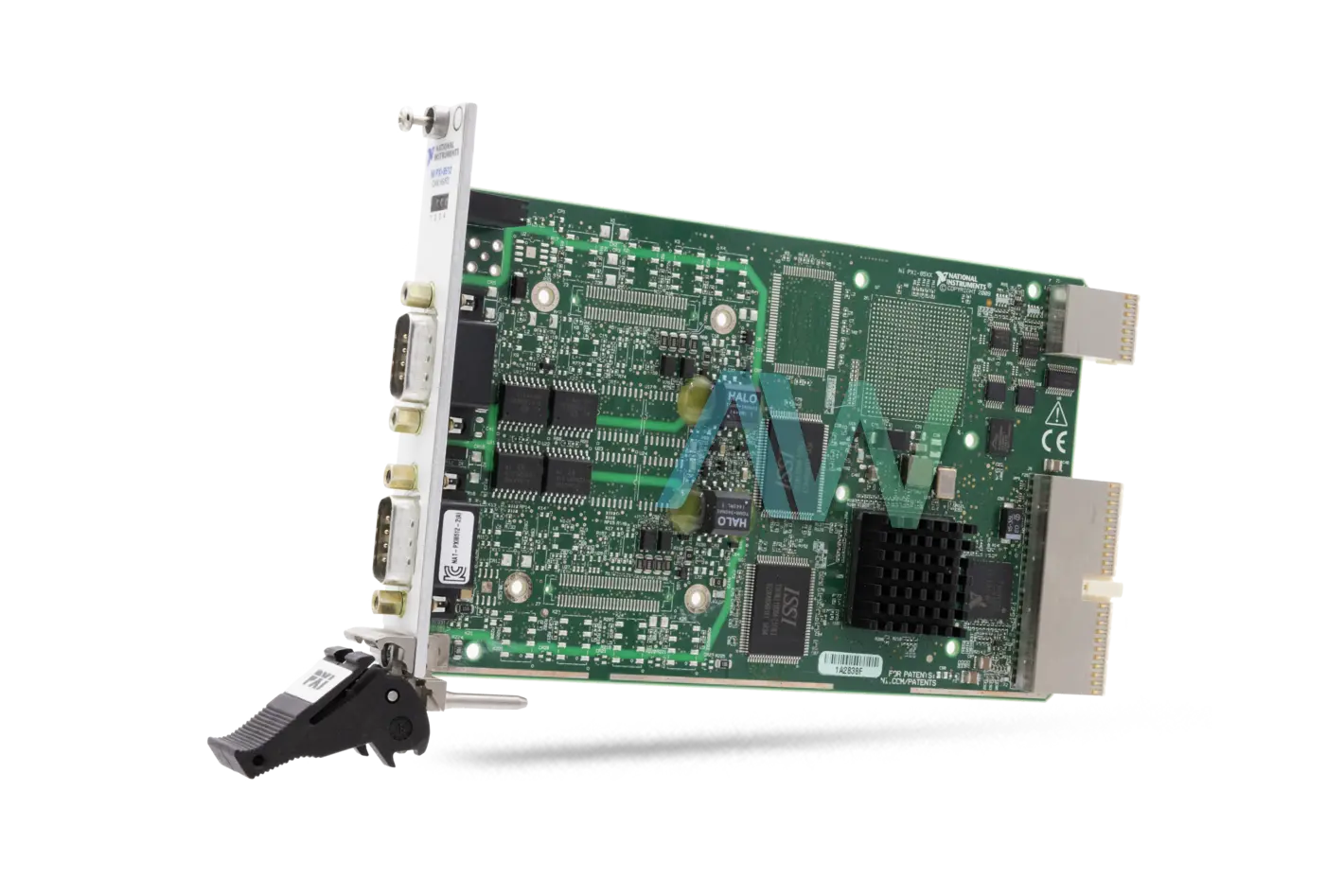

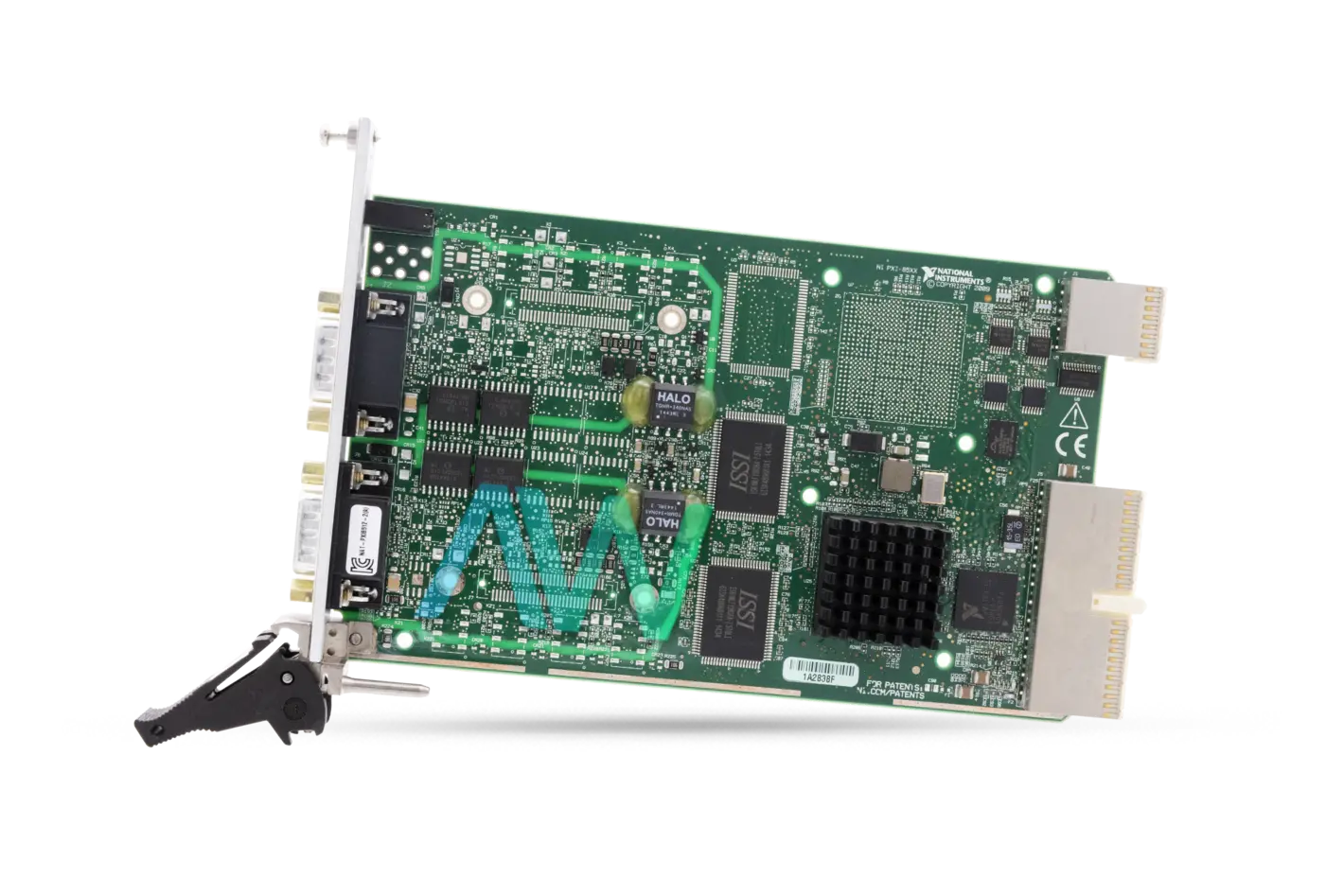

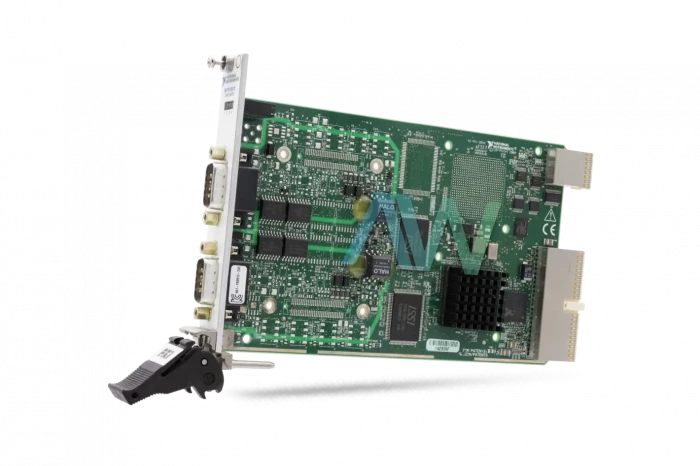

National Instruments PXI-8512/2 PXI CAN Interface Module

The PXI-8512/2 (Part Number: 780687-02) is a Flexible Data-Rate, High-Speed CAN Interface Module with 2 ports. This module has a CAN bus, 40 kbits/s minimum baud rate, and does not have an external sync connector. The NI PXI-8512/2 PXI CAN Interface Module needs a few accessories for operation. One cable and one connector block are needed. The connector block it can be used with is the CAN Breakout Box, part number 780041-01. The cable this module can be used with is a 9-pin D-SUB female NI CAN Single Termination Cable. The cable is 2 meters long and has the part number 192017-02 associated with it.

Like the other modules that are members of the NI-XNET platform, the National Instruments PXI-8512/2 module is well-suited for applications that involve real-time, high-speed manipulation of hundreds of CAN frames and signals. Several of the application types the module will work well for include: bus monitoring, hardware-in-the-loop simulation, automation control, and rapid control prototyping. This PXI CAN Interface Module utilizes DC-to-DC converters and galvanic isolation to keep the module safe from transient voltages and ground loops. Isolations aids in stopping failures often related to a variety of ground planes that often occur in test equipment setups. The isolation voltage for the NI PXI-8512/2 is 500 VDC and the isolation type is channel-to-bus and channel-to-channel.

The software-selectable termination options for the PXI-8512/2 module are either none or 120 Ω. In addition, this module does not have any external bus power requirements because V- is used as the reference ground.

ModelPXI-8512/2
ManufacturerNational Instruments
Part Number780687-02
TypePXI CAN Interface Module
Ports2
Transceiver TypeTJA1041
Dimensions3.9 x 6.3 in.
I/O Connector9-pin male D-SUB connector for each port
WarrantyOne Year Warranty
PXI-8512/2 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8512/2 PXI CAN Interface Module



Question: Which operating systems is the PXI-8512/2 compatible with?



Answer: The PXI-8512/2 is compatible with Windows XP, Real-Time OS, PharLap, Windows Vista x64/x86, Windows 7 64-bit, and Windows 7.



Question: What is the maximum baud rate of the NI PXI-8512/2?



Answer: 1 Mbit/s is the maximum baud rate of the NI PXI-8512/2.



Question: How many transceivers does the PXI-8512/2 have?



Answer: The PXI-8512/2 has 2 transceivers.

PXI-8512-2 Technical Specifications:


Manufacturer:National Instruments
Model:PXI-8512/2
Part Number:780687-02
Type:PXI CAN Interface Module
Repair Evaluation:$150
