PXI-8532

Modular Systems > National Instruments > Serial Interface Devices

Part Number PXI-8532
Manufacturer/Brand National Instruments
Description PXI-8532 1-Port DeviceNet Interface Module

Speak to a sales representative for pricing & lead time:

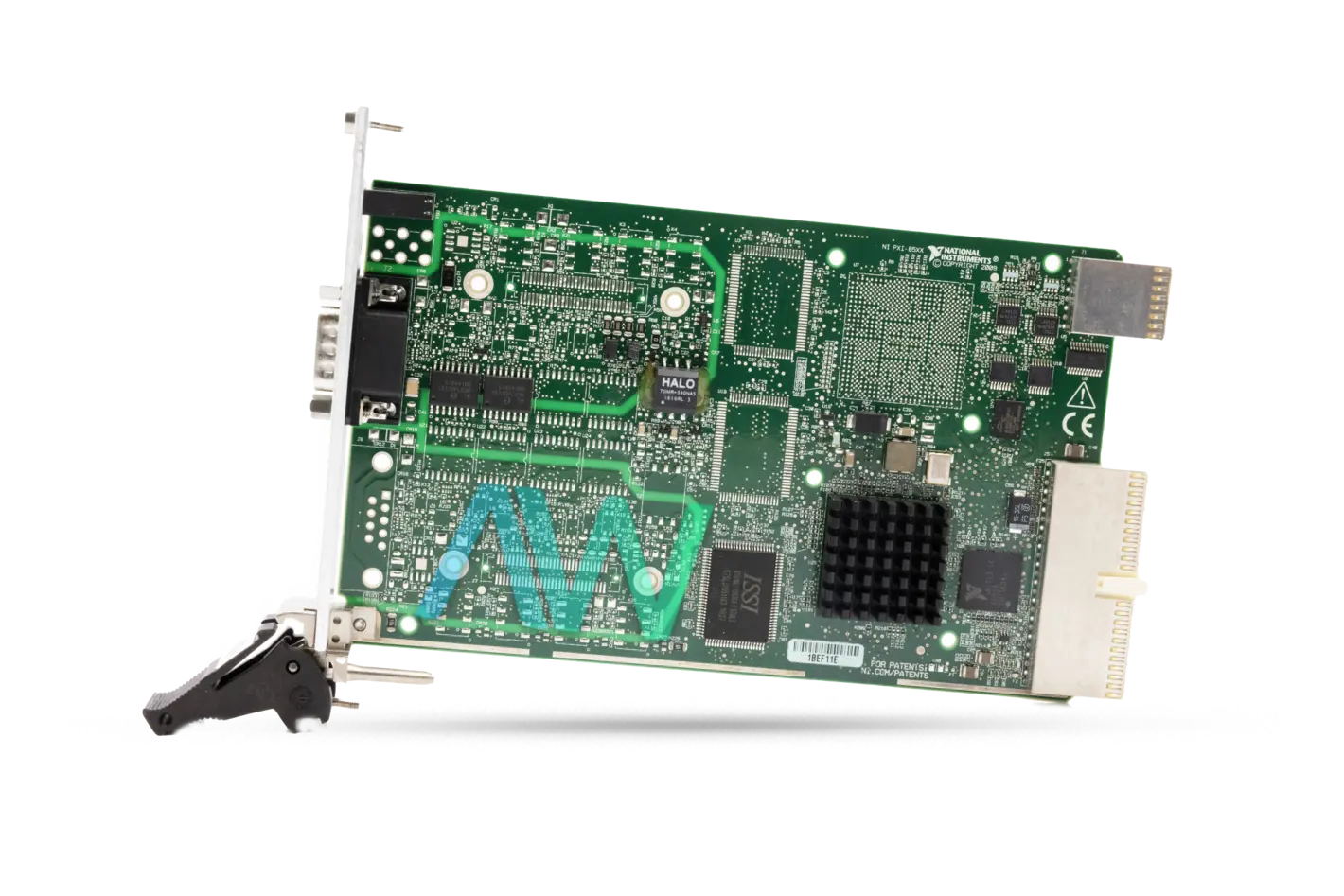

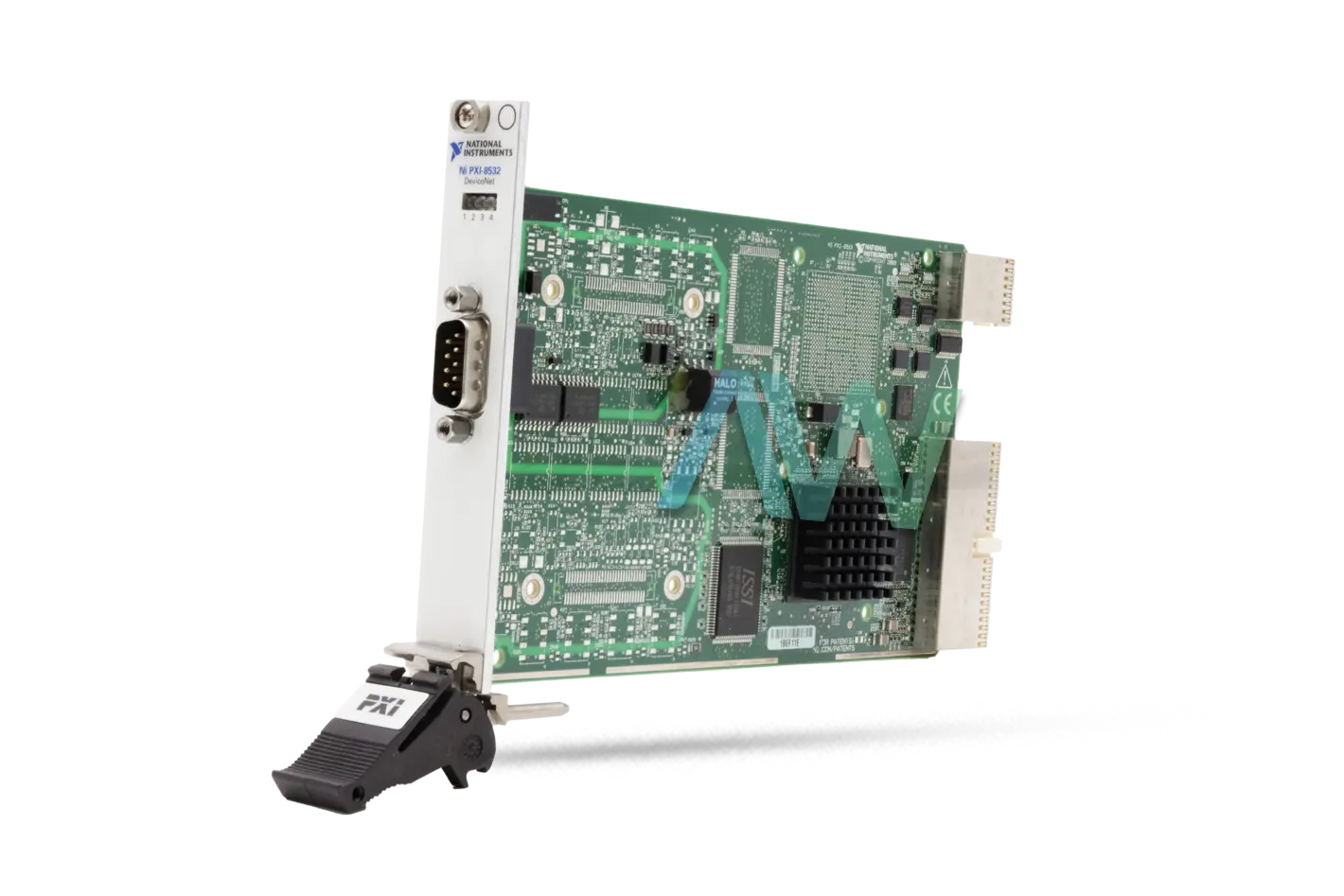

National Instruments PXI-8532 DeviceNet Interface Module

The NI PXI-8532 (Part Number: 781063-01) is a PXI DeviceNet Interface Module, with 1 port and a fast DeviceNet Interface to create applications with the NI-Industrial Communications for DeviceNet controllers. DeviceNet depends on the physical CAN layer and expands opposition and interconnectivity by determining different parameters, such as link length, connectors, and exchange rates required. The user can program the PXI-8532 to include elite master/scanner or slave capacities to DeviceNet systems.

The PXI-8532 module is compatible with PXI modular instrumentation and complies with the CompactPCI industrial PC standard. They include the Philips PCA82C251 rapid CAN transceiver, which is completely compatible with the ISO 11898 standard and supports all the DeviceNet baud rates (125 kbit/s, 250 kbit/s, and 500 kbit/s). These interfaces additionally protect the user’s equipment from being harmed by high-voltage spikes on the target bus. All bus ports are galvanically isolated up to 500 VDC (2 seconds maximum withstand) channel-to-channel and channel-to-bus.

The NI PXI-8532 is a DeviceNet Interface Module for superior master (scanner) control of the DeviceNet arrangement. This interface module is specifically created for master (scanner) applications that included managing and programming other DeviceNet gadgets on the system. Applications for NI DeviceNet master interfaces incorporate PC-based control, implanted control frameworks, PC-based human machine interfaces, and DeviceNet network management utilities.

The NI PXI-8532 offers high-level programming API for effectively dealing with the DeviceNet system and its gadgets, a 500 V galvanically isolated physical layer, and two or more 1-port interfaces in a similar framework.

ModelPXI-8532
Part Number781063-01
ManufacturerNational Instruments
TypePXI DeviceNet Interface Module
Ports1
Driver SoftwareNI-Industrial Communications for DeviceNet
Recommended SoftwareLabVIEW or LabVIEW Real-Time
TransceiverPhilips PCA82C251
Dimensions6.3 x 3.9 in.
WarrantyOne Year Warranty
PXI-8532 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-8532 Frequently Asked Questions



Question: Can the output voltage on the NI PXI-8532 be software selected between 10 and 30 Volts?



Answer: Yes, the NI PXI-8532 has the capability for the user to software select the output voltage.



Question: What do the LEDs on the PXI-8532 indicate?



Answer: On the PXI-8532, the LEDs will flash green or red to indicate status. For the module status, green indicates the DeviceNet hardware port is working normally and red indicates an unrecoverable error has occurred. For the network status, flashing green means the DeviceNet hardware port is being utilized but has not yet connected with other DeviceNet instruments. Green indicates the port has one or more connections with other DeviceNet instruments. Flashing red indicates that at least one I/O connection has timed out. Lastly, red means that the DeviceNet hardware port failed to communicate with the DeviceNet network.



Question: How many ports does the PXI 8532 module have?



Answer: The PXI 8532 module has 1 port.



Question: What is the size of the non-volatile flash memory on the PXI-8532?



Answer: The PXI-8532 has a non-volatile flash memory size of 16 Mbit.



PXI-8532 Technical Specifications:


Manufacturer:National Instruments
Model:PXI-8532 (781063-01)
Type:DeviceNet Interface Module
Repair Evaluation:$150
