PXIe-8234

Modular Systems > National Instruments > Serial Interface Devices

Part Number PXIe-8234
Manufacturer/Brand National Instruments
Description PXIe-8234 2-Port Gigabit PXI Ethernet Interface Module

Speak to a sales representative for pricing & lead time:

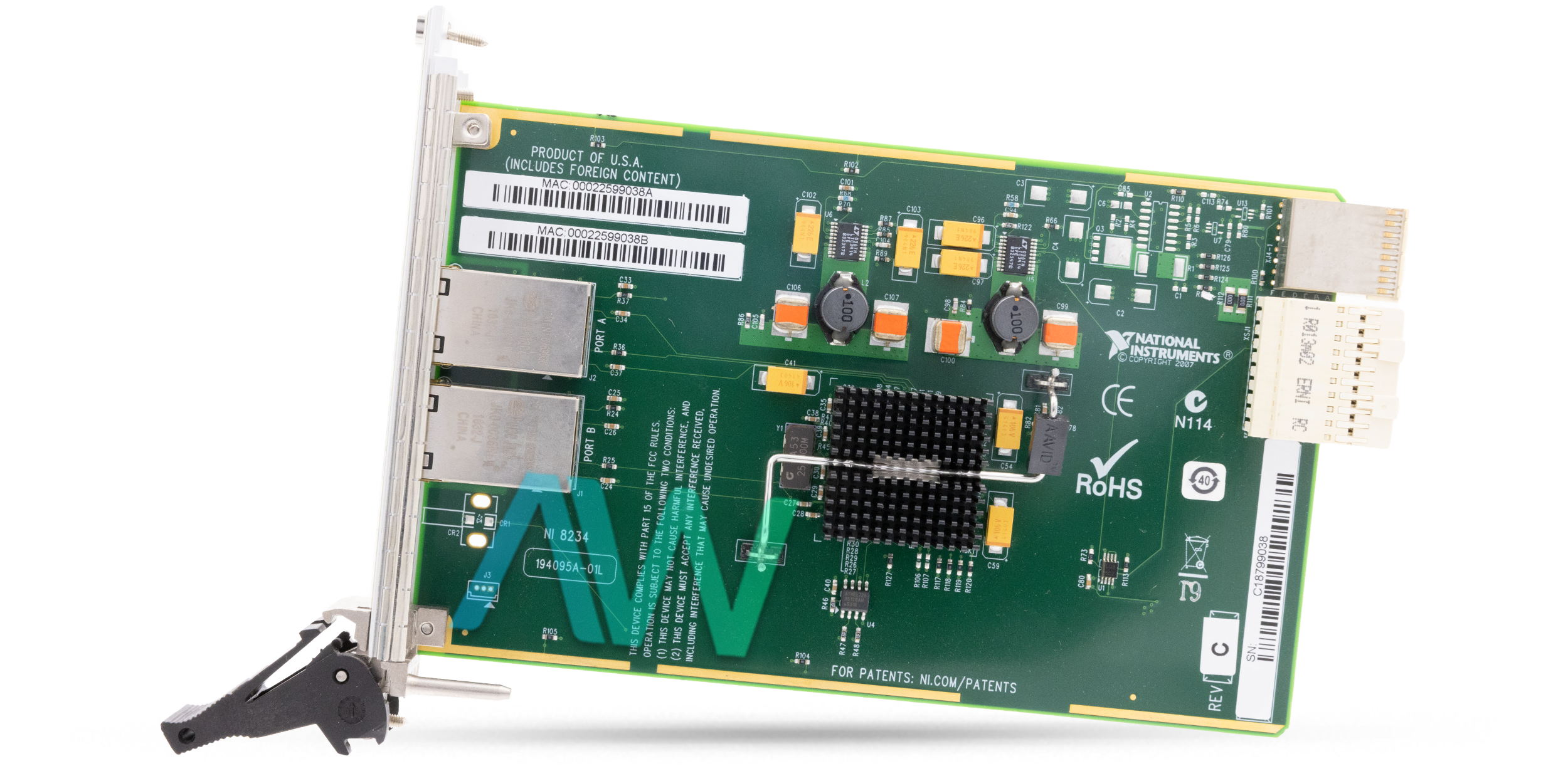

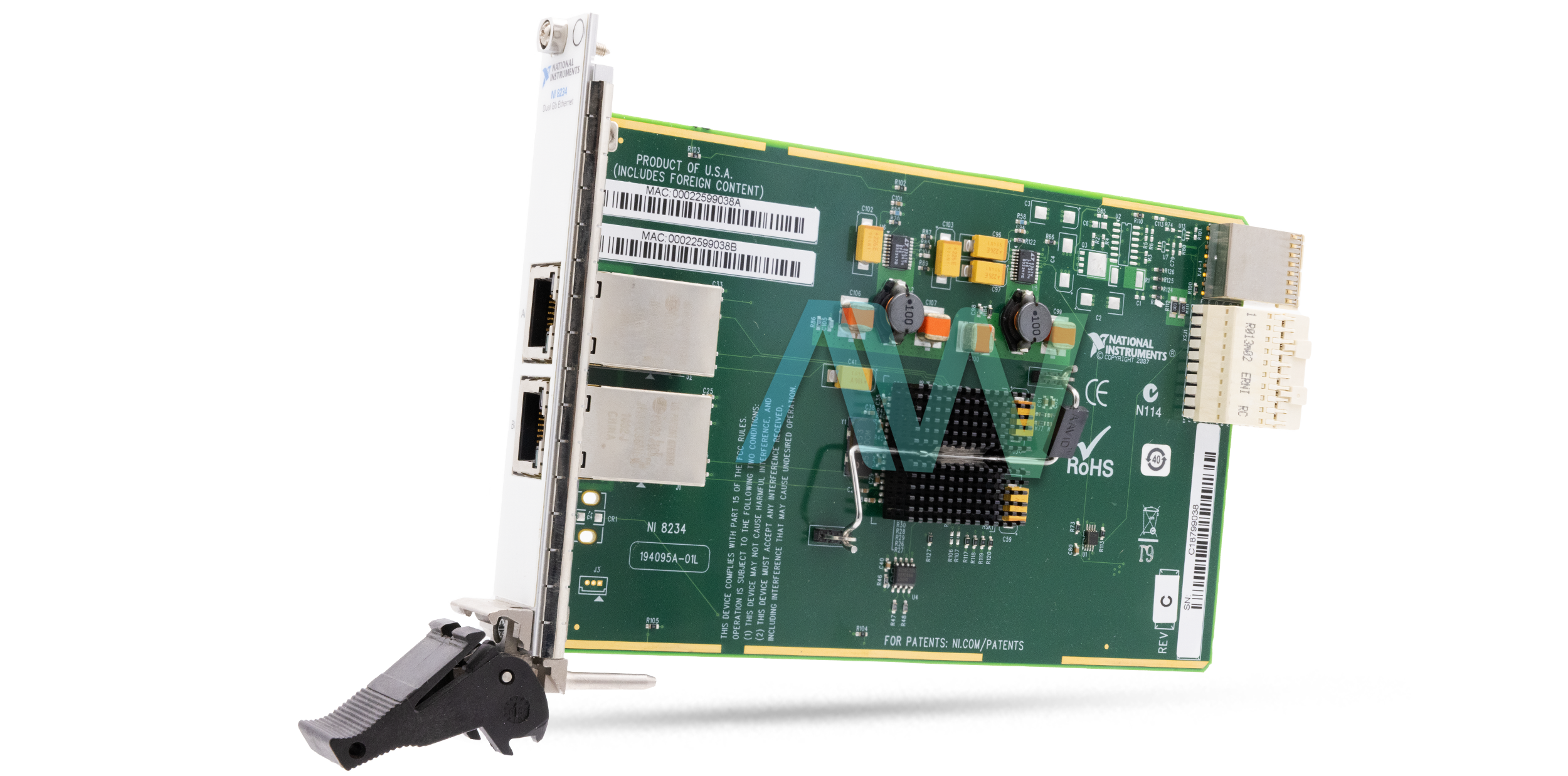

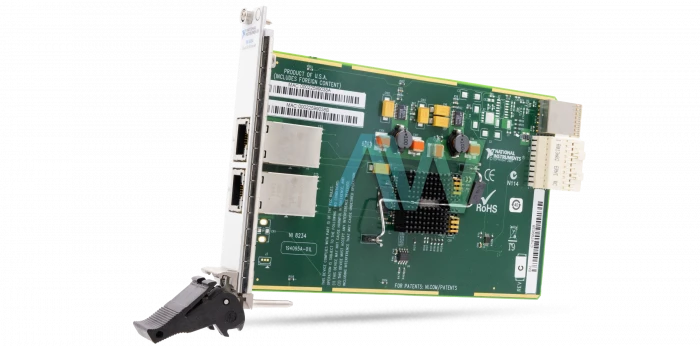

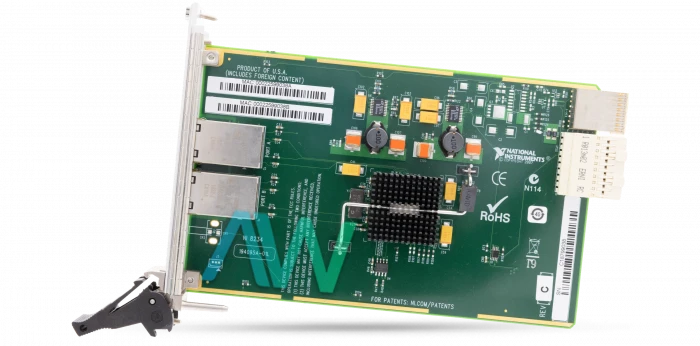

National Instruments PXIe-8234 PXI Ethernet Interface Module

The PXIe-8234 (Part Number: 780244-01) is a Gigabit PXI Ethernet Interface Module, which can be used with National Instruments Vision Acquisition Software. This software is driver programming for obtaining, showing, logging, and monitoring images from many camera types. With a set of simple-to-utilize capacities and programs, users can rapidly make applications utilizing LabVIEW, C, C ++, C #, Visual Basic, and Visual Basic .NET. This module transfers images at full Gigabit Ethernet bandwidth on both ports at the same time and is enhanced for an extremely low CPU load. The PXIe-8234 module gives full GigE Vision data transfer capacity at each port, giving users the transmission capacity needed for the most challenging vision applications.

The NI PXIe-8234 has two Ethernet ports, which empowers the development of a hybrid test framework. With the capacity to utilize the second Ethernet port, the user can join numerous buses into their test frameworks. By taking advantage of hybrid test frameworks that combine components from multiple platforms, users can integrate new buses into existing test frameworks to enable calibration to help balance design consideration, take advantage of various technologies, and expand the life of the frameworks.

To set up and use the PXIe-8234 PXI Ethernet Interface Module, the user needs an Ethernet cable, software for creating applications (optional), and a PXIe/cPCIe computer with Microsoft Windows Vista/XP/2000 and one or more open slots.

The double display port video ports on the NI PXIe 8234 help with simultaneous output. With this built-in capacity, the user can associate two monitors to their PXI framework at the same time with independent display. This negates the requirement for a different PXI or CompactPCI video module to associate two monitors to a PXI framework.

ModelPXIe-8234
Part Number780244-01
ManufacturerNational Instruments
TypePXI Ethernet Interface Module
Ethernet Ports2
Ethernet Bandwidth1 Gbits/s
Ethernet InterfaceTwo 10P10C modular jack connectors
Dimensions6.3 x 3.9 in.
Weight5.5 oz.
WarrantyOne Year Warranty
PXIe-8234 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-8234 Frequently Asked Questions



Question: What is the driver for the PXIe-8234?



Answer: The PXIe-8234 driver is NI Vision Acquisition Software.



Question: Are any accessories needed to operate the NI PXIe-8234?



Answer: The NI PXIe-8234 does not need any accessories to operate.



Question: What are the power requirements for the PXIe-8234?



Answer: The power requirements for the PXIe-8234 are 1.0 A, 3.3 W at 3.3 VDC.



Question: What are the slot requirements for the NI PXIe-8234?



Answer: The slot requirements for the NI PXIe-8234 are one peripheral slot which supports a x4 PCIe connection. This includes a PXIe/cCPIe or a PXIe hybrid slot.

PXIe-8234 Technical Specifications:


Manufacturer:National Instruments
Model:PXIe-8234
Part Number:780244-01
Type:PXI Ethernet Interface Module
Repair Evaluation:$150
