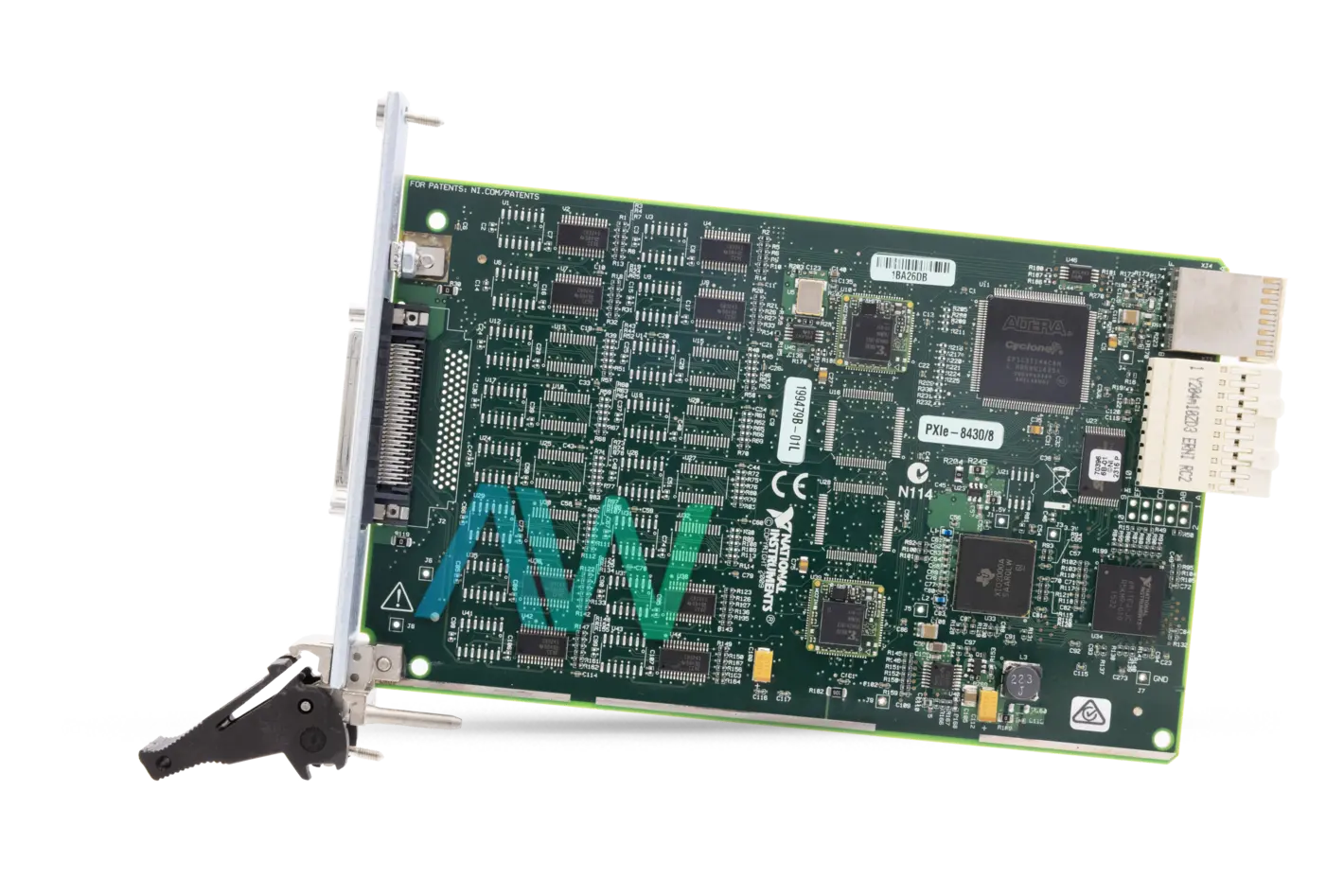

PXIe-8430/8 National Instruments PXI Serial Interface Module | Apex Waves | Image PXIe-8430/8 National Instruments PXI Serial Interface Module | Apex Waves - Wiring Diagram Image

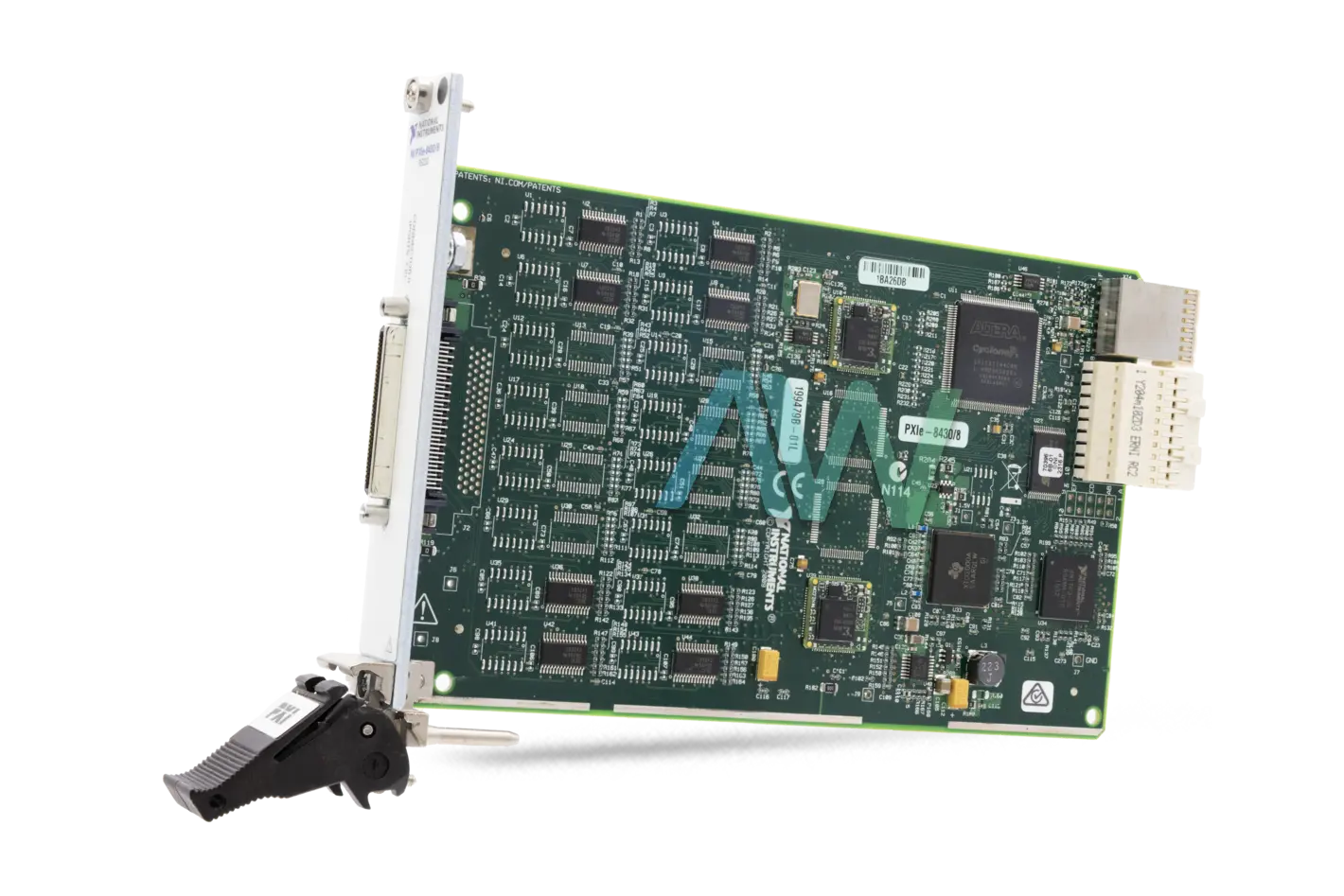

PXIe-8430/8 National Instruments PXI Serial Interface Module | Apex Waves | Image
PXIe-8430/8 National Instruments PXI Serial Interface Module | Apex Waves - Wiring Diagram Image
Rate the PXIe-8430-8
Rated 4.7/5 based on 8 ratings.

PXIe-8430-8

Modular Systems > National Instruments > Serial Interface Devices

Part Number PXIe-8430-8
Manufacturer/Brand National Instruments
Description PXIe-8430/8 8-Port PXI Serial Interface Module
In Stock - Ships Today
In Stock | Ships 3-5 Days

Speak to a sales representative for pricing & lead time:


National Instruments PXIe-8430/8 Serial Interface Module

The NI PXIe-8430/8 (Part Number: 781472-01) is a Serial Interface Module that includes 8 Ports. Each of the 8-port serial association incorporates a connector link that associates with the SCSI 68-stick connector that belongs to the gadget and ends in eight basic DB-9 male connectors. These DB-9 male connectors give basic stick assignments to RS232 associations. With multiprocessor and hyper-threading similarity, the user can exploit the most recent PC innovation for higher speeds and enhanced productivity. The new driver programming included with the PXIe-8430/8 Serial Interface Module offers better asset portion, along with DMA access for higher throughput with insignificant CPU use. Also, NI PXIe-8430/8 modules incorporate new memory-mapping highlights that can be used to interface with more serial gadgets without asset clashes.

The TCP/IP communication convention, which handles all communication between the serial gadget server and the host PC, keeps running on implanted firmware in the serial gadget server. A design utility arranges the IP address of the serial gadget server and uncovers all extra serial ports to the OS for quick use by any application programming bundle utilizing a standard Microsoft Windows Serial (COM) port interface.

The user can additionally install and utilize the USB-232 and USB-48 as basic serial ports from current applications or with applications composed with NI-VISA. Also, the USB-232 2 and 4-port forms include software eligible DTE or DCE handset modes, and a programmed handset discovery mode, or Auto232. The USB-485 highlights programming eligible biasing, with which users can turn biasing on and off for each port.

ModelPXIe-8430/8
Part Number781472-01
ManufacturerNational Instruments
TypePXI Serial Interface Module
Serial Channels8
Supported Serial ProtocolsRS-232
IsolatedNo
Dimensions3.94 x 6.37 in.
Weight143 g.
WarrantyOne Year Warranty
PXIe-8430/8 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXIe-8430/8 Frequently Asked Questions



Question: What is the connector type on the PXIe-8430/8?



Answer: The PXIe-8430/8 has a 68-pin VHDCI connector.



Question: What is the minimum baud rate supported by the NI PXIe-8430/8?



Answer: The NI PXIe-8430/8 supports a minimum baud rate of 2 baud.



Question: Does the PXIe-8430/8 have an RS-232 transceiver state?



Answer: Yes, the PXIe-8430/8 has an RS-232 transceiver state.



Question: What are the power requirements for the NI PXIe-8430/8 at +12 VDC?



Answer: The power requirements for the NI PXIe-8430/8 at +12 VDC are 220 mA typical and 250 mA maximum.

PXIe-8430-8 Technical Specifications:


Manufacturer:National Instruments
Model:PXIe-8430/8 (781472-01)
Type:PXI Serial Interface Module
Repair Evaluation:$150

Why Buy From Apex Waves

Delivery: UPS, FedEX and DHL – Free UPS Ground on all orders
Overnight, Next Day Air or Expedited shipping options available
International delivery available
Same day shipping for in-stock on location
Warranty: All parts new, new surplus, used or reconditioned are covered by Apex Waves 1 Year Warranty
Returns: No hassle return policy.
Dedicated customer service team.
Payment:
Quick Quotes: Receive Price & Availability Today!
Calibration: Ask About Our Tiered Calibration Levels
Option & Modules: Confirm Your Requirements or Versions
Repair: Cost & Lead Time Available Upon Request for Service
Share this page:

PXIe-8430-8

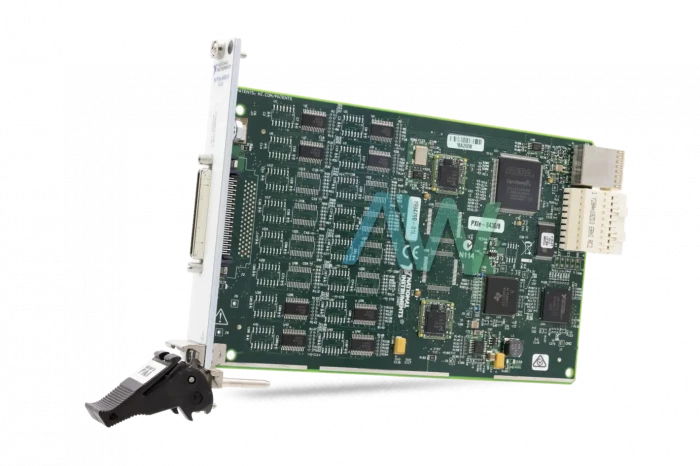

PXIe-8430/8 National Instruments PXI Serial Interface Module | Apex Waves | Image

Main Image

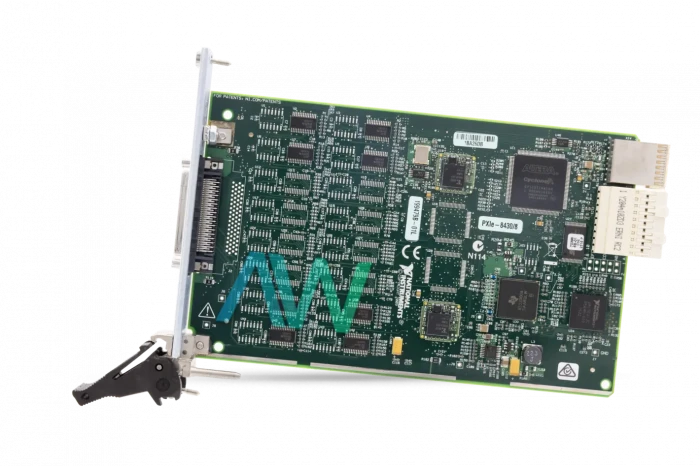

PXIe-8430/8 National Instruments PXI Serial Interface Module | Apex Waves | Image
