USB-8473S
Modular Systems > National Instruments > Serial Interface Devices
| Description: | USB-8473S, 1 Port, USB CAN Interface with Synchronization |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

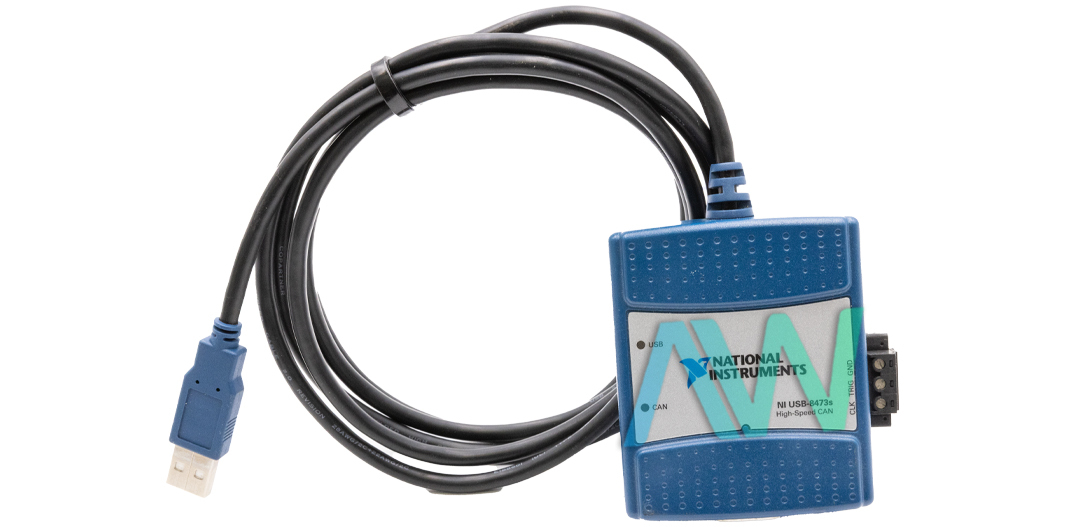

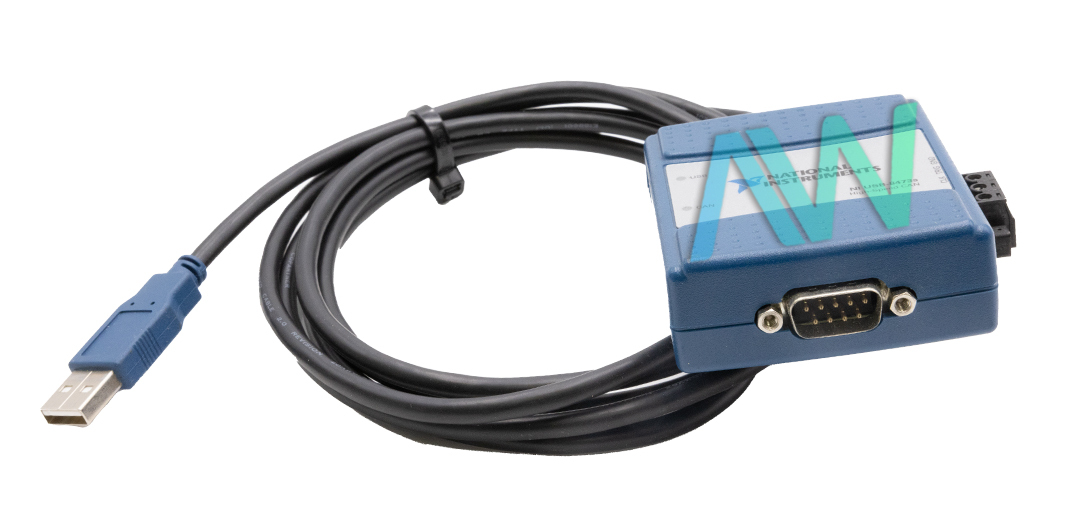

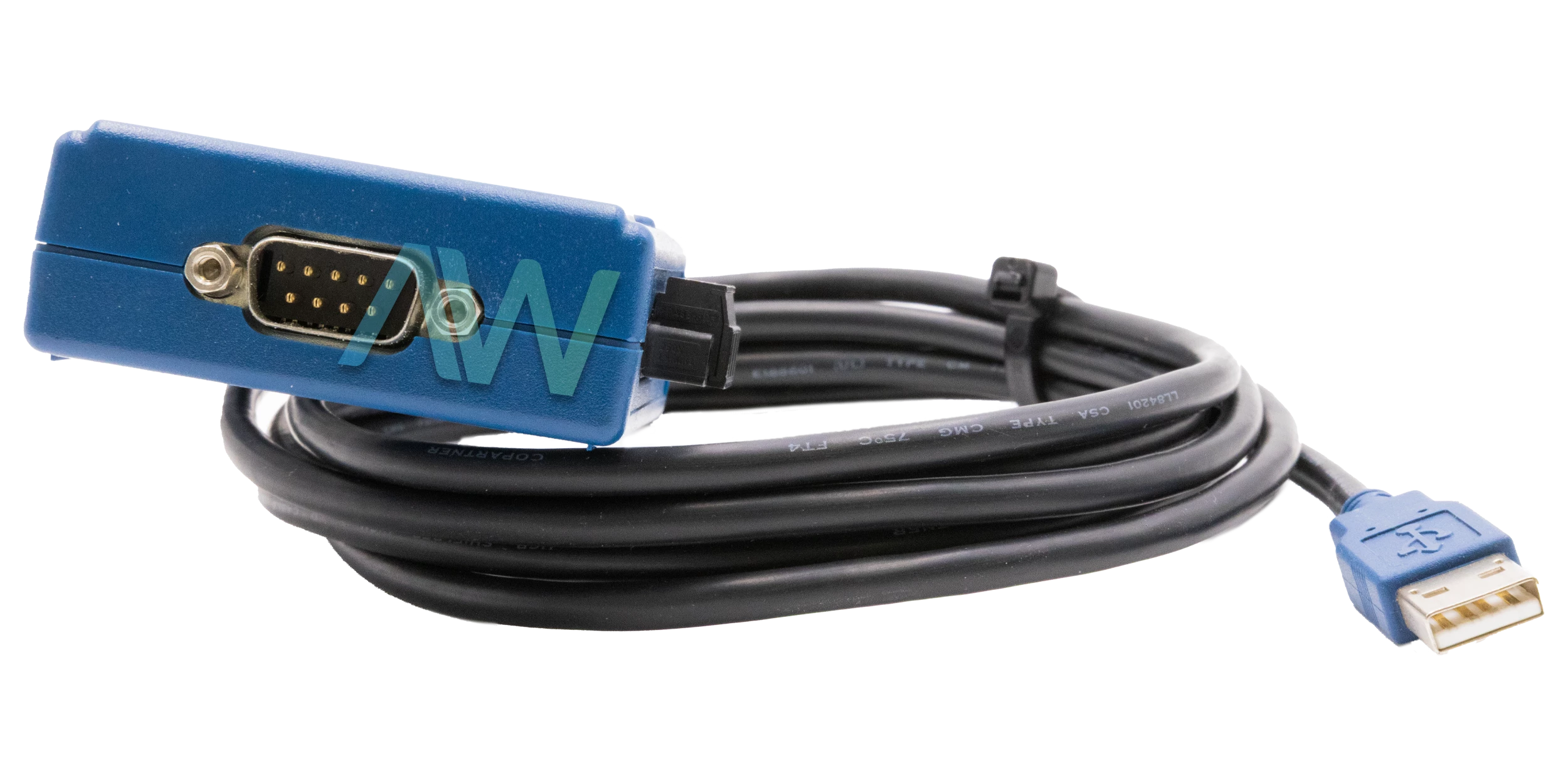

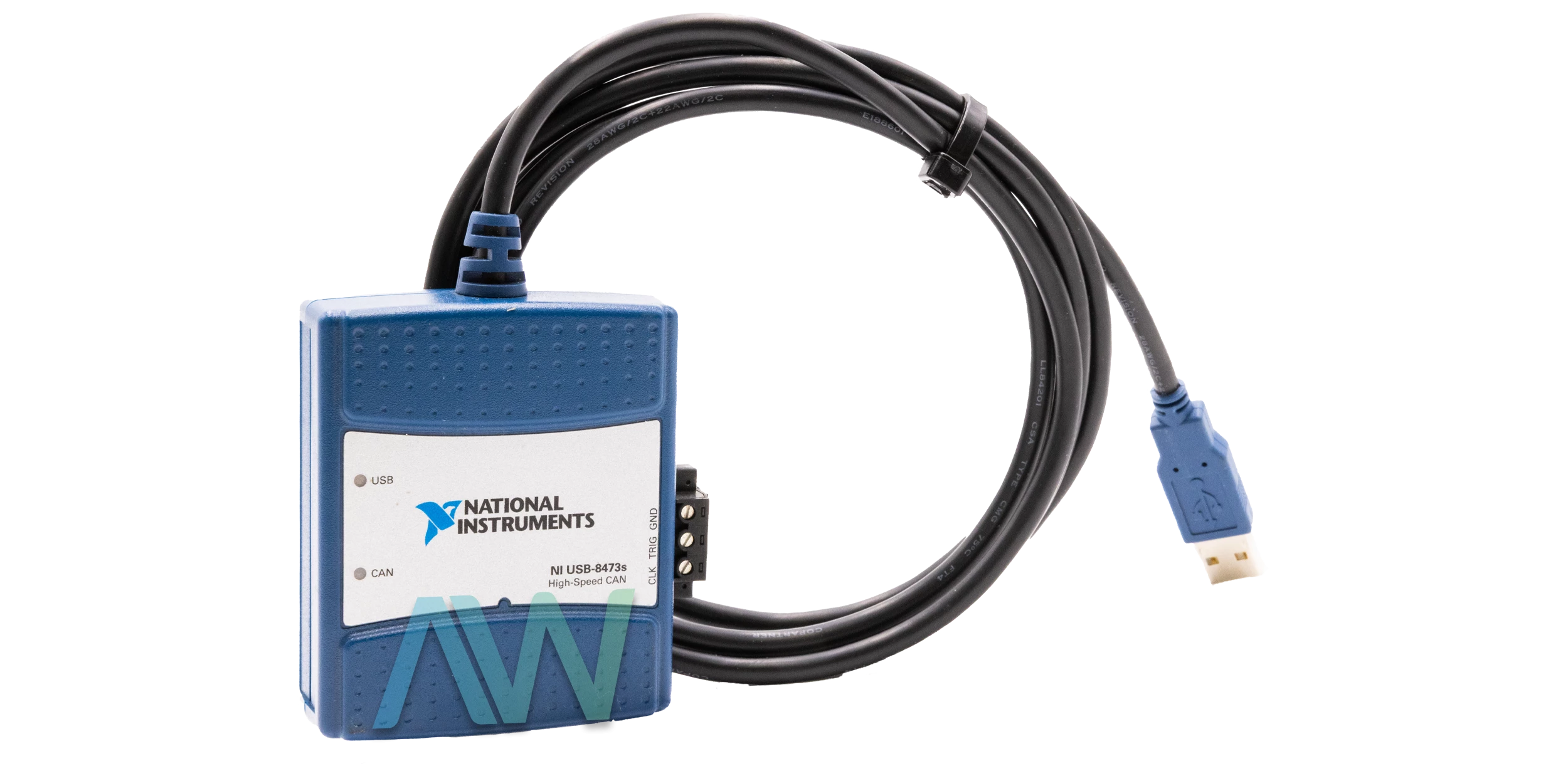

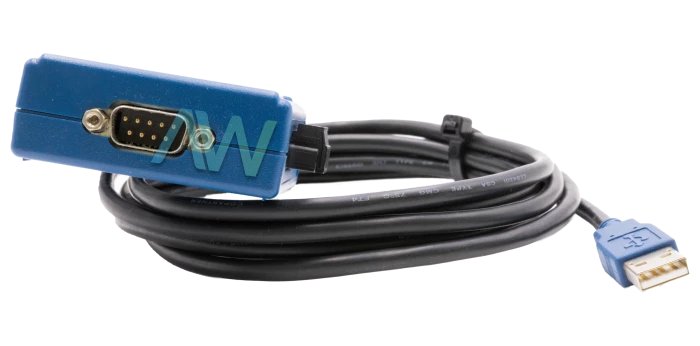

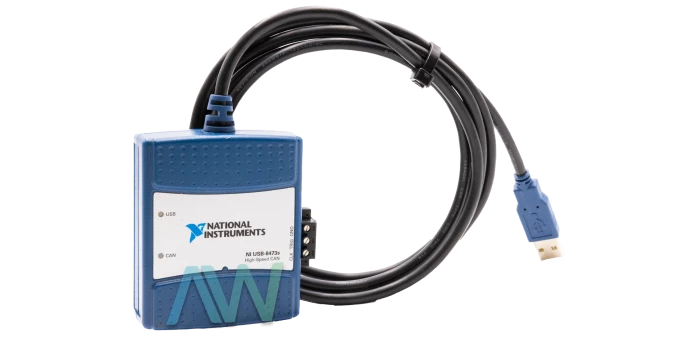

National Instruments USB-8473s High-Speed USB CAN interface
The National Instruments USB-8473s (part number: 779793-01) is a high-speed USB CAN interface that comes equipped with synchronization capabilities. Whether you're developing automotive systems, industrial applications, or research projects, the USB-8473s offers a range of operational modes. This versatile tool is perfect for a diverse range of applications- from monitoring and logging in-vehicle networks to bus load monitoring. It can also be utilized for synchronized data acquisition for device validation, or test and development of CAN devices. This adaptability ensures that your specific needs are met.
At the heart of the USB-8473s is a Philips SJA1000 CAN controller, which comes packed with features for diagnostic applications. The controller boasts compatibility with CAN 2.0B and supports various transfer rates up to 1 Mbps. Gone are the days of complex setups- the USB-8473s provides seamless connectivity between your desktop or notebook PC and a CAN or LIN bus through a simple USB connection. The USB-8473s has a TJA1041 transceiver and a maximum transfer rate of 1,000 kbit/s.
Designed for reliability, the USB-8473s features high-speed and low-speed/fault-tolerant physical layers that fully adhere to the ISO 11898 specification for CAN. No matter the application, this device ensures optimal performance and dependability. Simplicity is key with the USB-8473s- it draws power directly from the USB connection. The synchronization capability of the USB-8473s allows you to synchronize multiple devices effortlessly. An external sync connector facilitates the sharing of common timing and triggering signals, enabling seamless collaboration between devices and data acquisition products.
The USB-8473s is your ultimate tool for CAN applications, offering unparalleled versatility, precision, and reliability. No matter the project, this CAN interface device empowers you to unlock the full potential of your work.
While the USB-8473s has been declared obsolete by NI, it will remain available with Apex Waves.
| Model Name | USB-8473s |
|---|---|
| Part Number | 779793-01 |
| Part Type | USB CAN interface |
| Physical Layer | High-Speed CAN |
| Transceiver | TJA1041 |
| Maximum Transfer Rate | 1,000 kbit/s |
| Hardware Sync | Yes |
| Warranty | Three Year Warranty |
| USB-8473s Manuals | PDFs Available for Download |
USB-8473S PDF Manuals
NI CAN HARDWARE AND SOFTWARE MANUAL.PDF
USB-8473S DIMENSIONAL DRAWINGS.PDF
USB-8473S LETTER OF VOLATILITY.PDF
