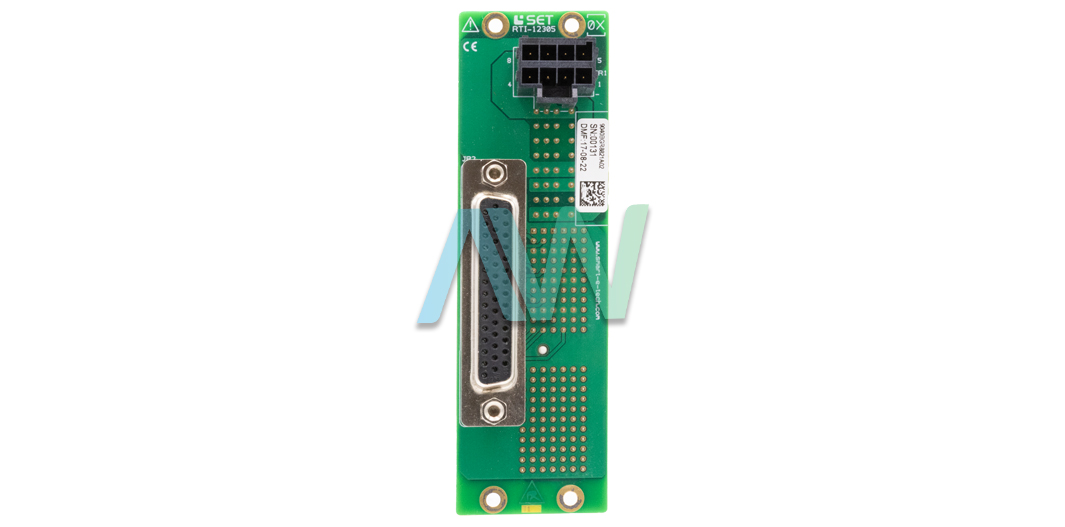

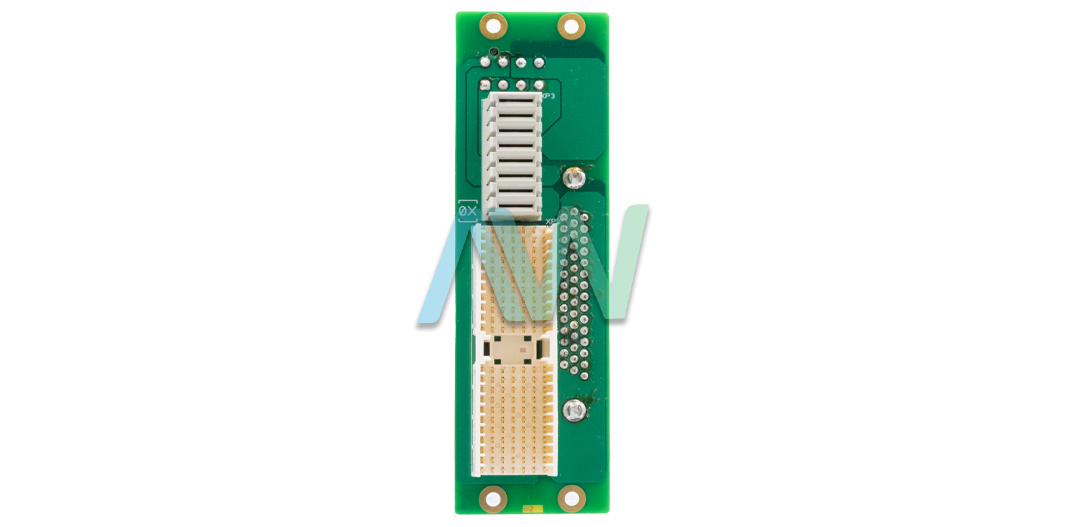

National Instruments / Smart E Tech RTI-12305 Rear Transition Interface
The RTI-12305 from Smart E Tech (Part Numbers: 785896-01 (NI), 93341 (Smart E Tech)) Rear Transition Interface has been carefully designed for the improvement of integration of SLSC (Switch Load and Signal Conditioning) cards based on high-density connectors in the context of industrial automation as well as testing environments. It allows for the transmission of digital signals between a Level 1-compliant SLSC card and an HD44 front connector, thus ensuring seamless connection in modular chassis-type systems. RTI-12305 is an important bridge for transmitting either 16 or 32 channels through its HD44 interface, especially designed for high-density high-integrity transfer of the signals even in harsh environmental situations.
With National Instruments' SLSC platform compatibility, the RTI-12305 operates at up to 60VDC on JR1 and XP3 connectors with an 8A per contact rating at an ambient temperature of 30°C; the JR2-JR5 and XP2 connectors are rated at 1.4A per contact at the same ambient temperature for support of various signal conditioning applications. An extremely compact footprint (101.9mm x 30.2mm) allows easy panel mounting in SLSC rear panels, taking advantage of standard mounting hardware as well as strain relief capabilities for efficient cable management.
The RTI-12305 is designed for multi-stage conditioning or interconnecting of SLSC cards in applications for maximum test system flexibility. The pinout structure of this module is compatible with NI signal-routing standards so that it can be utilized for compatibility with PXI, cRIO, or other measurement devices in the industrial environment. Environmental requirements are 0°C to 80°C operating temperature as well as 10–90% relative humidity (non-condensing), which is appropriate for laboratory and controlled industrial environments.
Through EMC cable compliance, the module suppresses electromagnetic disturbance, essential in maintaining accuracy of signals in multi-set setups. Easy installation is at its foundation, with plug-and-play setups minimizing the amount of time for integration. Engineers utilizing the RTI-12305 appreciate how it is capable of streamlining signal chains in systems involving different manufacturers, minimizing development without affecting scalability. Modularity is what controls SET GmbH, so the interface is flexible as testing requirements are altered, accepting custom configurations wherein standard designs are not adequate. This module is the optimal measure of accuracy in measurement blended with how measurement as well as automatic processes are compatible with each other today.
| Model | RTI-12305 |
|---|---|
| Part Numbers | NI: 785896-01, SET: 93341 |
| Part Type | Rear Transition Interface (RTI) for SLSC-HD44 Signal Routing |
| Maximum Voltage Rating | 60 VDC (XP3, JR1 connectors); 60 VDC (XP2, JR2-JR5 connectors) |
| Current Capacity per Contact | 8 A (XP3, JR1 at 30°C); 1.4 A (XP2, JR2-JR5 at 30°C) |
| Signal Channels | 16/32 digital channels via HD44 front connector |
| Compatible Systems | NI SLSC chassis, PXI, cRIO, and HD44-equipped hardware |
| Environmental Operating Range | 0°C to 80°C; 10–90% relative humidity (non-condensing); <2000m altitude |
| Dimensions | 101.9 mm x 30.2 mm (compact chassis-mountable design) |
| Connector Types | HD44 (primary), XP2 (universal), XP3 (high-current), JR1 (voltage supply) |
| Manufacturer | Smart E Tech |
