Part Number USB-6366
Manufacturer/Brand National Instruments
Description: The USB-6366 is a USB Multifunction I/O Device from NI's X Series. It has 8 Analog Input Channels and 16 Bits of ADC Resolution.
In Stock | Ships Today
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:


National Instruments USB-6366 Multifunction I/O Device

The USB-6366 (Part Numbers: 781445-02, 781445-01, 782264-01, 782263-01, 782262-01) by National Instruments is a multifunction data acquisition (DAQ) device designed for a wide range of industrial automation applications. Along with digital I/O, four 32-bit counters/timers, and analog input/output, it provides simultaneous sampling capability. It is appropriate for jobs like test automation, control, and data logging because of its adaptability. The NI USB-6366 is available in several variants depending on connector type. The device can be found with either BNC connection (part number 782263-01), mass termination connection (part number 782264-01), or screw terminal connectors (part numbers 781445-01 and 781445-02, with 32 MS and 64 MS memory capacities respectively). Part number 782262-01 is the identifying part number for the board-only kit version of the multifunction device..

The USB-6366 offers eight differential channels with 16-bit resolution and a guarantee of no missing codes for analog input. The device has a timing precision of 50 ppm and a timing resolution of 10 ns, supporting sample rates of up to 2.00 MS/s per channel. In order to reduce signal distortion, it has a high input impedance (>100 GΩ) and many input ranges (-10 V to +10 V).

With ±1 LSB maximum DNL and 16-bit resolution, the USB-6366 provides two channels for analog output. For precise signal transmission, it has a low output impedance of 0.4 Ω and can achieve a maximum update rate of 3.3 MS/s per channel. Also, to prevent against voltage spikes, the gadget has overdrive protection (±25 V).

The USB-6366 is equipped with NI-STC3 onboard timing and synchronization technology, which offers separate analog and digital timing engines and sophisticated timing functions. It can operate at up to 3.4 MHz in bandwidth and offers a number of trigger modes and functionalities, such as analog edge and analog window triggering.

The USB-6366 complies with all applicable safety standards, including CSA C22.2 No. 61010-1, EN 61010-1, UL 61010-1, and IEC 61010-1. For all analog input channels, it provides overvoltage protection (±36 V), and for APFI 0, it provides overdrive protection (±30 V).

Several data transfer modes, including USB Signal Stream and DMA, are included with the device. It comes with NI-DAQmx, a thorough driver and configuration tool for simple setup and measurement.

ModelUSB-6366
ManufacturerNational Instruments
Part Numbers781445-01, 782264-01, 781445-02, 782263-01, 782262-01
TypeMultifunction I/O Device
Analog Input Channels8 differential
Analog Output Channels2
Maximum Sample Rate2 MS/s per channel
DimensionsMass Termination: 7.3 × 6.8 × 1.4 in.; Screw Terminal: 10.4 × 6.8 × 1.4 in.;
BNC: 8.0 × 7.3 × 2.7 in.
WeightMass Termination: 2 lb 2.1 oz.; Screw Terminal: 3 lb 2.3 oz; BNC: 3 lb 6.2 oz.
WarrantyThree Year Warranty
USB-6366 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the USB-6366:

150159A-01L, 150159A-02L, 150159B-01L, 150159B-02L, 150159C-01L, 150159C-02L, 150159D-01L, 150159D-02L, 150159E-01L, 150159E-02L, 150159F-01L, 150159F-02L, 150159G-01L, 150159G-02L, 151947A-01L, 151947A-02L, 151947B-01L, 151947B-02L, 151947C-01L, 151947C-02L, 151947D-01L, 151947D-02L, 151947E-01L, 151947E-02L, 151947F-02L, 152804A-01L, 152804A-02L, 152804B-01L, 152804B-02L, 152804C-01L, 152804C-02L, 152804D-01L, 152804D-02L, 152804D-05L, 152808A-02L, 781445-01, 781445-02, 782262-01, 782263-01, 782264-01, 786508-01

National Instruments USB-6366 Frequently Asked Questions



Question: What are the differences between the part numbers for the NI USB-6366?

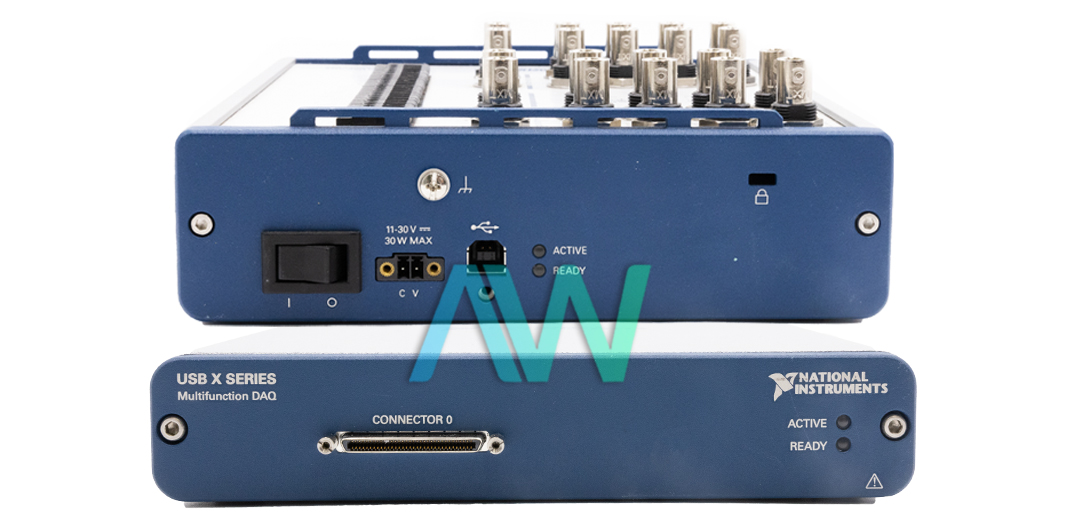

Answer: The NI USB-6366 has three front connector types available, as well as two analog input FIFO buffer sizes. First, part number 781445-01 has screw terminal front connectors and 32 MS analog input FIFO buffer size. Part number 782264-01 has VHDCI front connectors and 64 MS analog input FIFO buffer size. Next, part number 781445-02 has screw terminal front connectors and 64 MS analog input FIFO buffer size. Lastly, part number 782263-01 has BNC front connectors and 64 MS analog input FIFO buffer size. Part number 782262-01 refers to the board only kit version of the USB-6366.



Question: What is the maximum update rate for the DAQ USB-6366?

Answer: The maximum update rate for the DAQ USB-6366 is 3.33 MS/s per channel.



Question: Is it possible to sample multiple channels on the USB 6366 NI with different sample rates?

Answer: No, the USB 6366 NI does not allow for channels to have different sample rates because they all share one sample clock.



Question: Which position measurements can the counters/timers on the NI USB-6366 X Series DAQ perform?

Answer: The counters/timers on the NI USB-6366 X Series DAQ can perform the following position measurements: two-edge separation, semi-period, edge counting, pulse width, period, and pulse.
