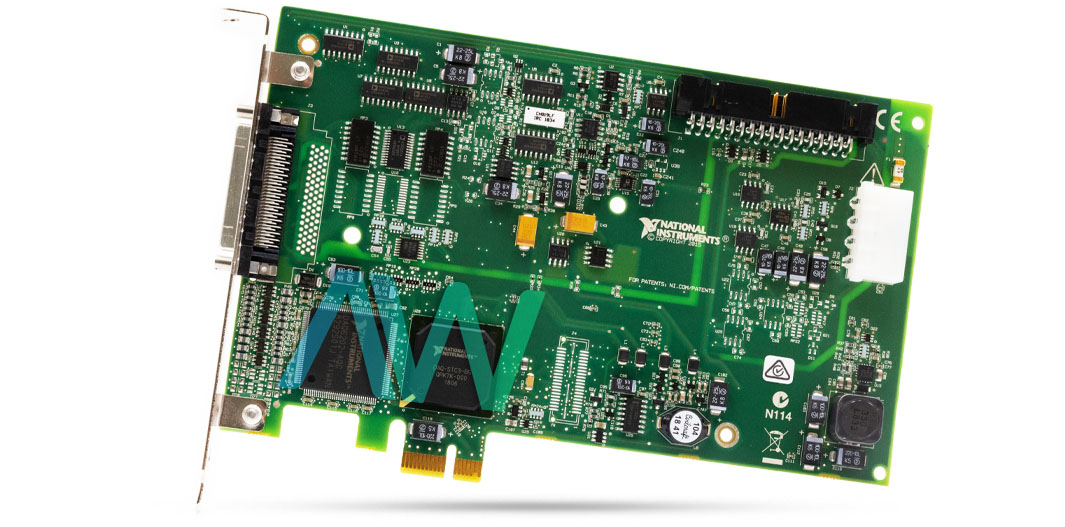

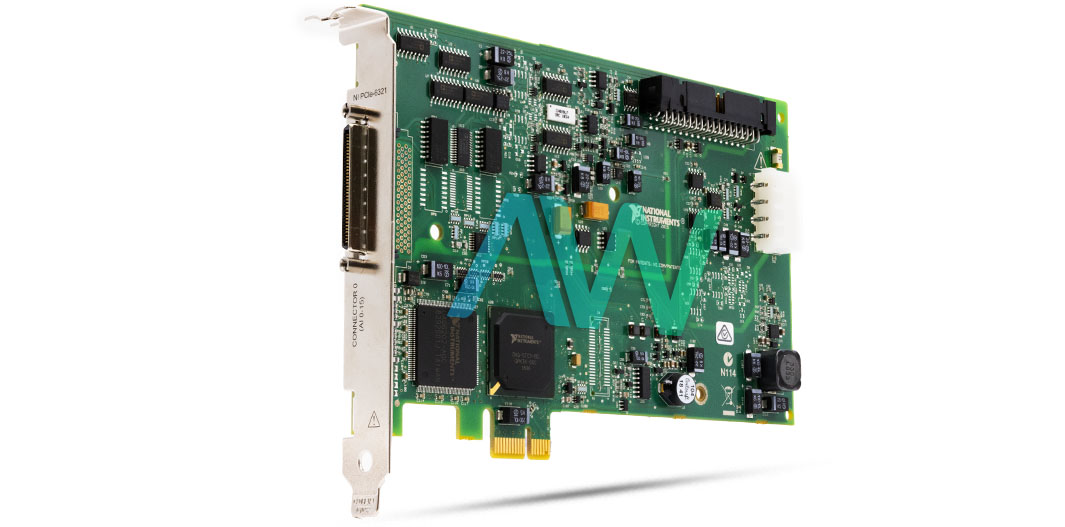

National Instruments PCIe-6321 Multifunction I/O Device

The PCIe-6321 (Part Number: 781044-01) is a PCI Express based Multifunction I/O Device from the X Series by National Instruments. This model offers analog and digital I/O that is divided out into 16 analog input channels, 2 analog output channels, and 24 digital I/O channels. In addition, the NI PCIe-6321 features four 32-bit timers equipped for applications such as PWM, frequency, encoder, event counting, etc. This Multifunction I/O Device is well suited for a variety of applications, including but not limited to, basic data logging, test automation, and control automation.

With the help of the high-throughput PCI Express bus, the PCIe-6321 X Series DAQ delivers high-performance functionality. Integrated with NI-STC3 synchronization and timing technology, this I/O device is capable of providing advance level timing functionality- including re-triggerable measurement tasks and digital and analog timing engines.

Using the NI-DAQmx configuration software and driver, the NI PCIe-6321 may be rapidly configured. The device has the capacity to obtain samples at a speed of 250 kS/s on one or more analog channels. The 4 general-purpose counters of the PCIe-6321 have 32 bits of resolution and may be used for a variety of counter and position measures. These counters have a 50 ppm base clock accuracy and operate between 0 and 25 MHz external base clock frequency.

The NI PCIe-6321 Multifunction I/O Device supports external digital triggers through any PFI and RTSI source. This model comes equipped with several digital waveform generations and waveform acquisition functions, such as a start/pause trigger, sample clock, reference trigger, and a sample clock timebase. To ensure reliability and accuracy, it is recommended for the PCIe-6321 to be calibrated every 2 years.

Physically, the printed circuit board of the PCIe-6321 device measures 9.9 cm × 16.8 cm (3.9 in. × 6.6 in.) and weighs 104 g (3.6 oz). The device has an operating temperature range of 0 °C to 50 °C with an operating humidity of 10% to 90% (noncondensing). When in storage, the NI PCIe-6321 can be safely kept in temperatures ranging from -40 °C to 70 °C with a humidity of 5% to 95%.

ModelPCIe-6321
ManufacturerNational Instruments
Part Number781044-01
HTS Code8471804000
SeriesX Series
TypeMultifunction I/O Device
Analog Input Channels16 single-ended or 8 differential
Analog Output Channels2
Dimensions3.9 × 6.6 in.
Weight3.6 oz.
WarrantyThree Year Warranty
PCIe-6321 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PCIe-6321:

194986A-04L, 194986B-04L, 194986C-04L, 194986D-04L, 194986E-04L, 194986F-04L, 781044-01, 787933-01

National Instruments PCIe-6321 Frequently Asked Questions



Question: Which accessories are required to operate the PCIe-6321 X Series DAQ?

Answer: To operate the PCIe-6321 X Series DAQ, the user first needs an I/O connector, such as the SCB-68A Noise Rejecting, Shielded I/O Connector Block, the CB-68LP Unshielded I/O Connector Block, the BNC-2110 Noise Rejecting, Shielded BNC Connector Block, the CB-68LPR I/O Connector Block, the TBX-68, 68-pin Screw Terminal Connector Block, or the BNC-2090A Rack-mountable Accessory for 68-pin Multifunction DAQ. The second accessory required is a Multifunction Cable, such as the 0.5, 1, 2, 5, or 10 m SHC68-68-EPM Shielded Cable, 68-D-Type to 68 VHDCI Offset, the 1 or 2 m SHC68-68, Twisted Pair Cable with Basic Shielding, or the .25, .5, or 1 m RC68-68 Ribbon Cable, 68 D-Type to 68 VHDCI Offset.



Question: Which type of I/O connector does the PCIe-6321 NI have?

Answer: The PCIe-6321 NI has one 68-pin VHDCI I/O connector.



Question: How often should the NI PCIe-6321 be calibrated?

Answer: The NI PCIe-6321 should be calibrated every two years.



Question: What is the maximum update rate of the PCIe-6321?

Answer: The maximum update rate of the PCIe-6321 is 900 kS/s.
