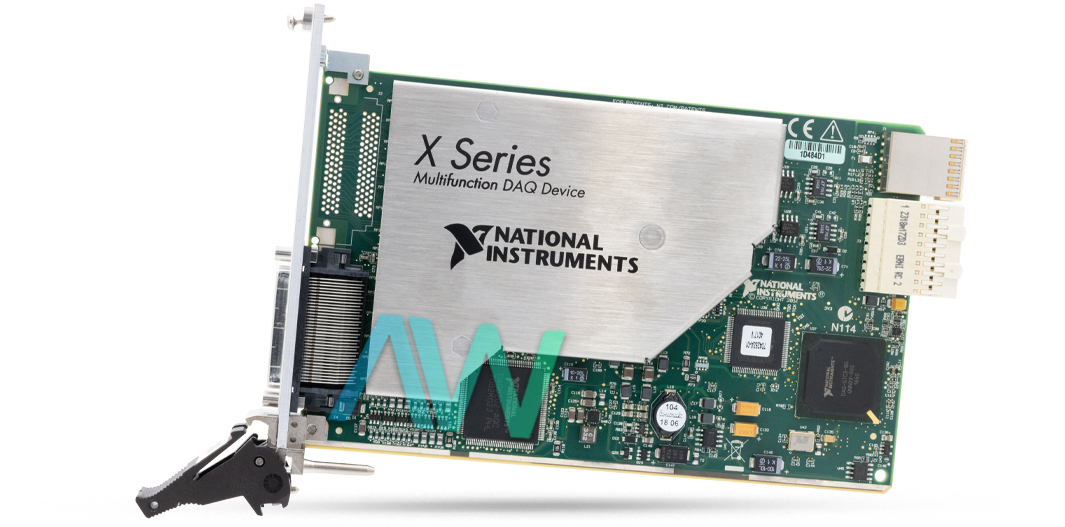

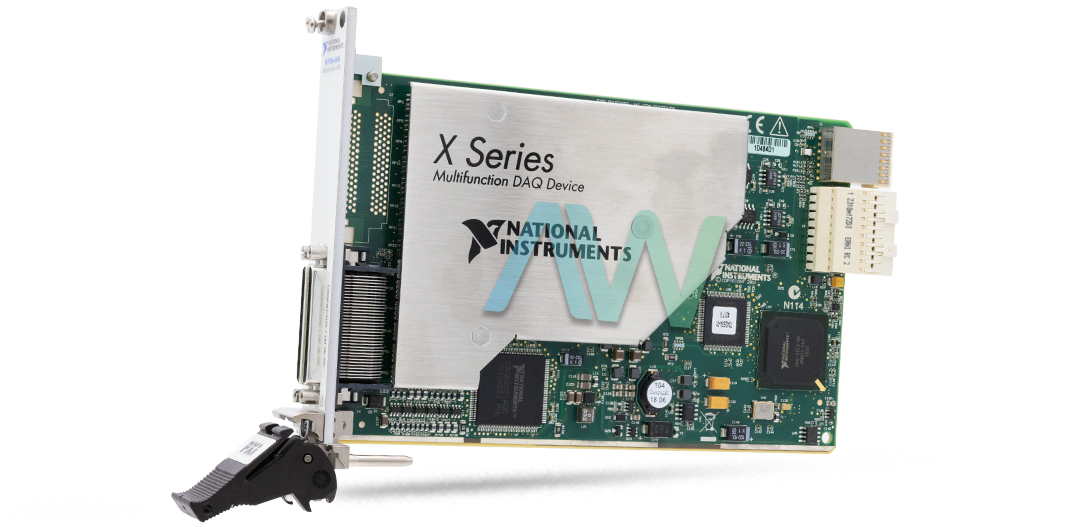

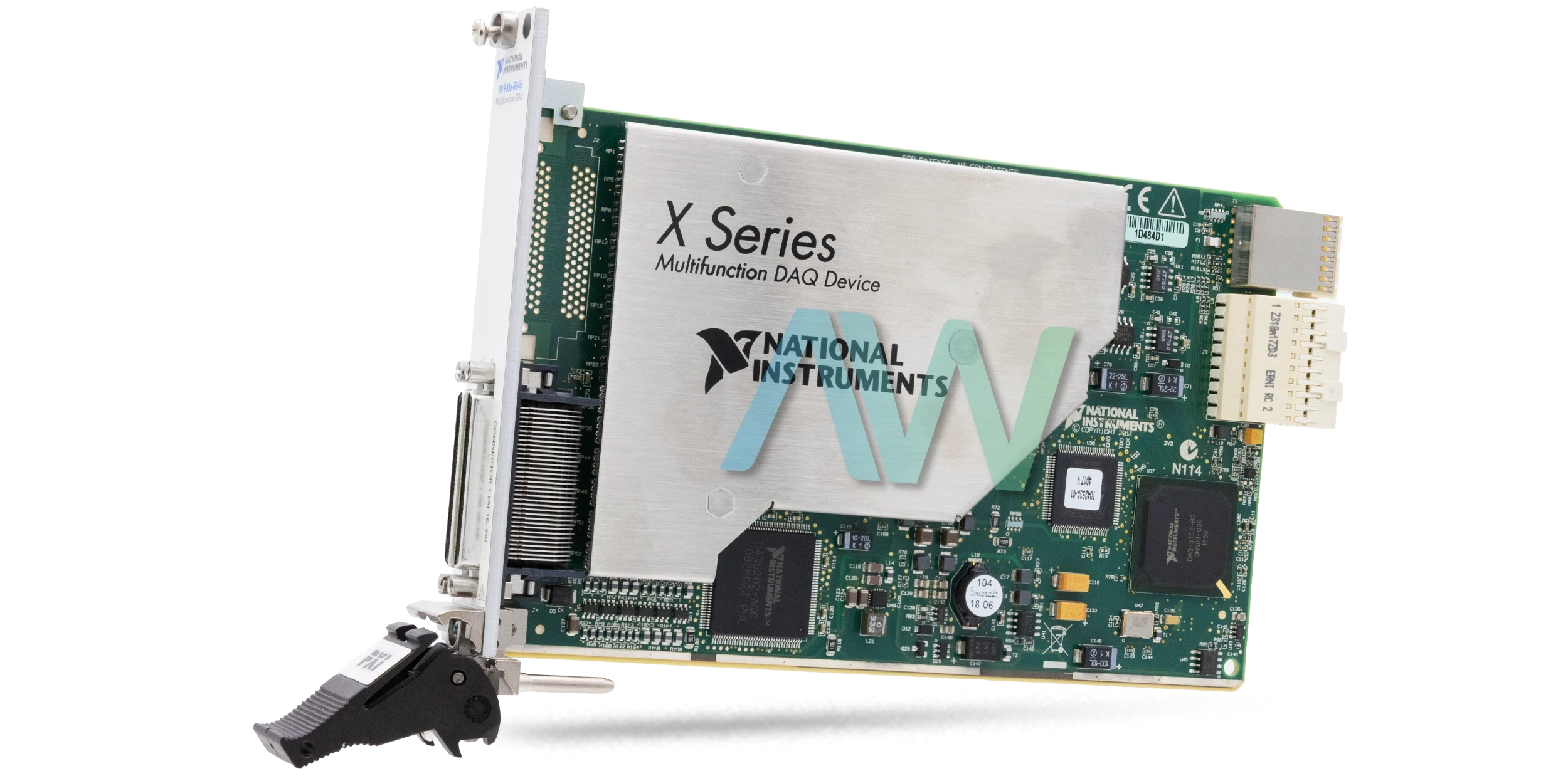

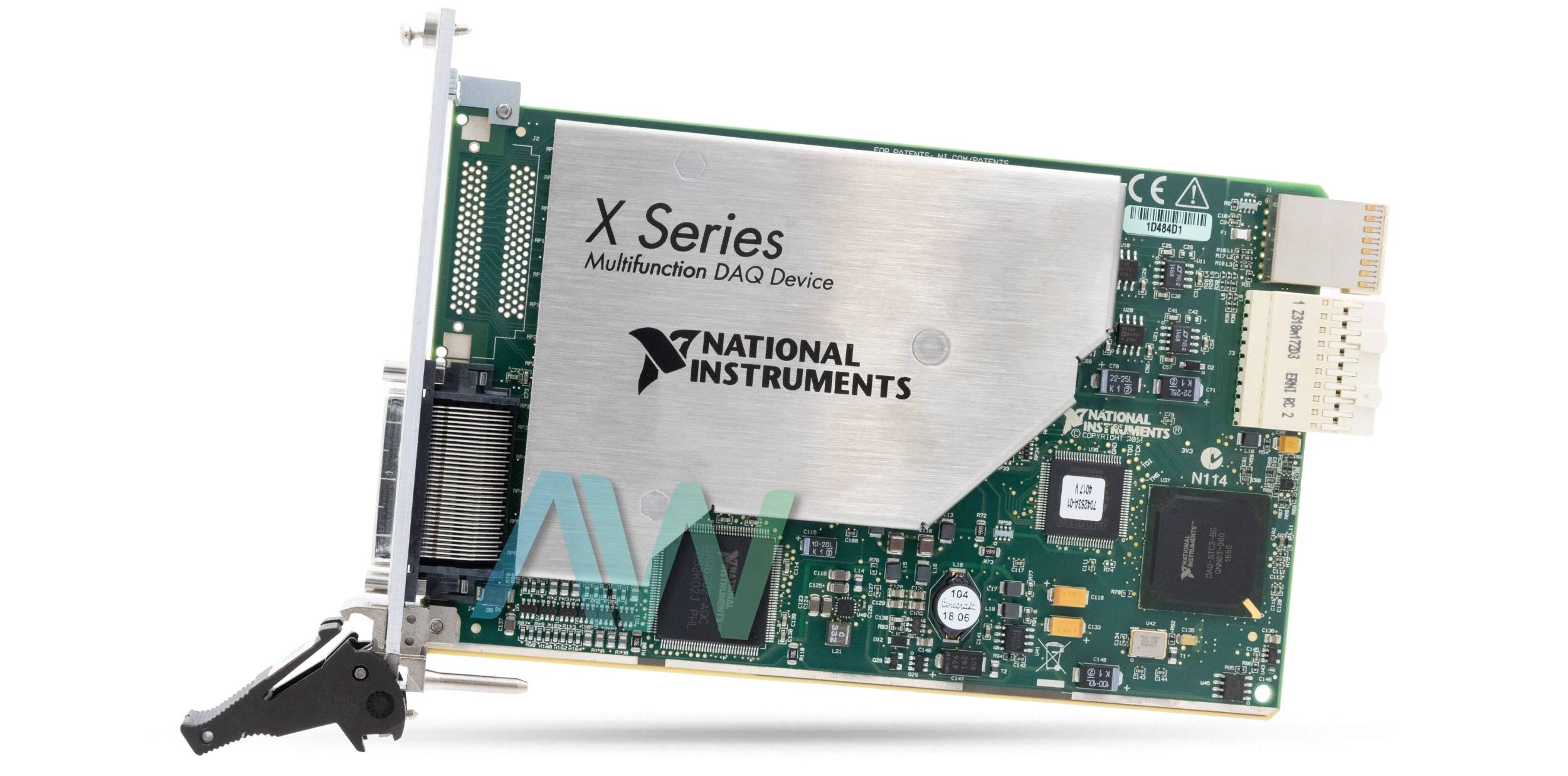

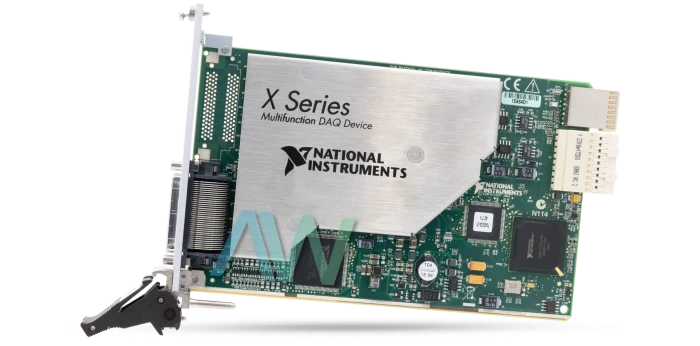

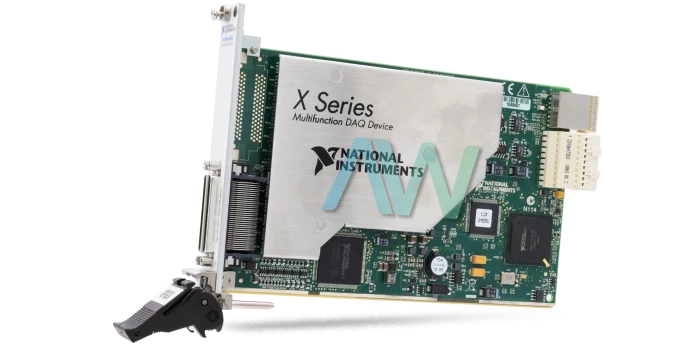

National Instruments PXIe-6345 PXI Multifunction I/O Module

The PXIe-6345 (Part Number: 783631-01, 156605B-04L, 256605B-04L) is a PXI Multifunction I/O Module from National Instruments. This X Series module offers either 40 differential or 80 single-ended channels. The module incorporates an analog to digital converter with an ADC resolution of 16 bits. The maximum sample rate is 500 kS per second for a single channel, while the maximum value for the multichannel mode of operation is also 500 kS per second.

The NI PXIe-6345 module offers a timing resolution of 10 Nanoseconds. The timing accuracy for the instrument is 50 parts per million. It also implements a DC coupling scheme for the input, as well as four counters of 32-bits. The counters enable the user to carry out various operations for different testing requirements, including event counting, encoding, pulse width modulation, and many more. The NI PXIe 6345 Multifunction I/O Module also offers data logging capabilities to help the user control and automate testing procedures. The PXIe 6345 weighs around 198 grams.

The National Instruments PXIe-6345 Multifunction I/O Module offers high throughput of the data, allowing the module to deliver high-performance at the industrial level. The instrument also incorporates built-in NI-STC3 technology. It features timing and synchronization capabilities. This module enables analog and digital timing engines. It also offers the analog triggers. The resolution for the analog trigger is 16 bits. These analog triggers can operate in different modes, which includes analog edge triggering and window triggering. Analog edge triggering with hysteresis is additionally offered.

ModelPXIe-6345
Part Number783631-01, 156605B-04L, 256605B-04L
ManufacturerNational Instruments
TypePXI Multifunction I/O Module
Single-Ended Analog Input Channels80
Differential Analog Input Channels40
Maximum Sample Rate500 kS/s
Board DimensionsStandard 3U PXI
Weight7.0 oz.
WarrantyThree Year Warranty
PXIe-6345 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for PXIe-6345:

156605A-04L, 156605B-04L, 156605C-04L, 783631-01

National Instruments PXIe-6345 Frequently Asked Questions



Question: What are the power requirements for the PXIe-6345 module?



Answer: The power requirements for the PXIe-6345 module are 1.6 W at +3.3 V and 19.8 W at +12 V.



Question: Does the NI PXIe-6345 support simultaneous sampling?



Answer: No, the NI PXIe-6345 does not support simultaneous sampling.



Question: What is the analog input absolute accuracy for the PXIe-6345?



Answer: The PXIe-6345 has an analog input absolute accuracy of 1,520 uV.



Question: What is the maximum update rate for 2 analog output channels on the NI PXIe-6345?



Answer: The NI PXIe-6345 has a maximum update rate of 2.00 MS/s for 2 analog output channels.
