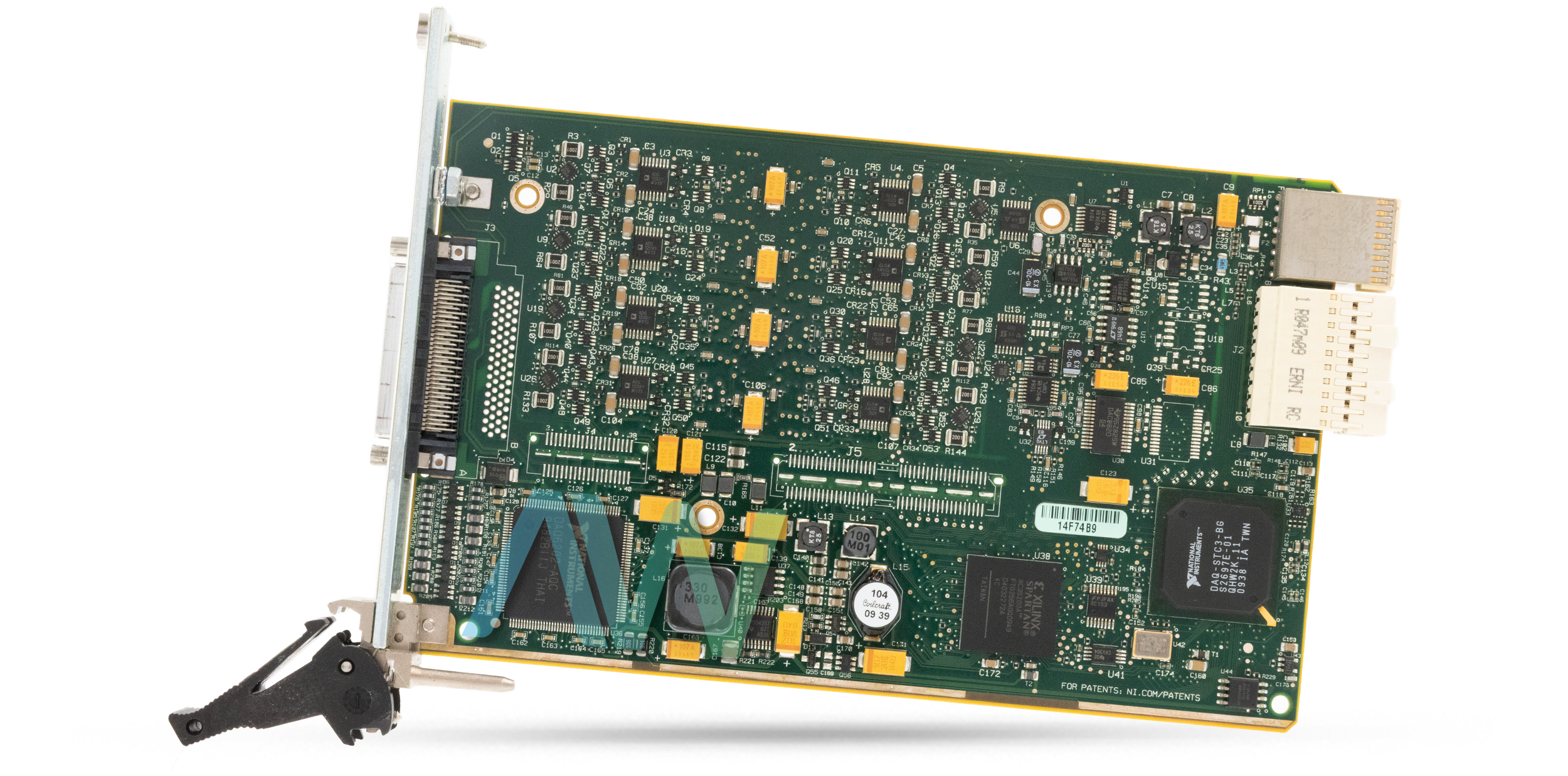

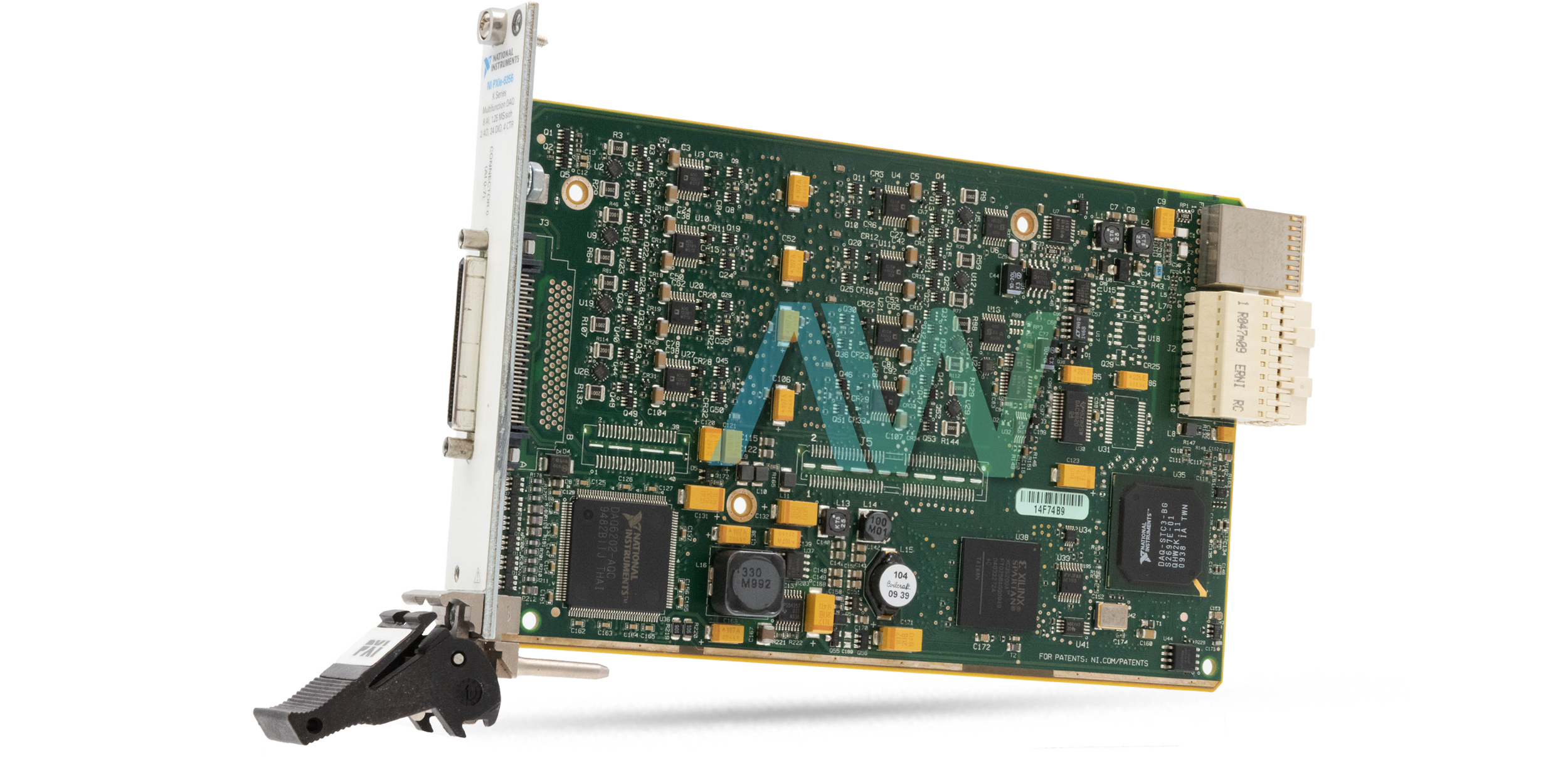

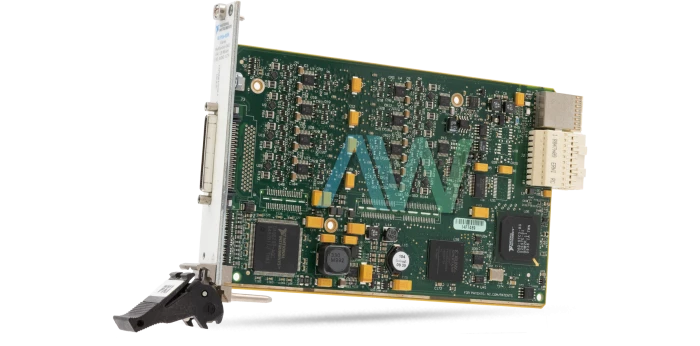

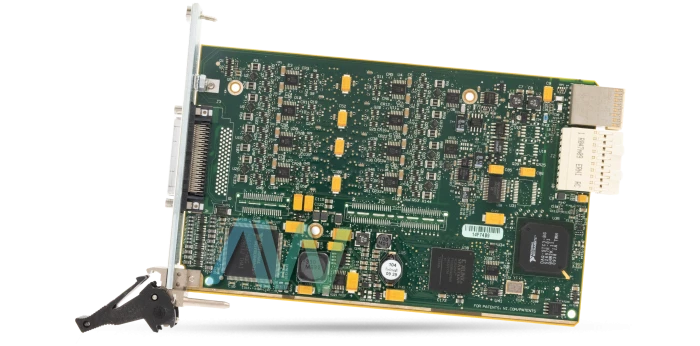

National Instruments PXIe-6356 PXI Multifunction I/O Module
The PXIe-6356 (Part Number: 781053-01) is a Multifunction I/O Module developed by National Instruments. This module can perform simultaneous-sampling, provides a new level of performance with the high-throughput PCI Express bus, and has an advanced timing and synchronization technology with the NI-STC3 system. The NI-STC3 system enables this module to perform re-triggerable measurement tasks.
The NI PXIe-6356 has 8 simultaneous analog inputs. These channels can operate at the maximum speed of 1.25MS/s per channel. This module has 16-Bit analog input resolution. It is also featured with digital and analog I/O’s. This module has 32-Bit counters and analog and digital triggering system It also includes digital and analog timing engines. The NI PXIe-6356 has such a robust design with screw terminal dimensions of 26.4 × 17.3 × 3.6 cm and BNC dimensions of 20.3 × 18.5 × 6.8 cm. The express level bandwidth is 250 MB/s maximum, in all directions to all devices. This module is also structured with an internal PCI Express interface, which helps optimize for low latency and high throughput.
The PXIe-6356 is preferable for a number of applications, i.e. IF digitization, ultrasound, ADSL, ISDN, and POTS manufacturing test in the telecom industry. Furthermore, it is also best utilized for high-energy physics, sonar testing, and transient recording. The NI PXIe-6356 has a built-in multi-threaded NI-DAQmx driver. This driver makes the NI PXIe-6356 compatible with LabWindows/CVI 7.x and LabView 8.2. This module can also work with LabVIEW Signal Express 1.x, as well as Microsoft Visual Studio .NET and C/C++. The operating systems recommended are Windows 7/Vista/XP/2000.
| Model | PXIe-6356 |
|---|---|
| Part Number | 781053-01 |
| Manufacturer | National Instruments |
| Type | PXI Multifunction I/O Module |
| Differential Analog Input Channels | 8 |
| Analog Output Channels | 2 |
| 24 Digital I/O Channels | 24 |
| Counter/Timers | 4 |
| Counter/Time Resolution | 32 Bits |
| Maximum Sample Rate | 1.25 MS/s per channel |
| Circuit Board Dimensions | Standard 3U PXI |
| PXIe I/O Connector | One 68-Pin VHDCI |
| Weight | 5.9 oz. |
| PXIe-6356 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXIe-6356:
National Instruments PXIe-6356 Frequently Asked Questions
Question: Can the PXIe-6356 be used in a PXI-1044 Chassis?
Answer: No, the PXIe-6356 cannot be used in a PXI-1044 Chassis because the PXI-1044 does not accept PXIe cards.
Question: What are the power requirements for the NI PXIe-6356?
Answer: The power requirements for the NI PXIe-6356 are 4.7 W at +3.3 V and 15.4 W at +12 V.
Question: What is the timing accuracy for the PXIe-6356?
Answer: The timing accuracy for the PXIe-6356 is 50 ppm of the sample rate.
Question: How many triggers does the NI PXIe-6356 have?
Answer: The NI PXIe-6356 has 1 trigger.
| Accessory Type | Model Name | Part Number |
|---|---|---|
| Cable | SHC68-68-EPM | 192061-01 (1 m) |
| 192061-02 (2 m) | ||
| 192061-05 (5 m) | ||
| 192061-0R5 (0.5 m) | ||
| RC68-68 | 187252-01 (1 m) | |
| 187252-0R25 (0.25 m) | ||
| 187252-0R5 (0.5 m) | ||
| Shielded Connector Block | SCB-68A | 782536-01 |
| Shielded BNC Connector | BNC-2110 | 777643-01 |
| Rack-Mountable Accessory | BNC-2090A (Rackmount) | 779556-01 |
| Terminal Block | TB-2706 | 779183-01 |
| Connector Block | TBX-68 | 777141-01 |
| CB-68LP (Vertical Mount) | 777145-01 | |
| CB-68LPR (Right Angle Mount) | 777145-02 | |
| - | - | - |
*This device does not support SCC Carriers, and only supports differential (DIFF) input mode.
PXIe-6356 PDF Manuals
DAQ-GETTING-STARTED-GUIDE-FOR-PXI-PXI-EXPRESS.PDF
DAQ-GETTING-STARTED-READ-ME-FIRST-NI-DAQMX-AND-DAQ-DEVICE-INSTALLATION-GUIDE.PDF
NI-62XX-63XX-PINOUT-LABELS-FOR-THE-SCB-68-NOTE-TO-USERS.PDF
NI-62XX-63XX-PINOUT-LABELS-FOR-THE-SCB-68A-NOTE-TO-USERS.PDF
NI-6356-DEVICE-SPECIFICATIONS.PDF
NI-PXIE-6356-58-66-68-76-78-LETTER-OF-VOLATILITY.PDF
