ER-8, 8-Channel, 10ms Operate Time, SPDT, Electromechanical Relay

Rated 4.8/5  |  13 ratings

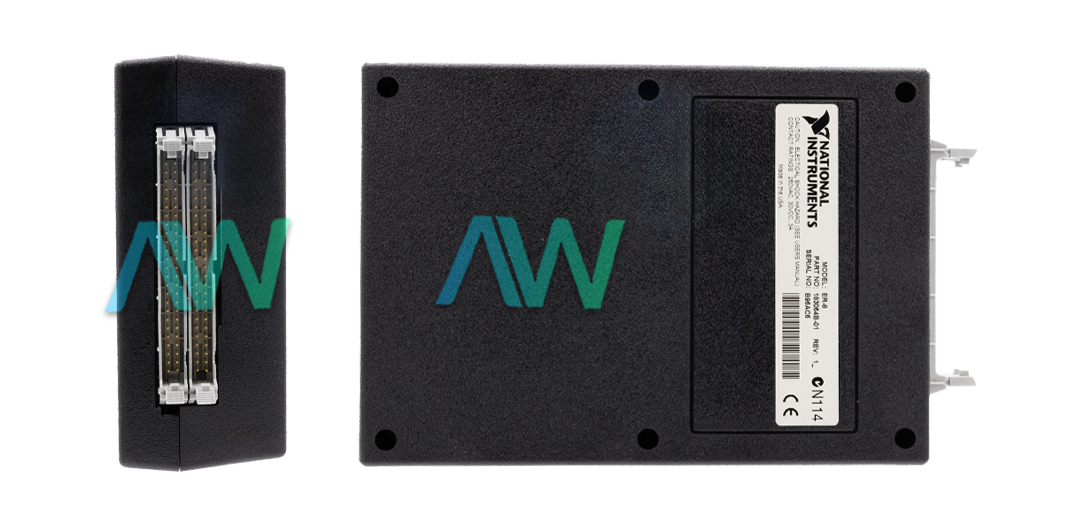

ER-8 National Instruments Electromechanical Relay | Apex Waves | Image
❮ ❯

Actual item may vary if no part number is provided on quote request.

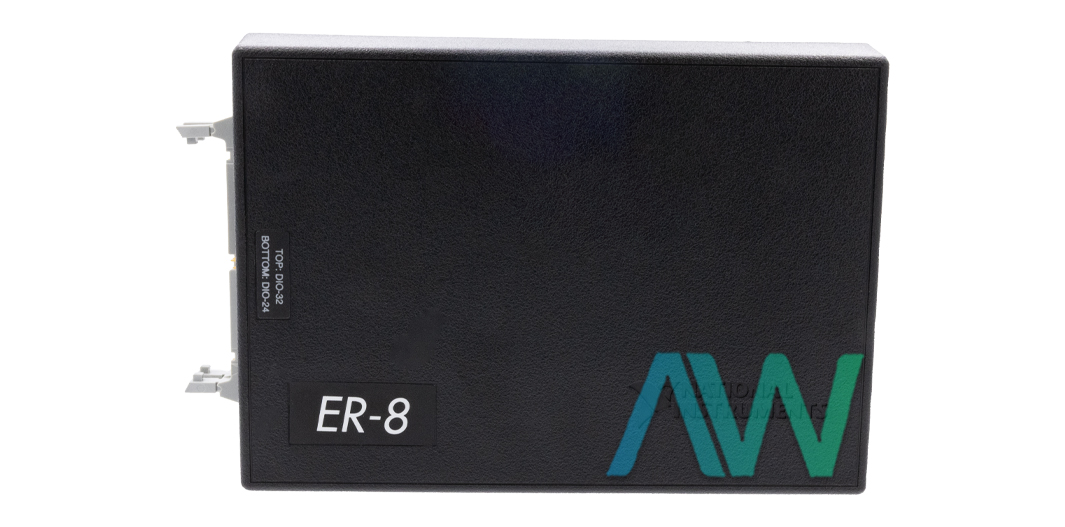

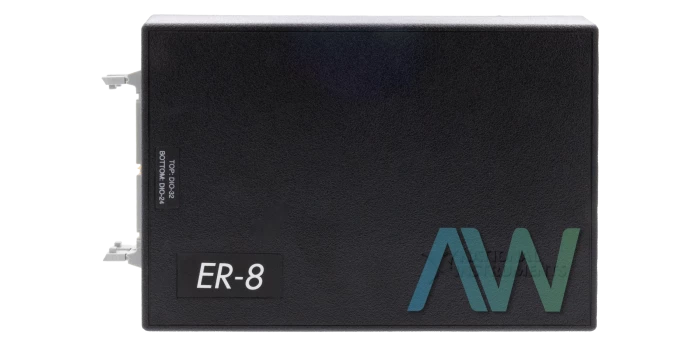

ER-8 National Instruments Electromechanical Relay | Apex Waves | Image

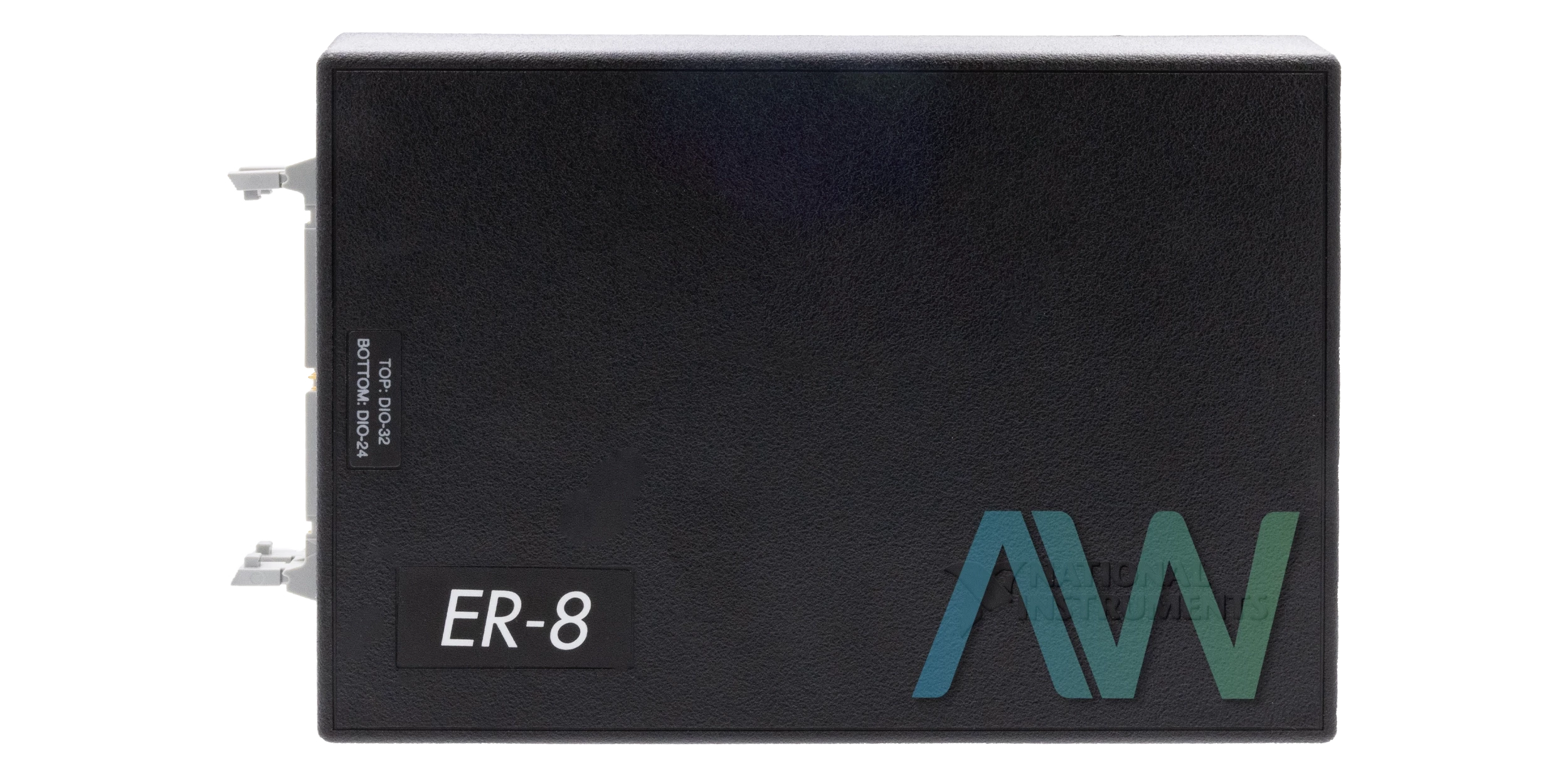

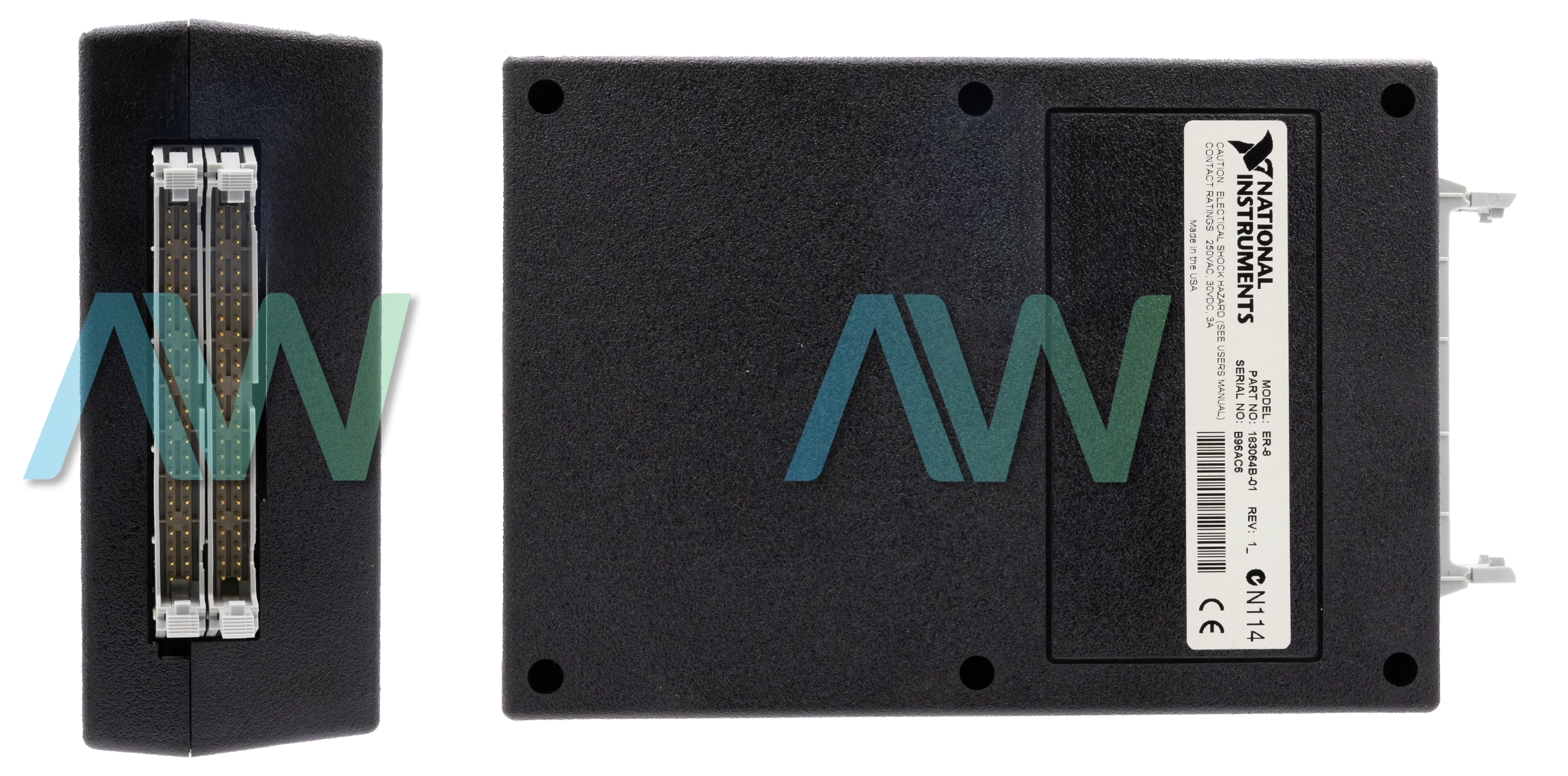

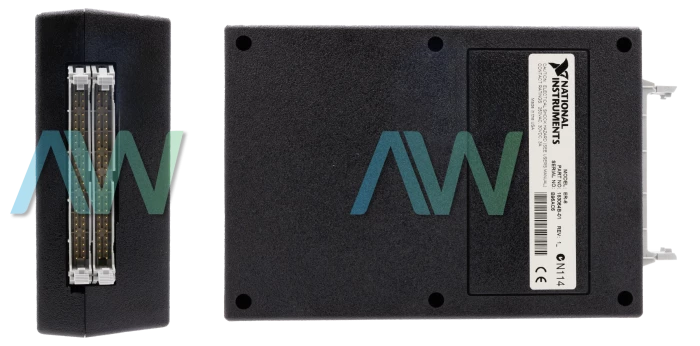

ER-8 National Instruments Electromechanical Relay | Apex Waves | Image
ER-8 New
ER-8 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Get Price & Availability for the ER-8

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships Today

National Instruments ER-8 Electromechanical Relay

The NI ER-8 is a general-purpose Electromechanical Relay. The manufacturer of the ER-8 is National Instruments. The part number of the ER-8 is 777080-01. The NI ER-8 is a dual-function device which can perform switching as well as relay operations. The ER-8 is a single-pole double-throw type relay. This relay can perform all its functions when it is interfaced with other NI digital devices. MIO and Lab devices are also compatible with this Electromechanical Relay. The NI ER-8 is designed for testing and control applications. This relay can be used in labs as well as industrial monitoring and testing.

This Electromechanical Relay comes with 8 independent relays. To control these relays, 8 digital lines are provided. These relays can be operated from a common signal or independently. The relays are equipped with different connection options, including normally open, normally close, and common. As a switching device, the operating mechanism of the NI ER-8 is break-before-make. This feature ensures the contacts are isolated and short-circuit doesn’t happen during operation. The ER-8 is used as an accessory to other DAQ devices. Therefore, it doesn’t need any dedicated software for operation. 1 Power LED and 8 Channel LEDs are also offered in the ER-8 to indicate the status of power and channels. The device has a maximum working voltage of 250 Vrms, an operate time of 10 ms, and a release time of 5 ms. It is equipped with DIO-24 and DIO-32 50-pin male ribbon cable front connectors and an IN and OUT 26-pin male ribbon-cable internal connectors.

The NI ER-8 can be daisy chained to the ER-16 to make a 24-relay block in a specified application requirement. To connect the ER-8 with the ER-16, the NB7 cable is used. The ER-8 has two power options. This relay can use the internal supply of the connected DAQ module, or it can take power from an external power supply.

The NI device measures 6.9 x 2.05 x 4.82 in. in physical dimensions. It has a recommended operating temperature range of 0° to 50° C, a storage temperature range of -55° to 150° C, and a noncondensing relative humidity of 5% to 90%.

ModelER-8
ManufacturerNational Instruments
Part Number777080-01
TypeElectromechanical Relay
Relays8
Relay TypeSPDT
Maximum Working Voltage250 Vrms
Operate Time10 ms
Release Time5 ms
Channel Screw Terminals24, 16 AWG wire max
Dimensions6.9 by 2.05 by 4.82 in.
ER-8 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for ER-8:

National Instruments ER-8 Frequently Asked Questions



Question: What is the maximum working voltage for the ER-8?



Answer: The max working voltage from channel to ground and from channel to channel is 250 Vrms.



Question: What is the maximum switching current across all channels for the ER-8?



Answer: The maximum switching current across all channels of the ER-8 is 24 A.



Question: What is the channel on resistance for the ER-8?



Answer: The channel on resistance for the ER-8 is 100 mΩ.
