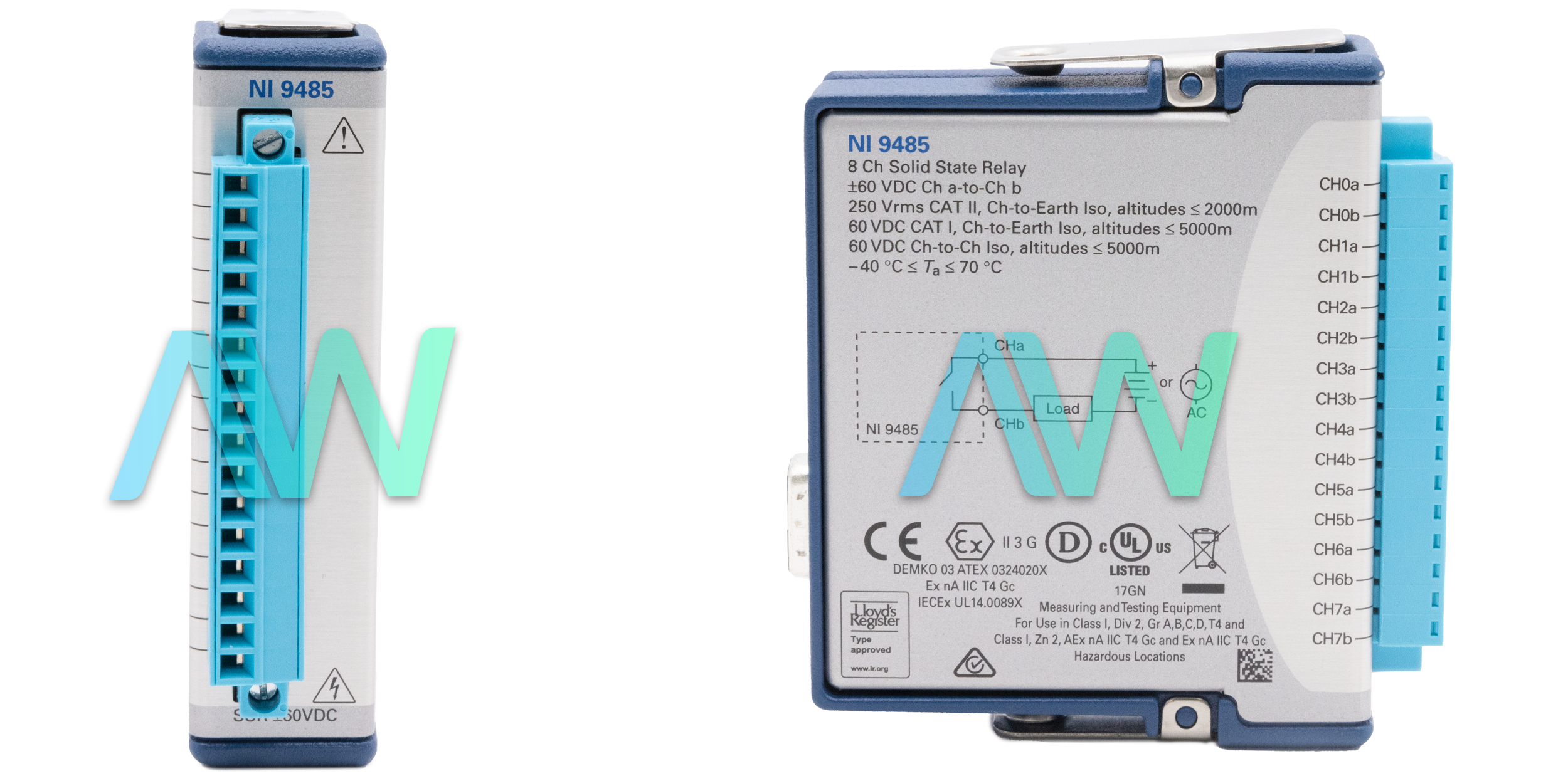

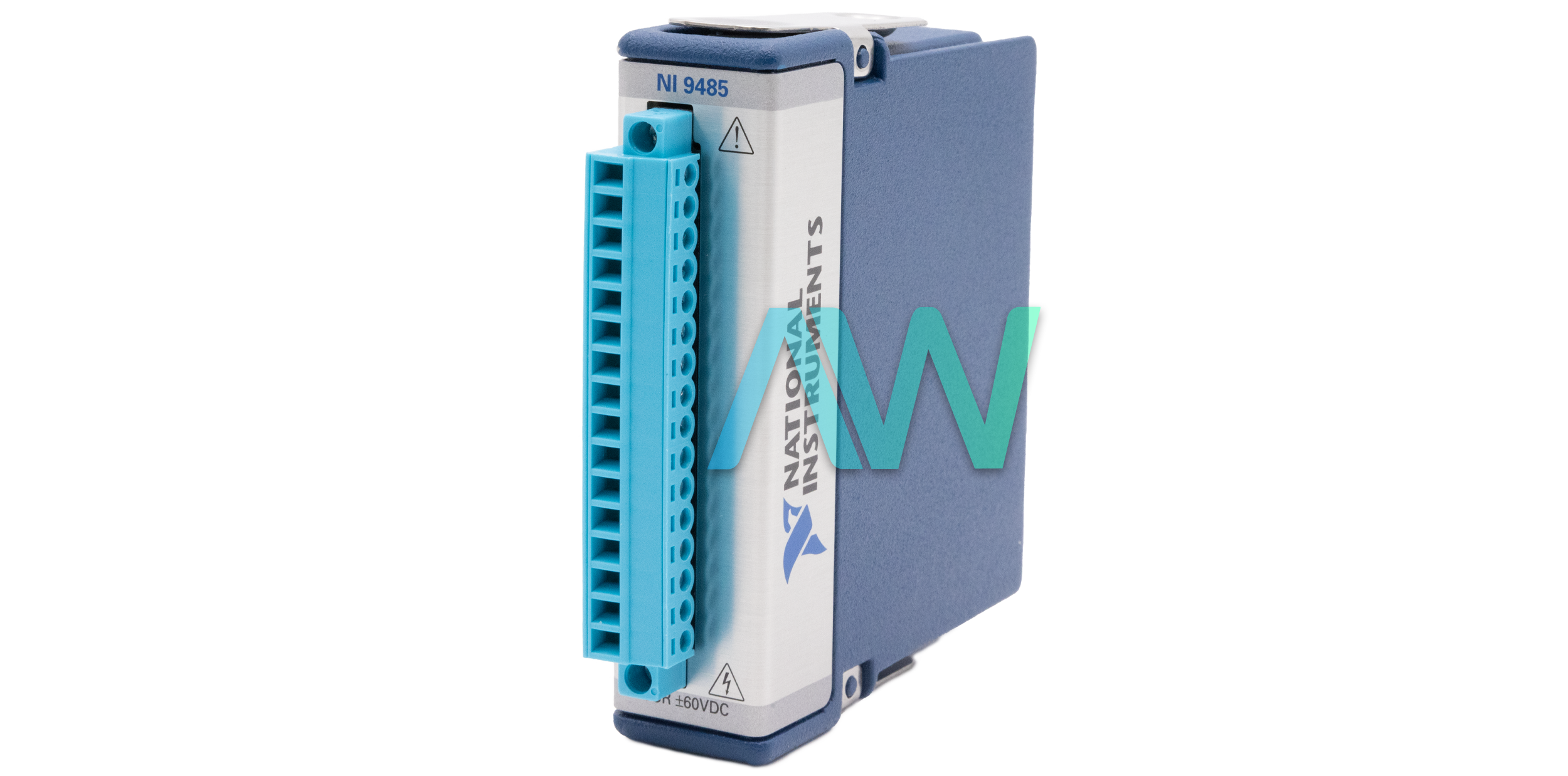

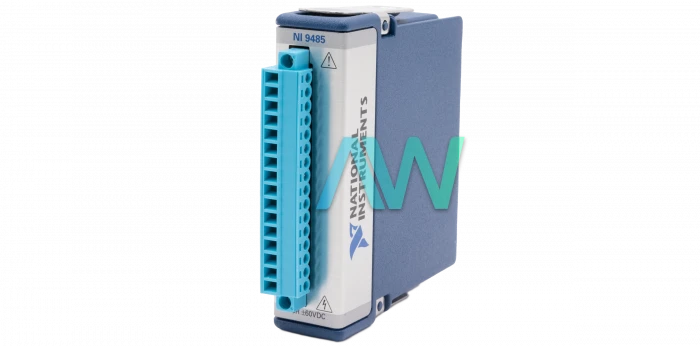

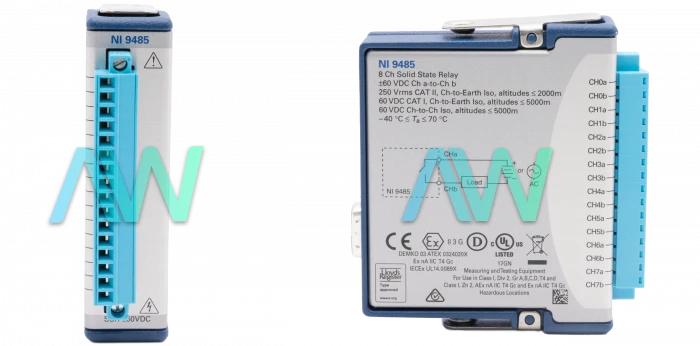

NI-9485 NI Relay Output Module | In Stock Ships Today | Image
NI-9485 NI Relay Output Module | In Stock Ships Today | Image
NI-9485 New
NI-9485 Refurbished

✔ 2 Year Warranty Included

✔ Free Domestic Ground Shipping

✔ NIST Calibration Available

Request a Quote

Get Price & Availability for the NI-9485

Fast response from an Apex Waves specialist.

Fast Response Avg. 15 min
ISO 9001 Quality 2 Year Warranty
In Stock Ships Today

National Instruments NI-9485 C Series Relay Output Module

The NI-9485 (Part numbers: 779600-01 and 779600-02) is a C Series Relay Output Module manufactured by National Instruments, which is featured with SSR sourcing or sinking technology. The NI-9485 module is compatible with CompactRIO chassis and CompactDAQ chassis. With 8 SSR Solid State Relay Output Channels, each of the eight channels provides access to a normally open solid-state relay. The maximum switching voltage range of each channel is about 60 VDC, 30 Vrms. The switching currents can go as high as 1.2 amps per channel (when only 4 or fewer are on) and .75 amps max. (per channel) when all eight are on, as determined by NI's Temperature/Current/Switching Rate Derating Guidance. Each channel also features channel-to-channel isolation. The Relay Output Module is designed to be used for a variety of industrial applications.

The relay open time of the NI-9485 module is about 0.5 ms, with a relay close time of about 9.0 ms. This module has an on resistance of 200 mΩ maximum, with off-state leakage of 30 µA typical. This module is perfect for applications in industrial DC devices, actuators, and motors. If needed, the module can easily be cleaned with a dry towel.

The screw terminal connectors on the relay output module will accommodate solid or stranded insulated copper conductors that are rated at 14AWG through 30AWG. The stripped portion of each wire should have a length of .24" (6mm). The screw terminals can be tightened within a torque range of 0.22Nm to 0.25Nm. The screw flange is designed as a fastening point for securing the connector and is NOT intended as an electrical safety device. When it is activated the board's total power consumption is less than 500mW. However the board can draw no more than 5mW while in its low power "sleep" mode

The NI-9485 can be programmed using software packages such as LabVIEW Professional Development System for Windows, LabVIEW FPGA Module, and LabVIEW Real-Time Module. The NI device weighs 5.1 oz. It has a recommended operating temperature range of -40 °C to 70 °C, a storage temperature range of -40 °C to 85 °C, an operating and storage humidity range of 10% RH to 90% RH and 5% RH to 95% RH respectively, and a random and sinusoidal operating vibration of 5 grms and 5 g–all at a frequency range of 10 to 500 Hz.

NI-9485 Technical Specifications
ModelNI-9485
ManufacturerNational Instruments (NI)
BrandEmerson
Part Numbers779600-01, 779600-02
TypeRelay Output Module
Digital Output Channels8
Maximum Switching Voltage AC30 V
Maximum Switching Voltage DC60 V
Front ConnectorScrew Terminal
Relay TypeSolid State, FET
Supported Hardware PlatformC Series
Enclosed?Yes
Operating Temp Range-40 °C to 70 °C
Storage Temp Range-40 °C to 85 °C
Weight5.1 oz.
Switching Current0.75 A per channel (8 active); 1.2 A (4 active)
Switching Rate1 Operation/s at 90% Duty Cycle
Close/Open Time9.0 ms / 0.5 ms Typical
On Resistance200 mΩ max
Channel-to-Channel Isolation60 V DC (CAT I); 1,000 V rms withstand, 5 s
Channel-to-Earth Isolation250 V rms (CAT II) up to 2,000 m; 2,300 V rms withstand, 5 s*
Power Consumption500 mW max active; 5 mW max sleep*
NI-9485 ManualUser Manual and Maintenance Manual Available for Download
PriceRequest a Quote for Pricing Information

Associated part numbers for NI-9485:

National Instruments NI-9485 Frequently Asked Questions



Question: Why does the NI-9485 module have two part numbers?

Answer: The first part number for the module, part number 779600-01, is not conformal coated. The other part number, 779600-02, is conformal coated.



Question: Are any accessories required for the NI-9485?

Answer: The module requires the NI-9939 Backshell for 16-pos Screw Terminal Connector Block.



Question: Is it possible to connect loads to the Output Module?

Answer: Yes, users can connect loads to the NI-9485.



Question: What is the switching rate for the NI-9485?

Answer: The switching rate is 1 operation per second.



Question: What does SSR stand for in the context of the NI-9485?

Answer: SSR stands for Solid-State Relay.



Question: What programming environments are compatible with the Relay Output Module?

Answer: The NI-9485 is compatible with the LabVIEW Professional Development System, LabVIEW FPA Module, and LabVIEW Real-Time Module software.
