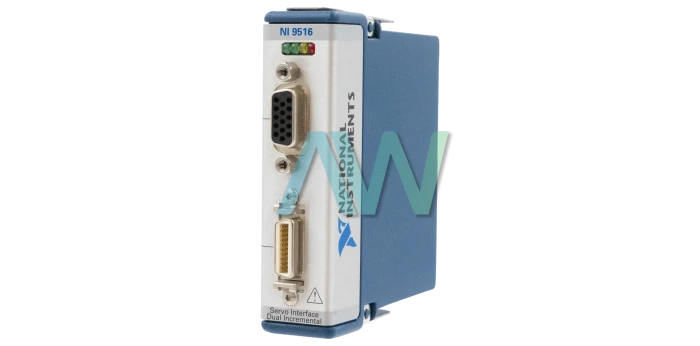

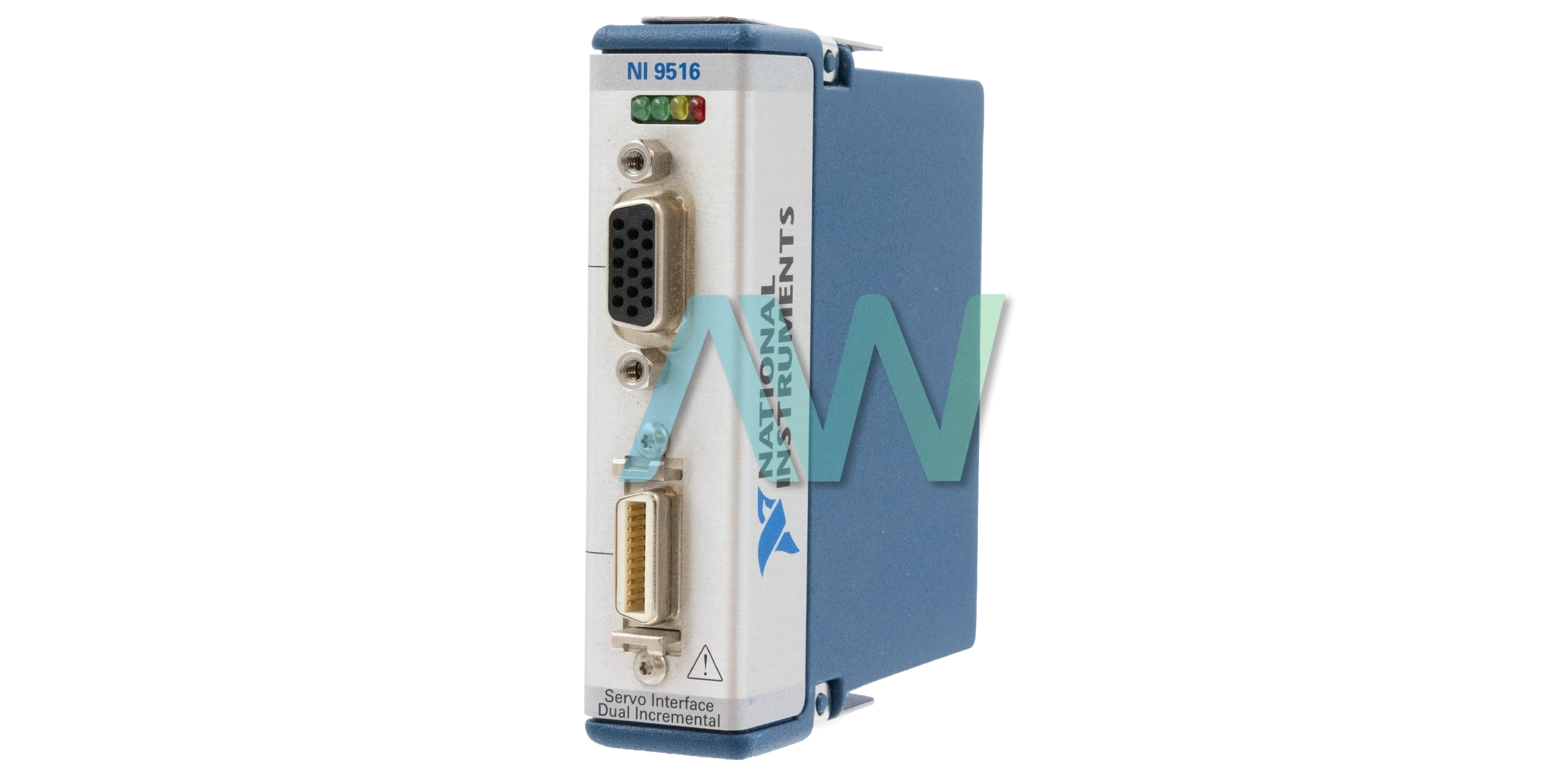

National Instruments NI-9516 C Series Motor Drive Interface Module

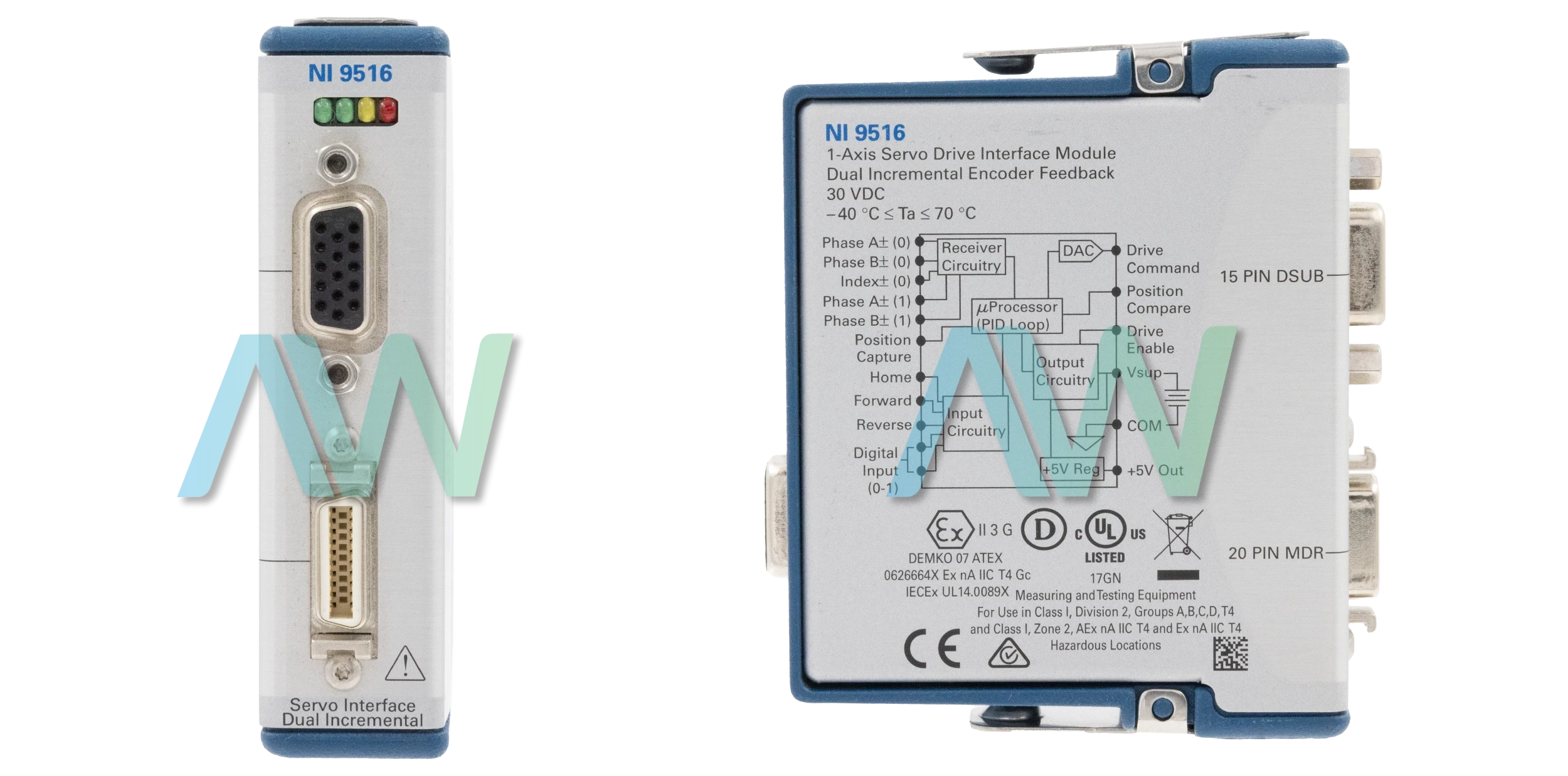

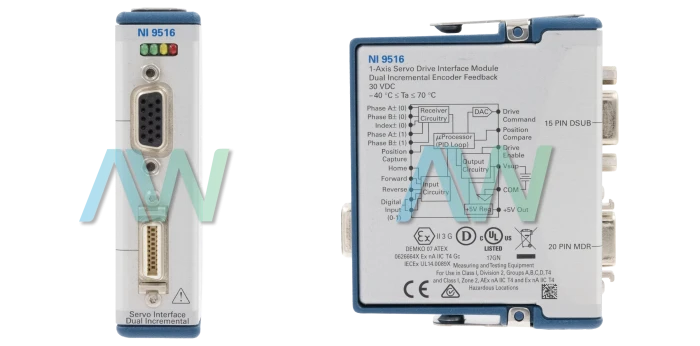

The NI-9516 (Part number: 780112-02) is a C Series Motor Drive Interface Module manufactured by National Instruments. This module fulfills the EMC requirements. These requirements are necessary and define the protection limits, as well as provide safety against damaging intrusion. The NI-9516 is intended for industrial use. It is a servo drive interface module which can connect to a system through 2 connectors. The first connector is a 15 pin DSUB drive interface connector and the other is a 20 pin MDR feedback connector.
The NI-9516 needs an external power supply. It can connect the external power supply to the Vsup input. National Instruments proposes multiple options for connecting the NI-9516 to servo drives. A NI-9516 Cable and Terminal Block Bundle are used to attach to an external servo drive. This Motor Drive Interface Module can also be used with an AKD cable.
The NI 9516 module supports two encoder channels that allow for dual loop feedback and help enhance system constancy and accuracy. It also provides backlash advantage. The Encoder 0 channel contains a Phase A, a Phase B, and an Index input. The Encoder 1 channel includes a Phase A and a Phase B input. The NI-9516 can arrange the Forward Limit and organize the Reverse Limit. The NI-9516 can configure Digital Input signals in software. It can perform for sourcing or sinking output devices. It can also switch the active state of the inputs in the software to on or off.
NI-9516 Mature Status has been announced by National Instruments, but the module will still be available for purchase and repairs at Apex Waves.
| Model | NI-9516 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 780112-01 |
| Type | C Series Motor Drive Interface Module |
| Encoder Inputs | 2 |
| Axis Type | Brushed Servo, Brushless Servo |
| Voltage Range | 0 to 30 V |
| Minimum Output Pulse Width | 100 us |
| Weight | 5.5 oz. |
| Warranty | 2-3 Year Warranty |
| NI-9516 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for NI-9516:
151538A-01L, 151538A-02L, 151538A-03L, 195896A-04L, 195896B-04L, 195896D-04L, 195896E-04L, 195896F-04L, 780112-01
National Instruments NI-9516 Frequently Asked Questions
Question: Are any accessories required for the NI 9516 module?
Answer: Yes, the NI 9516 module requires the NI 951x cable and terminal block bundle.
Question: What does it mean that the NI-9516 is in the mature stage of the life cycle by National Instruments?
Answer: The NI-9516 mature status means that soon the module will become obsolete and will no longer be sold or repaired by National Instruments. However, Apex Waves will still have the module in stock and will still be able to complete repairs as well.
Question: What are the module modes of operation for the NI 9516?
Answer: The module modes of operation for the NI 9516 are torque loop and position loop.
Question: What are the power requirements for the NI-9516 module?
Answer: The power requirements for the NI-9516 module are 950 mW maximum in active mode and 0.4 mW maximum in sleep mode.
NI-9516 PDF Manuals
AKD SERVO DRIVES AND BRUSHLESS SERVO MOTORS WITH SMART FEEDBACK DEVICES DATASHEET.PDF
GETTING STARTED WITH NI 9514 16 C SERIES MODULES AND AKD SERVO DRIVES.PDF
GETTING STARTED WITH NI 951X C SERIES MODULES AND LABVIEW.PDF
NI-9516 OPERATING INSTRUCTIONS AND SPECIFICATIONS.PDF
NI 951X C SERIES MODULES OBJECT DICTIONARY AND REGISTER MAP.PDF
NI 951X LETTER OF VOLATILITY.PDF
