cRIO-9067 In Stock | Ships in 5-10 Days
cRIO-9067, Dual Core, 667 MHz, Zynq-7020 FPGA Processor, NI Embedded CompactRIO Controller
Need an Official Quote?

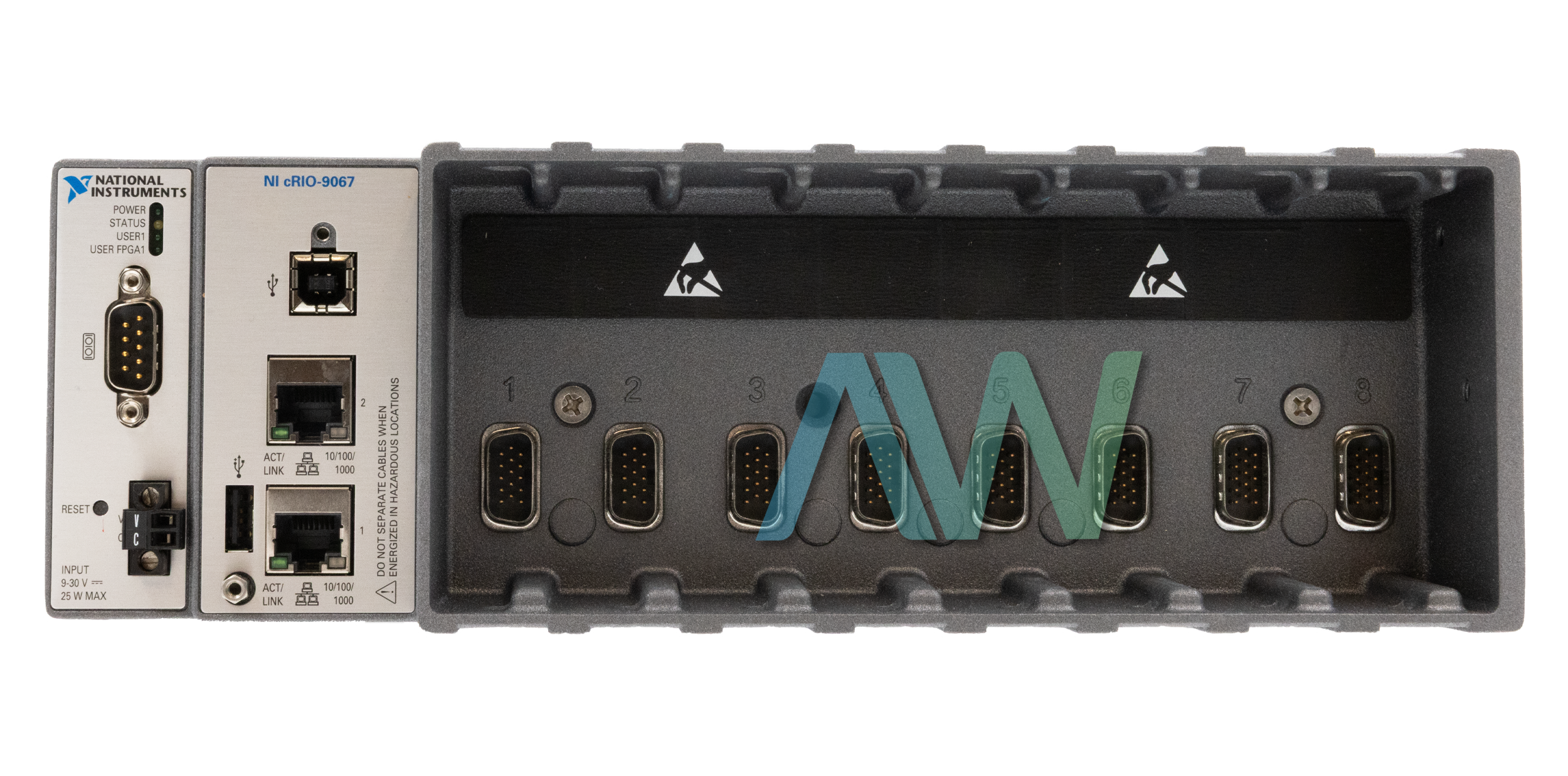

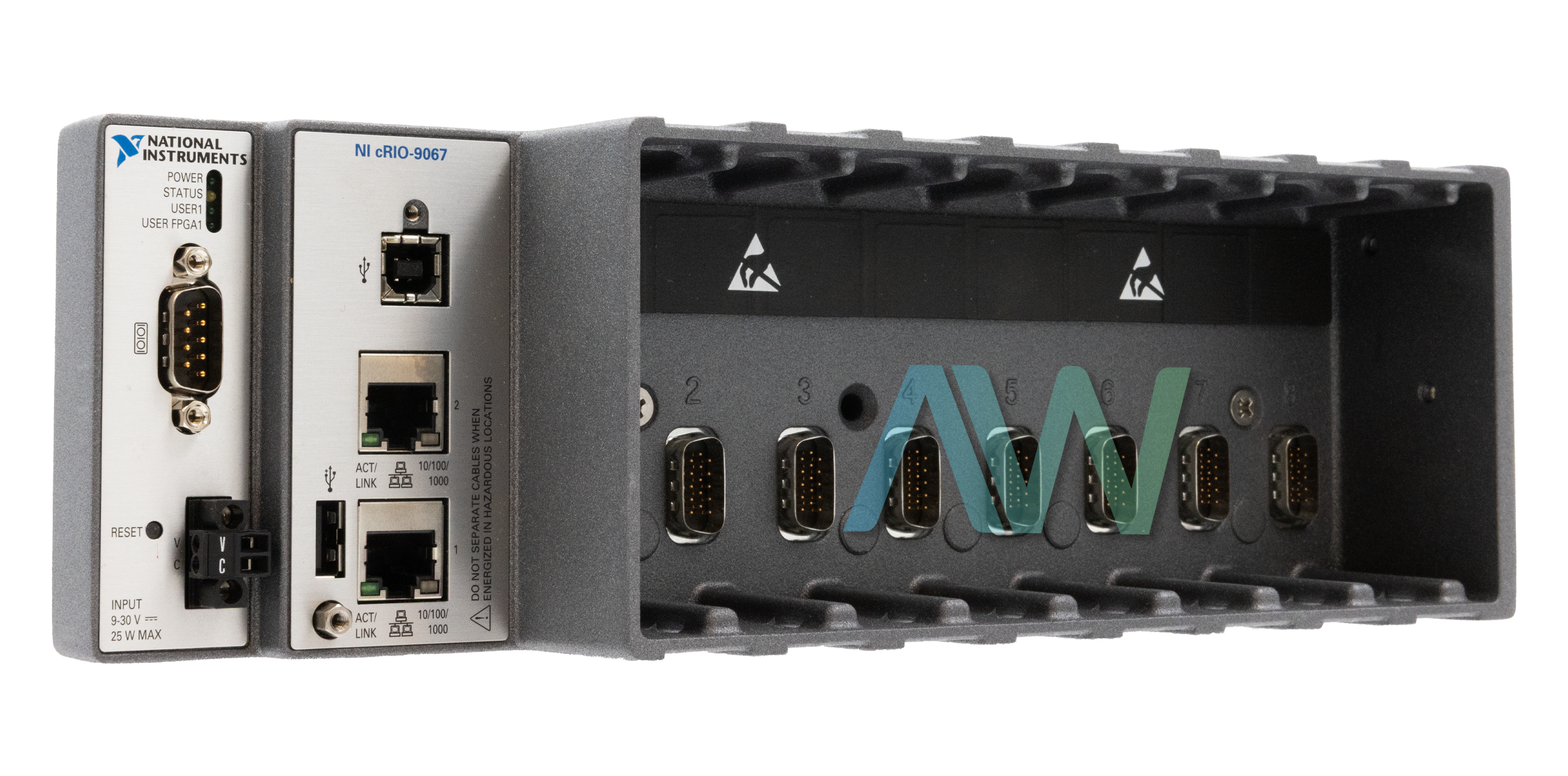

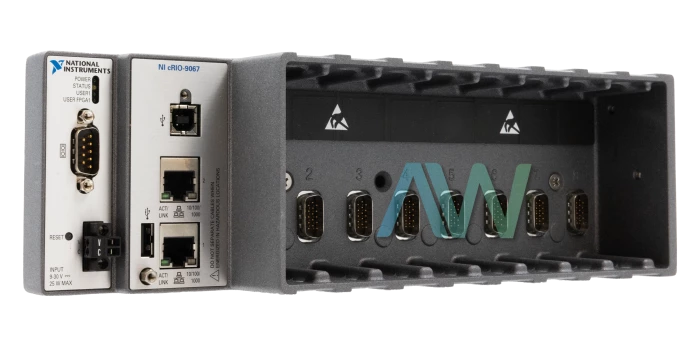

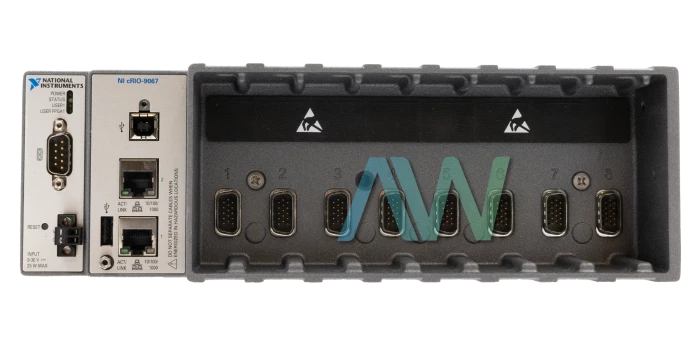

National instruments cRIO-9067 CompactRIO Controller
The National Instruments cRIO-9067 (Part Number: 783170-01, 155824C-01L) is an advanced, hardy, fanless embedded controller built for demanding industrial automation control and monitoring applications. This controller delivers high-performance processing capabilities thanks to its Xilinx Zynq-7000 All Programmable SoC, which is powered by a dual-core ARM Cortex-A9 CPU operating at 667 MHz. Its 1 GB of nonvolatile memory and 512 MB of volatile DRAM allow for effective data processing and storing.
The cRIO-9067 is equipped with two tri-speed RJ-45 Gigabit Ethernet ports, which facilitate uninterrupted networking connectivity at 10 Mb/s, 100 Mb/s, and 1,000 Mb/s communication speeds. By default, these ports are enabled, but you may use MAX software to set them up for automatic IP address assignment. It also has a USB host port that can be used to connect keyboards, mouse, cameras, and other USB mass-storage devices. On the other hand, the USB device port makes it easier to configure devices, install apps, and perform maintenance.
With its RS-232 serial connector, the cRIO-9067 can be connected to external devices, including input and display devices. Utilizing its customizable FPGA, which is likewise built on the Xilinx Zynq-7000 platform, you may customize control algorithms and signal processing jobs with its 85,000 logic cells, 106,400 flip-flops, and 53,200 6-input LUTs. It provides improved processing power for real-time applications with 220 DSP slices and 4,480 kbits of accessible block RAM.
An internal real-time clock with a 5 ppm accuracy is built into the cRIO-9067, guaranteeing accurate timekeeping even when it is not in use. With an IP40 ingress protection rating and a pollution degree 2 rating, it is built to resist tough industrial settings and functions throughout a wide temperature range of -20°C to 55°C. It also has reverse-voltage protection up to 30 V DC and can accept a voltage input range of 9 V DC to 30 V DC.
The cRIO-9067 also satisfies IP40 ingress protection standards, making it appropriate for use in challenging industrial settings. It has a Pollution Degree of 2 and a maximum altitude tolerance of 5,000 m.
Model | cRIO-9067 |
---|---|
Manufacturer | National Instruments |
Part Number | 783170-01, 155824C-01L |
Type | CompactRIO Controller |
Slots | 8 |
CPU Frequency | 667 MHz |
Storage | 1 GB |
Dimensions | 10.74 x 3.47 x 2.45 in. |
Weight | 37.04 oz. |
Warranty | Three Year Warranty |
cRIO-9067 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the cRIO-9067:
155817A-01L, 155817B-01L, 155817C-01L, 155817D-01L, 155817E-01L, 155817F-01L, 155824B-01L, 155824C-01L, 155824D-01L, 155824E-01L, 155824F-01L, 157207A-01L, 200124A-01, 783170-01
National Instruments cRIO-9067 Frequently Asked Questions
Question: Does EtherCAT 18.5 support the cRIO 9067?
Answer: Yes, EtherCAT 18.5 does support the cRIO 9067.
Question: Is it possible to open a remote connection from my host computer using iMAQdx with the NI cRIO-9067 to get images from a Basler USB camera?
Answer: You cannot access the camera images directly through the NI cRIO-9067. You will have to implement image transfer between the cRIO-9067 and the PC.
Question: Why am I getting error "-2147220623" when running code on the NI cRIO 9067?
Answer: With the NI cRIO 9067, the property node is only applicable for code running on VxWorks or PharLAP targets.
cRIO-9067 PDF Manuals
ARCHIVED NI CRIO 9067 LETTER OF VOLATILITY.PDF
CARRYING HANDLE FOR COMPACTRIO AND COMPACTDAQ USER GUIDE.PDF
COMPACTRIO CONTROLLERS PRODUCT FLYER.PDF
CRIO 9067 LETTER OF VOLATILITY.PDF
INDUSTRIAL RACK MOUNT KIT FOR COMPACTRIO AND COMPACTDAQ INSTALLATION GUIDE.PDF
MODULE IMMOBILIZATION ACCESSORY INSTALLATION GUIDE.PDF
NI CRIO 9067 GETTING STARTED GUIDE.PDF
NI CRIO 9067 SPECIFICATIONS.PDF
Driver Downloads for cRIO-9067
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
