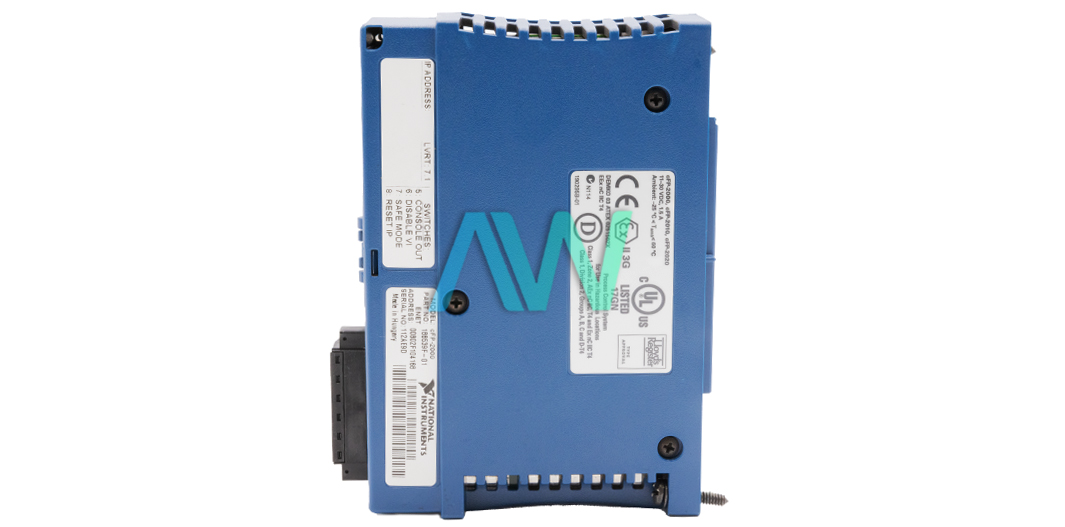

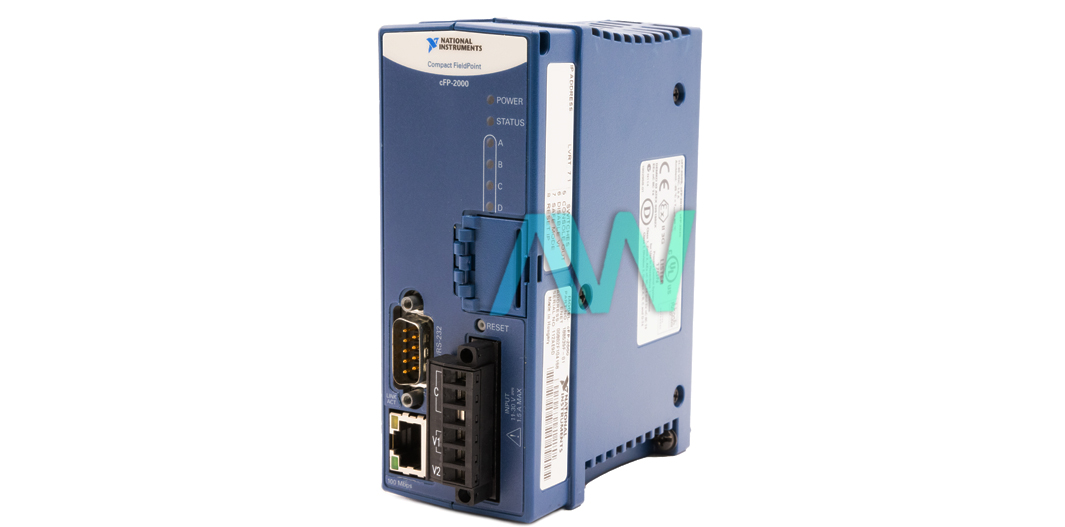

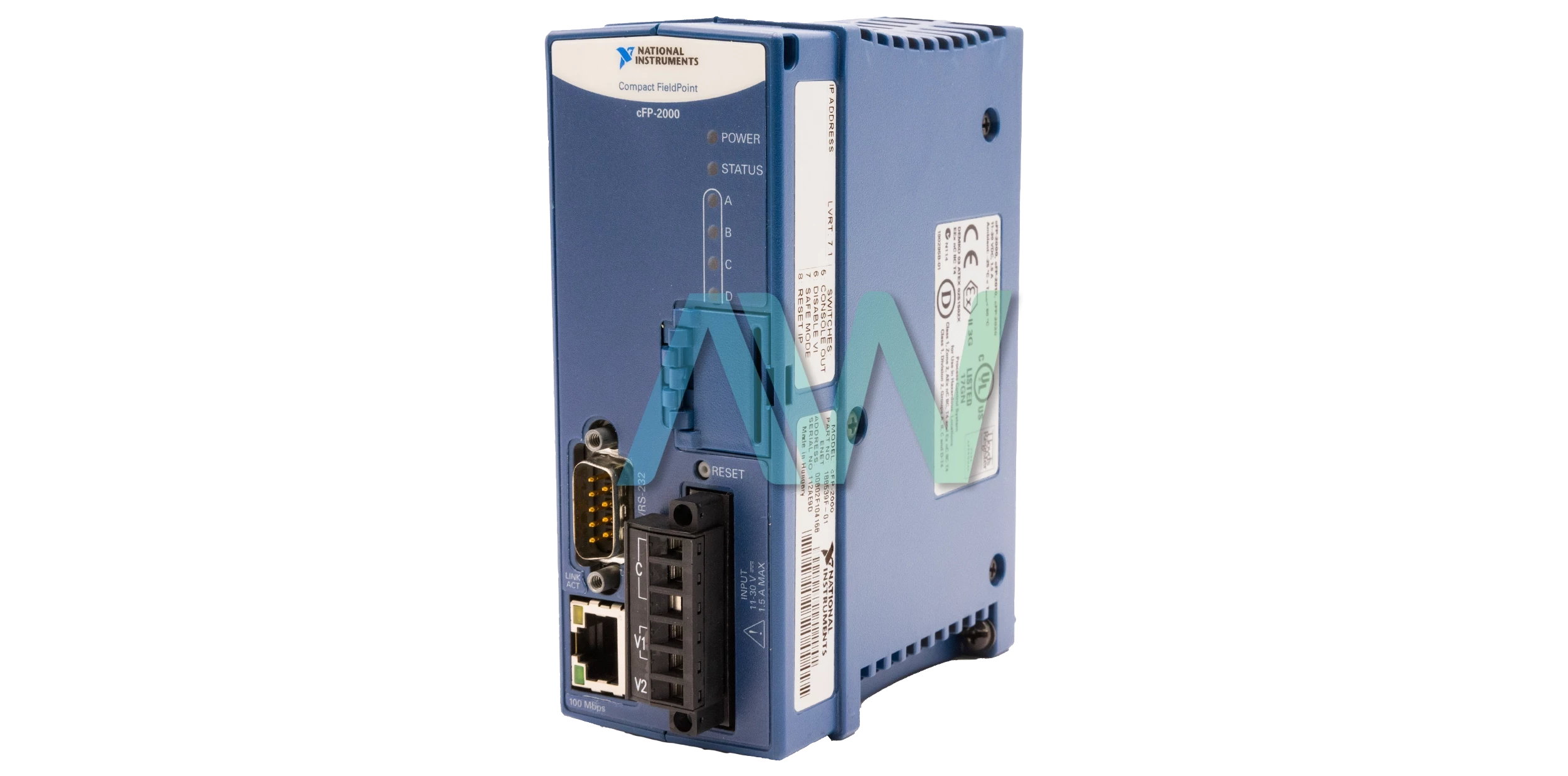

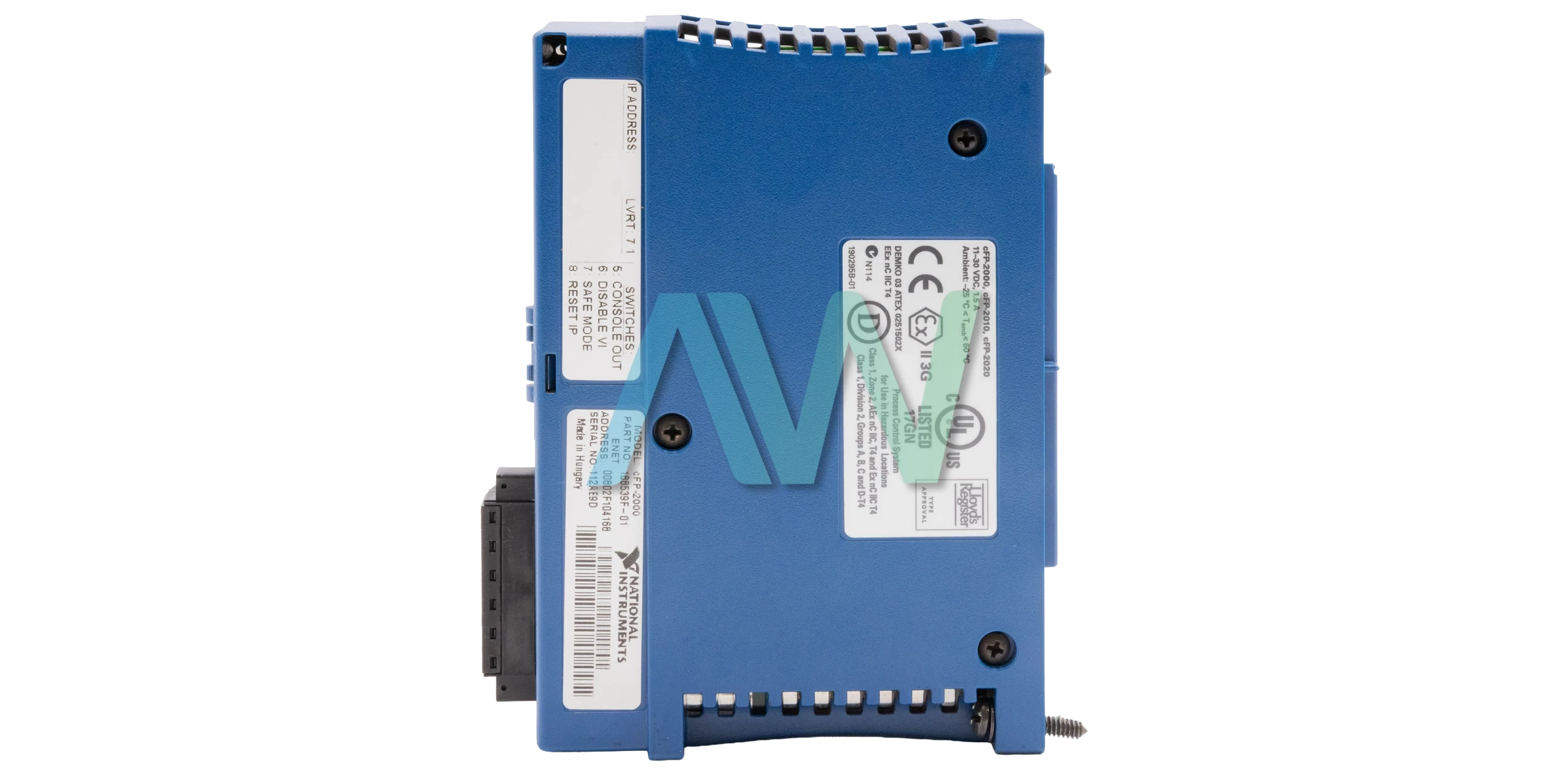

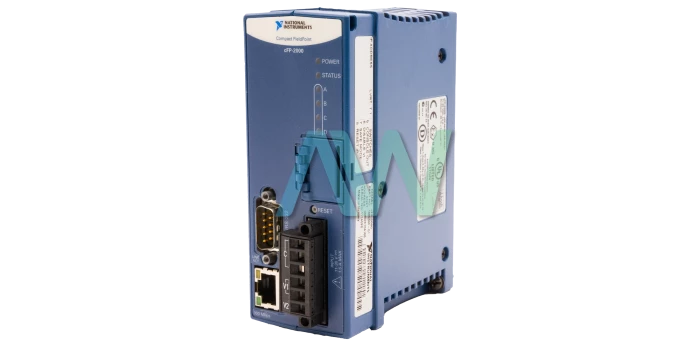

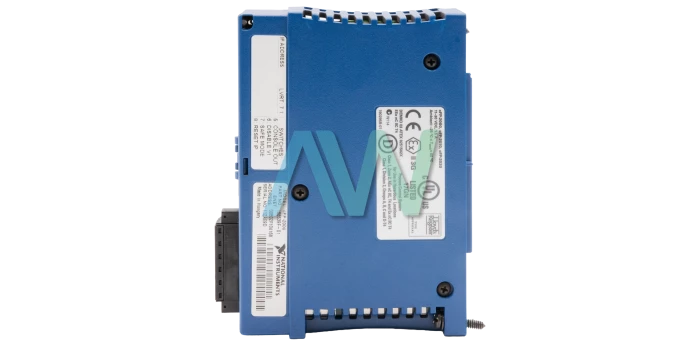

National Instruments cFP-2000 Controller for Compact FieldPoint
With 16 MB of DRAM, one Ethernet port, and one RS-232 port, the National Instruments cFP-2000 (part number 777317-2000) is a real-time Ethernet FieldPoint controller interface. This model can operate as an embedded, stand-alone controller or as a distributed, PC-based I/O interface. The NI cFP-2000 is known for its industrial-grade reliability. This cFP-2000 Controller offers automatic self-diagnostics and isolated communication with I/O modules and is capable of handling redundant power supply inputs. With this Controller, users will be able to manage up to eight Compact FieldPoint digital and analog I/O modules. This bank of eight modules creates a node. Additionally, the device has a maximum cabling distance of 100 m per segment.
When building a network, the cFP-2000 National Instruments allows the user to choose between cabling options and I/O modules with a connector block. For data logging, the cFP-2000 comes equipped with integrated memory, and users can also add a removable CompactFlash drive for additional storage capacity. Transferring data from the Controller to a personal computer can be accomplished with the aid of the embedded FTP server provided on the cFP-2000.
The Ethernet port incorporated in this Controller works as a high-speed communication channel for performing run-time probing and debugging, downloading application code, and transmitting indicator and control values with a GUI operating on a separate yet networked personal computer. The Ethernet port can also be employed for network communication through various protocols such as HTTP, UDP, TCP, and DataSocket.
The cFP-2000 has the LabVIEW RT Engine and FieldPoint software pre-installed and can be programmed using software packages such as LabVIEW, LabVIEW RT, LabWindows/CVI, Measurement Studio, and VI Logger. The device can be configured using the Measurement & Automation Explorer (MAX) tool.
The NI device weighs 9.8 oz. It has recommended operating and storage temperature ranges of -25 to 60°C and -40 to 85°C, respectively.
| Model | cFP-2000 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777317-2000 |
| Type | Controller for Compact FieldPoint |
| Serial Port | 1 |
| RAM | 16 MB |
| Maximum Cabling Distance | 100 m/segment |
| Compatibility | IEEE 802.3 |
| Weight | 9.8 oz. |
| cFP-2000 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Request a Quote |
Associated part numbers for cFP-2000:
National Instruments cFP-2000 Frequently Asked Questions
Question: How does the cFP-2000 communicate?
Answer: The cFP Controller can be a stand-alone embedded real-time controller or Ethernet interface.
Question: What software programming does the NI cFP-2000 run?
Answer: The embedded controller runs LabVIEW Real-Time for control, data logging, and signal processing.
Question: How many FieldPoint analog modules can the cFP 2000 manage?
Answer: The embedded controller can manage up to eight Compact FieldPoint analog and digital I/O modules.
cFP-2000 PDF Manuals
CFP-20XX-AND-CFP-BP-X-QUICK-START-GUIDE.PDF
CFP-20XX-AND-CFP-BP-X-USER-MANUAL.PDF
CFP-RLY-425-OPERATING-INSTRUCTIONS.PDF
FIELDPOINT-CFP-20XX-QUICK-START-GUIDE.PDF
FIELDPOINT-SAFETY-AND-RADIO-FREQUENCY-INTERFERENCE-READ-ME-FIRST.PDF
USING-FIELDPOINT-AND-COMPACT-FIELDPOINT-SAFELY-IN-HAZARDOUS-LOCATIONS-5BNOTE-TO-USERS5D.PDF
