National Instruments cDAQ-9184 CompactDAQ Chassis

The cDAQ-9184 (Part Number: 782069-01) is an Ethernet CompactDAQ Chassis that can estimate temperature, voltage, or extension based sensors. Overall, the National Instruments NI cDAQ-9184 incorporates these estimations and more into one gadget that outputs most of the information through a similar bus interface. The user can blend multiplexed voltage input signals by utilizing the NI CompactDAQ framework. This will allow the user to test accelerometers, low-speed thermocouples, and TTL computerized I/O in a similar chassis using a similar driver software which is the NI-DAQmx. The software is compatible with other software packages//application development environments (ADEs) such as LabVIEW or LabVIEW Real-Time module. The chassis can be reserved, and the device configured using the Measurement & Automation Explorer (MAX) tool.

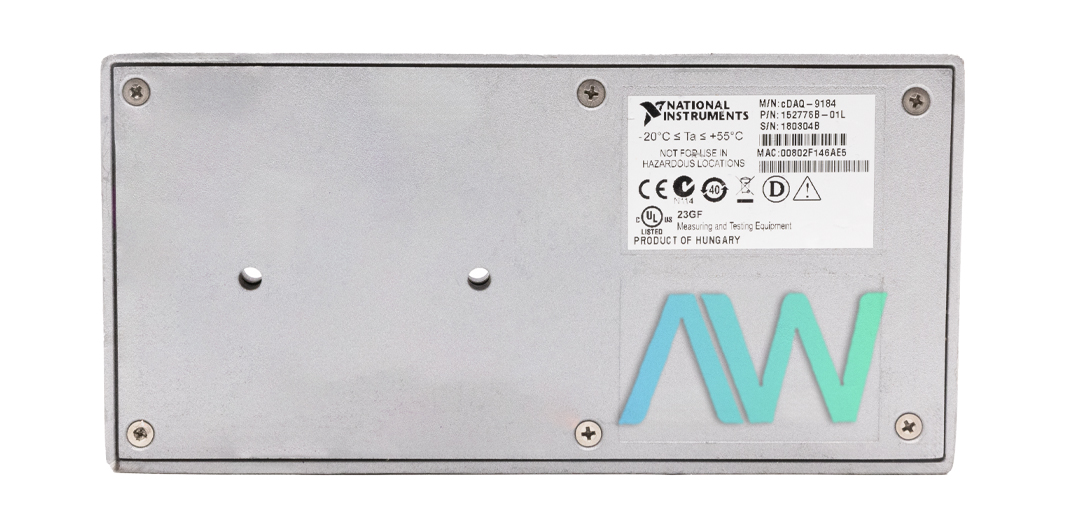

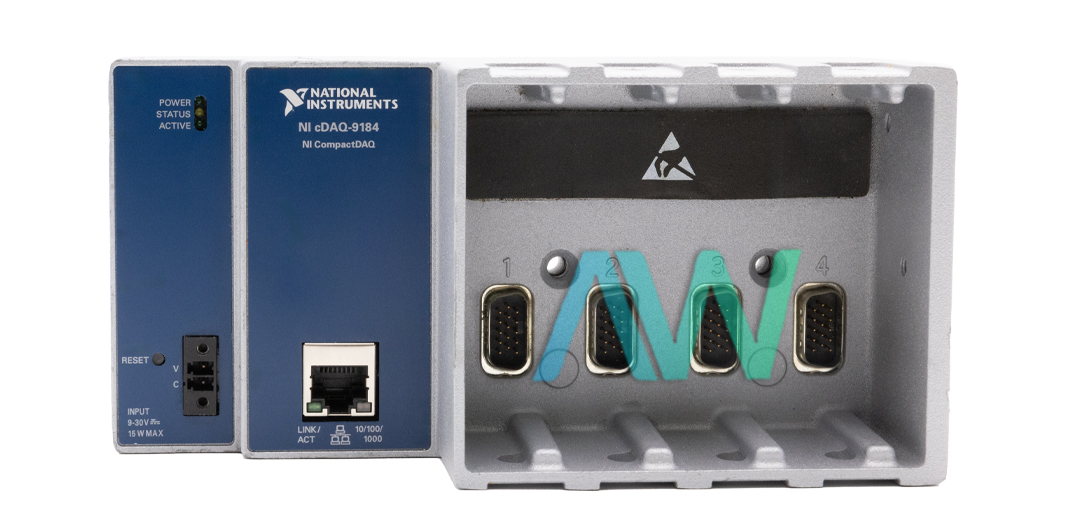

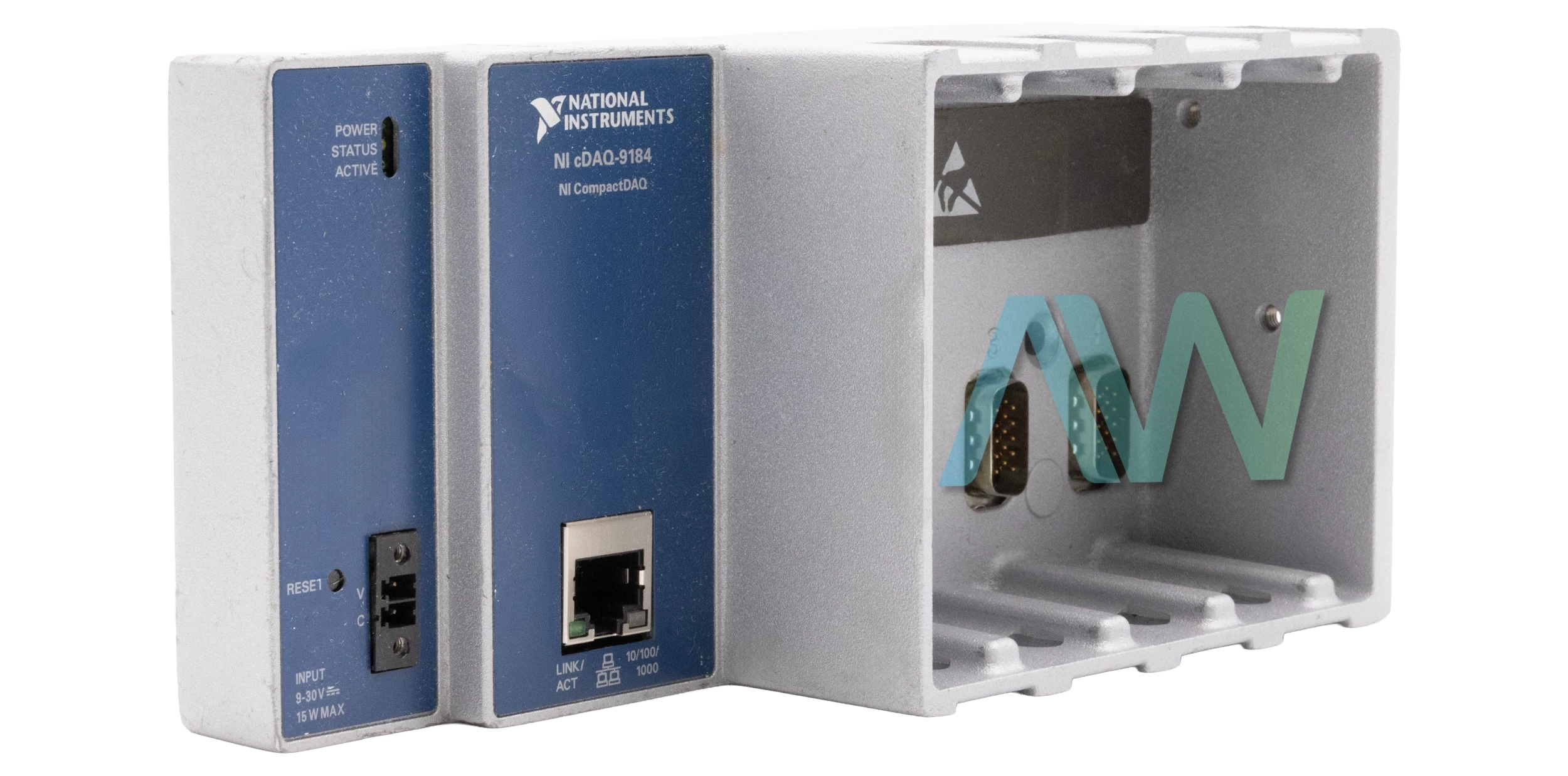

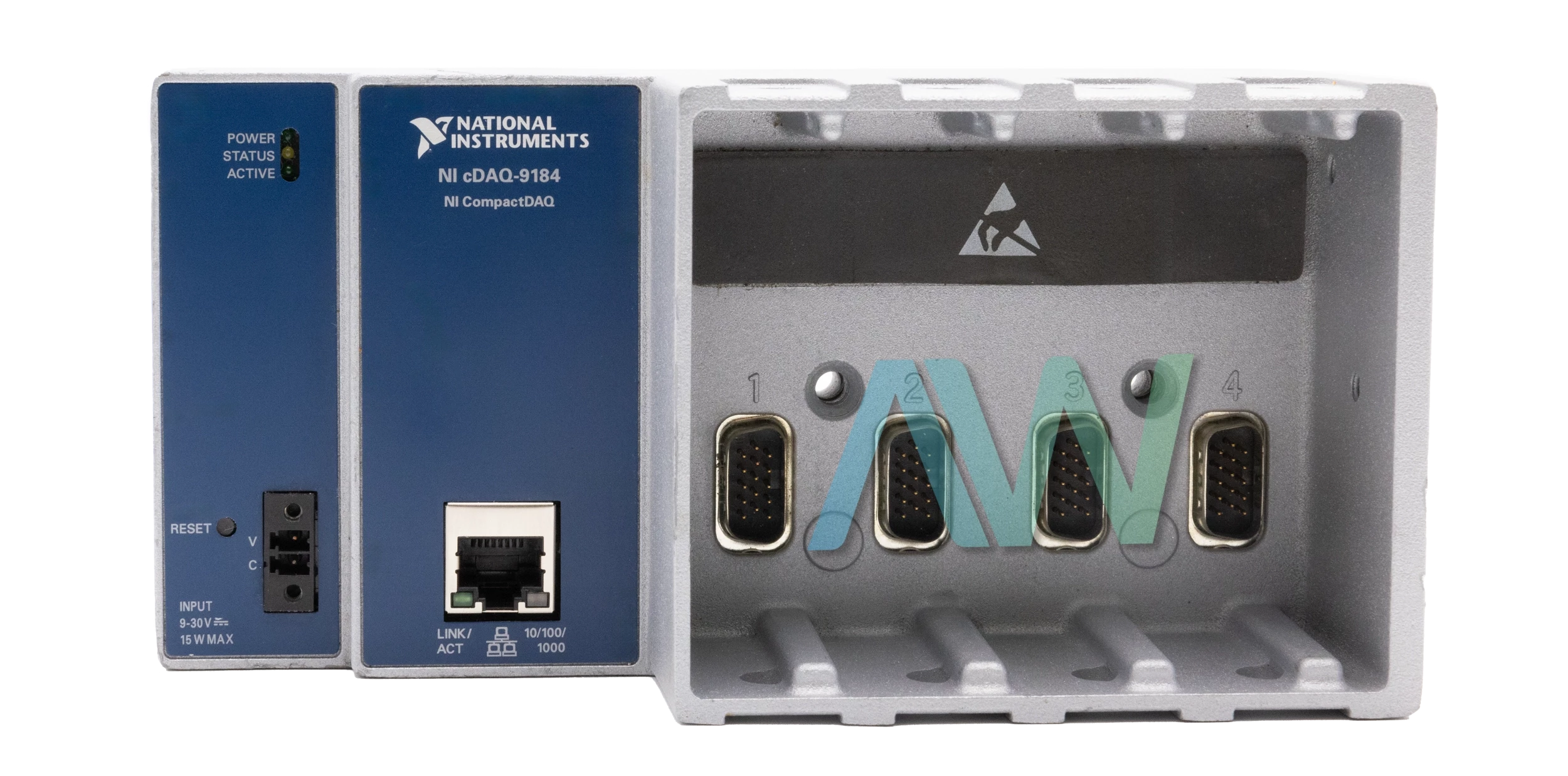

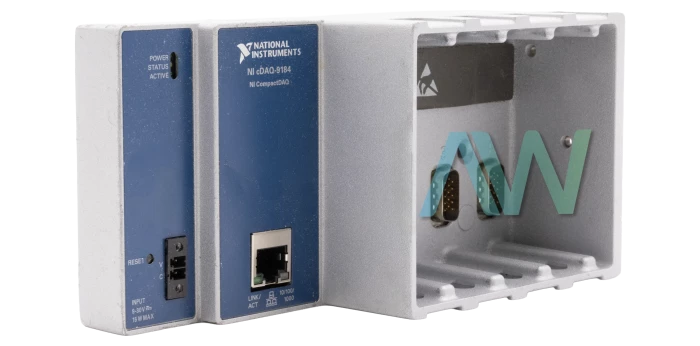

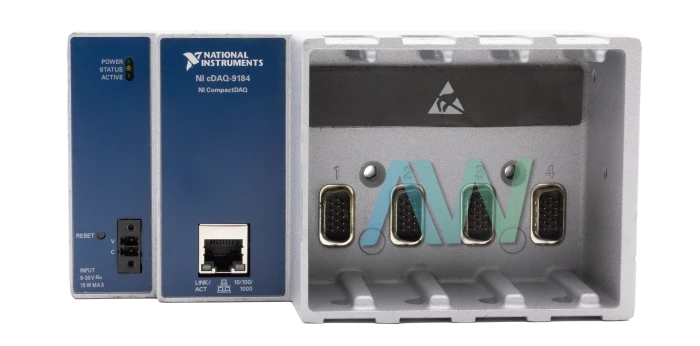

This 4-slot NI CompactDAQ Chassis gains ground which is less demanding, since the user utilizes a similar driver for all estimations. This arrangement spares space and improves administration and support for the user. The device has an analog input FIFO size of 127 samples per slot with a timing resolution of 12.5 ns, and a timing accuracy of 50 ppm of sample rate. It has 4 counters/timers with a 32-bit resolution and an output frequency of 0 MHz to 20 MHz.

For information procurement, the Ethernet interface on the NI cDAQ 9184 offers two favorable circumstances when contrasted with other regular PCs: long cabling lengths and dispersed framework. Ethernet is perfect for taking estimations at separations past the 5 m point of confinement of a USB link. A solitary CAT 5E link can achieve 100 m before requiring a change or switch to convey the flag more distant. Moreover, numerous IT offices have institutionalized on Gigabit Ethernet (IEEE 802.3ab) as the spine for their corporate systems. By using the NI cDAQ-9184 CompactDAQ Chassis, the user can exploit that current foundation and extra system data transfer capacity for a remote or appropriated estimation application. One host PC can deal with many types of test stations inside a similar office or over various destinations. The device weighs 22.7 oz., measuring 7.01 x 3.47 x 2.53 in. in dimensions. It has an operating temperature range of -20 °C to 55 °C. Additional information about the cDAQ-9184 can be found in the manuals under the "Manuals & PDFs" tab.
