cRIO-9039
Modular Systems > National Instruments > CompactRIO Controllers
| Description: | cRIO-9039, 1.91 GHz Quad-Core CPU, 8-Slot, Embedded CompactRIO Controller |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

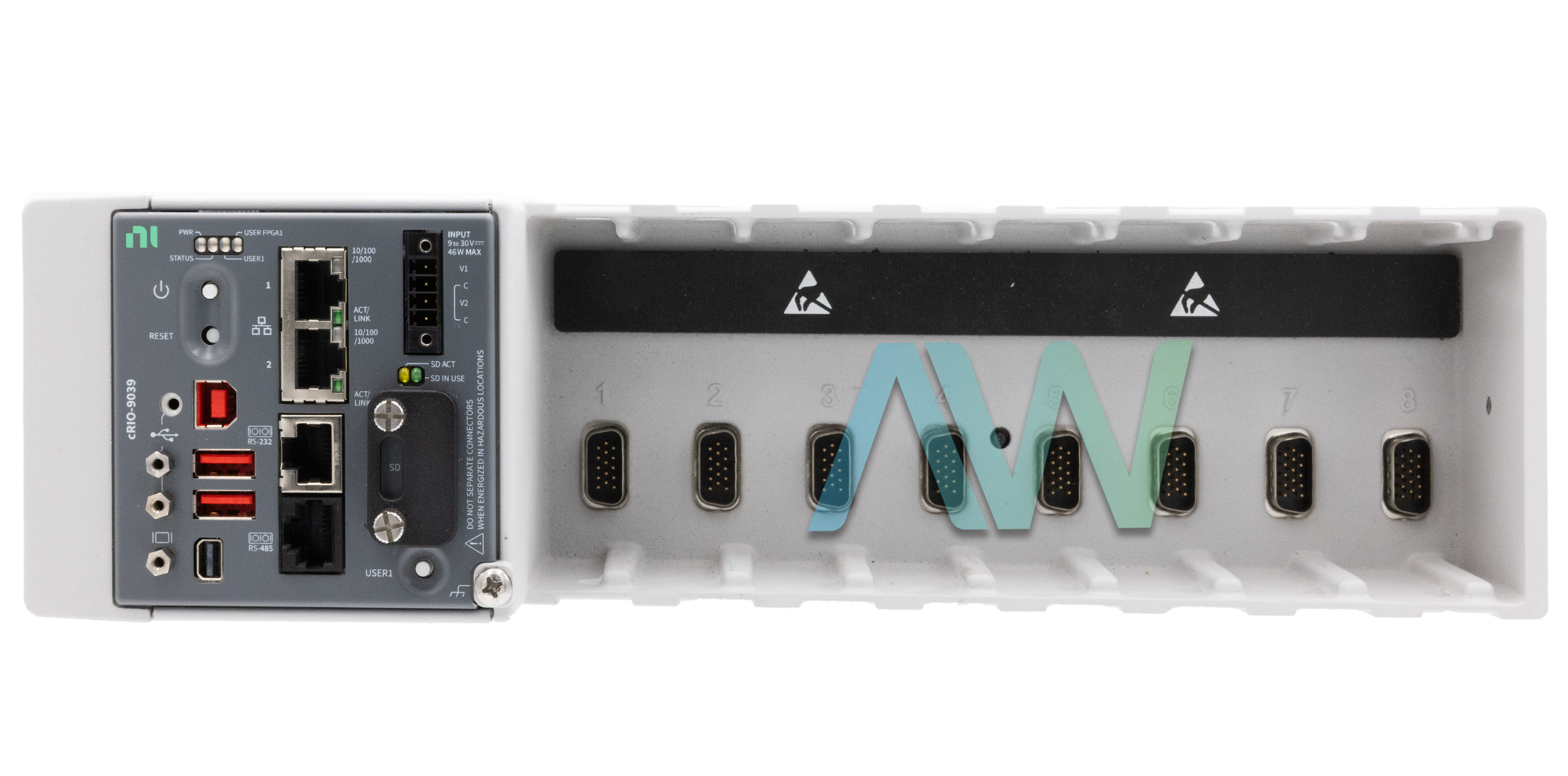

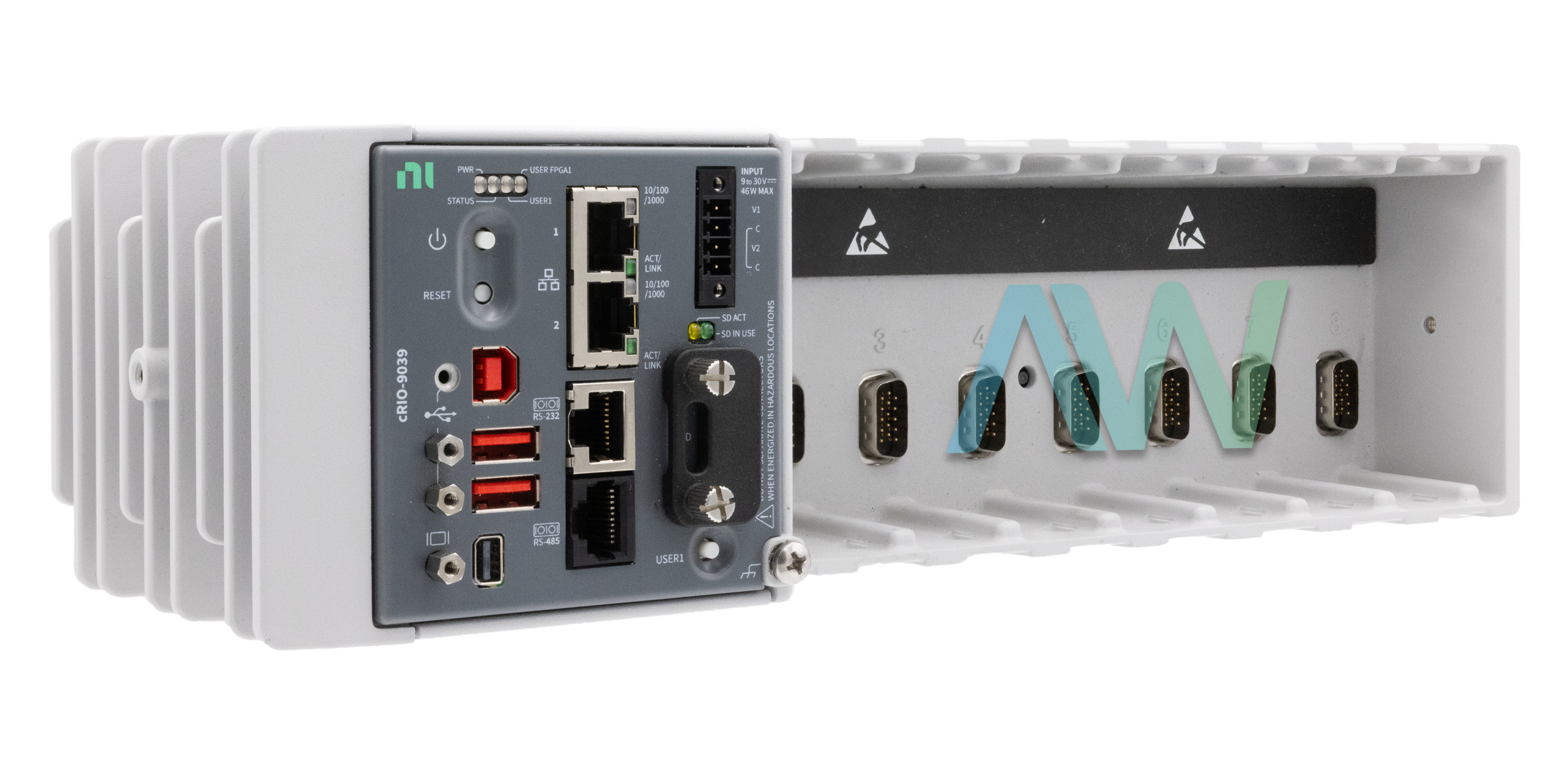

National Instruments cRIO-9039 CompactRIO Controller
The cRIO-9039 is a quad-core CompactRIO Controller designed by National Instruments. This Controller is available in two versions. The only difference in these two versions is that part number 784775-01 offers synchronization, whereas part number 783851-01 does not support synchronization. Collectively, both these versions are named the cRIO-9039. This model is an 8-slot Controller featuring an FPGA chipset and dynamic RAM. The cRIO 9039 incorporates several LEDs for the status of different ports and functions. Four buttons are also available for POWER, RESET, USER1, and CMOS reset functions.
The cRIO-9039 CompactRIO Controller features an Intel Atom E3845 processor. The CPU frequency of this processor is 1.91 GHz and it has 2 MB cache memory. Two Ethernet ports are available in the cRIO NI 9039 for the network interface. These ports can interface with the network over an Ethernet cable up to 100 m. The Controller supports serial communication. Two ports, RS-232 and RS-485/422, are incorporated in the NI cRIO-9039. The data bits of these ports are 5, 6, 7, and 8. The RS-485 port supports 1.2 km of cable length without any limitation of the surge. This device also has one USB device port and two USB host ports. The USB host ports can sustain up to 1 A current. A mini display port is also available. The National Instruments NI cRIO-9039 has 16 GB of internal memory and 2 GB RAM memory. The Controller supports SD cards up to 32 GB memory.
The cRIO-9039 has a chassis grounding screw, which is used to connect the Controller to earth ground for EMC compliance. The FPGA is a Kintex-7 7K325T. The cRIO-9039 is also equipped with an internal real-time clock. This clock adjusts the system time during the power-off state.
| Model | cRIO-9039 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 783851-01, 784775-01 |
| Type | CompactRIO Controller |
| Slots | 8 |
| CPU Frequency | 1.91 GHz |
| Storage | 16 GB |
| Dimensions | 12.94 x 3.47 x 4.77 in. |
| Weight | 4 lbs., 15 oz. |
| Warranty | 2-3 Year Warranty |
| cRIO-9039 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the cRIO-9039:
154788F-03L, 154788G-03L, 154788H-03L, 154788J-03L, 157732A-03L, 157732B-03L, 157732C-03L, 157732D-03L, 157732F-03L, 159264A-13L, 159264B-13L, 159264C-13L, 783851-01, 784775-01, 141099A-15L, 141099B-15L, 141099C-15L, 141099D-15L, 154782A-03L, 154782A-99L, 154782B-03L, 154782C-03L, 154788A-03L, 154788D-03L, 154788E-03L
National Instruments cRIO-9039 Frequently Asked Questions
Question: Can I run the cRIO-9039 CompactRIO Controller FPGA Target clock to less than 5 MHz using Single Cycle Timed Loop?
Answer: The cRIO-9039 CompactRIO Controller’s maximum possible rate using Single Cycle Timed Loop is 3.3 MHz.
Question: Why am I getting an error 2147137023 when I use the cRIO 9039 in hybrid mode with the NI-9881 CANopen module?
Answer: You are seeing this error with the cRIO 9039 because when you are working in hybrid mode, you must run the FPGA bitfile at the beginning of your code and not close it until the end. To avoid this error, you must open your reference and leave it open until the end of your code.
Question: Can I use the NI cRIO-9039 with a NI-9802 SD card module?
Answer: No, the NI-9802 is not officially supported by the NI cRIO-9039.
cRIO-9039 PDF Manuals
CARRYING HANDLE FOR COMPACTRIO AND COMPACTDAQ USER GUIDE.PDF
COMPACTRIO CONTROLLERS PRODUCT FLYER.PDF
CRIO 9039 LETTER OF VOLATILITY.PDF
INDUSTRIAL RACK MOUNT KIT FOR COMPACTRIO AND COMPACTDAQ INSTALLATION GUIDE.PDF
MODULE IMMOBILIZATION ACCESSORY INSTALLATION GUIDE.PDF
NI CRIO 9039 GETTING STARTED GUIDE.PDF
NI CRIO 9039 SPECIFICATIONS.PDF
NI CRIO 903X LETTER OF VOLATILITY.PDF
Driver Downloads for cRIO-9039
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
cRIO-9039
Modular Systems > National Instruments > CompactRIO Controllers
cRIO-9039, 1.91 GHz Quad-Core CPU, 8-Slot, Embedded CompactRIO Controller
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs
- Drivers

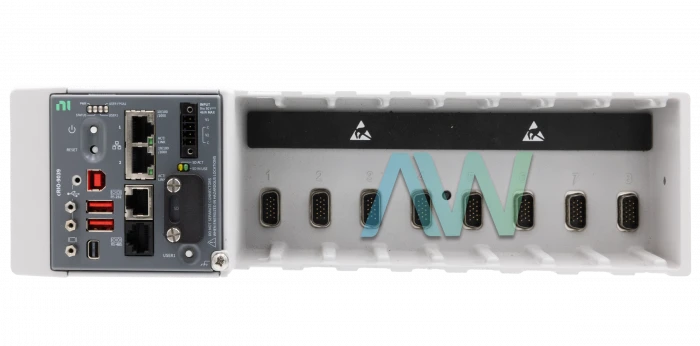

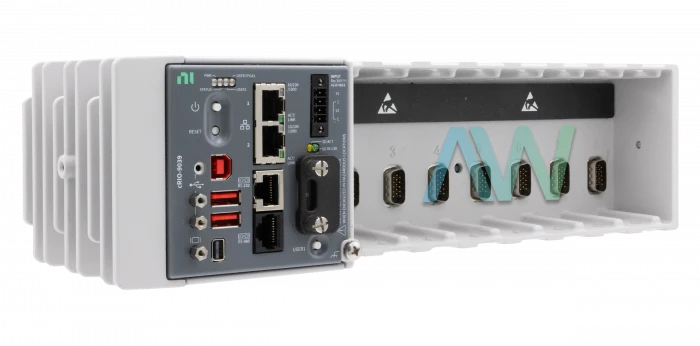

National Instruments cRIO-9039 CompactRIO Controller
