DAQCard-6533

4.7/5 | 11 ratings

Modular Systems > National Instruments > DAQCards

Part Number DAQCard-6533
Manufacturer/Brand National Instruments
Description: DAQCard-6533, 32 Channel, Digital I/O Device
In Stock | Ships in 5-10 Days
(expedited shipping options available)
Fast Quote
Quoted Price
Same Day Calibration Available
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing

Need an Official Quote?



Or speak to a sales representative for additional information:

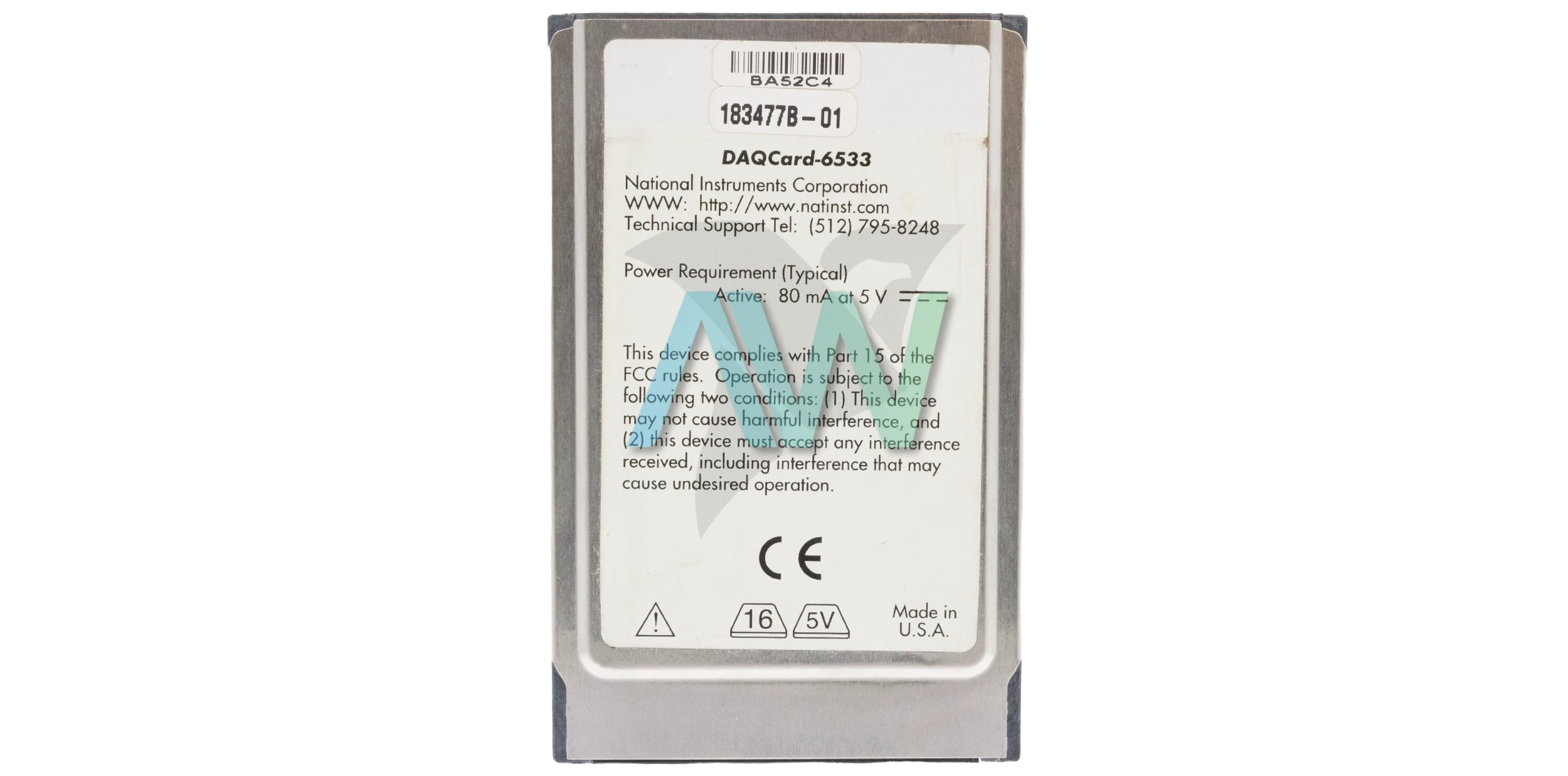

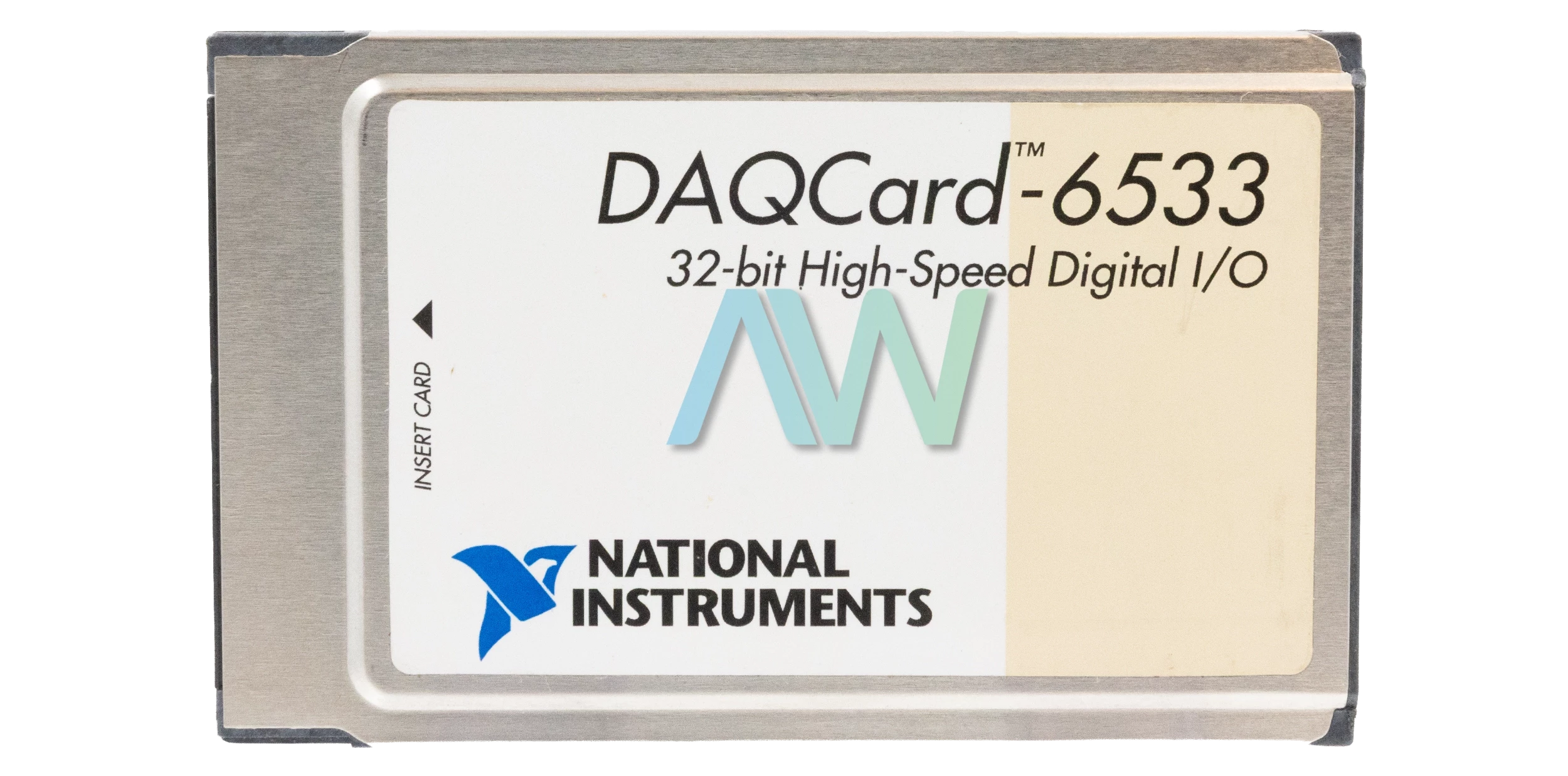

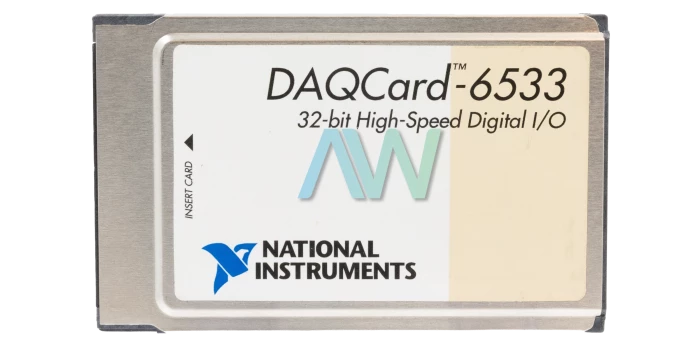

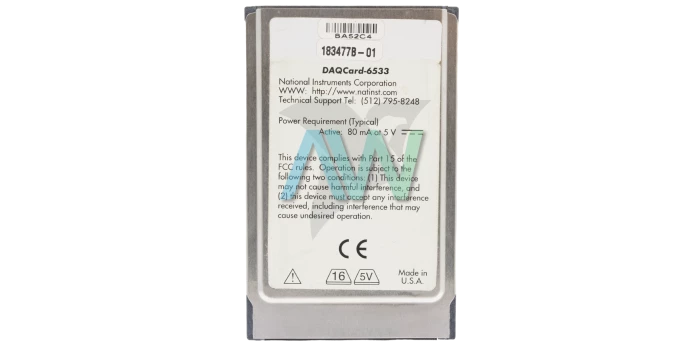

National Instruments DAQCard-6533 Digital I/O Device

The DAQCard-6533 is a Digital I/O Device manufactured by National Instruments. The NI DAQCard-6533 is available to order with the part number 777315-01. The DAQCard-6533 is a member of the NI-6533 family. The DAQCard-6533 is programmed with the NI-DAQ driver software. This driver software helps make configuring the device easier. The DAQCard-6533 can be worked on LabVIEW, LabWindows, and Measurement Studio. The DAQCard-6533 can be installed on Windows, Real-time performance with LabVIEW, and Mac OS X operating systems. The NI DAQCard-6533 is compatible with different versions of Windows, including Windows 2000/XP/NT. The DAQCard-6533 can also function with other types of software such as Visual Basic, C, and C++.

The DAQCard-6533 is modeled to provide high performance for digital input/output plug-in modules. This Digital I/O Device is built for use with PCMCIA slots. The maximum transfer rate for the NI DAQCard-6533 is available as 20 MHz with 80 MB/s. The DAQCard-6533 is designed as a high-speed digital I/O device for handshaking interface purposes. This device has 32 digital I/O lines with the compatibility of the TTL/CMOS standard and 5 V as a voltage source.

This Digital I/O Device has a 16-sample FIFO memory size. The power consumption at the input/output connector is available as +4.65 to +5.25 VDC voltage at 250 mA current with a PCMCIA port. The DAQCard-6533 can start and stop triggering operations and can transform the detection pattern. The DAQCard-6533 requires a current of 500 mA. This device also has 10 ns minimum pulse width for edge triggers and 500 mV hysteresis.

ModelDAQCard-6533
ManufacturerNational Instruments
Part Number777315-01
SeriesNI-6533
TypeDigital I/O Device
Channels32
Driver SoftwareNI-DAQ
Voltage Levels5 V TTL/CMOS
Memory16-sample FIFO
Digital I/O Compatibility5 V TTL/CMOS
Data TransfersInterrupts, programmed I/O
I/O Connector68-pin female PCMCIA
SizeType II PC card
Warranty2-3 Year Warranty
DAQCard-6533 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the DAQCard-6533:

183477-01, 183477B-01, 183745-01, 184018-01, 777315-01, 777315-02
