Part Number PXI-6509
Manufacturer/Brand National Instruments
Description: PXI-6509, 96-Channel, 24 mA, PXI Digital I/O Module
In Stock | Ships Today
Fast Quote
Quoted Price
Lowest Price Guarantee
2-3 Year Warranty Included
Free Ground Shipping
  Get Pricing
2 year warrantyRefurbished
*What is Refurbished?
Quoted Price
Fully tested
2yr warranty
  Get Pricing

Need an Official Quote?


*Most customers receive their price in about 15 minutes.

Or speak to a sales representative for pricing & lead time:

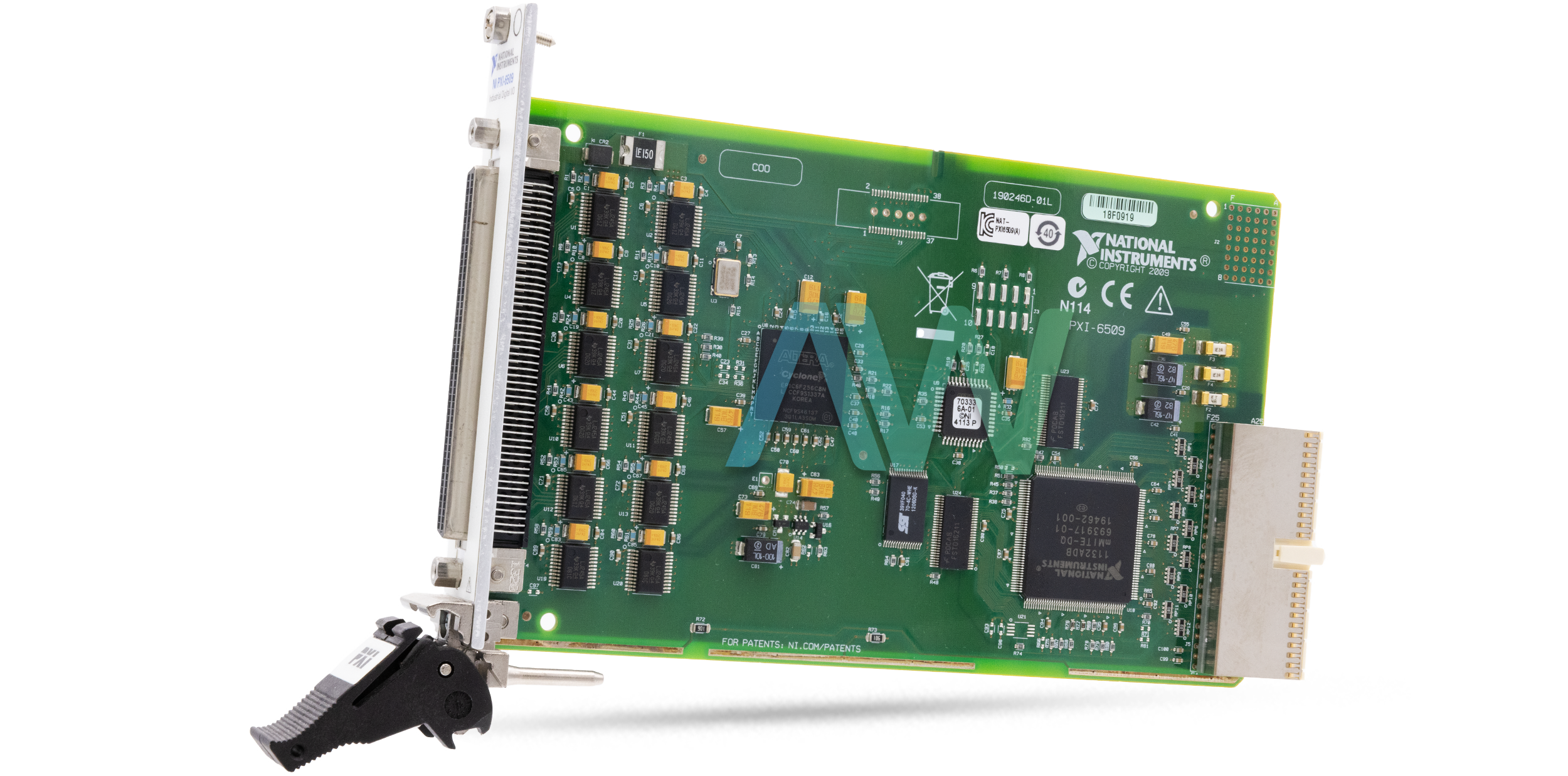

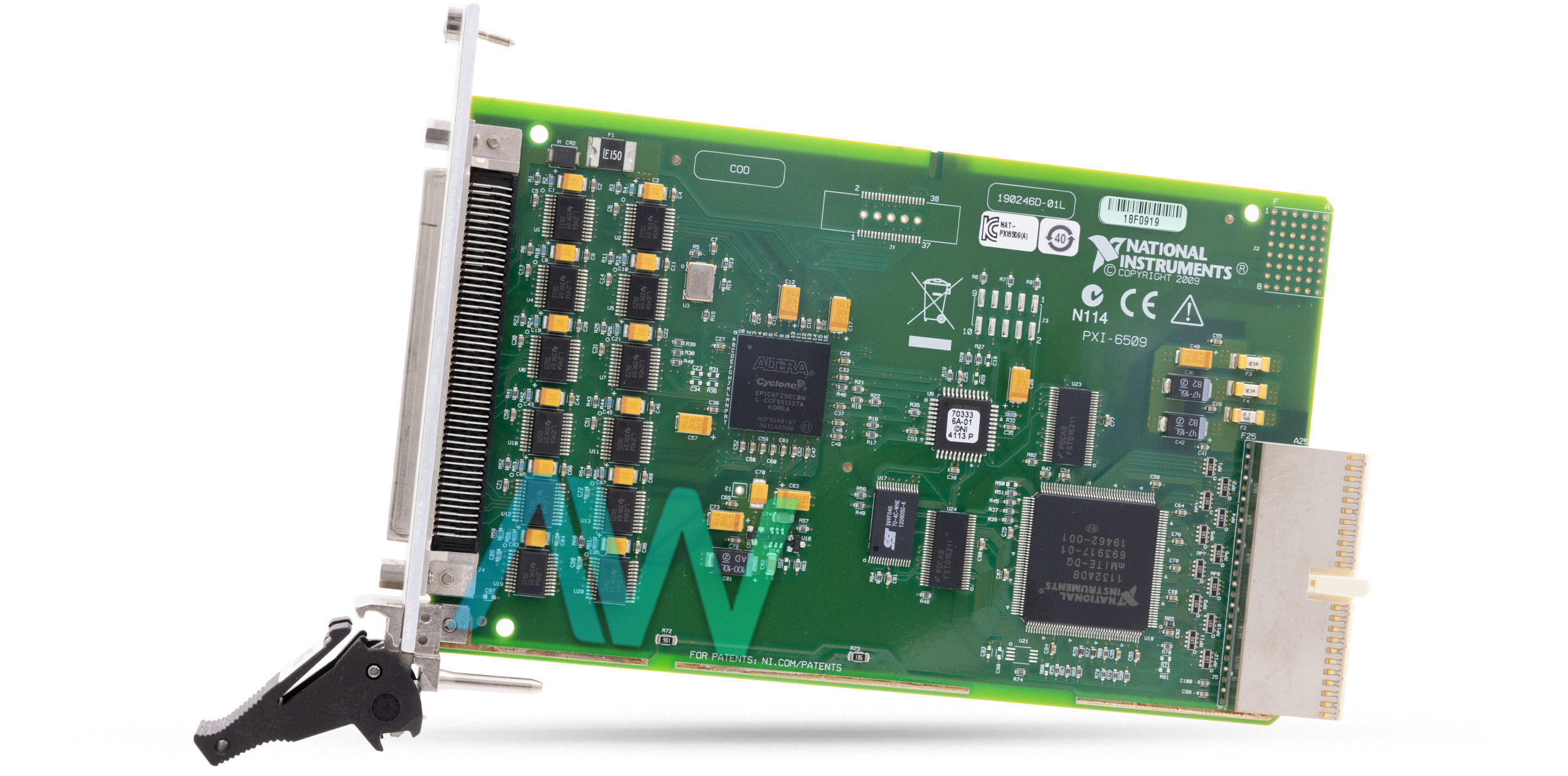

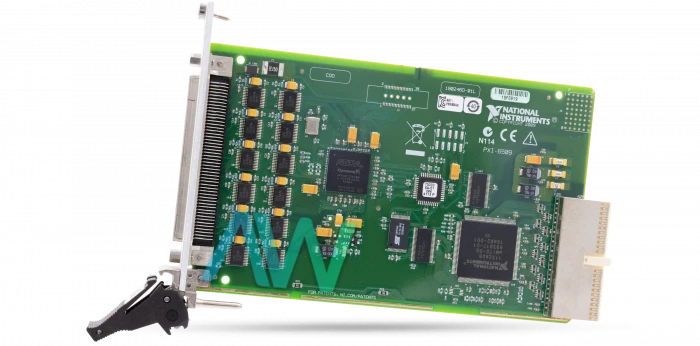

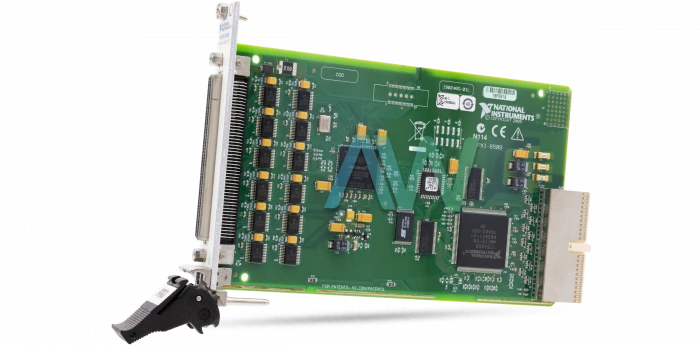

National Instruments PXI-6509 PXI Digital I/O Module

 The PXI-6509 (Part Number: 778858-01) Digital I/O Module by National Instruments has 96 digital I/O lines, single-ended signaling, 0 V to 5 V output voltage range, and 5 V digital I/O logic levels. Each of the 96 DIO lines can be utilized as a static digital input (DI) or digital output (DO) line. A few of the digital output applications for the PXI-6509 include: driving external models and transporting TTL signals. Several of the digital input applications for the NI PXI-6509 are sensing external models and receiving TTL signals.

The PXI-6509 Digital I/O Module comes equipped with a watchdog timer, digital filtering, change detection, and various other features. Digital filtering can be implemented to eradicate errors on input information. If this feature is used with change detection, then digital filtering can additionally decrease the amount of modifications to assess and process. Digital filtering is permitted on however many input lines are required for the user’s application. The timing interval range for these lines is from 400 ns to 200 ms. When utilizing the change detection feature, it is important to recognize that a high number of change detections can decrease the system’s performance levels. Therefore, digital filtering can be utilized to reduce the noisy input lines.

The NI PXI-6509 Digital I/O Module can only be operated with shielded cables and accessories. These include an SCB-100 connector block, CB-50 connector block, and CB-50LP connector block. These cables and accessories guarantee the PXI-6509 will comply with the EMC standards specified in the PXI-6509 user manual.

ModelPXI-6509 (778858-01)
ManufacturerNational Instruments
SeriesDIO Series
TypePXI Digital I/O Module
Digital Channels96
Digital Input Voltage Range-0.5 V to 5.5 V
Dimensions6.3 in. × 3.9 in.
Weight6.1 oz.
WarrantyOne Year Warranty
PXI-6509 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments PXI-6509 (778858-01) Frequently Asked Questions



Question: Can the PXI-6509 output LVTTL logic?



Answer: No, the PXI-6509 is not created for LVTTL.



Question: Which driver software should I use for the NI PXI-6509?



Answer: The NI PXI-6509 driver software is NI-DAQmx 7.1 or later.



Question: How do I clean the PXI-6509?



Answer: The best way to clean the PXI-6509 is with a soft, nonmetallic brush. Ensure the DIO device is completely dry and free from contaminants prior to operating it again.



Question: What type of signals does the PXI-6509 have?



Answer: The PXI-6509 has single-ended signals.



Question: Where can I find the PXI-6509 pinout?



Answer: The PXI-6509 pinout is available in the PXI-6509 user manual.
