PCI-4472 In Stock | Ships Today
PCI-4472, 8-Input, 110 dB, Sound and Vibration DSA Device
Need an Official Quote?

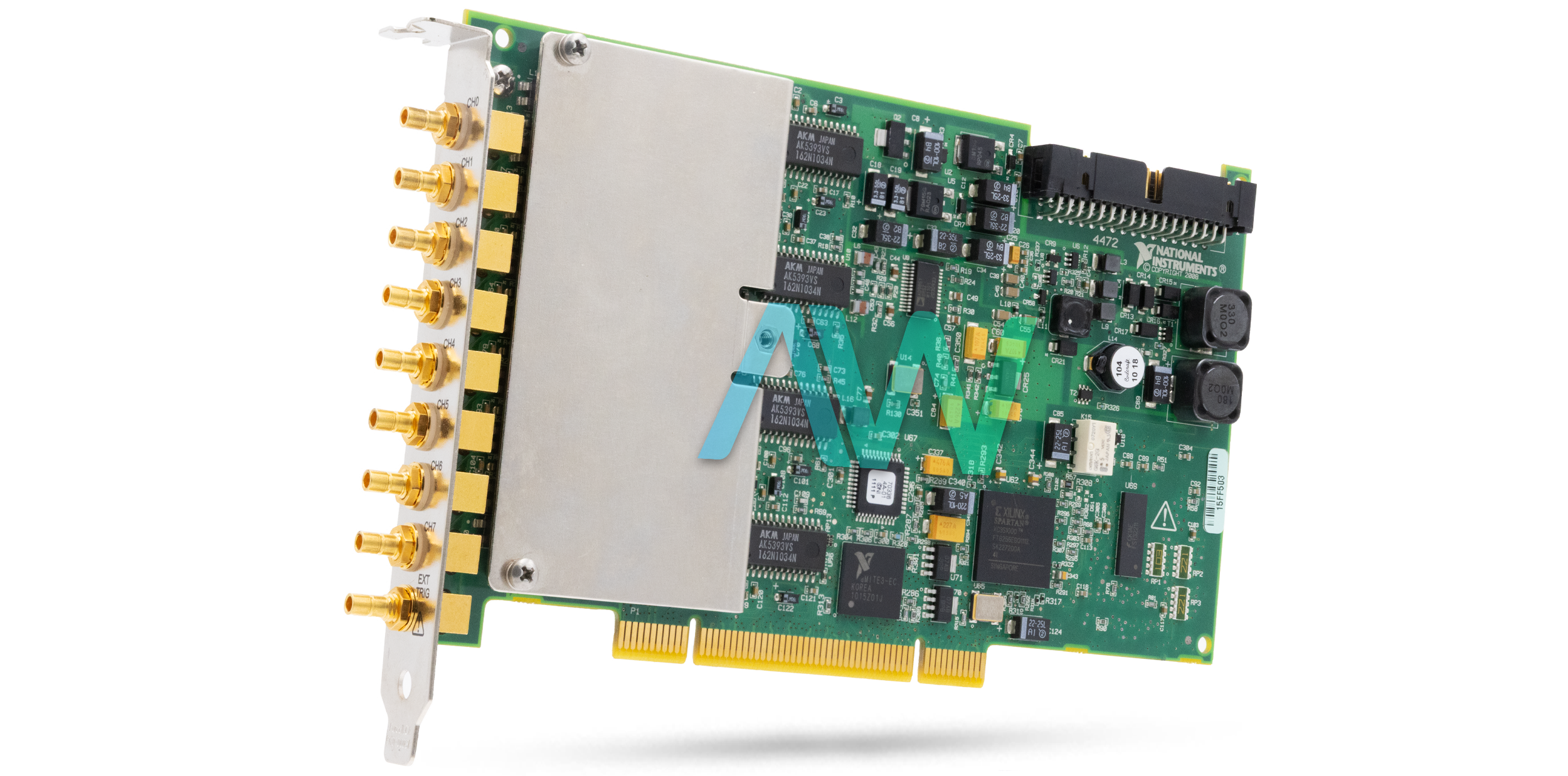

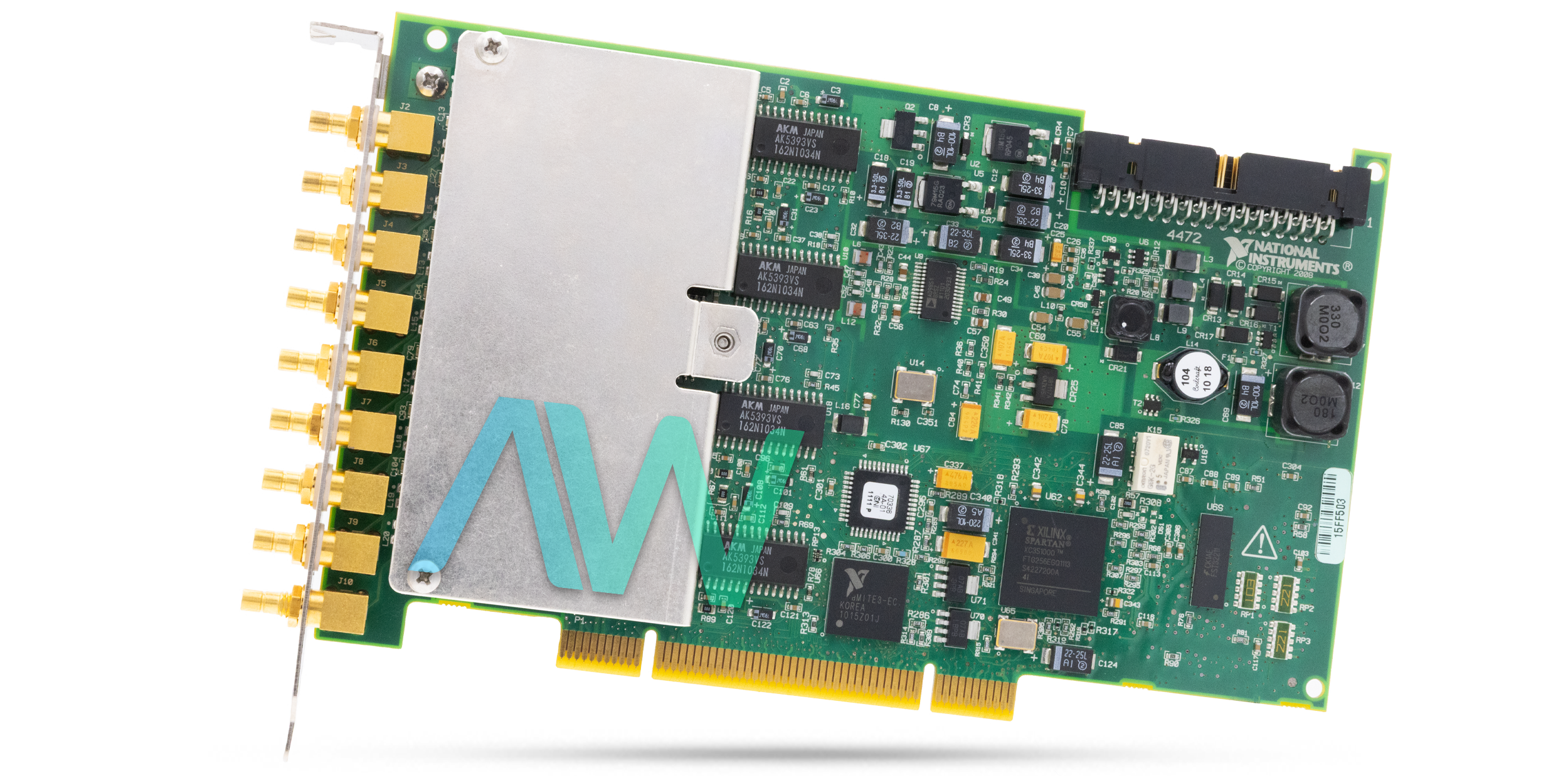

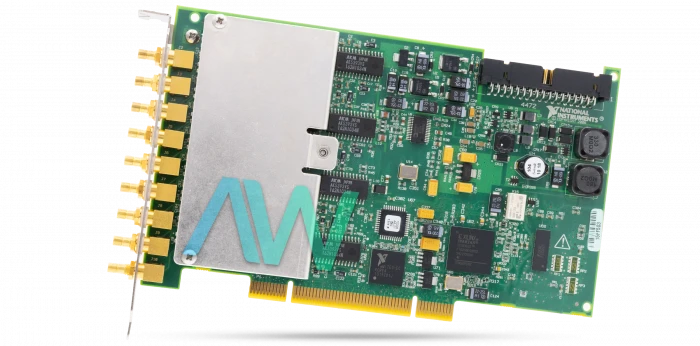

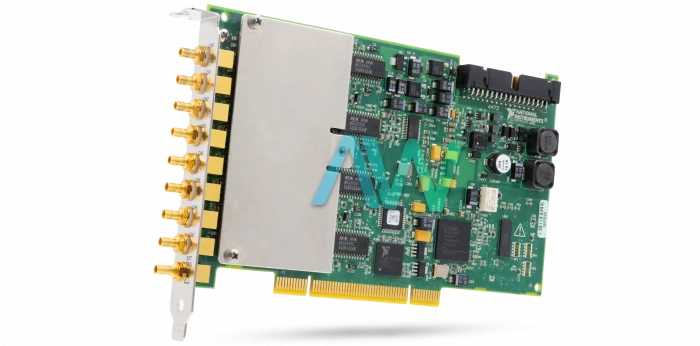

National Instruments PCI-4472 Sound and Vibration Device
The National Instruments PCI‑4472 (Part Number: 778348-01, 187611F-02 ) device offers both simple and computerized activating for signal obtaining. This 8-Channel Sound and Vibration Device can be utilized for several applications, including: pass-by noise, noise and vibration diagnostics, structural vibration, audio test and measurement, telecommunications testing, sound power, and machine condition monitoring. This device has a 5 VTTL/CMOS-compatible outer computerized trigger that is enacted by a decision of incrementing or minimizing edge. Activating is necessary in applications that procure transient signals. The NI PCI-4472 Sound and Vibration Device can be synchronized with several NI-447x devices for high-channel-count applications. When this device is utilized with the Sound and Vibration Toolkit or other software analysis tools, the PCI-4472 can attain many types of precise time and frequency measurements for the user’s application.
The National Instruments PCI-4472 Sound and Vibration Device has two trigger modes for obtaining signals: pretrigger and posttrigger mode. Pretrigger mode digitizes signals prior to and after a trigger condition takes place. However, posttrigger mode digitizes signals after a trigger condition takes place. An installed exactness voltage reference guarantees that the gain and balance stay steady and precise. The NI PCI 4472 utilizes NI estimation administrations programming, in view of the equipment and OS interface from the NI-DAQmx driver. By utilizing NI-DAQmx function calls, the user can fabricate computerized test frameworks or coordinate a NI PCI‑4472 with other types of equipment, including measured instruments and multifunction information procurement items. NI estimation administrations programming also incorporates DAQ Assistant, an intelligent guide that guides the user through arranging, analysis, and software design estimation assignments and creates the vital code consequently for National Instruments applications.
PCI-4472 Mature Status has been announced by National Instruments, but the device will still be available for purchase and repairs by Apex Waves.
Model | PCI-4472 |
---|---|
Manufacturer | National Instruments |
Part Number | 778348-01, 187611F-02 |
HTS Code | 8471804000 |
Type | Sound and Vibration Device |
Differential Analog Input Channels | 8 |
Maximum Sample Rate | 102.4 kS/s |
Analog Input Coupling | AC/DC |
Dimensions | 6.9 x 4.2 in. |
Weight | 7 oz. |
Warranty | Three Year Warranty |
PCI-4472 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PCI-4472:
18761.1, 187611-01, 187611C-01, 187611D-01, 187611F-01, 187611F-02, 187611G-01, 187611H-01, 187611J-01L, 187611K-01L, 187611L-01L, 187611M-01L, 778348-01, 778663-01
Associated NSNs for the PCI-4472:
5998-01-591-2138 (5998015912138), 5998015912138, 5998-01-591-2138 (5998015912138)
National Instruments PCI-4472 Frequently Asked Questions
Question: Which type of front connector does the PCI-4472 have?
Answer: The PCI-4472 has an SMB front connector.
Question: What is the FIFO buffer size of the NI PCI-4472?
Answer: The NI PCI-4472 has a FIFO buffer size of 1,023 samples.
Question: What is the high pass filter cutoff frequency for the PCI-4472?
Answer: The high pass filter cutoff frequency for the PCI-4472 is 3.4 Hz.
Question: When using the NI PCI-4472, how can I reduce noise?
Answer: When using the NI PCI-4472, the user can reduce noise and guarantee more precise measurements by not letting the connector shells of the BNC cables, SMB cables, or SMB-to-BNC adapters to touch each other, the PXI or CompactPCI chassis and controller, or the PCI-bus computer.
PCI-4472 PDF Manuals
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
GUIDE D_INITIATION DAQ POUR PCI PCI EXPRESS.PDF
MAINTAIN FORCED AIR COOLING NOTE TO USERS.PDF
NI 4472 4472B 4474 LETTER OF VOLATILITY.PDF
NI 447X CALIBRATION PROCEDURE.PDF
NI DYNAMIC SIGNAL ACQUISITION USER MANUAL.PDF
PXI SOUND AND VIBRATION MODULES.PDF
C3A0 LIRE EN PREMIER GUIDE DE28099INSTALLATION DE NI DAQMX ET DES PC3A9RIPHC3A9RIQUES DAQ.PDF
