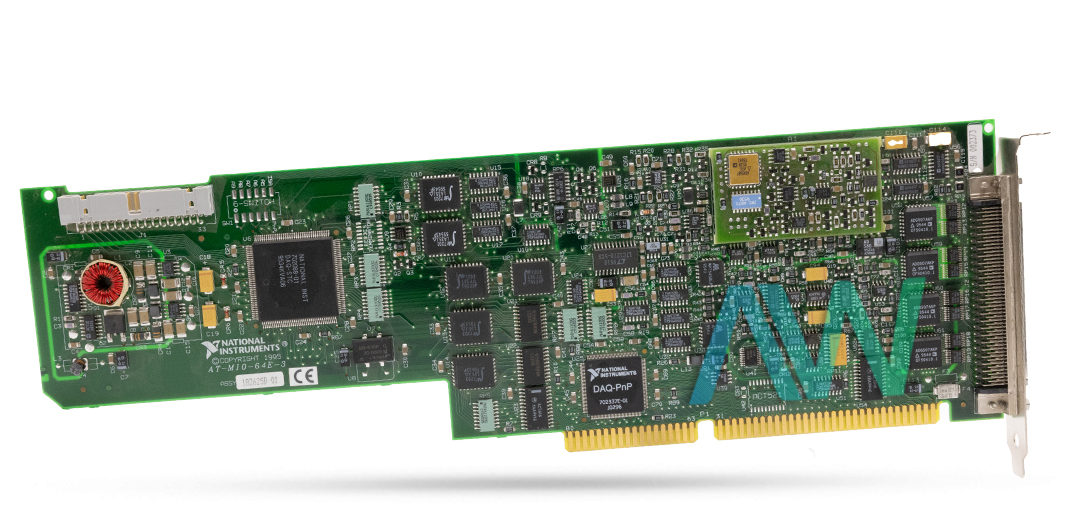

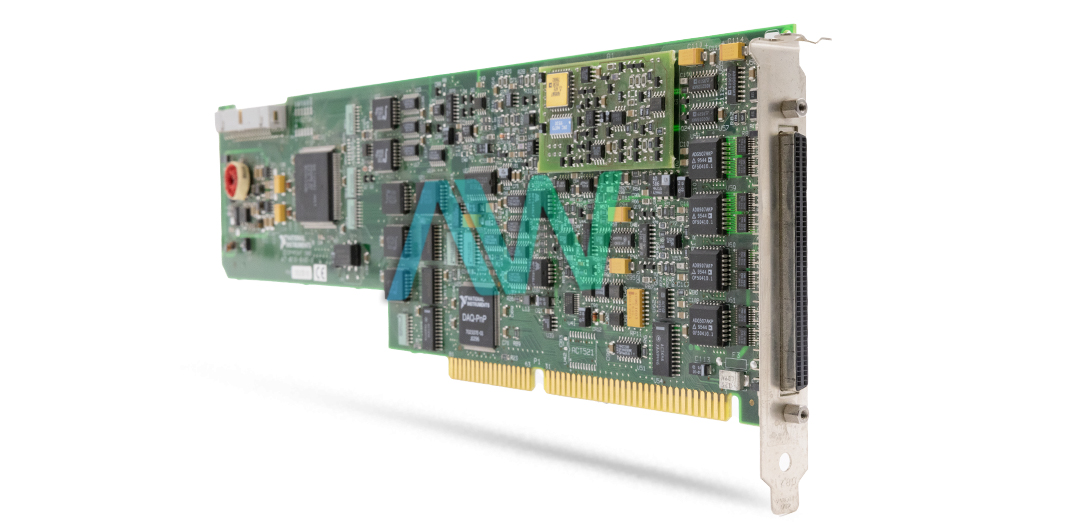

National Instruments AT-MIO-64E-3 Multifunction DAQ
The AT-MIO-64E-3 (Part Number: 776911-01) is a Multifunction Data Acquisition Device designed by National Instruments. The AT-MIO-64E-3 is a member of the 6061E family of DAQ cards. The AT-MIO-64E-3 offers high performance DAQ capabilities for NI E Series devices with SCXI or SCC signal conditioning. Multiple types of application software like LabVIEW, LabWindows/CVI, Measurement Studio, and VI Logger are available for AT-MIO-64E-3 installation. Traditional NI-DAQ driver software can be utilized with the AT-MIO-64E-3 DAQ. This Multifunction DAQ is operated on Windows 2000/NT/Me/9x operating systems.
The NI AT-MIO-64E-3 has a sampling rate up to 333 kS/s. The AT-MIO-64E-3 is prepared with 64 single-ended or 32 differential analog inputs. This Multifunction DAQ comes with valuable features like analog and digital triggering capabilities. The AT-MIO-64E-3 comes with two 12-bits analog outputs, ±0.05 to ±10 V input voltage range, and ±10V output range. Both channel streams (analog inputs and analog outputs) use 12-bits resolution. The NI device has an input impedance of 100 GΩ when powered on, and 820 Ω min when powered off. It has a power requirement of +5 VDC at 1 A, and the power available at the I/O connector is +4.65 VDC to +5.25 VDC at 1 A.
The AT-MIO-64E-3 provides 500 kS/s input sampling rate for one channel and 333 kS/s for multiple channels. The output rate for this device is 1 MS/s. This Multifunction DAQ is equipped with 8 input/output TTL digital lines and two 24-bit counter/timers. It has a 100-pin female 0.050 D-type I/O connector. The industry-standard architecture (ISA) bus type is used for connections to the AT-MIO-64E-3. The NI AT-MIO-64E-3 should be NIST-calibrated a minimum of once a year to maintain the specifications described in the user manual, and has a recommended warm-up time of 15 minutes..
The NI device measures 13.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0° to 55°C, a storage temperature range of -55° to 150° C, and a non-condensing relative humidity range of 5% to 90%.
AT-MIO-64E-3 Obsolete Status has been announced by National Instruments, but the multifunction DAQ will still be available for purchase and repairs by Apex Waves.
| Model | AT-MIO-64E-3 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 776911-01 |
| Series | AT-MIO/AI E Series |
| Type | Multifunction I/O Device |
| Analog Input Channels | 64 single-ended or 32 differential |
| Analog Outputs | 2 |
| FIFO Buffer Size | 2,048 samples |
| RTSI Trigger Lines | 7 |
| I/O Connector | 100-pin female 0.050 D-type |
| Dimensions | 13.3 by 3.9 in. |
| Warranty | Three Year Warranty |
| AT-MIO-64E-3 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the AT-MIO-64E-3:
18262.5, 182625-01, 182625C-01, 182625D-01, 182625F-01, 182626C-01, 182627C-01, 776911-00, 776911-01, 776911-03
Associated NSNs for the AT-MIO-64E-3:
5998-01-455-3184 (5998014553184)
National Instruments AT-MIO-64E-3 Frequently Asked Questions
Question: Which accessories can be used with the NI AT-MIO-64E-3?
Answer: The Type SH100100 (Part Number: 182853-01) Shielded Cable Assembly, 1 m. 100-pin to 100-pin shielded cable and the SCB-100 (Part Number: 776990-01) Noise Rejecting, Shielded I/O Connector Block are two accessories that can be used with the NI AT-MIO-64E-3.
Question: I’m trying to read something higher than channel 7 on my AT-MIO-64E-3 Multifunction DAQ, but I am getting error -10007. How do I resolve this problem?
Answer: E Series Multifunction DAQ boards such as the AT-MIO-64E-3 group channels in sets of 8 when they are utilized in differential mode. Therefore, valid channel groups are 0-7, 16-23, etc. The other channels reference the negative differential input, so they are not valid measurement channels. Try removing the AT-MIO-64E-3 from your PC and re-inserting it. The configuration settings in NI-MAX may also need to be changed.
Question: Is there a way I can adjust the timebase on the NI AT-MIO-64E-3? I’m getting a reading of 4.999344MHz and the lower tolerance is 4.9995.
Answer: No, there is not a way to programmatically adjust the timebase on the NI AT-MIO-64E-3. The best option is to send the Multifunction DAQ in for repair.
AT-MIO-64E-3 PDF Manuals
ARCHIVED AT E SERIES USER MANUAL.PDF
ARCHIVED AT MIO E SERIES REGISTER LEVEL PROGRAMMER MANUAL.PDF
ARCHIVED E SERIES CALIBRATION PROCEDURE FOR TRADITIONAL NI DAQ 5BLEGACY5D .PDF
ARCHIVED ER 8 16 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED GETTING RESULTS WITH COMPONENT WORKS.PDF
ARCHIVED GETTING RESULTS WITH COMPONENTWORKS.PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED LABVIEW FUNCTION AND VI REFERENCE MANUAL.PDF
ARCHIVED LOOKOUT OBJECT REFERENCE MANUAL.PDF
ARCHIVED LOOKOUT REFERENCE MANUAL.PDF
ARCHIVED MEASURE DATA ACQUISITION USER MANUAL.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED NOTE TO USERS DISCONTINUATION OF THE AT MIO 64F 5.PDF
ARCHIVED NOTE TO USERS WARNING MAXIMUM SIGNAL RATINGS FOR MIO AI E SERIES BOARDS.PDF
ARCHIVED RELEASE NOTES USING YOUR NI DAQ SOFTWARE WITH YOUR VXI DAQ MODULE.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
