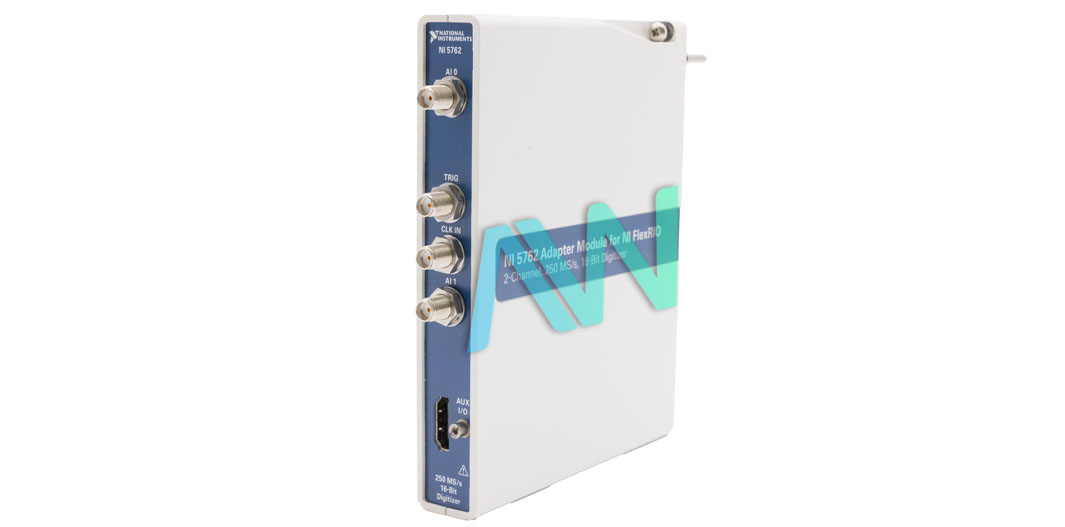

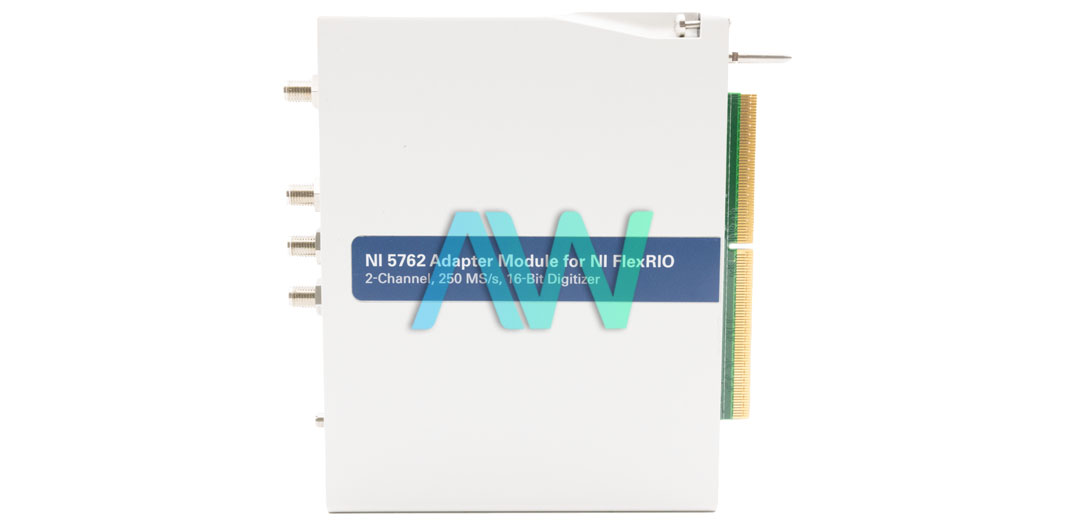

National Instruments NI-5762 Digitizer Adapter Module for FlexRIO

The National Instruments NI-5762 is a 2-Channel, 100 MHz Bandwidth, 16-Bit Resolution, Digitizer Adapter Module for FlexRIO based systems. When coupled with a compatible PXI FPGA Module, the NI-5762 works as a high-speed digitizer that can sample up to two channels at 250 MS/s simultaneously, with options for an unfiltered path or 100 MHz of analog bandwidth. This module is available in two variations: one with -0.95 V to 0.95 V analog input voltage range (Part Number: 781749-02) and another version with -1 V to 1 V analog input voltage range (Part number: 781749-01). Both versions have AC input coupling and are fully compatible with Kintex-7 and Virtex-5 FPGAs.

This Digitizer Adapter Module comes with a 100 MHz elliptic filter. The front panel of this device has 2 analog input connectors (SMA type), 1 external trigger input connector (SMA type), 1 CLK IN connector (SMA type, for external or reference input), and 1 AUX I/O connector (HDMI type).

For HDL IP integration, the NI 5762 module is offered with a feature called CLIP. This model supports two types of CLIP: socketed and user-defined. In its standard packaging, this module comes with socketed CLIP items and users can utilize those items to add module I/O to their LabVIEW project. While operating in typical conditions, the National Instruments NI-5762 consume 5.3 watts of power. As far as its physical characteristics are concerned, this module weighs around 332 g. and has dimensions of 12.9 × 2.0 × 12.1 cm.

ModelNI-5762
ManufacturerNational Instruments
Part Numbers781749-01, 781749-02
TypeDigitizer Adapter Module for FlexRIO
Voltage Input Channels2
Maximum Sample Rate250 MS/s
Analog Input Resolution16 bits
Dimensions5.1 x 0.8 x 4.7 in.
Weight11.7 oz.
WarrantyOne Year Warranty
NI-5762 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

National Instruments NI-5762 Frequently Asked Questions



Question: What are the differences between the two part numbers for the NI-5762?



Answer: Part number 781749-01 for the NI-5762 has an analog input voltage range of -1 V to 1 V and a 100 MHz elliptic filter, while part number 781749-02 has an analog input voltage range of -0.95 V to 0.95 V and is well-suited for undersampling applications.



Question: What type of front panel connectors does the NI 5762 have?



Answer: The NI 5762 has SMA and HDMI front panel connectors.



Question: How many bidirectional digital I/O channels does the NI-5762 have?



Answer: The NI-5762 has 12 bidirectional digital I/O channels.



Question: Does the NI 5762 require any additional models or accessories to operate?



Answer: The NI 5762 needs an NI FlexRIO FGA module.
