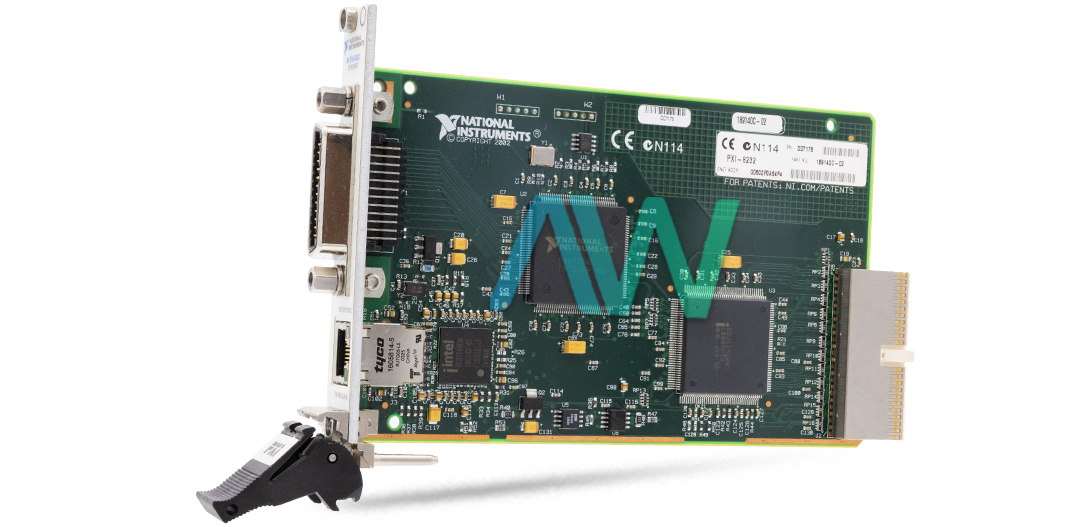

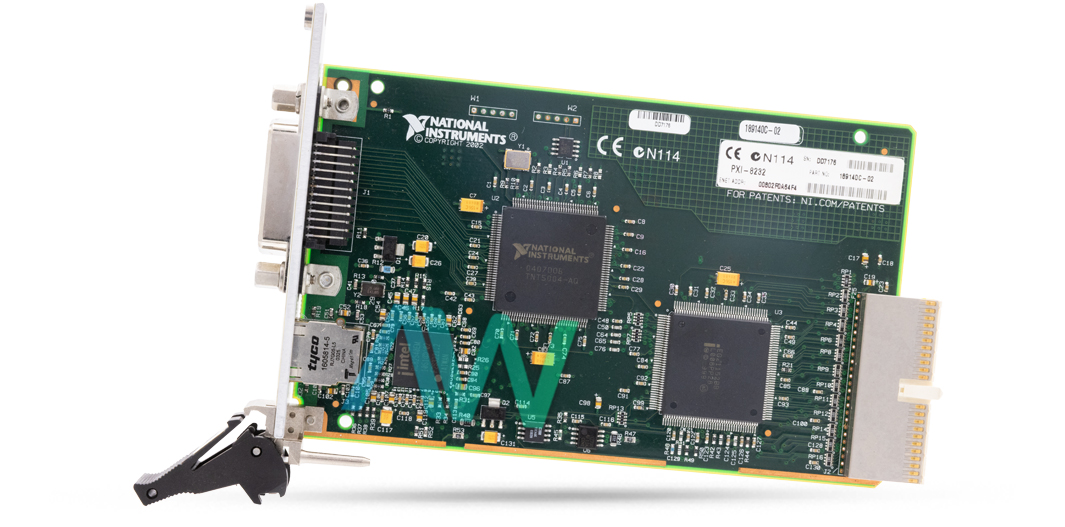

National Instruments 781753-01 PXI GPIB Instrument Control Module.

The part number 781753-01 from National Instruments is the identifying part number for the PXI-8232 PXI GPIB Instrument Control Module. This control module is designed to be compatible with the PXI controller series allowing for smooth and high-speed data transfer and communication. The module supports the 10Base-T, 100Base-TX, and 1000Base-T ethernet interfaces providing data transferring speeds of up to 1000 Mbps. To debug errors and notify breakdowns in the 781753-01, this module features an LED indicator connected to the RJ-45 connector allowing users to quickly fix errors.

The 781753-01 also features a high-speed GPIB interface and supports the 3-wire GPIB protocol that uses the IEEE- 488 cable. This 3-wire protocol allows for data transfer rates of up to 1536 kilobytes per second while when using the HS488 protocol the data transfer speeds can be further increased to 7885 kilobytes per second. The high-speed communication feature in this module makes this control module an ideal candidate for data acquisition in industrial setups.

To operate the 781753-01 module, it requires a supply voltage of +3.3 volts DC and draws a current of 910 mA with a total power consumption of 3 Watts. This module has a compact design with dimensions of 10 cm width by 16 cm length and weighs approximately 140 grams making it light and portable. The module is designed to fit in a standard 3U PXI slot making it compatible with the PXI design standard. To operate the 781753-01 it is recommended to use it in an environment with an ambient temperature between 0 °C to 55 °C with a humidity range between 10% to 90% and a storage temperature between  -40 °C to 70 °C with humidity levels of 5% to 95%.

The 781753-01 Instrument Control Module supports the Windows operating systems back to Windows 98 edition. The module is compatible with software such as LabVIEW, LabWindows/CVI, and Measurement Studio for Microsoft Visual Studio allowing the user to control and configure this control module. The 781753-01 control module also comes with the NI-488.2 driver which provides the necessary firmware updates to use the module.
