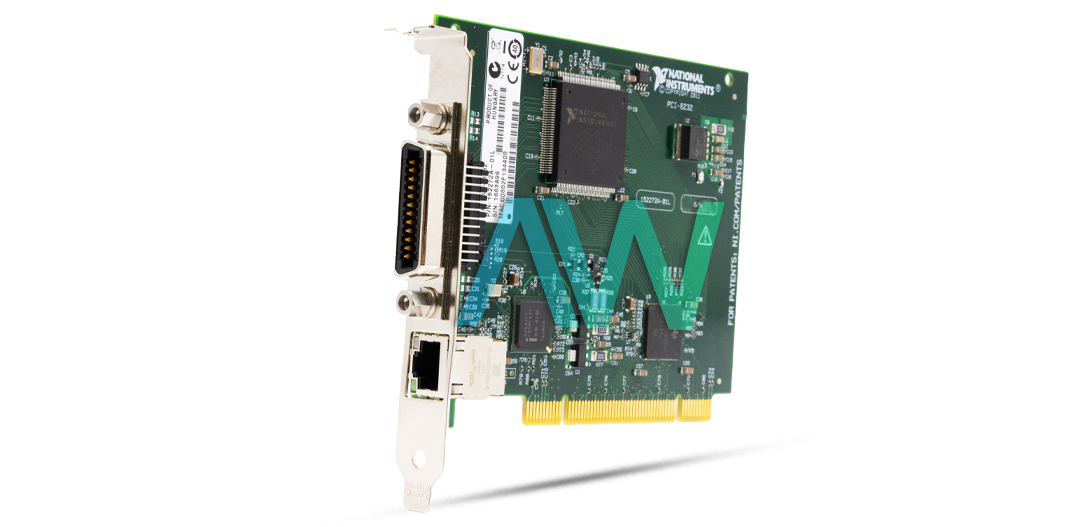

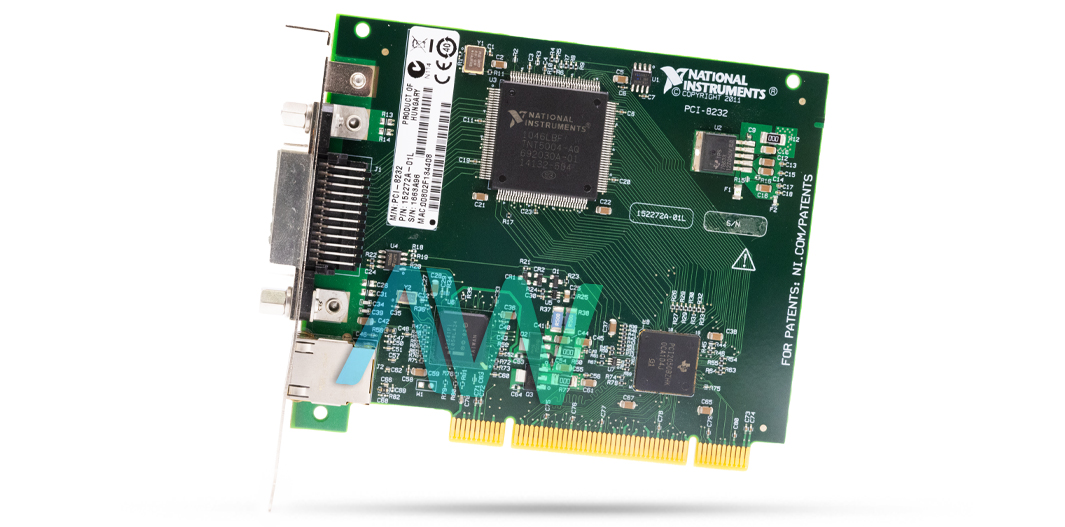

National Instruments PCI-8232 GPIB Control Module

The PCI-8232 GPIB Controller and Gigabit Ethernet Port Module by National Instruments adds an IEEE 488 interface within the one-slot PCI board, which saves the user a slot in their PC. This GPIB Control Module is compatible with 10BASE-T and 100BASE-TX Fast Ethernet networks. The PCI-8232 has two part numbers: the PCI-8232 for Windows Vista/XP/2000 (Part number: 778742-01) and the PCI-8232 for Windows Me/98/NT (Part number: 778743-01).

The NI PCI-8232 can be operated when the user is required to control GPIB instruments and add a network connection to their system. The Gigabit Ethernet interface on the PCI-8232 has transfer rates of 1,000 Mbits/s maximum (1000BASE-T), NI-488.2 driver software for Windows, and is fully compatible with IEEE 488. The interfaces on the GPIB Control Module will automatically connect at the highest possible speed and can sustain the optimum performance even as the user’s network conditions change. Additionally, the Ethernet Controller will enhance the performance of challenging desktop applications through the duplex feature. Furthermore, the NI PCI-8232 has Auto-MDI negotiation, which enables the Ethernet port to connect via crossover and straight-through cables.

The National Instruments PCI-8232 GPIB Control Module software and hardware delivers optimum performance, regardless of the size of the data block. Data transfer rates are based on the host computer, system configuration, operating system, and device capability. The types of software recommended for use with the PCI-8232 include: NI LabWindows/CVI for Windows, NI Measurement Studio Professional Edition, and LabVIEW Professional Development System for Windows. Each of these software tools are meant for large project creation.

ModelPCI-8232 (778742-01, 778743-01)
ManufacturerNational Instruments
TypeGPIB Control Module
Sampling Rate20 MHz
Timestamp Resolution50 ns
I/O ConnectorsGPIB: IEEE 488 standard 24-pin; Ethernet: RJ45
Dimensions4.72 x 2.54 in.
Warranty2-3 Year Warranty
PCI-8232 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PCI-8232:

152272A-01L, 189761A-01, 189761B-01L, 778742-01, 778743-01


Associated NSNs for the PCI-8232:

5998-01-588-5992 (5998015885992)

National Instruments PCI-8232 Frequently Asked Questions



Question: What are the power requirements for the PCI-8232?



Answer: The PCI-8232 power requirements are 4.4 W typical, 5.8 W maximum, +5 VDC.



Question: What is the maximum IEEE 488 bus transfer rate for the NI PCI-8232?



Answer: The NI PCI-8232 has a maximum IEEE 488 bus transfer rate of 1.5 MB/s for the interlocked handshake and 7.7 MB/s for the noninterlocked (HS488) handshake.



Question: Which driver software should be used with the PCI-8232?



Answer: The NI-488.2 software and the GPIB analyzer software are the driver software types meant for the PCI-8232.



Question: What type of Ethernet port does the NI PCI-8232 have?



Answer: The NI PCI-8232 has an Intel 10/100/1000BASE-T Ethernet port.

  PCI-8232 PDF Manuals

Driver Downloads for PCI-8232






OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit

 Download Version
