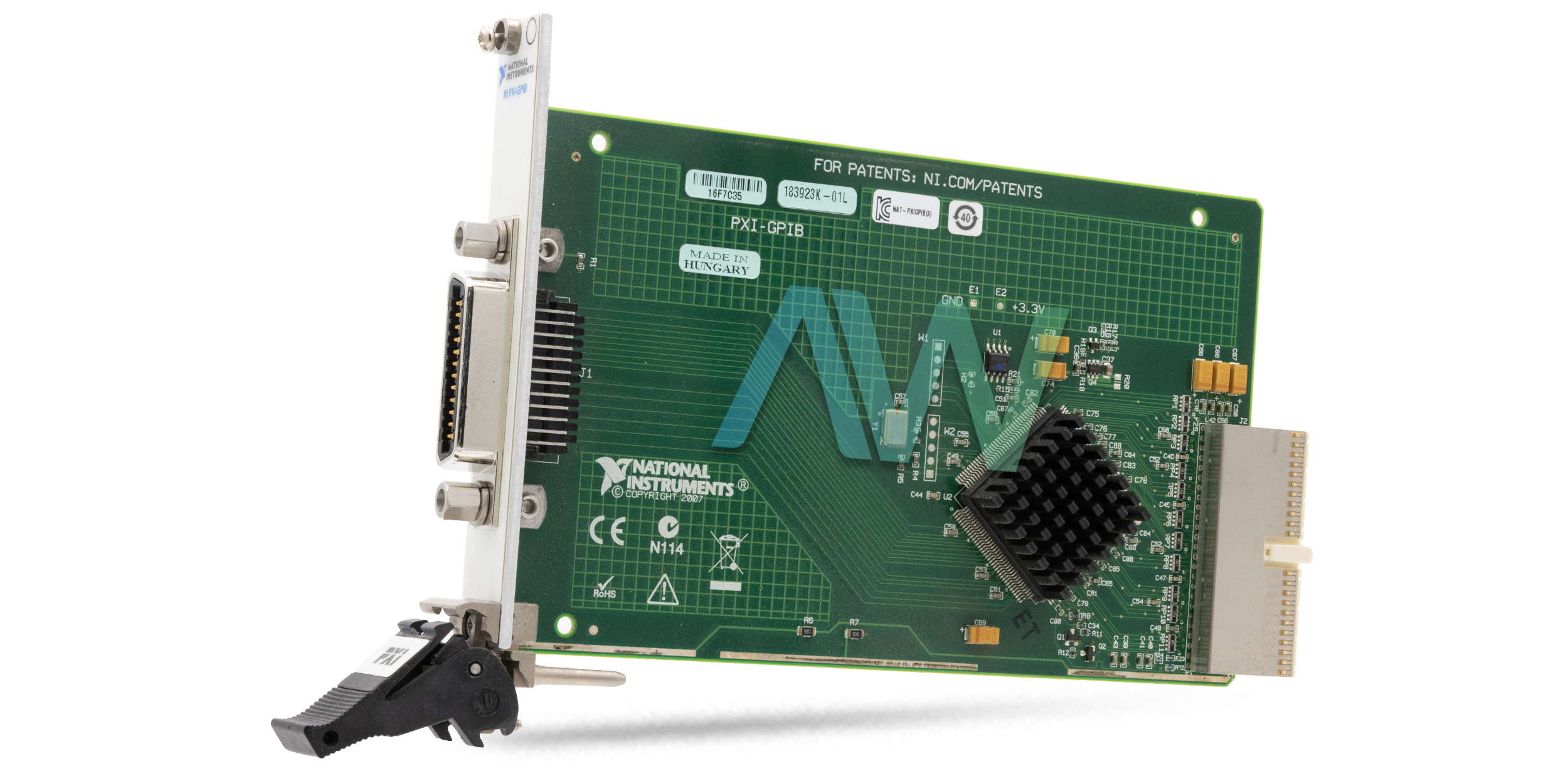

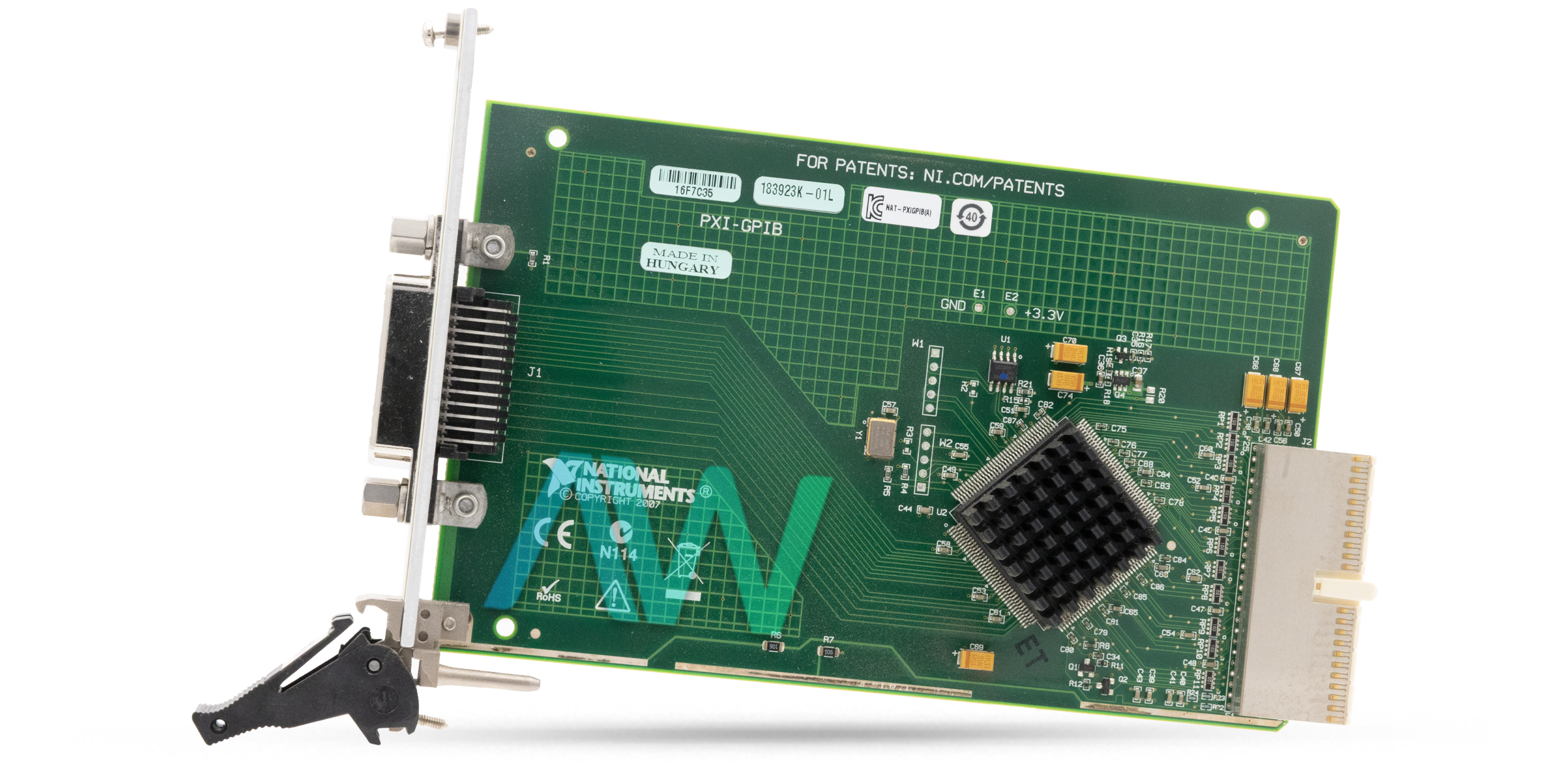

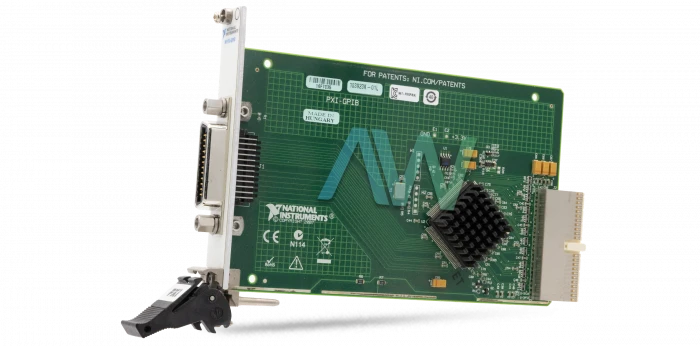

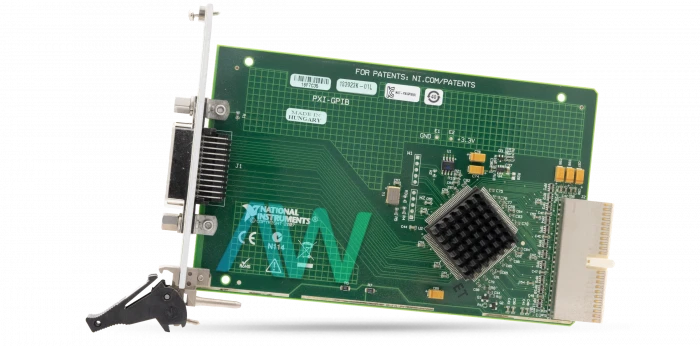

National Instruments PXI-GPIB PXI GPIB Instrument Control Module

The PXI-GPIB (Part Number: 778039-01) is an IEEE 488 Control Module for PXI frameworks. This module can be used to integrate non-PXI instruments into a PXI framework by utilizing GPIB. This PXI GPIB Instrument Control Module accomplishes high IEEE 488.2 transfer speeds. This module incorporates a license for the NI-488.2 driver programming, which gives maximum reliability to associate with outsider instruments with GPIB.

The NI PXI-GPIB with NI-488.2 utilizes HS488, a fast GPIB protocol patented by National Instruments and endorsed by the IEEE in ANSI/IEEE Standard 488.1-2003. HS488 expands the greatest information exchange rate of ANSI/IEEE Standard 488.1-1987 to 8 MB/s and is a superset of the IEEE 488.1 protocol that endeavors to direct information exchanges with the new rapid non-interlocked handshake. If any active listener is not capable of HS488 transfers, the protocol naturally utilizes the IEEE 488.1 three-wire interlocked handshake protocol. Maximum data transfer rates obtainable utilizing HS488 rely upon the host computer architecture and framework arrangement. The NI PXI-GPIB has transfer rates of more than 7.7 MB/s. The device has a 3-wire performance of up to 1536 kbytes per second, and a HS488 performance of 7885 kbytes/s maximum. It is equipped with an IEEE 488 standard 24-pin I/O connector.

The PXI-GPIB can be run using the GPIB software which can be programmed using software packages such as Microsoft Visual C/C++, Borland C/C++, and Microsoft Visual Basic. Development time can be greatly sped up using APIs such as LabWindows/CVI or LabVIEW.

The NI PXI-GPIB Module consolidates a GPIB controller and a Gigabit Ethernet port in a single gadget, adding system usefulness to a GPIB controller. The user can achieve a similar superior GPIB interface and Ethernet interface in one combination gadget while saving a space in their computer or PXI chassis. The device has input power requirements of 600 mA typical and 800 mA maximum at +5 VDC.

The 3U PXI device measures 6.3 x 3.9 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 55 °C and –20 to 70 °C respectively, non-condensing operating and storage humidity ranges of 10 to 90% RH and 5 to 90% RH respectively.

ModelPXI-GPIB
Part Number778039-01
ManufacturerNational Instruments
TypePXI GPIB Instrument Control Module
ConnectorIEEE 488 24-pin
3-wire Performance1536 kbytes/s maximum
HS488 Performance7885 kbytes/s maximum
Size3U
Dimensions6.3 x 3.9 in.
WarrantyThree Year Warranty
PXI-GPIB ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for the PXI-GPIB:

18392.3, 183923A-01, 183923B-01, 183923C-01, 183923D-01, 183923F-01, 183923G-01, 183923H-01, 183923J-01L, 183923K-01L, 183923L-01L, 777398-01, 777398-0112, 777399-01, 777399-0112, 777431-02, 778039-01, 778039-0112, 778247-01


Associated NSNs for the PXI-GPIB:

5998-01-497-0942 (5998014970942), 5998-01-540-9031 (5998015409031)

National Instruments PXI-GPIB Frequently Asked Questions



Question: Which buses are the PXI-GPIB designed to work with?



Answer: The PXI-GPIB will work with CompactPCI/PXI buses.



Question: What is the maximum number of devices that can be connected to the NI PXI-GPIB?



Answer: The NI PXI-GPIB can be connected to 14 instruments maximum. However, if you require more instruments, an NI GPIB extender can be purchased to add more instruments to the system.



Question: Does the NI-488.2 driver on the PXI-GPIB work with 64-bit Solaris?



Answer: Yes, the NI-488.2 driver on the PXI-GPIB will work with both 32-bit and 64-bit Soalris.



Question: What type of I/O connectors are on the PXI-GPIB module?



Answer: The PXI-GPIB module has IEEE 488 standard 24 pin I/O connectors.
