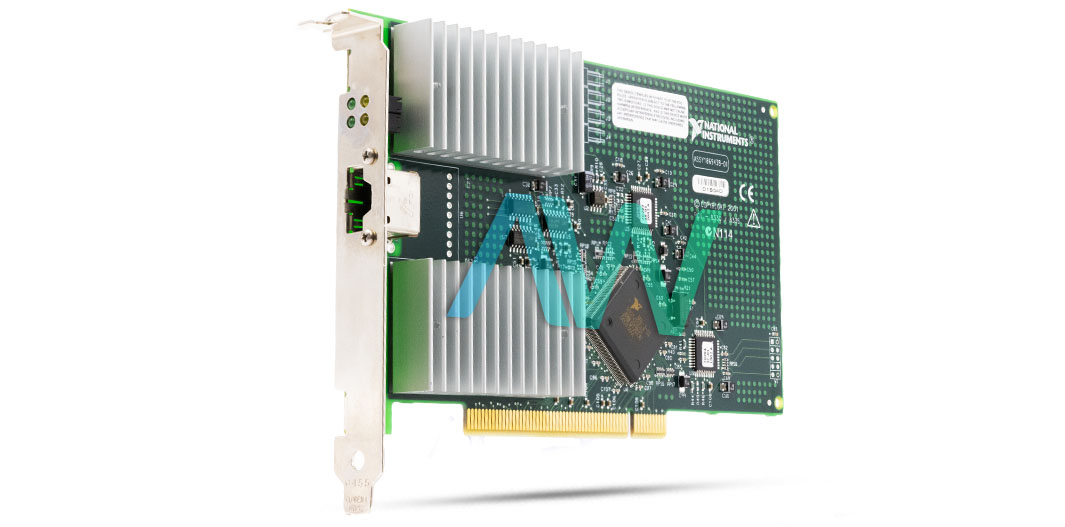

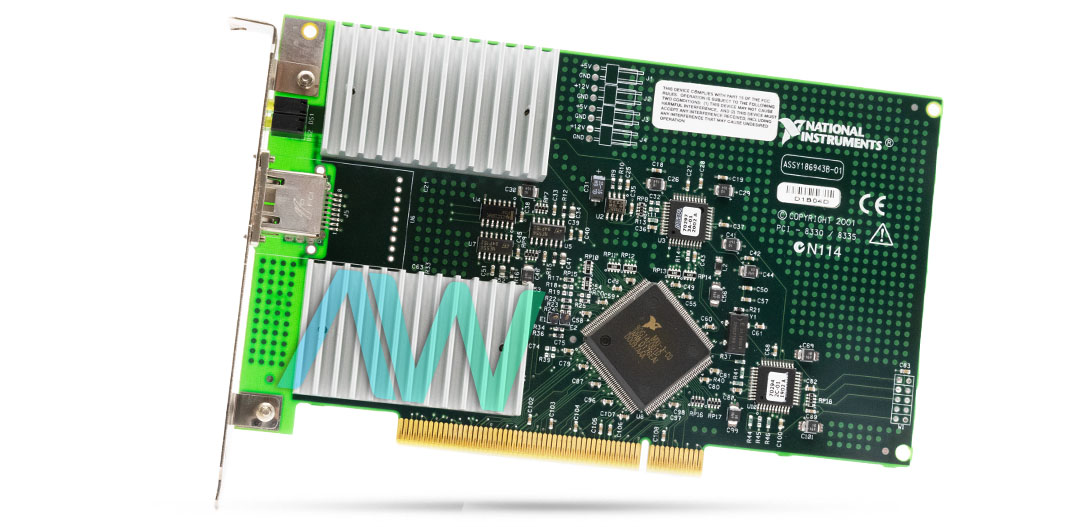

National Instruments PCI-8330 MXI-3 Interface Board
The PCI 8330 (Part numbers: 777944-01, 186943C-01 ) is part of the MXI-3 innovation master/slave framework actualizing the PCI-PCI connect enroll set. It couples two physically isolate buses with either a copper or fiber-optic cable equipped for 1.5 Gbit/s serial information rates. It is possible to utilize MXI-3 to control PCI gadgets on up to 255 buses from any PCI-based framework, as long as the BIOS will support such a setup. The user can utilize either a daisy-chain or a star setup, with the greatest bus-to-bus separation of 10 meters (copper link) or 200 meters (fiber-optic link). Since the MXI-3 framework is a PCI-PCI connect, all gadgets on the framework show up as nearby gadgets in a solitary PCI framework. The user does not have to revamp their gadget drivers for tasks on an MXI-3 framework.
MXI-3 supports and retimes the signals between the buses, keeping up the tight planning and superior PCI requires. The NI PCI 8330 incorporates a setup program for Microsoft Windows working frameworks. The setup program works in a similar way for Windows 2000/NT4/9x. Clients of other working frameworks can disregard this segment. On the opposite side of the framework, the MXI-3 Interface Board gets the information, utilizing rapid photodetectors to change over light signals back to advanced information for the situation where a fiber-optic MXI-3 is utilized. A serial to parallel converter then changes over the advanced serial information to the first 20-bit wide information for the MXI-3 ASIC. MXI-3 then reproduces the PCI exchange with fitting alterations. The device has a maximum of 254 links, a data transfer rate of 132 Mbytes/s at peak performance, and 84 Mbytes per second at sustained performance.
The NI device weighs 0.33 lb, and measures 4.2 x 6.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 50 °C, a storage temperature range of –20 to 70 °C, a non-condensing operating and storage humidity range of 10 to 90% and 5 to 95% respectively.
PCI-8330 Obsolete Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
Model | PCI-8330 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 777944-01, 186943C-01 |
Type | MXI-3 Interface Board |
Maximum Number of Links | 254 (depends on BIOS) |
Maximum Distance | 10 m (Copper Cable) |
Peak Performance | 132 Mbytes/s |
Sustained Performance | 84 Mbytes/s |
Mean Time Between Failures (MTBF) | 1,130,000 hours |
Power Requirements | +5 VDC -- 1.5 A |
Dimensions | 4.2 in. × 6.9 in. |
Weight | 0.33 lb. |
Driver Software | NI-VXI, NI-VISA |
Warranty | Three Year Warranty |
PCI-8330 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PCI-8330:
184693B-01, 184693C-01, 186774A-01, 186943B-01, 186943C-01, 777944-01
National Instruments PCI-8330 MXI-3 Frequently Asked Questions
Question: What are the maximum cable lengths for the PCI-8330?
Answer: The maximum length for copper cables is 10m, and the maximum length for fiber-optic cables is 200m.
Question: What is the difference between the two cable types for the PCI-8330?
Answer: Copper cables interconnect and can span up to 10 meters between systems. Fiber optic cables offer connections up to 200 meters
between systems without the use of repeaters.
Question: What are the operating and storage temperatures for the PCI-8330?
Answer: The operating temperature for the PCI-8330 is 0-50 degrees celsius, while the storage temperature is -20 to 70 degrees celsius
PCI-8330 PDF Manuals
ARCHIVED PXI PCI-8330 SERIES USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED VXI 8340 SERIES USER MANUAL AND SPECIFICATIONS.PDF
NOTE TO USERS MXI EXPRESS SERIES USER MANUAL.PDF
PXI REMOTE CONTROL AND SYSTEM EXPANSION PRODUCT FLYER.PDF
